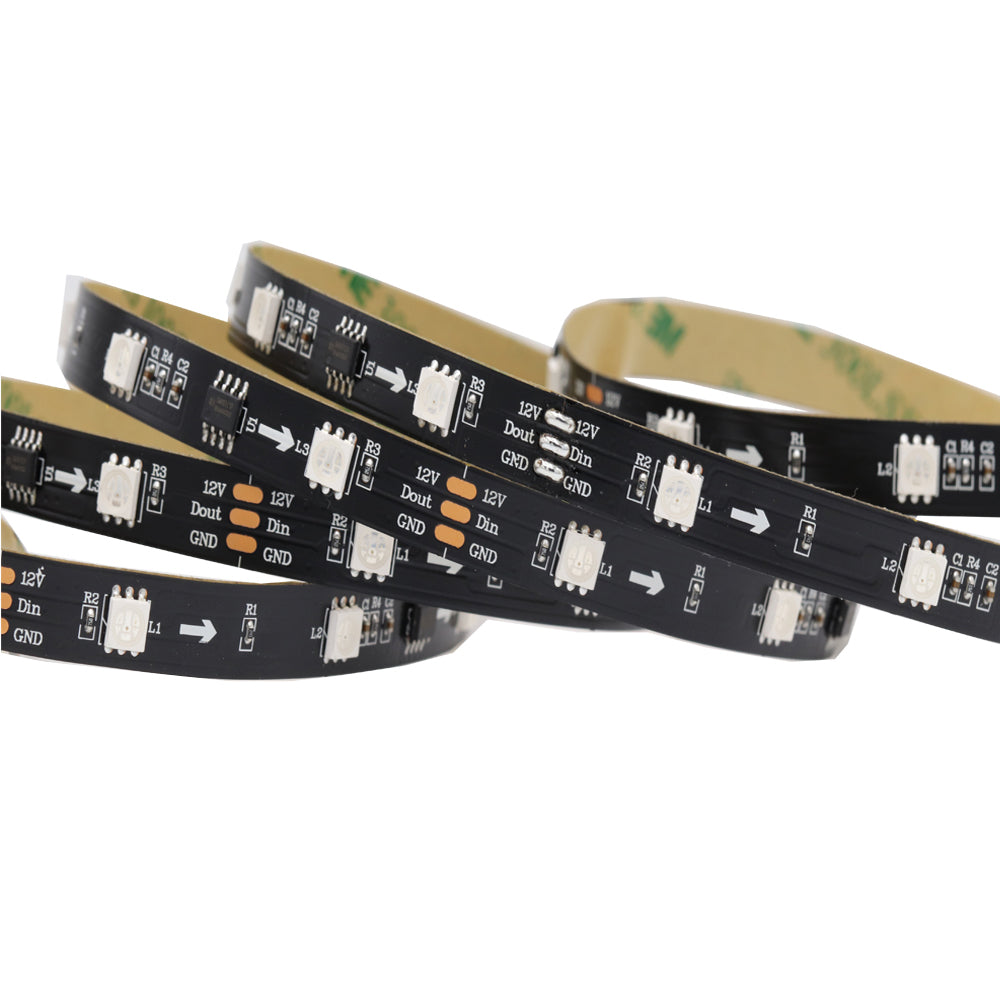

WS2811 LED Pixel addressable strip
Product Description:
The ws2811 LED strip is a relatively cost-effective pixel addressable product currently, controlled by an external IC WS2811. Usually, each IC controls 3 LEDs at 12V voltage, and 6 LEDs at 24V voltage, so the LEDs controlled by each IC can be called a pixel....
Product Description:
The ws2811 LED strip is a relatively cost-effective pixel addressable product currently, controlled by an external IC WS2811. Usually, each IC controls 3 LEDs at 12V voltage, and 6 LEDs at 24V voltage, so the LEDs controlled by each IC can be called a pixel. Each pixel can be addressed individually, making it very flexible in many applications.
The WS2811 LED strip product uses a three-channel controller integrated with a dedicated circuit, built-in MCU digital interface, latch and shaping amplifier circuit, etc. Through zero-return code communication, it can achieve a transmission distance of more than 20 meters between any two points, without the need for a signal amplifier circuit, with 256 levels of grayscale, a scanning frequency of 2.5Khz, and a serial interface design to receive and decode data through signal lines. The RGB LED combination can achieve 16.7 million different changes.
Easton Technology Co., Ltd.'s WS2811 products include 30leds/M, 48leds/M, 60leds/M, 72leds/M, 84leds/M, and 96leds/M. These products are available in 12V and 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
|
|
|
|
|
|
Model：ES-WS2811-30 |
Model：ES-WS2811-48 |
Model：ES-WS2811-60 |
Model：ES-WS2811-72 |
Model：ES-WS2811-84 |
Model：WS2811-96 |
|
Voltage：12V/24V |
Voltage：12V/24V |
Voltage：12V/24V |
Voltage：12V/24V |
Voltage：12V/24V |
Voltage：12V/24V |
|
Power：7.2W/M |
Power：11.5W/M |
Power：14.4W/M |
Power：17W/M |
Power：20W/M |
Power：23W/M |
|
LED QTY：30LEDs/M |
LED QTY：48LEDs/M |
LED QTY：60LEDs/M |
LED QTY：72LEDs/M |
LED QTY：84LEDs/M |
LED QTY：96LEDs/M |
|
Color：RGB/Singe |
Color：RGB/Singe |
Color：RGB/Singe |
Color：RGB/Singe |
Color：RGB/Singe |
Color：RGB/Singe |
|
pcb width：10mm |
pcb width：10mm |
pcb width：10mm |
pcb width：10mm |
pcb width：10mm |
pcb width：12mm |
|
pcb color：Black/White |
pcb color：Black/White |
pcb color：Black/White |
pcb color：Black/White |
pcb color：Black/White |
pcb color：Black/White |
|
Chip：San an/Epistar |
Chip：San an/Epistar |
Chip：San an/Epistar |
Chip：San an/Epistar |
Chip：San an/Epistar |
Chip：San an/Epistar |
|
IC：ws2811/ucs1903/sm16703 |
IC：ws2811/ucs1903/sm16703 |
IC：ws2811/ucs1903/sm16703 |
IC：ws2811/ucs1903/sm16703 |
IC：ws2811/ucs1903/sm6703 |
IC：ws2811/ucs1903/sm16703 |
|
Cutability: 12V 3leds / 24v 6leds |
Cutability: 12V 3leds / 24v 6leds |
Cutability: 12V 3leds / 24v 6leds |
Cutability: 12V 3leds / 24v 6leds |
Cutability: 12V 3leds / 24v 6leds |
Cutability: 12V 3leds / 24v 6leds |
|
Install：3M |
Install：3M |
Install：3M |
Install：3M |
Install：3M |
Install：3M |
|
IP：IP20/IP65/IP67/IP68 |
IP：IP20/IP65/IP67/IP68 |
IP：IP20/IP65/IP67/IP68 |
IP：IP20/IP65/IP67/IP68 |
IP：IP20/IP65/IP67/IP68 |
IP：IP20/IP65/IP67/IP68 |
|
Warranty: 2-3 years |
Warranty: 2-3 years |
Warranty: 2-3 years |
Warranty: 2-3 years |
Warranty: 2-3 years |
Warranty: 2-3 years |
|
Certification：CE Rosh |
Certification：CE Rosh |
Certification：CE Rosh |
Certification：CE Rosh |
Certification：CE Rosh |
Certification：CE Rosh |
Note:
WS2811/UCS1903/SM16703 ICs have the same functions, but they are different brands, but they are all very stable!
WS2811 led strip must be controlled by DC12V/24V power supply and LED controller (need to be determined according to the led strip voltage!
There is a welding point every 0.5 meters, please pay attention!
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
Product parameters:
(1) Working voltage: DC 12V/24V
(2) LED light source: SMD 5050 RGB
(3) LED chip: Jingyuan or Sanan
(4) LED quantity: 30/48/60/72/84/96 LED/M
(5) IC quantity: 10/16/20/32/48 Pcs/M (12V) or 5/8/10/16/24Pcs/M(24V)
(6) Power:7.2/11.5/14.4/17/20/23 W/M
(7) Grayscale: 256 levels/color
(8) Cuttability: 3 LED/cut (12V); 6LED/cut (24V)
(9) Beam angle: 120°
(10) Color modes: 133 patterns and 100 speeds
(11) Dimensions: 5000mm x 10mm x 2.4mm
(12) Packing: 5 meters/roll 12V WS2811 RGB light strip + 3-pin connector
(13) Warranty: 2-3 years
Features:
(1) Flexible PCB (IP20, IP65) with 3M tape on the back for easy installation.
(2) Energy saving and environmental protection.
(3) High brightness 5050 SMD LED light strip.
(4) Solid state, strong resistance to shock or vibration.
(5) Low power consumption, high brightness.
(6) Matching RGB controller and power supply system.
(7) Wide viewing angle.
(8) Available in various single or RGB colors
WS2811 LED strip product details:
WS2811RGB LED light strip product application scenarios:
The purpose of the WS2811 product of Easton Technology Co., Ltd. is to add dreamy colors to the space that requires linear light sources. The products are widely used in festival lighting shows, clothing, game consoles, gaming machines, e-sports equipment, computer cases, and TV backgrounds. Clothing, automobiles, architectural lighting, sign lighting, cabinet and shelf lighting, and decorative lighting for stages, home theaters, wine cellars, cars, bicycles, yachts and cruise ships, etc.
What controllers are suitable for WS2811 LED strip products ：
WS2811 products can achieve different effects through mini three-button controller, RF controller, Bluetooth controller, music controller, programmable controller, online controller, DMX console, Madix, Aduino, etc. : Static, static change, water chase, colorful change, colorful chase, animation, etc.
