Product Description:

SMD3838 dual color LED strip also known as SMD3838 color temperature adjustable LED strip or SMD3838 dual white led strip or SMD3838 CCT LED strip or SMD3838 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core...

¥0.00

Product Description:

SMD3838 dual color LED strip also known as SMD3838 color temperature adjustable LED strip or SMD3838 dual white led strip or SMD3838 CCT LED strip or SMD3838 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K). For the warm white LED and the cold white LED, it can be made into one LED, called 2in1 LED.

Easton Technology Co., Ltd.'s SMD3838 dual color LED strip  products include  60leds/M,84leds/M ,120Leds/M and 240leds/M. These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:







ModelES-3838D-60

ModelES-3838D-84

ModelES-3838D-120

ModelES-3838D-240

Color: white 2700-6500K

LM/LED: White light: 40-50LM

LED QTY/M:60LEDs/M

LED QTY/M:84LEDs/M

LED QTY/M:120LEDs/M

LED QTY/M:240LEDs/M

Color temperature: white light 2700-6500K

Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications

Power12W/M

Power14W/M

 Power20W/M

 Power24W/M

Current/M24V0.5A/M;12V1A/M

Current/M24V0.58A/M



 Current/M24V0.83A/M;12V1.67A/M

 Current/M24V1A/M

PCB Width10mm

PCB Width10mm

PCB Width10mm

PCB Width:10/12mm

IPIP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof

Beam angle120°

Operating Temperature-20°-45°

Storage Temperature-30°-65°

Package5M/Roll10M/RollOr customized length

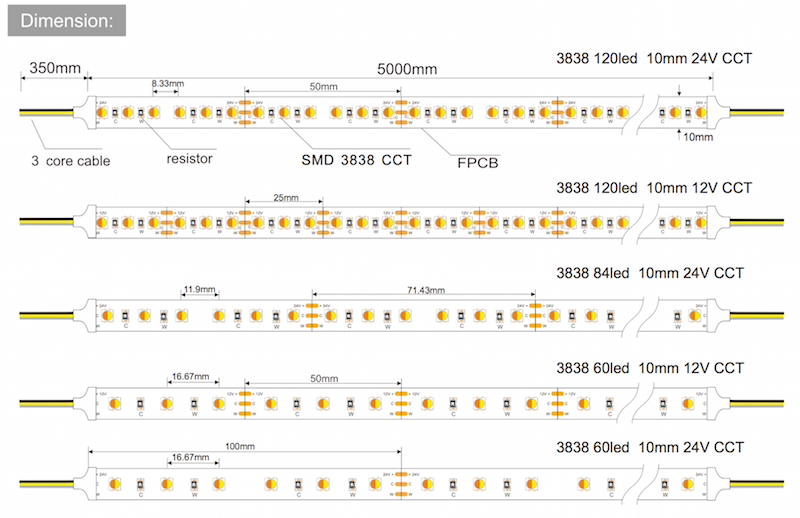

Cutting:   60leds/m 24v 6leds/cutting about 10cm, 12v 3leds/cutting about 5cm; 84leds/M 24v 6leds/cutting about 7.14cm;120 leds/m:24V 6leds/cutting about 5cm,12v 3leds/cutting about 2.5cm;240leds/M:24V 6leds/cutting about 2.5cm

Warranty2-3 years

PCB color:

White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD3838 dual color LED Strip Features:

1. Dynamic color temperature adjustment
Supports wide-area color temperature adjustment from 2700K to 6500K, covering warm yellow light (2800K) to cold white light (6500K), meeting the needs of home atmosphere to high-concentration work lighting.
Dual white light chip integrated design, through current proportional control to achieve stepless color temperature switching, smooth transition without fault.
2. High color rendering and light efficiency
Color rendering index Ra≥95 (high-end model), R9>90, full spectrum version is close to natural light, suitable for color-sensitive scenes such as art galleries and medical spaces.
Single light efficiency 40–50 lm, brightness exceeds traditional 5050 light strips.
3. Color consistency
Color tolerance SDCM<3 (high-end model), ensuring color temperature uniformity within the batch.
4. Ultra-narrow flexible PCB
The PCB width is narrow, suitable for mini aluminum grooves or silicone sleeves, suitable for installation in narrow spaces (such as cabinets, luminous characters). Flexible substrate (FPC) supports arbitrary bending and even folding to adapt to curved contours.
5. Waterproof level covers IP20 (bare board) to IP68 (full waterproof with glue filling), and the weather resistance temperature for outdoor use is -20°C~+60°C. Ceramic substrate models are resistant to sulfurization and are suitable for high humidity and corrosive environments (such as vehicles and coastal areas).
6. Power supply and energy efficiency
The working voltage is mainly DC 24V (a few are 12V) to reduce the impact of long-distance voltage drop. A power supply with 1.2 times the power margin needs to be matched.
7. Control compatibility
It needs to be matched with a dual-channel white light controller (such as RF/WiFi/DMX512) to support independent adjustment of color temperature and brightness. DMX512 protocol is recommended for high-end projects, which has strong anti-interference and supports ultra-long transmission.

The SMD3838 CCT LED light strip has the core advantages of narrow body high density, accurate color temperature, and full spectrum color rendering, which is especially suitable for scenes with strict requirements on spatial adaptability and light quality.

SMD3838 dual color LED Strip product details:
