Product Description:

SMD5630 CCT LED strip is a medium to high power lighting product based on 5630 size (5.6mm×3.0mm) surface mount LEDs, supporting color temperature adjustment (Correlated Color Temperature, CCT)SMD5630 dual color LED strip also known as SMD5630 color temperature adjustable LED strip or...

¥0.00

Product Description:

SMD5630 CCT LED strip is a medium to high power lighting product based on 5630 size (5.6mm×3.0mm) surface mount LEDs, supporting color temperature adjustment (Correlated Color Temperature, CCT)SMD5630 dual color LED strip also known as SMD5630 color temperature adjustable LED strip or SMD5630 dual white led strip or SMD5630CCT LED strip or SMD5050 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K).

Easton Technology Co., Ltd.'s SMD5630 dual color LED strip  products include  112leds/M . These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:



ModelES-5630D-112

Color: white 2700-6500K

LM/LED: White light: 20-22LM

LED QTY/M:112LEDs/M

Color temperature: white light 2700-6500K

Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications

Power24W/M

Current/M24V1A/M

PCB Width10mm

IPIP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof

Beam angle120°

Operating Temperature-20°-45°

Storage Temperature-30°-65°

Package5M/Roll10M/Roll Or customized length

Cutting:   14leds ,about1.25cm

Warranty2-3 years

PCB color

White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD630 dual color LED Strip Features

1. High brightness output

A single 5630 LED can produce 50-60 lumens at 150mA driving current, far exceeding common models such as 2835 (22-26lm) or 5050 (20-22lm).

2. Adjustable color temperature (CCT)

Supports multi-level color temperature switching, with a typical range of:

Warm white (2700K-3500K): creates a warm atmosphere, suitable for residences and restaurants.

Neutral white (4000K-4500K): natural light effect, suitable for office and retail.

Cool white (5000K-8000K): high contrast lighting, used in garages and industrial places.

The ratio of cool/warm white light can be adjusted independently through a dual-channel controller to achieve stepless color temperature changes.

3. Color rendering and light quality

The high-end model has a color rendering index of Ra>90, and the color reproduction is true, suitable for art galleries and high-end retail. The CRI of ordinary products is generally Ra>80, which meets basic needs.

4. Voltage and power

The working voltage is DC24V, and the low-voltage design improves safety. High power density: 24W/, need to match sufficient power supply

5. Structural design

PCB width: 10mm wide flexible circuit board, double-sided rolled copper to improve electrical/thermal conductivity.

Cutting flexibility: 14 LEDs(24V) have cutting points and can be cut to length as needed.

6. Protection level (IP) IP20/IP65/IP67/IP68

7. Installation method

Back-pasted 3M tape, suitable for flat surfaces.

Use with aluminum profiles: milky white cover provides soft light effect, transparent cover enhances directional lighting.

8. Application scenarios

Commercial space: shopping mall display cabinets, hotel lobby (high brightness + high color rendering).

Residential lighting: kitchen cabinets, ceiling lights, TV backlights (CCT adjustment to meet the needs of different time periods).

Outdoor projects: advertising light boxes (IP67 module weatherproof), building outline lighting.

Special needs: 3D printer work lights (cold white high brightness improves visibility).



The SMD5630 CCT LED light strip has high brightness, flexible color temperature, and high color rendering as its core advantages, but attention should be paid to heat dissipation and power supply matching. It is suitable for a variety of scenarios from home to business, especially in areas that require precise light environment control.

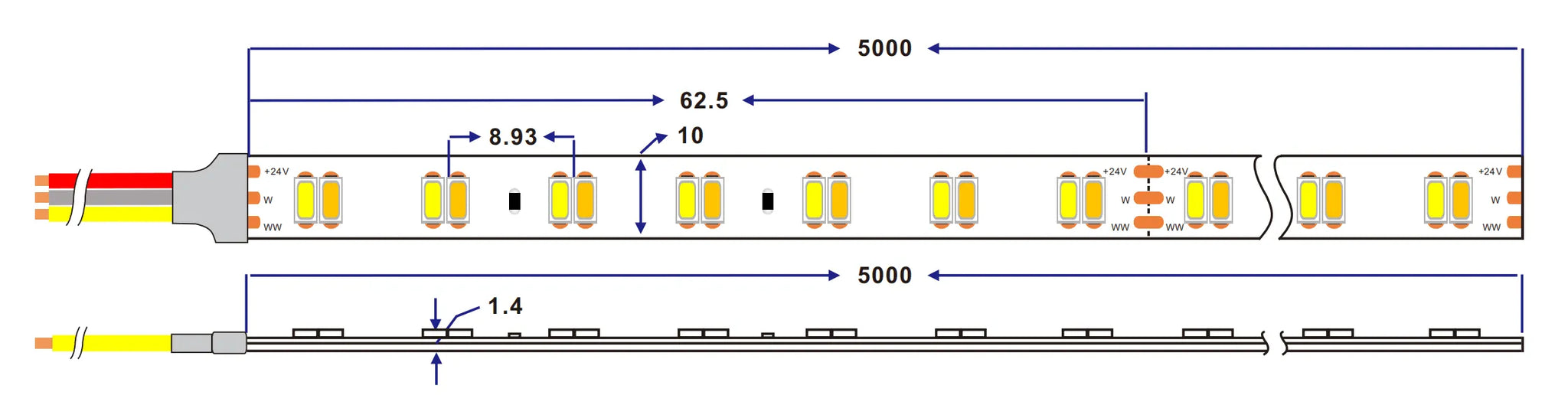

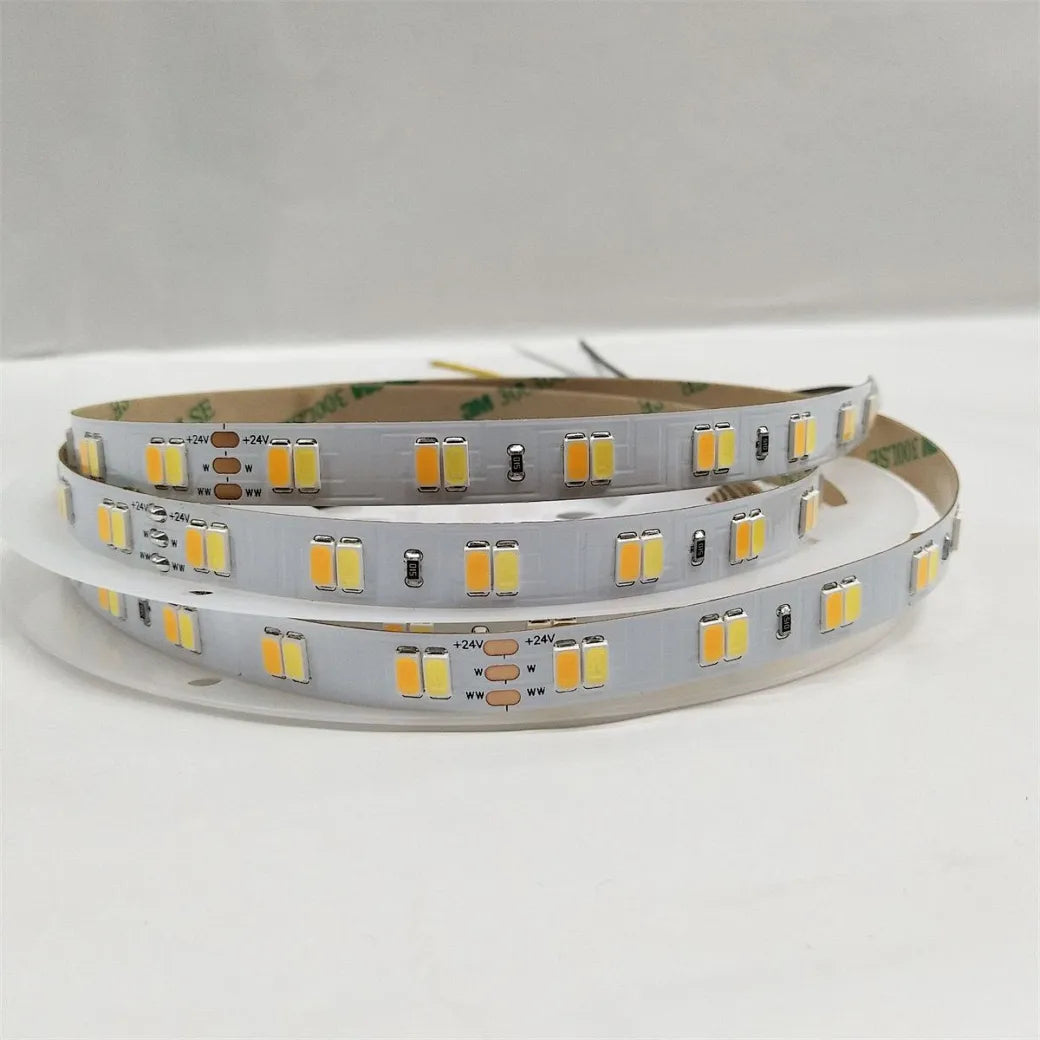

SMD5630 dual color LED Strip product details:
