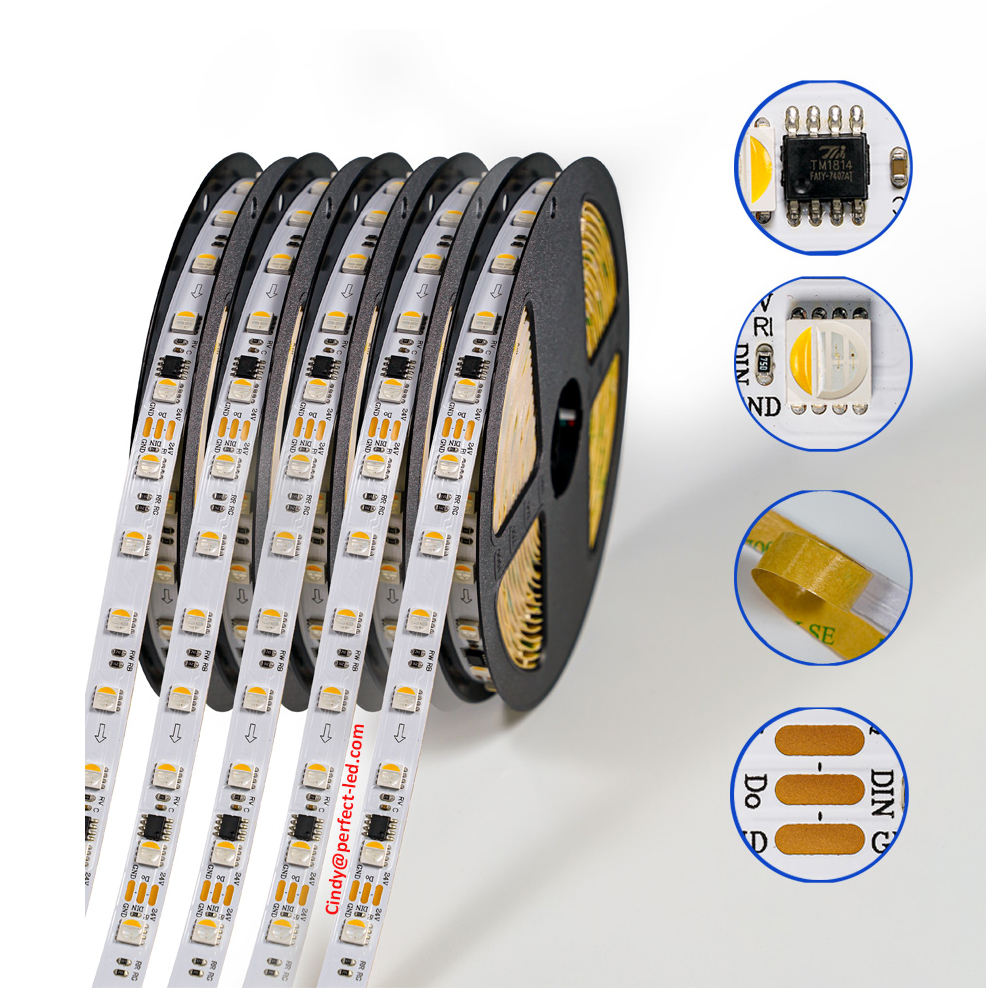

TM1814 RGBW LED Pixel addressable strip
Product Description:

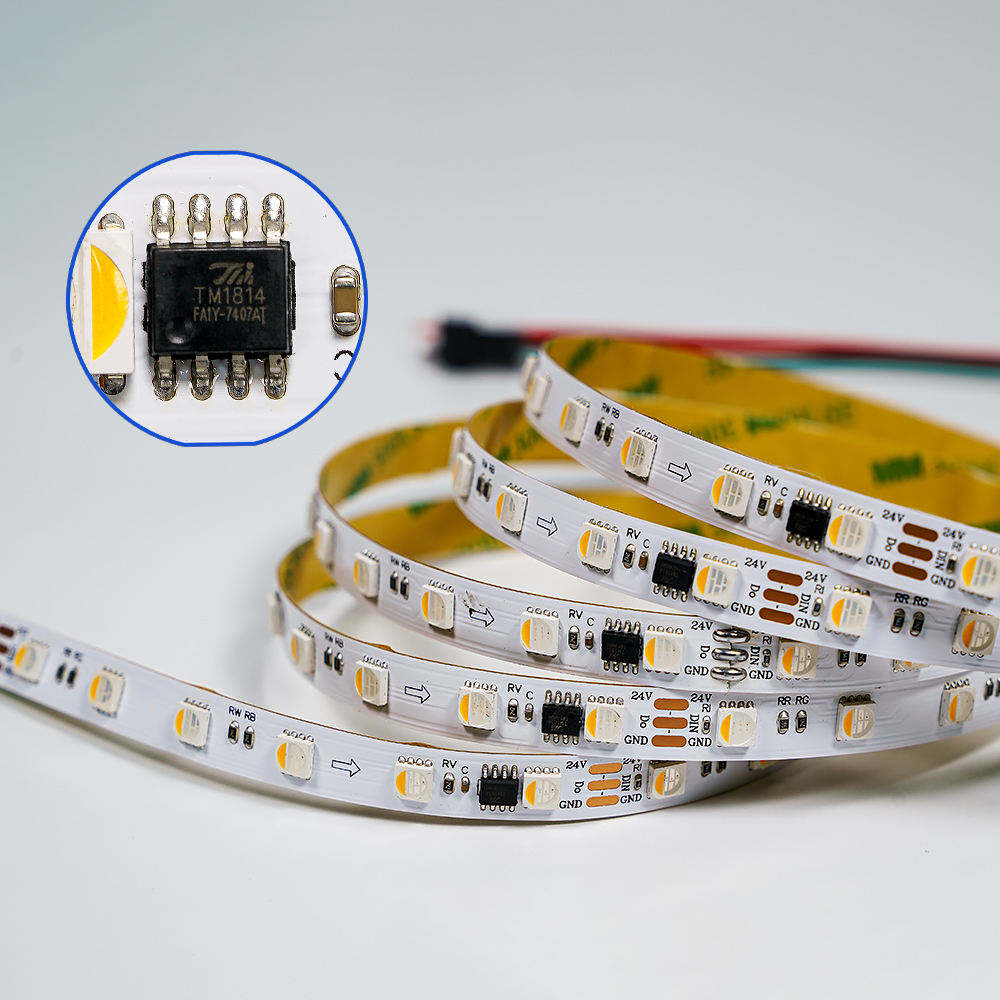

TM1814 RGBW LED strip is a high-performance addressable LED lighting product that combines RGB color with an independent white light channel (W). Through the TM1814 driver chip, precise single pixel (IC) control and rich lighting effects are achieved.
TM1814 adopts four-channel independent control, RGB+W architecture: an...
Product Description:
TM1814 RGBW LED strip is a high-performance addressable LED lighting product that combines RGB color with an independent white light channel (W). Through the TM1814 driver chip, precise single pixel (IC) control and rich lighting effects are achieved.

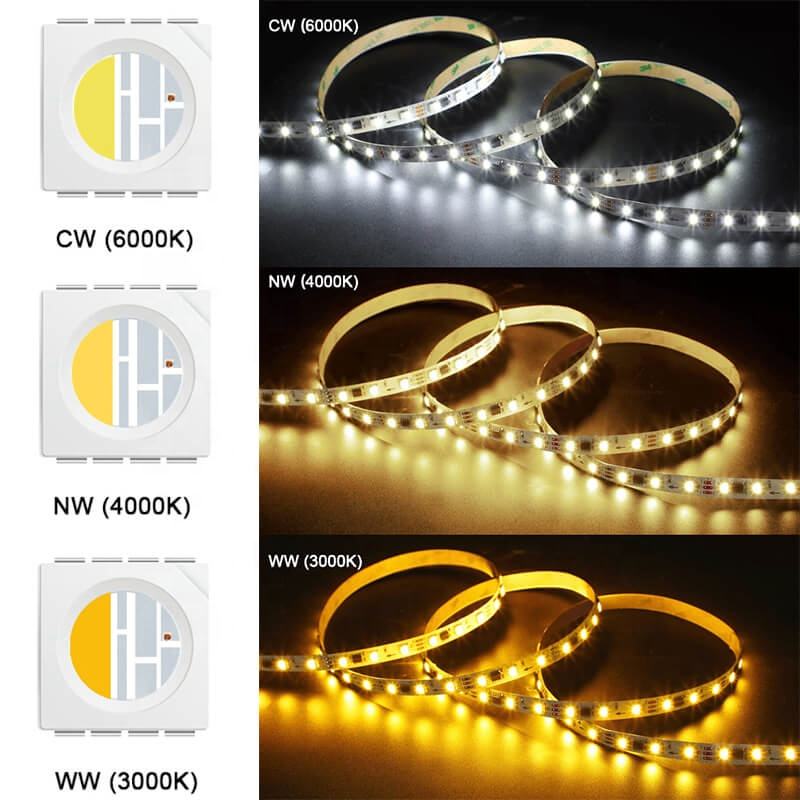

TM1814 adopts four-channel independent control, RGB+W architecture: an independent white light channel is added on the basis of the three primary colors of red, green and blue (optional 3000K warm white, 4000K natural white or 6000K white light), achieving pure white light output and color mixing effect, avoiding the problem of traditional RGB synthetic white light being blue. Single IC addressing: Each IC controls 3 (12V) or 6 (24V) LEDs, supports 256 grayscale levels and 64 current adjustments, and can be programmed to achieve complex effects such as dynamic gradients and marquees.
Built-in single-wire serial interface, supports 800Kbps data transmission rate, and no signal attenuation during cascading; integrated power-on reset and RC oscillation technology to ensure the stability of long-distance control. Constant current output (6.5–38mA adjustable), error between channels ≤±3%, ensuring color consistency.
Easton Technology Co., Ltd.'s TM1814RGBW products include 60leds/M, 84leds/M. These products are available in 12V and 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
|
|
Model：TM1814RGBW-60 |
Model：TM1814RGBW-84 |
|
Voltage：DC12V/24V |
Voltage：Voltage：DC12V/24V |
|
Power：18W/M |
Power：25.2W/M |
|
LED QTY：60LEDs/M |
LED QTY：84LEDs/M |
|
Color：RGBW |
Color：RGBW |
|
pcb width：10mm |
pcb width：10mm |
|
pcb color：Black/White |
pcb color：Black/White |
|
Chip：San an/Epistar |
Chip：San an/Epistar |
|
IC：TM1814/UCS2904/WS2814 |
IC：TM1814/UCS2904/WS2814 |
|
Cutability: 12V 3leds/24V 6leds |
Cutability: 12V 3leds/24V 6leds |
|
Install：3M |
Install：3M |
|
IP：IP20/IP65/IP67/IP68 |
IP：IP20/IP65/IP67/IP68 |
|
Warranty: 2-3 years |
Warranty: 2-3 years |
|
Certification：CE Rosh |
Certification：CE Rosh |
TM1814/UCS2904/WS2814 RGBW ICs have the same functions, but they are different brands, but they are all very stable!
TM1814 must be controlled by DC12V/24V power supply and LED controller (need to be determined according to the led strip voltage!
There is a welding point every 0.5 meters, please pay attention!
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
Product parameters:
(1) Working voltage: DC 12V/24V
(2) LED light source: SMD 5050 RGBW
(3) LED chip: Jingyuan or Sanan

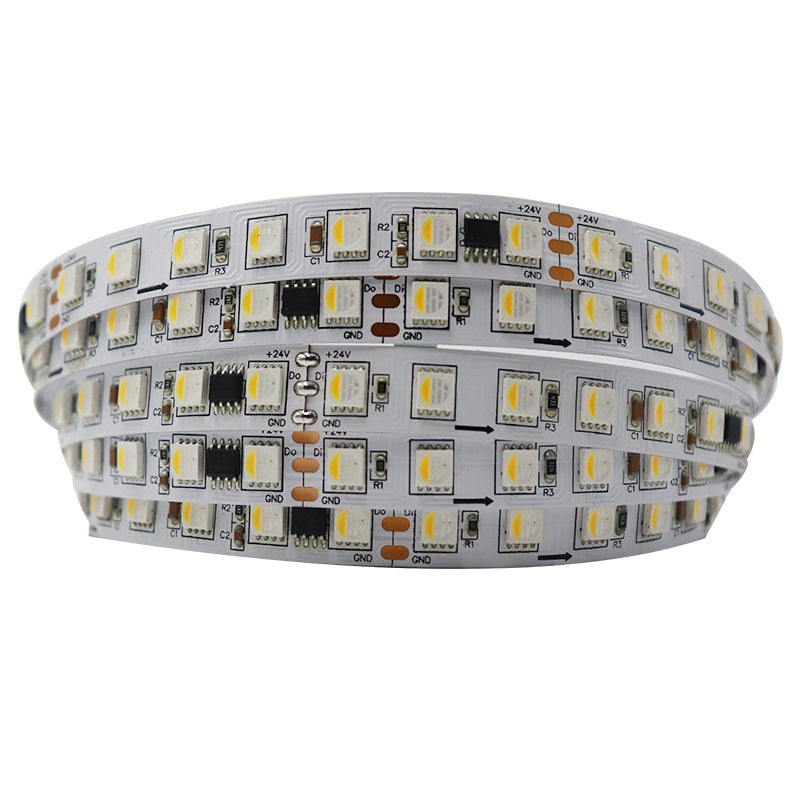

(4) LED quantity: 60/84 LEDs/meter
(5) IC quantity: 20/28 pieces/meter (12V) or 10/14 pieces/meter (24V)
(6) Power:18/25.2 W/M
(7) Grayscale: 256 levels/color

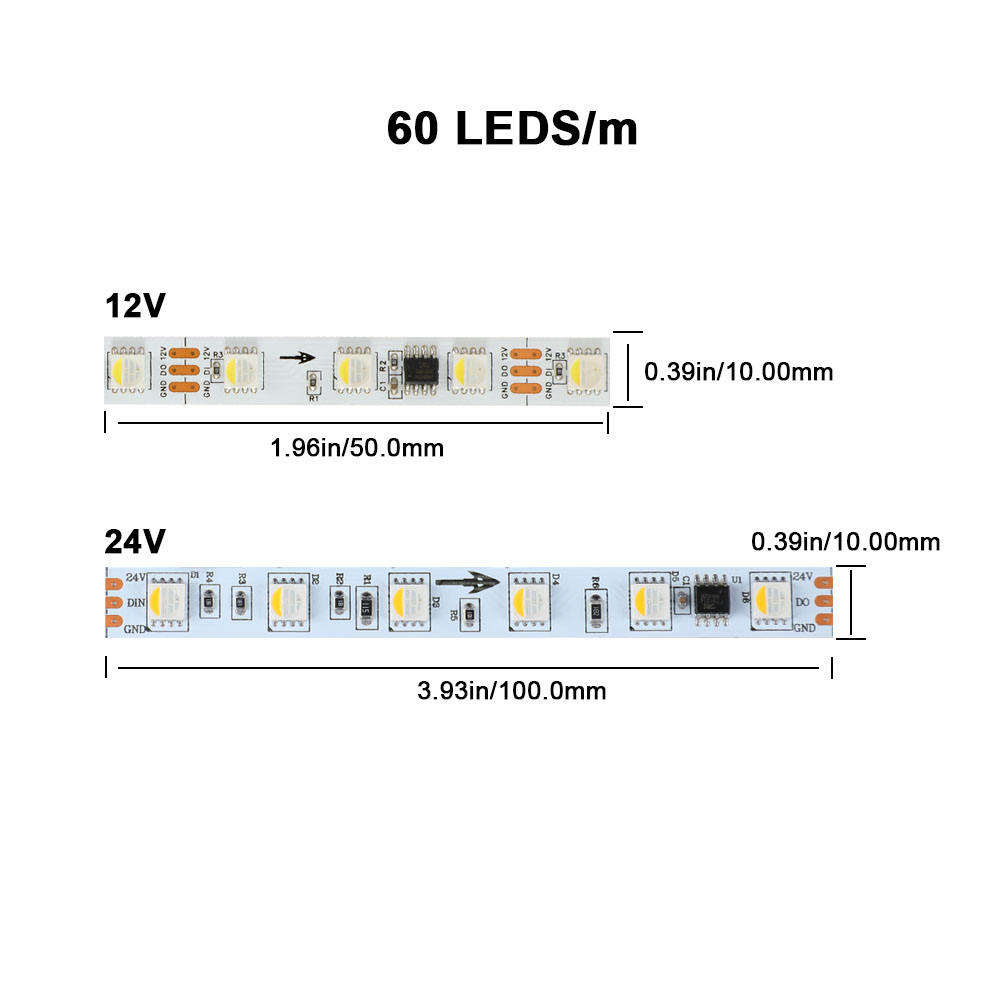

(8) Cuttability: 3 LED/cut (12V); 6LED/cut (24V)
(9) Beam angle: 120°
(10) Color modes: 133 patterns and 100 speeds
(11) Dimensions: 5000mm x 10mm x 2.4mm
(12) Packing: 5 meters/roll 12V TM1814 RGBW light strip + 3-pin connector
(13) Warranty: 2-3 years
Features:

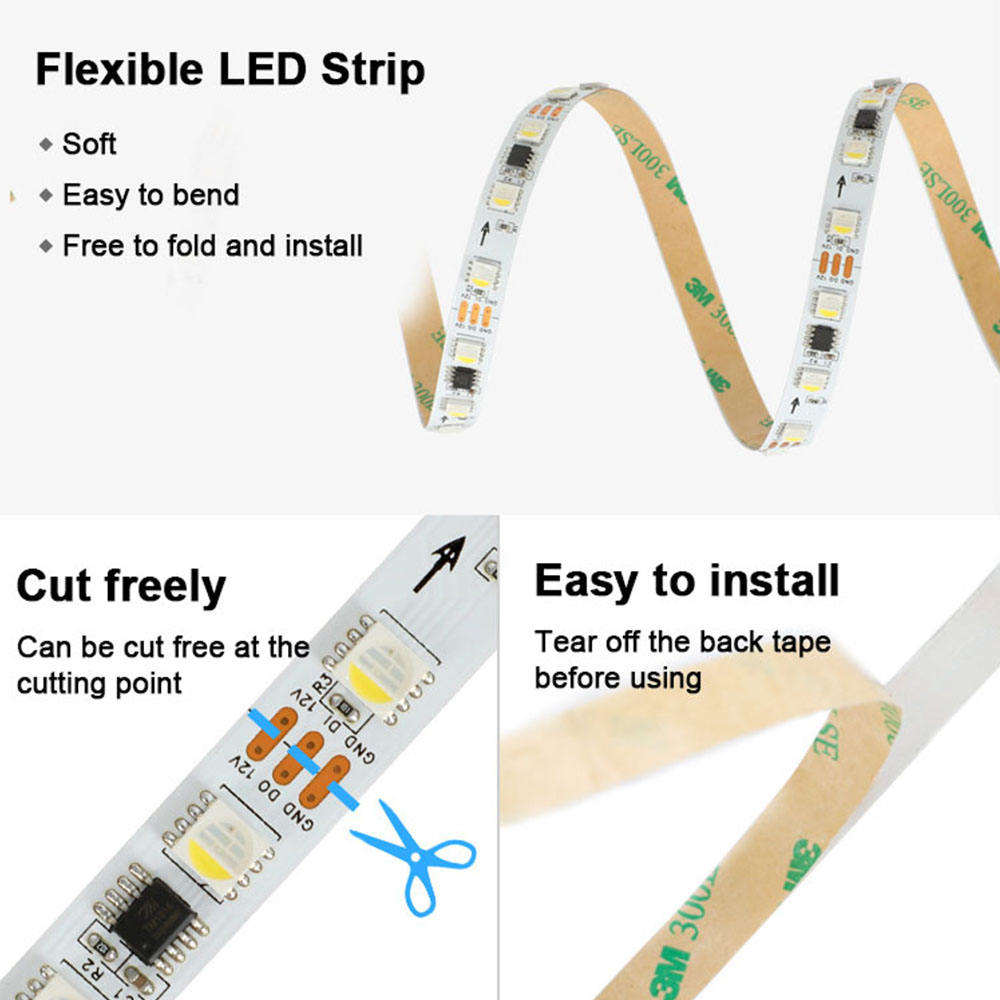

(1) Flexible PCB (IP20, IP65) with 3M tape on the back for easy installation.
(2) Energy saving and environmental protection.
(3) High brightness 5050 SMD LED light strip.
(4) Solid state, strong resistance to shock or vibration.
(5) Low power consumption, high brightness.
(6) Matching RGBW controller and power supply system.
(7) Wide viewing angle.
(8) Provide RGBW colors.

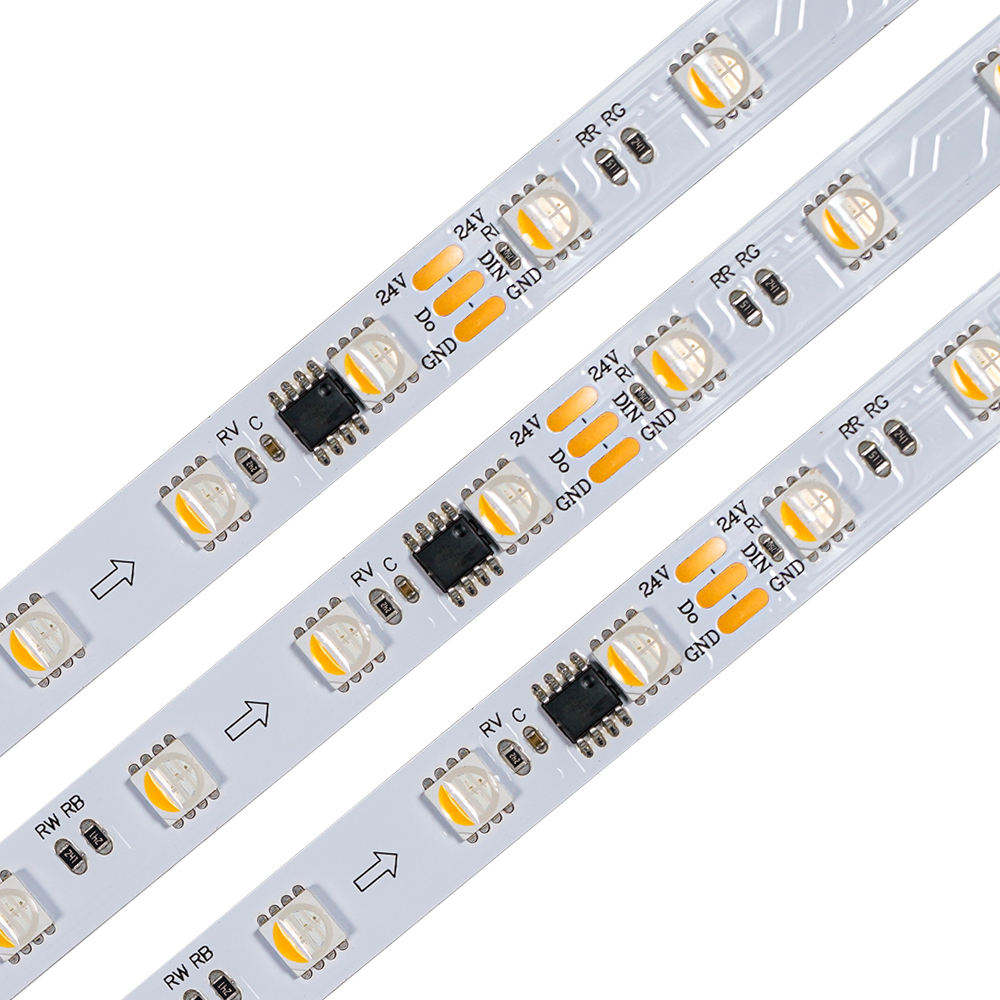

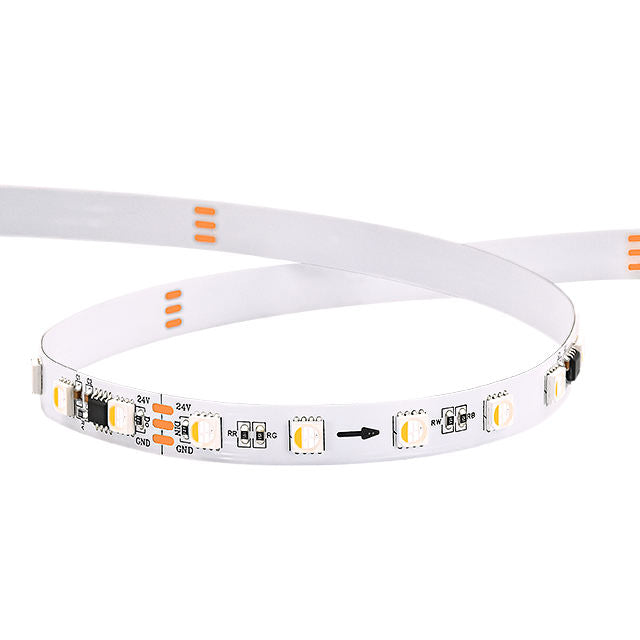

TM1814 RGBW LED light strip product details:

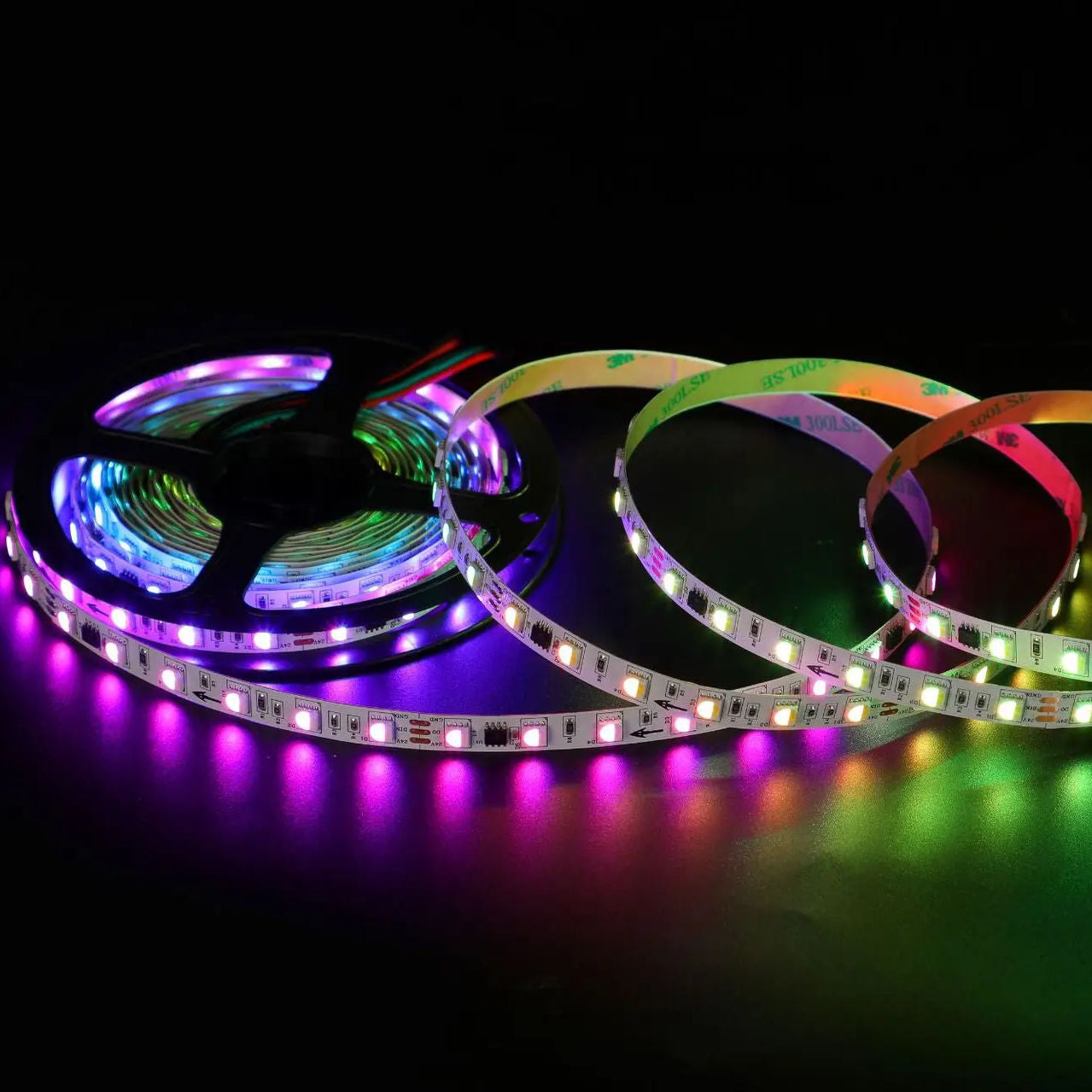

TM1814 RGBW LED light strip product application scenarios:
The purpose of the TM1814 RGBW product of Easton Technology Co., Ltd. is to add dreamy colors to the space that requires linear light sources. The products are widely used in festival lighting shows, clothing, game consoles, gaming machines, e-sports equipment, computer cases, and TV backgrounds. Clothing, automobiles, architectural lighting, sign lighting, cabinet and shelf lighting, and decorative lighting for stages, home theaters, wine cellars, cars, bicycles, yachts and cruise ships, etc.
What controllers are suitable for TM1814RGBW LED strip products? ：
TM1814 RGBW products can achieve different effects through mini three-button controller, RF controller, Bluetooth controller, music controller, programmable controller, online controller, DMX console, Madix, Aduino, etc. : Static, static change, water chase, colorful change, colorful chase, animation, etc.
