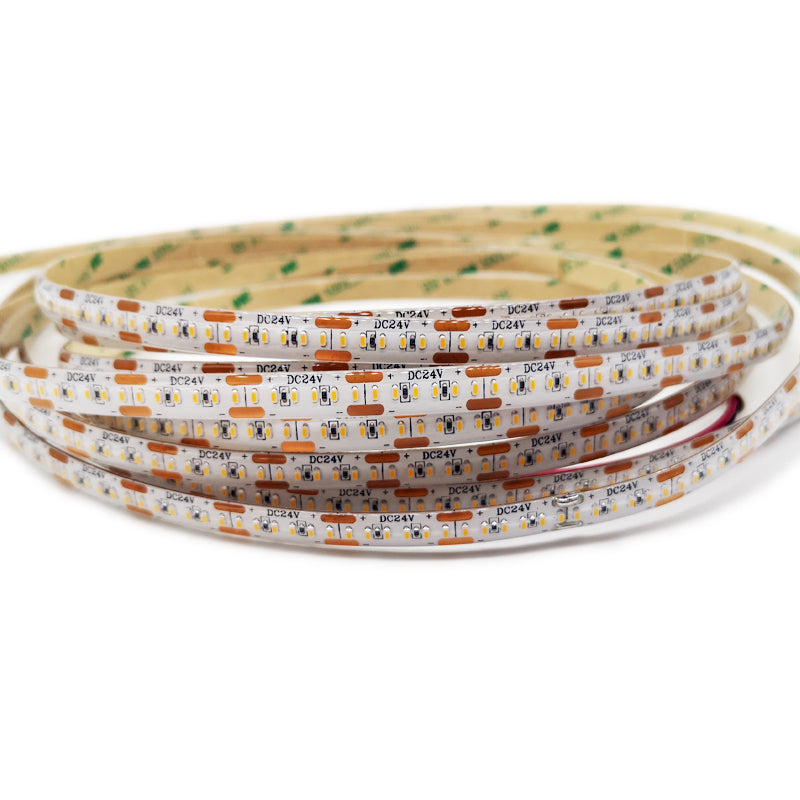

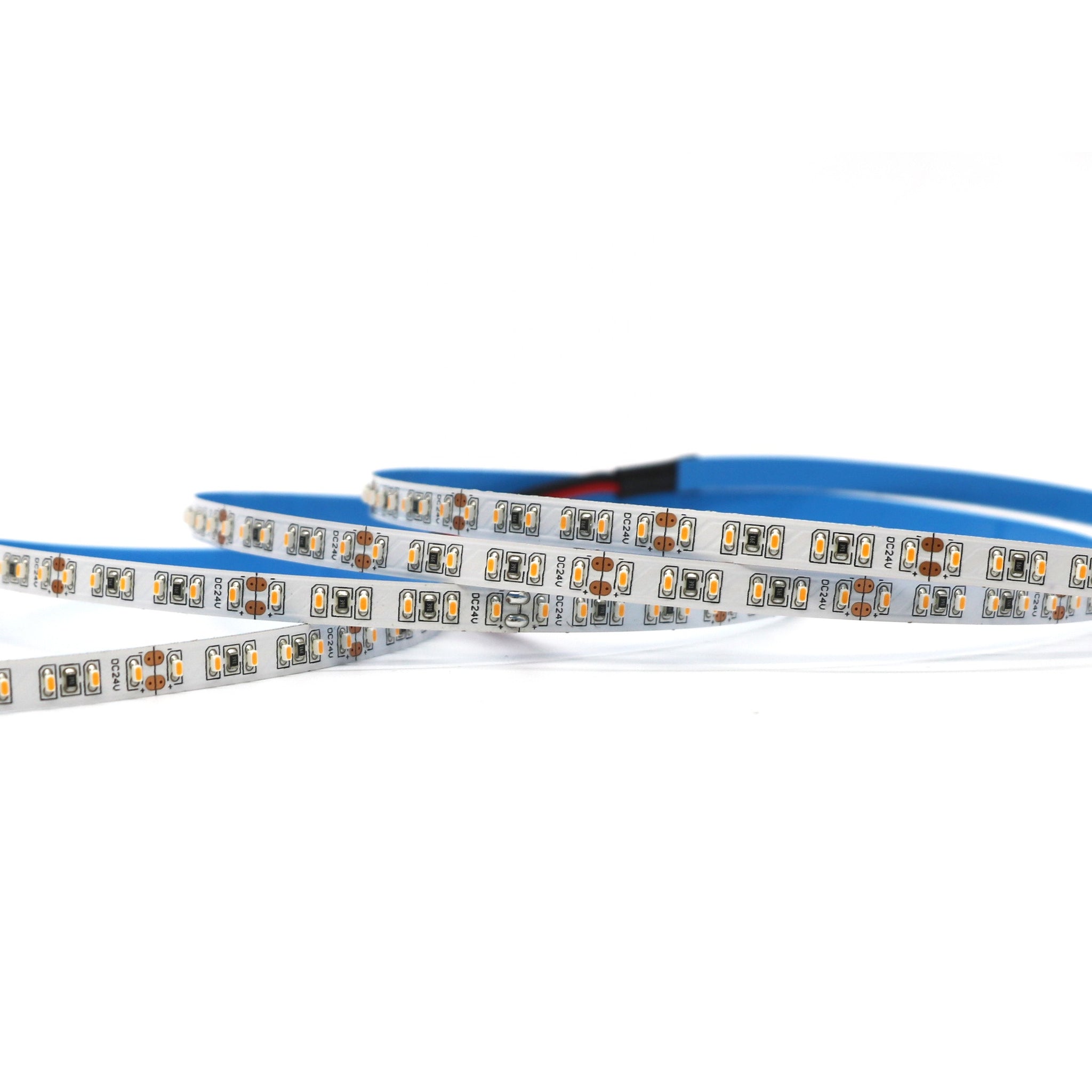

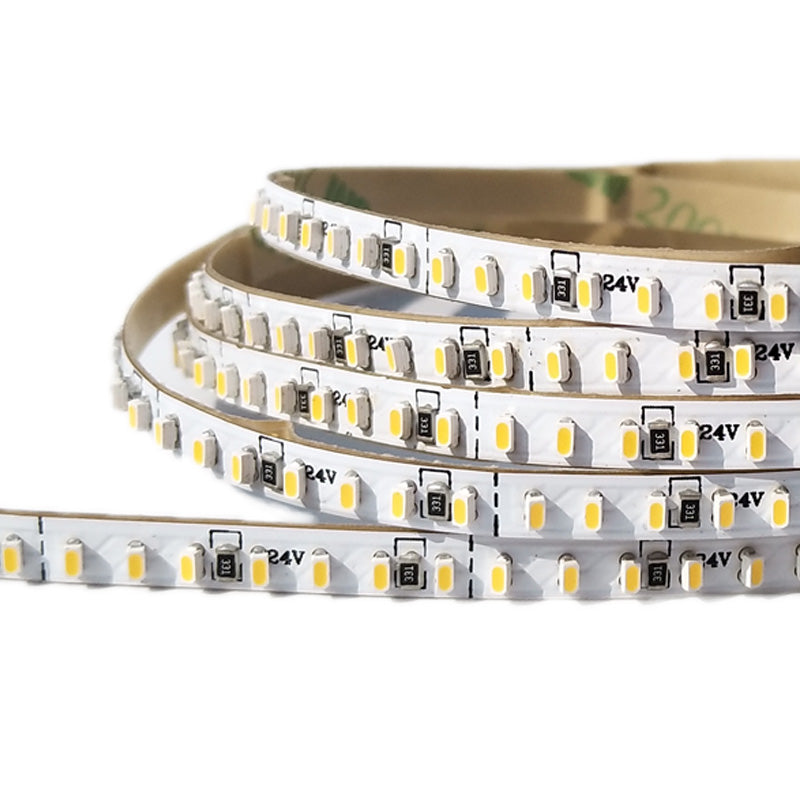

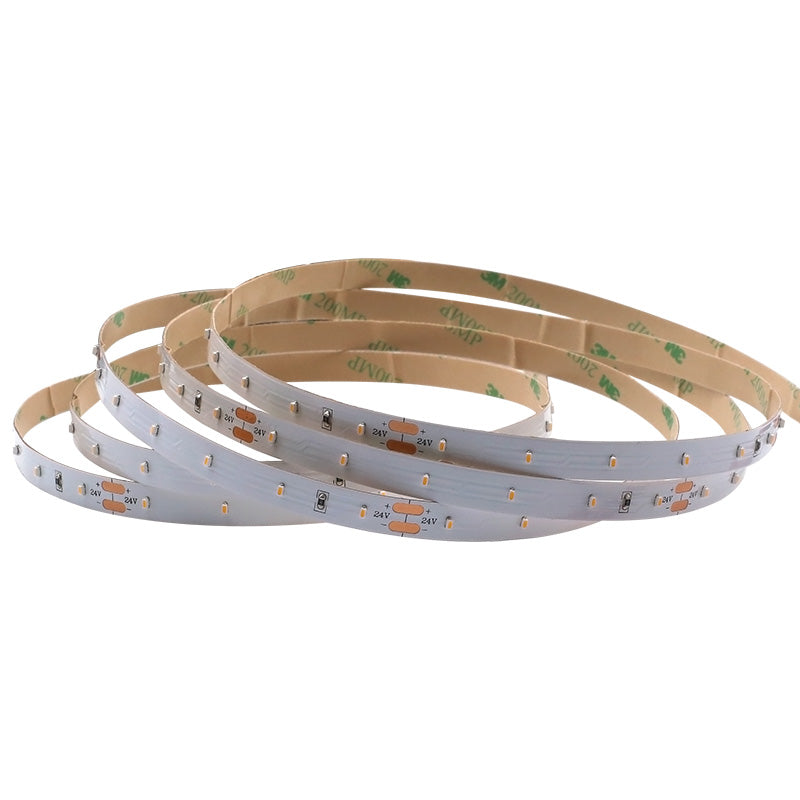

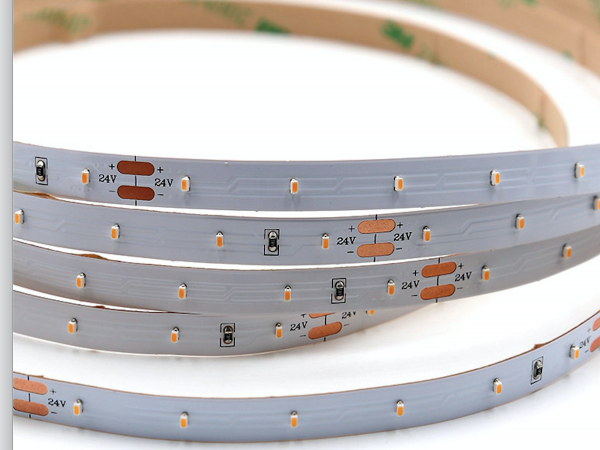

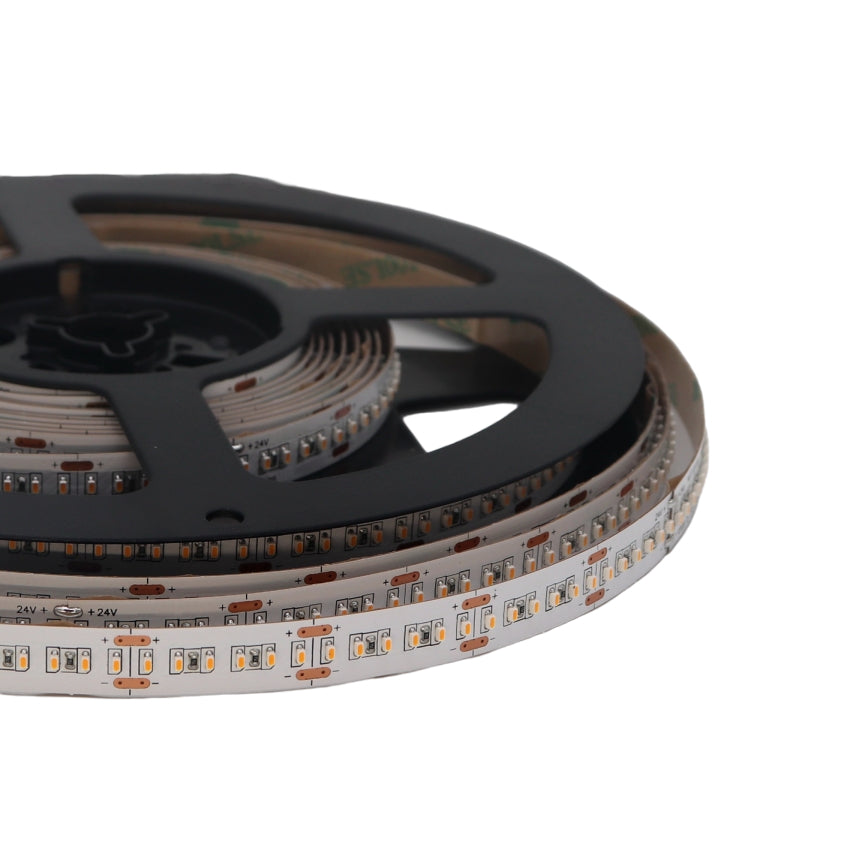

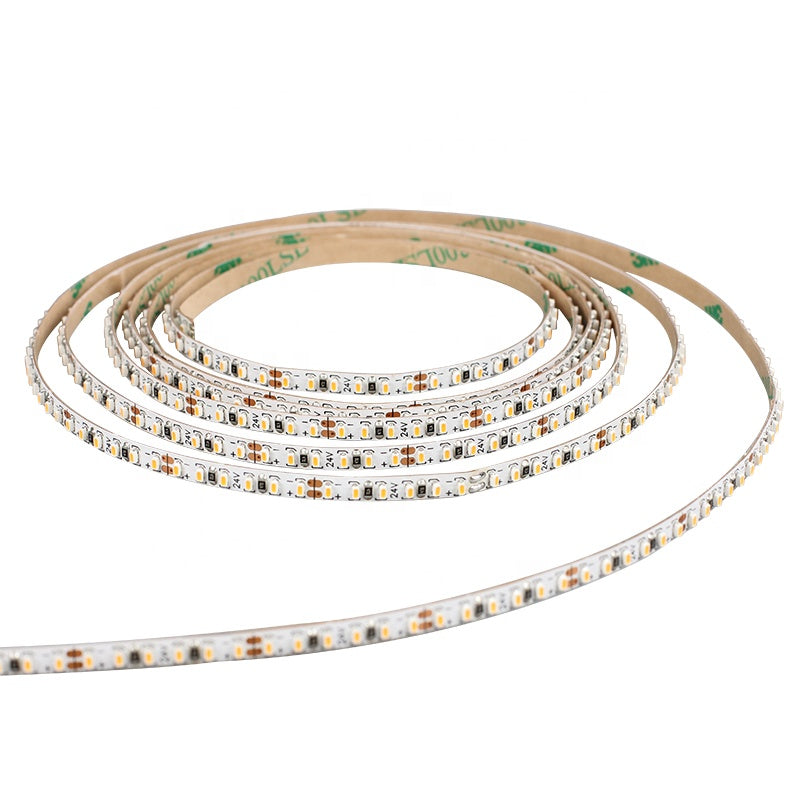

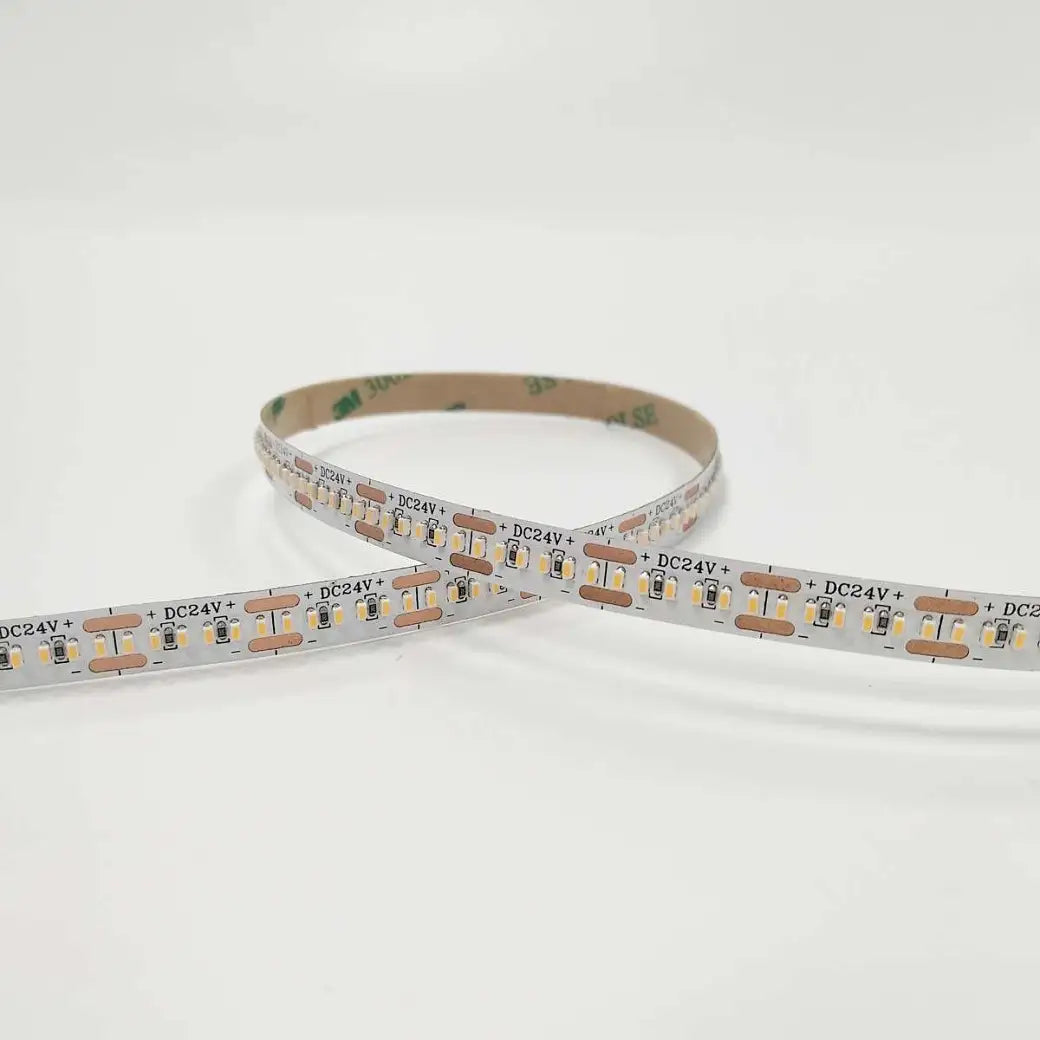

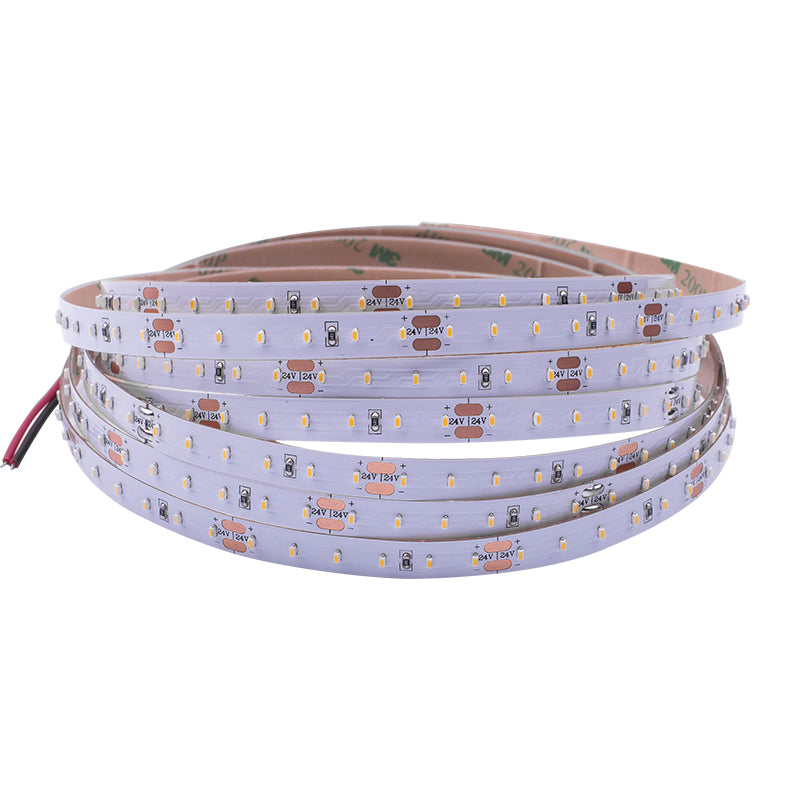

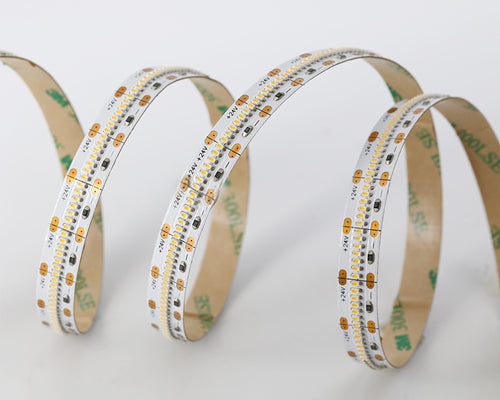

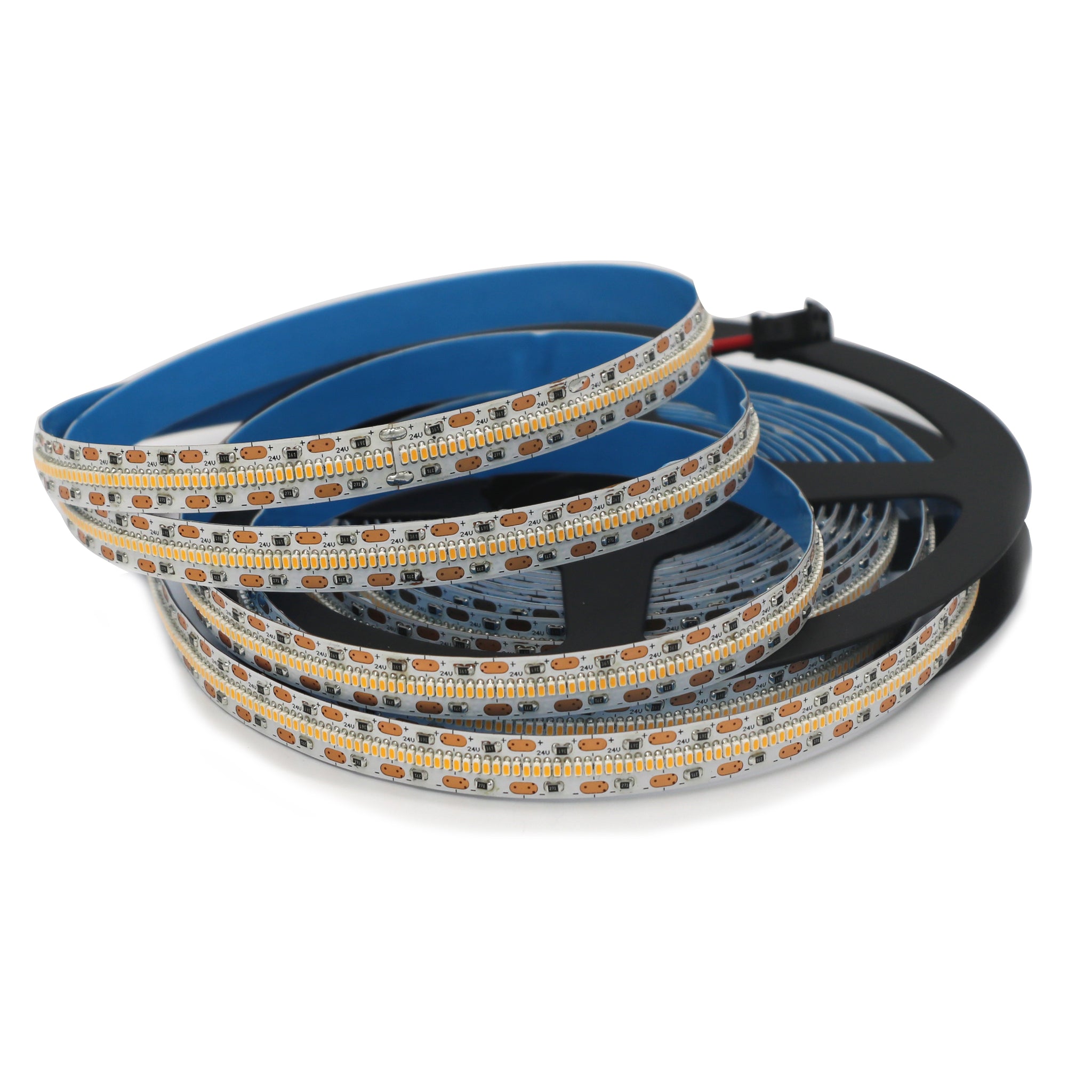

SMD2110 LED Strip

我的商店
Out of stock Many in stock
¥0.00

Product Description:

SMD2110 LED light strip is a flexible lighting product named after the size of the surface mount device LED. SMD 2110 LED light strip can achieve high-density arrangement (such as 60 to 700 LEDs per meter), the light is uniform and has no granularity, and it...

¥0.00

Product Description:

SMD2110 LED light strip is a flexible lighting product named after the size of the surface mount device LED. SMD 2110 LED light strip can achieve high-density arrangement (such as 60 to 700 LEDs per meter), the light is uniform and has no granularity, and it combines beauty and functionality. It is widely used in scenes with high requirements for light quality and installation flexibility, and is the preferred solution for upgrading traditional lighting.

Easton Technology Co., Ltd.'s SMD2110 LED Strip products include 60leds/M, 120leds/M,180leds/M240l,Leds/M, 280leds/M, 300leds/M, 360Leds/M,420leds/M, 560leds/M and 700leds/M. These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:



















Model:ES-2110-60

Model:ES-2110-120

Model:ES-2110-180

Model:ES-2110-240

Model:ES-2110-280

Model:ES-2110-300

Model:ES-2110-360

Model:ES-2110-420

Model:ES-2110-560

Model:ES-2110-700

Color: white/red/green/blue/yellow/pink/purple/ice blue

LM/LED: White light: 8-12LM

LED QTY/M:60LEDs/M

LED QTY/M:120LEDs/M

LED QTY/M:180LEDs/M

LED QTY/M:240LEDs/M

LED QTY/M:280LEDs/M

LED QTY/M:300LEDs/M

LED QTY/M:360LEDs/M

LED QTY/M:420LEDs/M

LED QTY/M:560LEDs/M

LED QTY/M:700LEDs/M

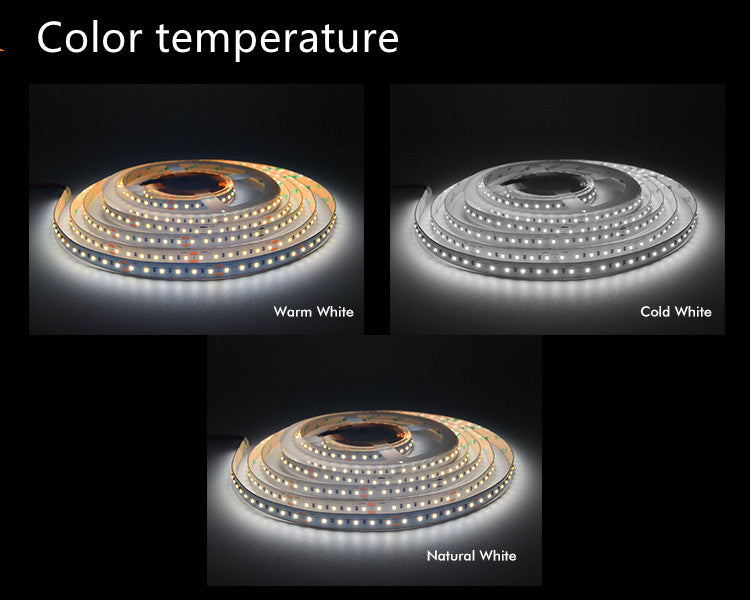

Color temperature/NM: white light 2200-13000K, red 620-625NM, green 520-525NM, blue 460-470NM, yellow 590-595NM, purple 390-410nm

Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications

Power:4.8W/M

Power:9.6W/M

Power:12W/M

Power:14.4W/M

Power:18W/M

Power:18W/M

Power:20W/M

Power:22W/M

Power:22W/M

Power:24W/M

Current/M:24V:0.2A/M

Current/M:24V:0.4A/M

Current/M:24V:0.5A/M

Current/M:24V:0.6A/M

Current/M:24V:0.75A/M

Current/M:24V:0.75A/M

Current/M:24V:0.83A/M

Current/M:24V:0.92A/M

Current/M:24V:0.92A/M

Current/M:24V:1A/M

PCB Width:8mm

PCB Width:8mm

PCB Width:8mm

PCB Width:8mm

PCB Width:8/10mm

PCB Width:8/10mm

PCB Width:8/10mm

PCB Width:10/12mm

PCB Width:10/12mm

PCB Width:8/10/12mm

IP:IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof

Beam angle:120°

Operating Temperature:-20°-45°

Storage Temperature:-30°-65°

Package:5M/Roll,10M/RollOr customized length

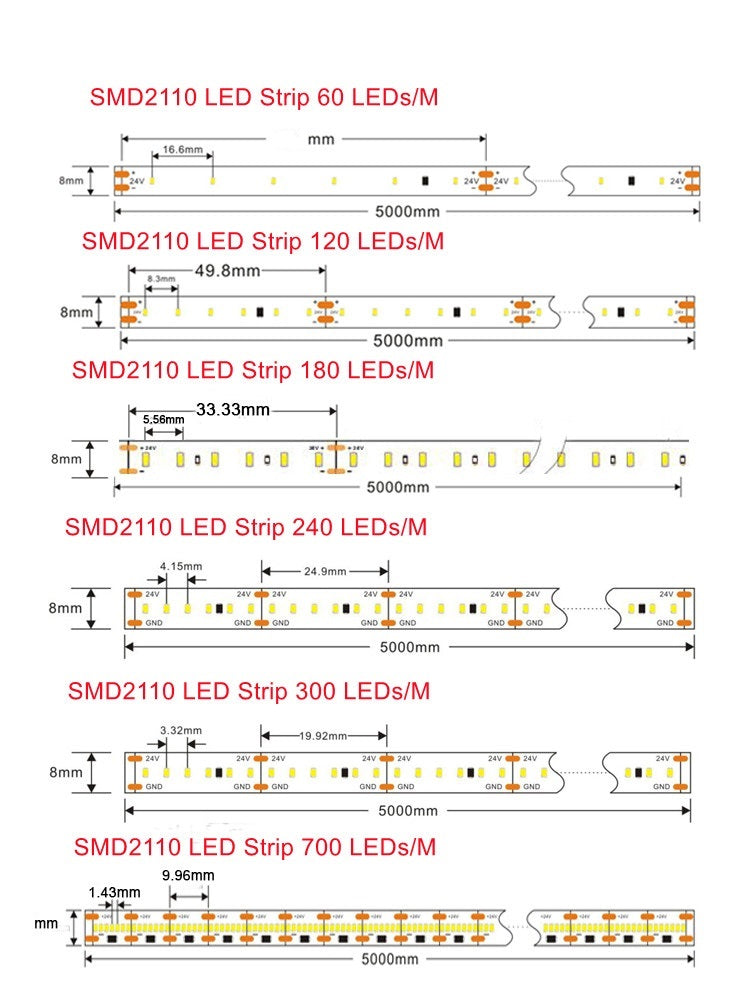

Cut:   6leds,100mm

Cut:6leds,49.8mm

Cut:6leds,33.3mm

Cut:  6leds,25mm

Cut:  7leds,25mm

Cut:   6leds,20mm

Cut:  6leds,16.7mm

Cut:7leds,16.7mm

Cut:7leds,12.5mm

Cut:  7leds,10mm

Warranty:2-3 years

 PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD2110 LED Strip Features

1. Ultra-high density and uniform light effect

60~700 LEDs can be integrated per meter of light strip, far exceeding traditional light strips. Eliminate the sense of grain and achieve seamless continuous light, suitable for close-range lighting scenes such as cabinets and display cabinets.

2. Excellent color rendering and color temperature adjustment

The standard model CRI≥Ra90, and the high-end model can reach Ra95~Ra97, accurately restoring the true color of objects, suitable for professional scenes such as museums and jewelry stores. Support 1800K-6500K color temperature, and can customize dynamic color temperature adjustment (such as 2700K/6500K dual color temperature switching).

3. Flexible installation and diversified protection

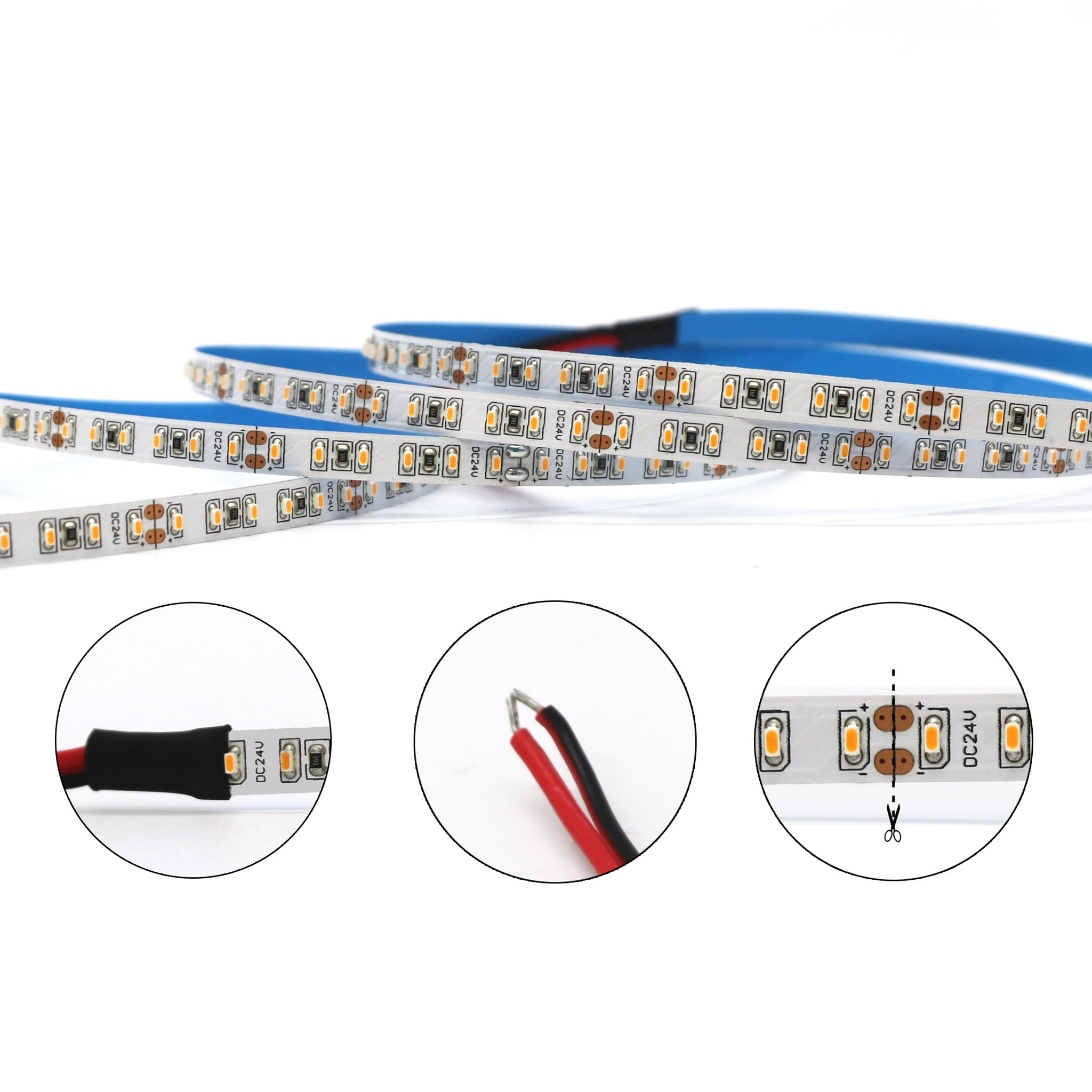

Flexible PCB substrate: can be bent and cut (usually every 3~6 LEDs are a cuttable unit), suitable for complex installation structures such as arcs and circles. Pre-attached 3M high-viscosity adhesive, support quick installation on metal, wood, glass and other surfaces.

Protection level:

IP20: Basic dustproof, suitable for dry indoor environments (such as ceiling light troughs).

IP65/IP67/IP68: Waterproof and dustproof, suitable for outdoor, bathroom, swimming pool and other wet or underwater scenes (such as IP68 light strips can be used in water).

4. High efficiency and heat dissipation solution

Energy efficiency performance: The light efficiency reaches 80~100 lumens/watt, and the power per meter is 4.8W~28W (depending on the density), taking into account both brightness and energy saving. Low-voltage drive (12V/24V), safe and reliable, reducing line loss.

Heat dissipation optimization: High-density models are equipped with copper or aluminum substrates to improve thermal conductivity and prevent overheating from causing light decay. Some outdoor models integrate aluminum trough heat dissipation structure to extend the service life to more than 50,000 hours.

5. Intelligent control and compatibility

Dimming and color adjustment: Support PWM dimming (0%~100% brightness without flicker), color temperature infinite adjustment (2700K~6500K).

Control mode: Compatible with WiFi, Bluetooth, Zigbee, DMX512 and other protocols, can be connected to smart home systems (such as HomeKit, Alexa). Equipped with APP or remote control to achieve group control and scene mode setting.

6. Customization service & typical application scenarios

Customization: Support PCB color, LOGO printing, special color temperature and color customization.

Application scenarios:

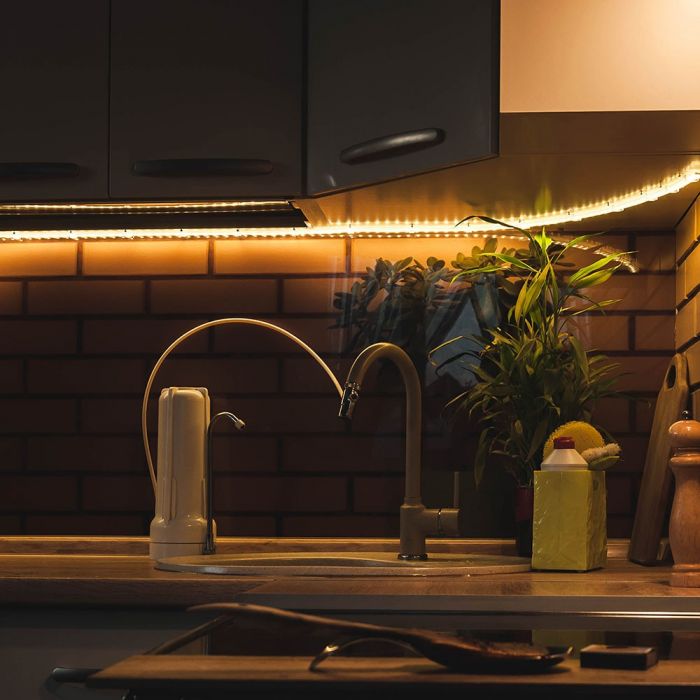

Home: wardrobe/cabinet internal lighting, mirror front light, suspended ceiling, stair step light.

Commercial: jewelry/art display cabinet backlight, shop shelf lighting, advertising light box.

Outdoor: building outline lighting, swimming pool underwater lighting (IP68), courtyard landscape light strip.

Industry: clean room lighting, equipment indicator lighting (low temperature resistant/dustproof model).

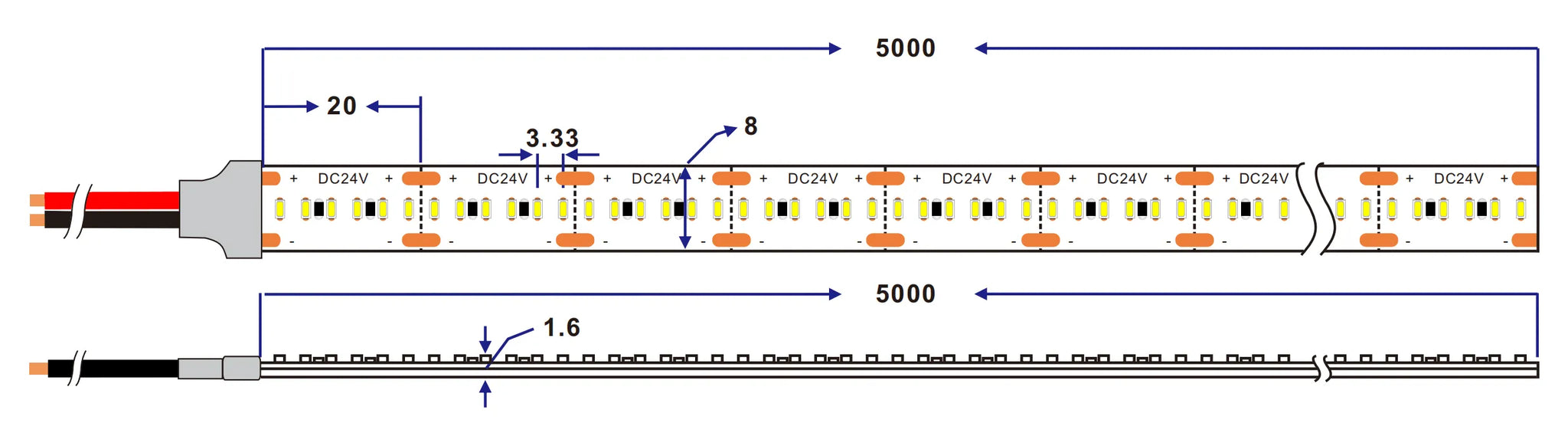

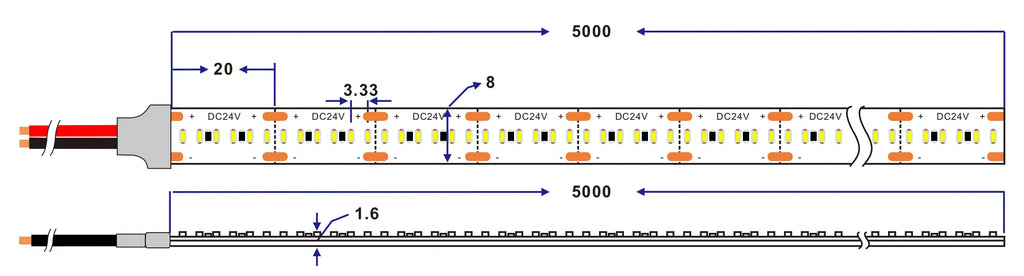

SMD2110 LED strip product details:
