SMD3535 RGB LED Strip

我的商店
Out of stock Many in stock
¥0.00

Product Description:

SMD3838 RGB LED strip is a lighting product that uses 3.5mm×3.5mm LED chips. It features ultra-narrow width, high-density layout and flexible installation. It mainly meets the needs of small spaces and refined lighting.

Easton Technology Co., Ltd.'s SMD3535  LED Strip products include 60leds/M, ,120leds/M,240leds/M and...

¥0.00

Product Description:

SMD3838 RGB LED strip is a lighting product that uses 3.5mm×3.5mm LED chips. It features ultra-narrow width, high-density layout and flexible installation. It mainly meets the needs of small spaces and refined lighting.

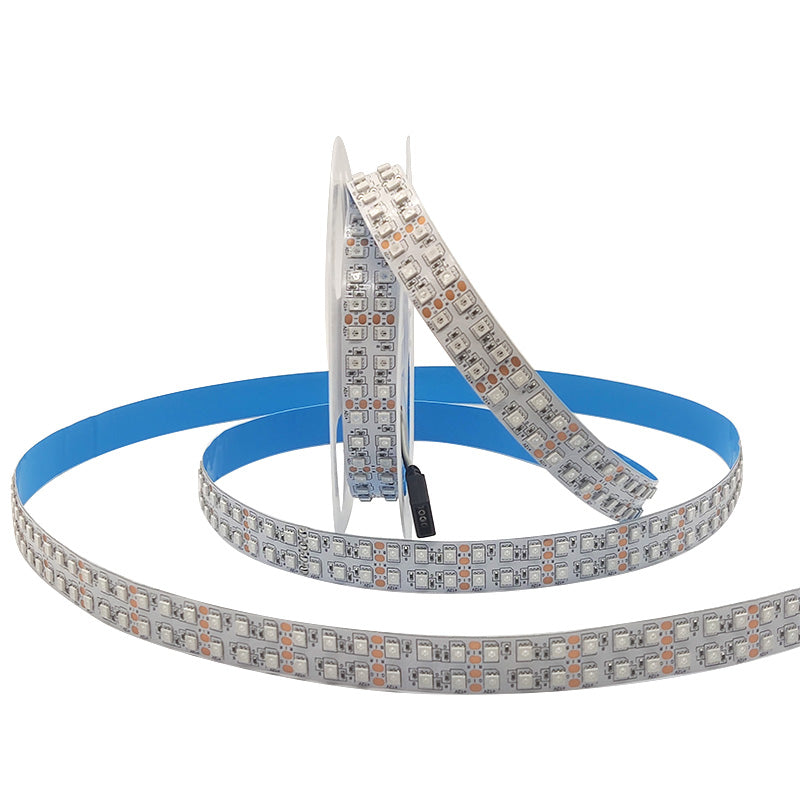

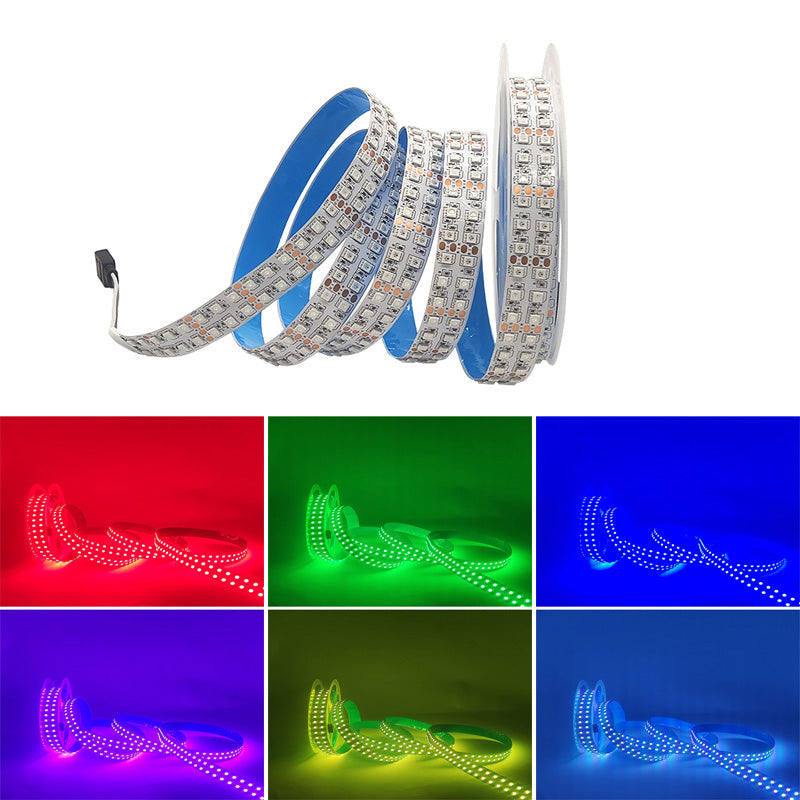

Easton Technology Co., Ltd.'s SMD3535  LED Strip products include 60leds/M, ,120leds/M,240leds/M and 240leds/M double row. These products are available in12V & 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:

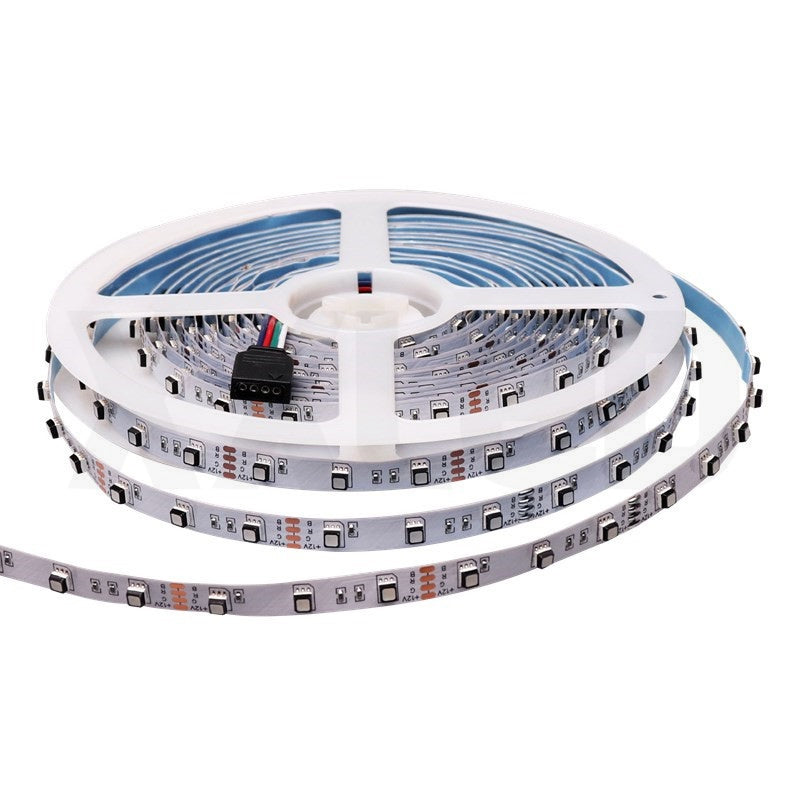

ModelES-3535RGB-60

ModelES-3535RGB2-240

ModelES-3535RGB-120

ModelES-3535RGB-240

 ColorRGB

NMRed 620-625NMGreen 520-525NMBlue 460-470NM

LED QTY/M:60LEDs/M

LED QTY/M:240LEDs/M

LED QTY/M:120LEDs/M

LED QTY/M:240LEDs/M

Power9.6W/M

Power18W/M

Power16W/M

Power18W/M

Current/M:12V 0.8A/M24V 0.4A

Current/M:24V 0.75A/M

Current/M:12V 1.33A/M24V 0.67A

 Current/M:24V 0.75A/M

PCB Width5mm

PCB Width15mm

PCB Width10mm

PCB Width12mm

IPIP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof

Beam angle120°

Operating Temperature-20°-45°

Storage Temperature-30°-65°

Package5M/Roll10M/RollOr customized length

Cutting:   12V 3leds/cutting  : 60leds/m about 5cm, , 120 leds/m about 2.5cm,240leds/m about1.25cm,240leds/M double row about 2.5cm;24V:60leds/m about 10cm, 120 leds/m about 5cm,240leds/m about2.5cm,240leds/M double row about 5cm

Warranty2-3 years

PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD 3535 RGB LED Strip Features:

SMD3535 RGB LED strip is a high-density, high-brightness flexible decorative lighting product, widely used in indoor and outdoor atmosphere creation. The following are its core parameters, features and purchase points:
1. Voltage: The mainstream is DC24V (efficiency is 30% higher than 12V, and the brightness attenuation is smaller).
2. LED density and brightness
High-density design: The mainstream has 120LEDs/m and 240LEDs/m. The latter has more uniform light effect and is suitable for lighting without dark areas. Viewing angle: 120° wide viewing angle and large coverage.
3. Physical characteristics

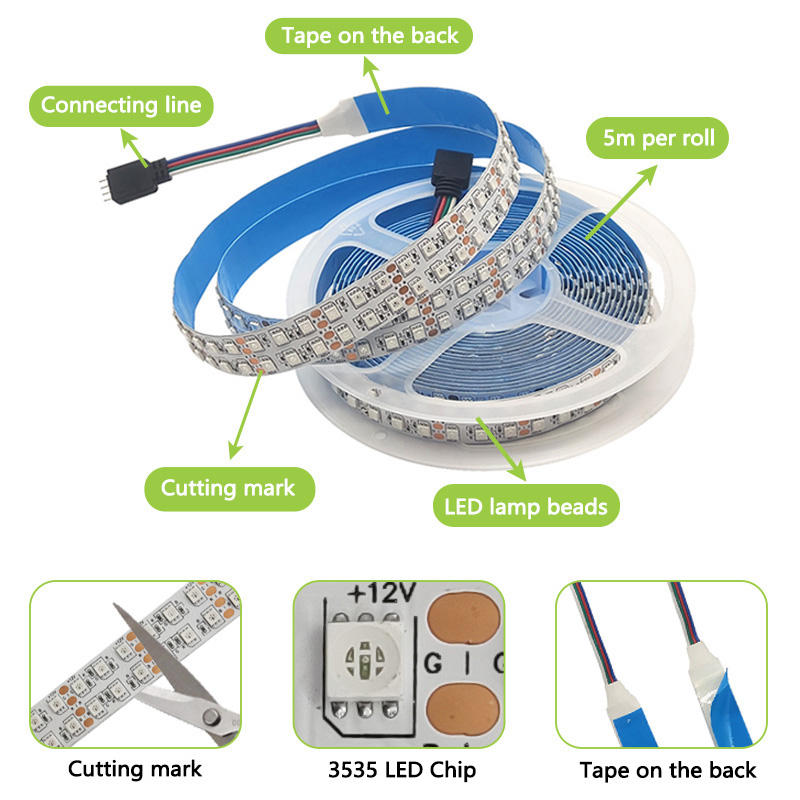

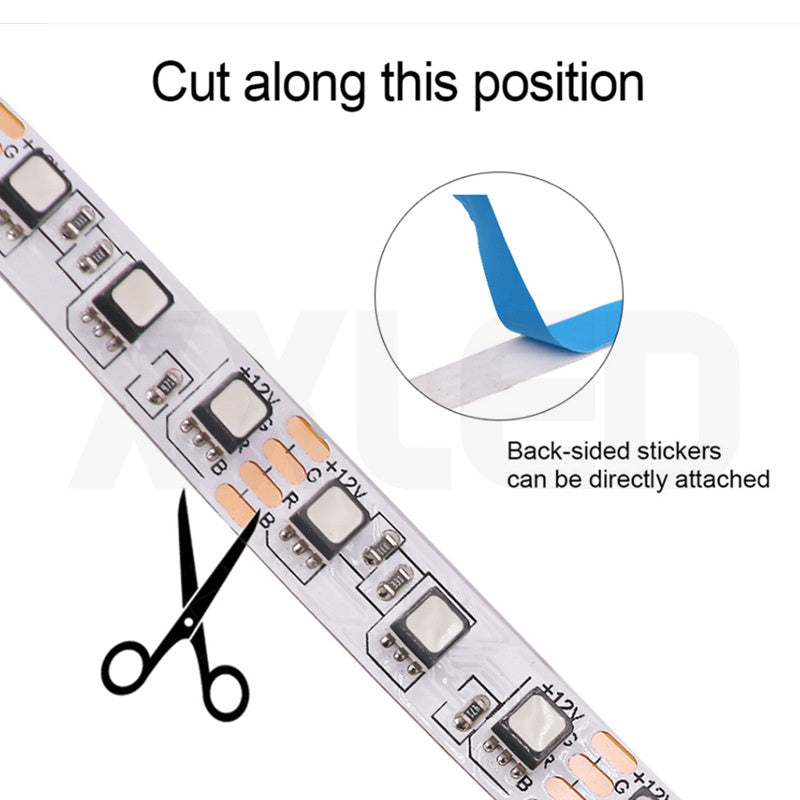

Minimum cutting length: 3leds (12V) or 6leds (24V), which is convenient for flexible installation.
Protection level (IP): IP20/IP65/IP67/IP68 are optional.
Material: Flexible FPC circuit board with self-adhesive backing.
4. High brightness uniformity: Dense LED layout eliminates light spots and is suitable for continuous decorative lighting (such as TV background walls and cabinets).
5. External controller required: RGB controller + 24V 5A power supply is required.
6. Easy to install DIY: Support cutting, bending, adhesive backing;
7. Typical application scenarios
Indoor decoration: living room ceiling, stair steps, wine cabinet/display cabinet atmosphere lights, mirror backlight.
Commercial space: hotel corridors, wedding/party settings, exhibition lighting art installations.
Creative design: Cooperate with smart APP color adjustment to achieve dynamic color switching (compatible controller required).
