sk6812 side addressable digital pixel led strip

Description:

SK6812 4020 side LED  strip is a programmable colorful light strip with a special packaging design. Its core features are the side-emitting direction and integrated intelligent control IC, which give it significant advantages in specific lighting scenarios.

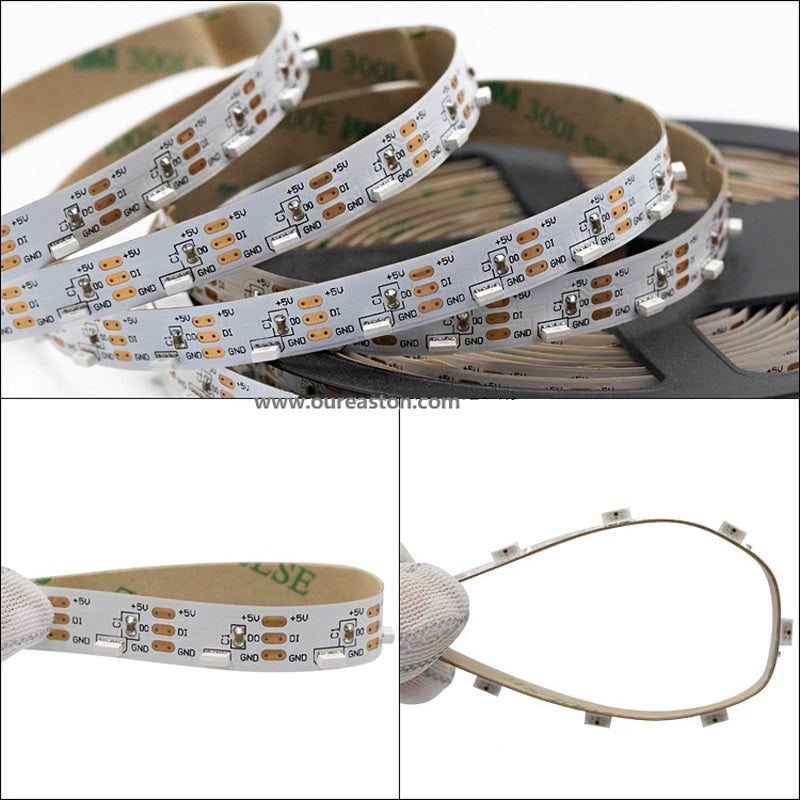

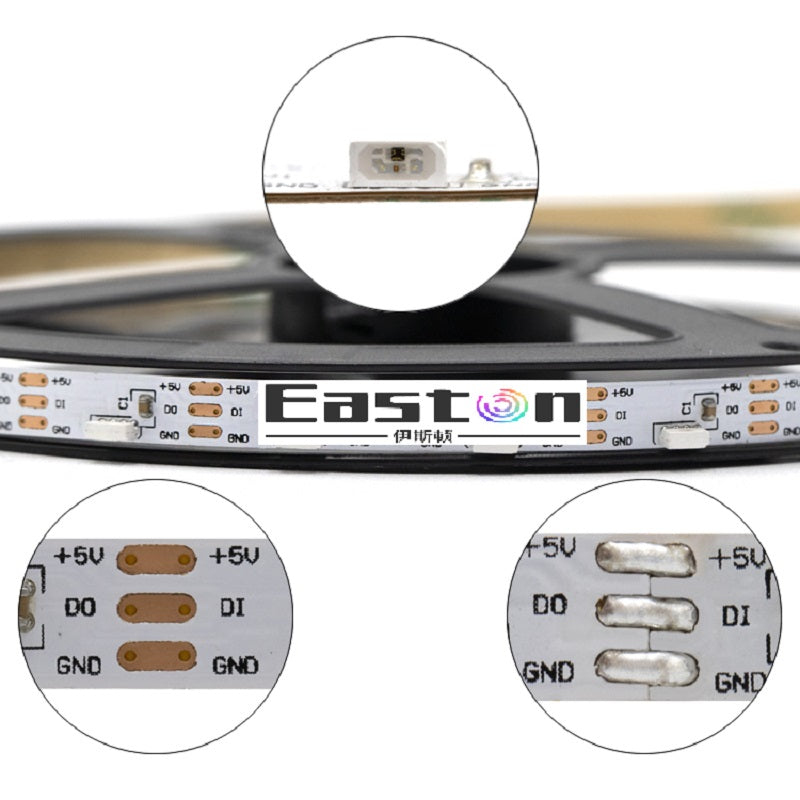

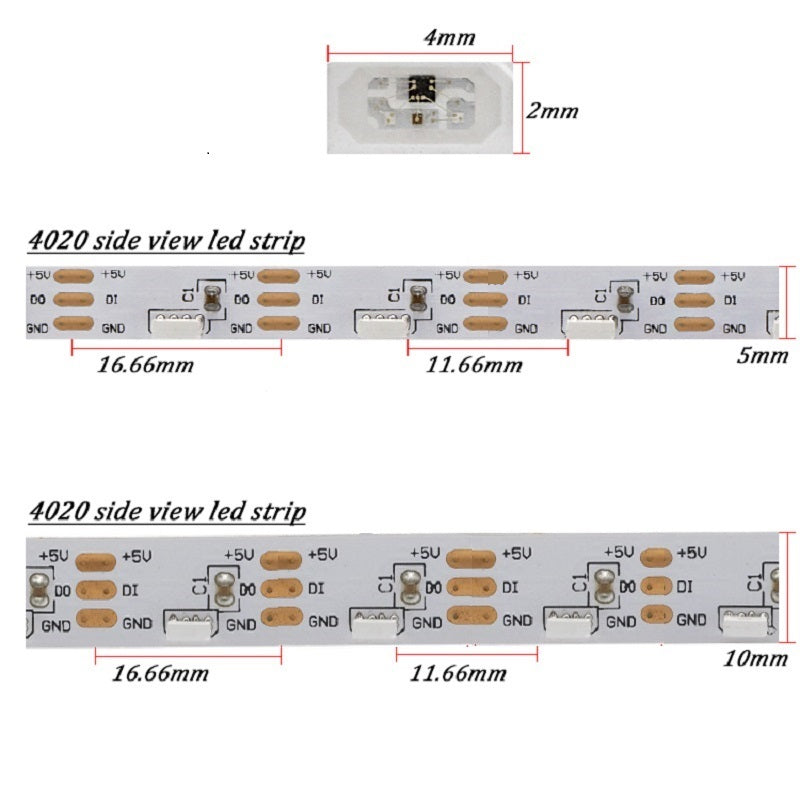

Unlike traditional pixel LED strips that emit light from the front, the LED chip of SK6812 4020 (size 4.0mm×2.0mm) emits light directly from the side, and the light radiates parallel to the PCB board.
Suitable for narrow spaces, edge lighting (such as cabinet gaps, glass curtain wall frames) or sign backlighting, achieving hidden and uniform linear light effects

Each 4020 packaged LED has a built-in SK6812 driver IC, supports single-line serial communication (SPI protocol), and realizes "single point single control": each LED can independently set the RGB color of 256 grayscale levels, with a combination of 16 million colors. The data uses automatic shaping and forwarding technology, the cascade distance can reach more than 10 meters, and the signal distortion is low, supporting long-distance high-density layout
Powered by 5V voltage, high refresh rate: PWM frequency reaches 1.2kHz (compared to WS2812B only 400Hz), effectively reducing visible flicker to the human eye, suitable for high-speed dynamic effects, wide color gamut and consistency: built-in PWM constant current technology to ensure uniform full-color mixing; special red light treatment improves color balance
Easton Technology Co., Ltd.'s sk6812 4020LED light strip products include 60leds/m, 90leds/m, 120leds/M and 144leds/m. These products provide multiple protection levels such as IP20/IP65/IP67/IP68, suitable for different application scenarios. Easton Technology can also provide related accessories such as power supplies, controllers, aluminum profiles, etc. In addition, Easton Technology also provides customized services, including wire length, PCB width, special-shaped specifications, LED quantity, connector specifications, logos, packaging, LED light strip length, etc.

Specifications:

PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
Product parameters:
(1) Working voltage: DC5V
(2) LED light source: SMD 4020 RGB
(3) LED chip: Epistar or Sanan
(4) LED quantity: 60/90/120 /144LED/m
(5) IC quantity: 60/90/120 /144pcs/m
(6) Power: 14.4/21.6/28.8/34.56W/M
(7) Grayscale: 256 levels/color

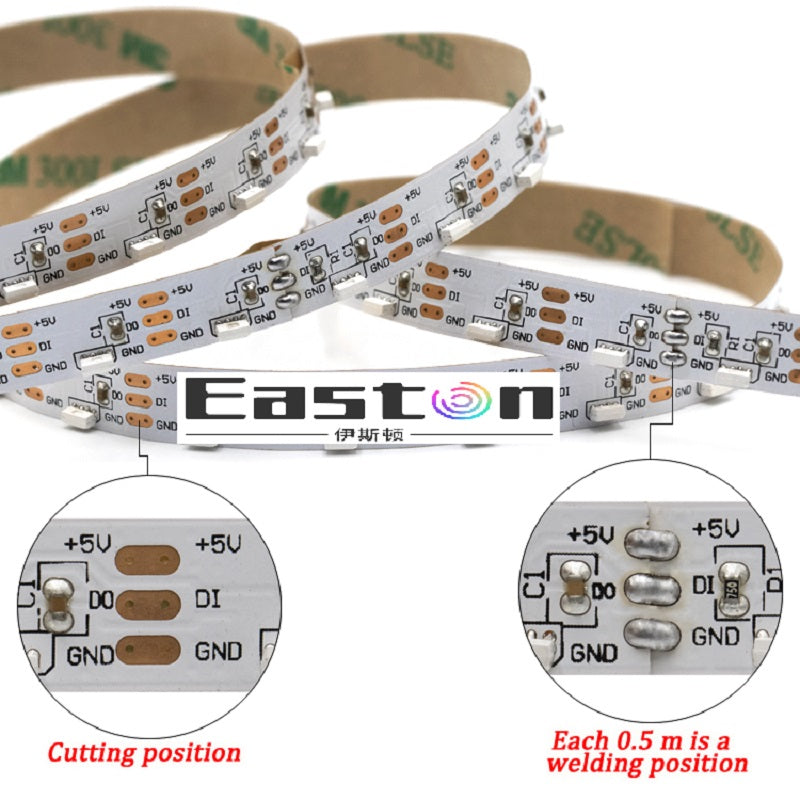

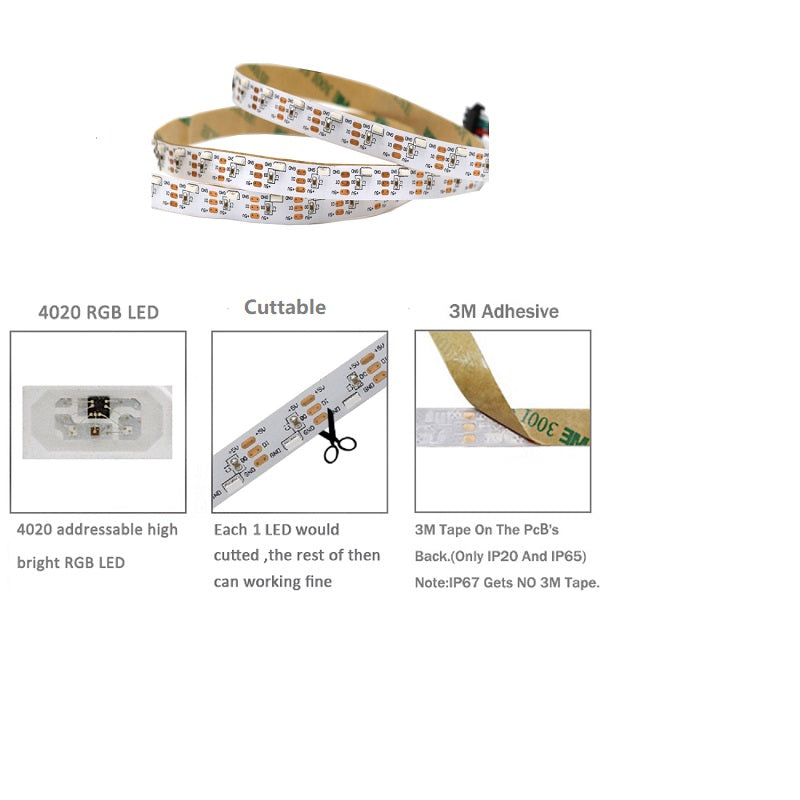

(8) Cuttability: 1 LED/cut (built-in IC , 1 IC controls 1 LED)
(9) Beam angle: 120°
(10) Color modes: 133 patterns and 100 speeds
(11) Dimensions: 5000mm x 5/8mm x 2.4mm (60/90leds/M) 1000mm x 8/10mm x 2.4mm (120/144leds/M)
(12) Packing: 5m/roll or 1m/roll 5v ws2812 light strip + 3-pin connector
(13) Warranty: 2-3 years
Features:

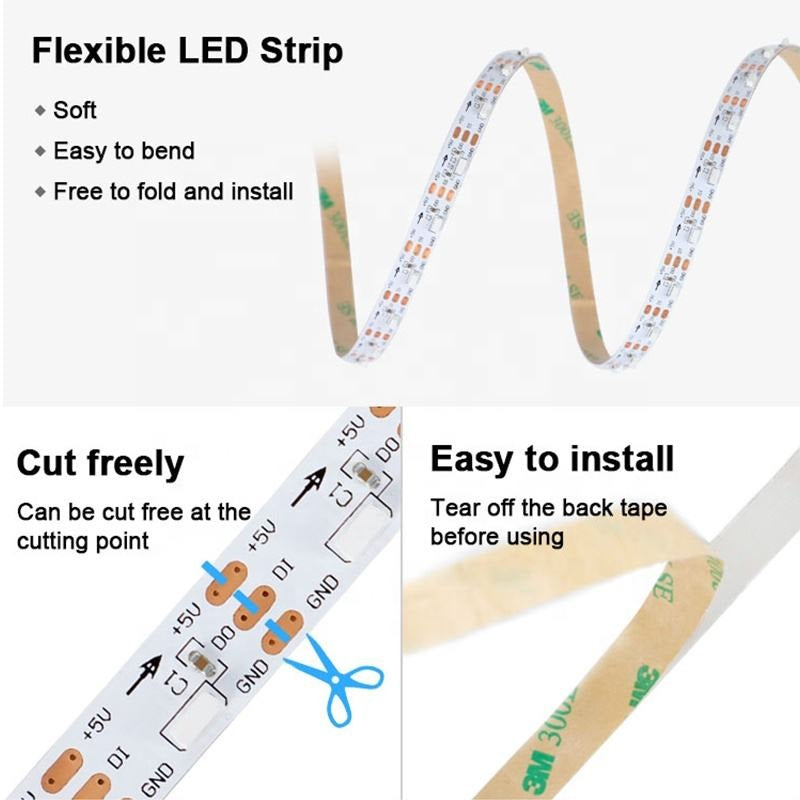

(1) Flexible PCB (IP20, IP65) with 3M tape on the back for easy installation.
(2) Energy saving and environmental protection.
(3) High brightness 4020 SMD LED light strip.
(4) Solid state, strong resistance to shock or vibration.
(5) Low power consumption, high brightness.
(6) Matching RGB controller and power supply system.
(7) Wide viewing angle.
(8) Provide RGB colors.

Product Details：

sk6812 4020 led strip typical application scenarios:
Commercial and decorative lighting
Advertising signs: side light penetrates acrylic panels to achieve shadowless text effect18.
Entertainment venues: dynamic atmosphere light strips for KTV and bars, supporting music synchronization special effects.
Industrial and home innovation
Narrow space lighting: internal instructions for home appliances, stair railing gap light strips.
DIY project: Combine Arduino/Raspberry Pi to create interactive art installations or smart home background lights

Common control methods of sk6812 4020 led light strips:
sk6812 4020 products can achieve different effects through mini three-button controllers, RF controllers, Bluetooth controllers, music controllers, programmable controllers, online controllers, DMX consoles, Madix, Aduino, etc.: static, static changes, water chasing, colorful changes, colorful chasing, animation, etc.
