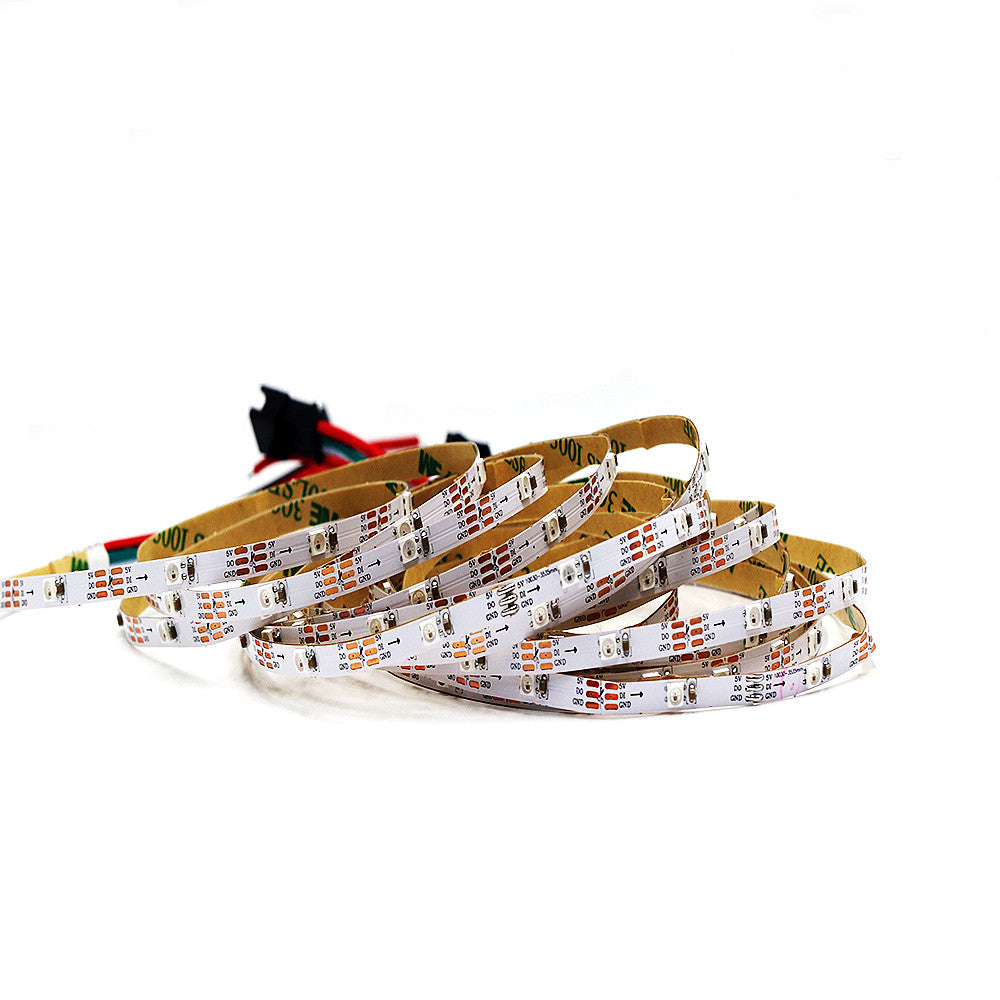

SK6812 3535 mini pixel digital magic addressable strip light
Description:
SK6812MNI3535 is an intelligent LED product that integrates control circuit and light-emitting circuit. Each LED is a pixel. Each pixel contains MCU intelligent digital interface, latch and shaping amplifier circuit, etc., to ensure high consistency of pixel color. Through zero-return code communication, the transmission distance between any two points can...
Description:
SK6812MNI3535 is an intelligent LED product that integrates control circuit and light-emitting circuit. Each LED is a pixel. Each pixel contains MCU intelligent digital interface, latch and shaping amplifier circuit, etc., to ensure high consistency of pixel color. Through zero-return code communication, the transmission distance between any two points can be greater than 5 meters without signal amplification circuit. It has 256 gray levels and can realize full-color display of 16777216 colors. The scanning frequency is not less than 400Hz/s. With serial interface design, data reception and decoding are completed through a signal line.
The sk6812mini led light strip adopts 5V voltage design. Each LED can be cut. The IC is built into SMD3535. This design can accommodate more LEDs on a smaller PCB board and is suitable for application in narrow places.
The SK6812 mini3535 products of Easton Technology Co., Ltd. include 30leds/m, 60leds/m and 144leds/m. These products provide multiple protection levels such as IP20/IP65/IP67/IP68, suitable for different application scenarios. Easton Technology can also provide related accessories such as power supply, controller, aluminum profile, etc. In addition, Easton Technology also provides customized services, including wire length, PCB width, special-shaped specifications, LED quantity, connector specifications, logo, packaging, LED light strip length, etc.
Specifications:
|
|
|
|
|
Model：ES-SK6812MiNi-30 |
Model：ES-SK6812MiNi-60 |
Model：ES-SK6812MiNi-144 |
|
Voltage：DC5V |
Voltage：DC5V |
Voltage：DC5V |
|
Power：9W/M |
Power：18W/M |
Power：43.2W/M |
|
LED QTY：30LEDs/M |
LED QTY：60LEDs/M |
LED QTY：144LEDs/M |
|
Color：RGB |
Color：RGB |
Color：RGB |
|
pcb width：5mm |
pcb width：5mm |
pcb width：8mm |
|
pcb color：Black/White |
pcb color：Black/White |
pcb color：Black/White |
|
Chip：San an/Epistar |
Chip：San an/Epistar |
Chip：San an/Epistar |
|
IC：WS2812 MiNi 3535/SK6812 MiNi3535 |
IC：WS2812 MiNi 3535/SK6812 MiNi3535 |
IC：WS2812 MiNi 3535/SK6812 MiNi3535 |
|
Cutability: 5V 1leds
|
Cutability: 5V 1leds |
Cutability: 5V 1leds |
|
Install：3M |
Install：3M |
Install：3M |
|
IP：IP20/IP67/IP68 |
IP：IP20/IP67/IP68 |
IP：IP20/IP65/IP67/IP68 |
|
Warranty: 2-3 years |
Warranty: 2-3 years |
Warranty: 2-3 years |
|
Certification：CE Rosh |
Certification：CE Rosh |
Certification：CE Rosh |
Note:
SK6812mini and ws2812mini have the same functions, just different brands of products, but both are very stable products!
SK6812MiNi3535 must be controlled by DC5V power supply and LED controller!
There are welding points every 0.5 meters, please pay attention!
PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, indoor use
(2) IP65 --- silicone coating, easy to cut, outdoor use, only products with 144 leds/m can reach IP65 level
(3) IP67 --- silicone tube, needs to be resealed after cutting, outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
Product parameters:
(1) Working voltage: DC5V
(2) LED light source: SMD 3535 RGB
(3) LED chip: Jingyuan or Sanan
(4) Number of LEDs: 30/60/144 LEDs/m
(5) Number of ICs: 30/60/144 LEDs/m
(6) Power: 9/18/43.2W/m
(7) Grayscale level: 256 colors
(8) Cuttability: 1 LED/cut (1 IC controls 1 LED)
(9) Beam angle: 120°
(10) Color modes: 133 patterns and 100 speeds
(11) Dimensions: 5000mm x 5mm x 2.4mm (30 and 60 LED/meter) or 1000mm x 8mm x 2.4mm (144 LED/meter)
(12) Packaging: 5 meters/roll or 1 meter/roll 5V SK6812MiNi 3535 RGB light strip + 3-pin connector
(13) Warranty period: 2-3 years
Features:
(1) Flexible PCB (IP20, IP65) with 3M tape on the back for easy installation.
(2) Energy saving and environmental protection.
(3) High brightness 3535 SMD LED light strip.
(4) Solid state, strong resistance to shock or vibration.
(5) Low power consumption, high brightness.
(6) Optional RGB controller and power supply system.
(7) Wide viewing angle.
(8) RGB color.
Product Details：
The SK6812Mini3535 product is designed to add a fantastic color to spaces that require linear light sources. The product is widely used in holiday light shows, clothing, game consoles, e-sports equipment, computer cases, TV background walls, clothing, cars, architectural lighting, sign lighting, cabinet and shelf lighting, as well as decorative lighting for stages, home theaters, wine cellars, cars, bicycles, yachts and cruise ships.
The SK6812Mini3535 product can achieve different effects through mini three-button controllers, RF controllers, Bluetooth controllers, music controllers, programmable controllers, wifi controllers, DMX consoles, Madix, Aduino, ESP32/ESP8826, Raspberry Pi, online master control, etc.: static, static change, water chasing, colorful change, colorful chasing, animation, etc.
