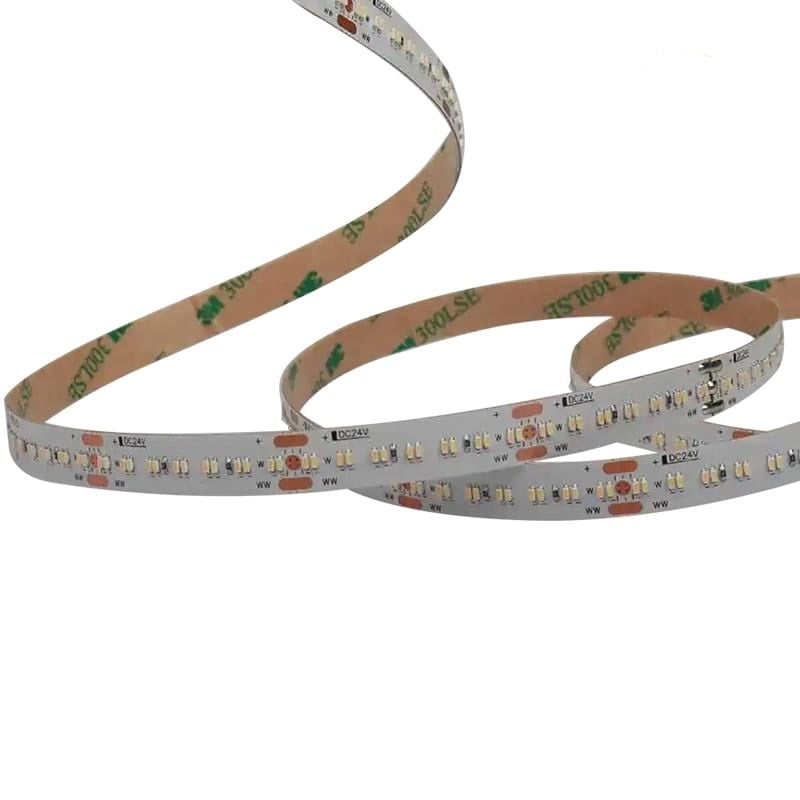

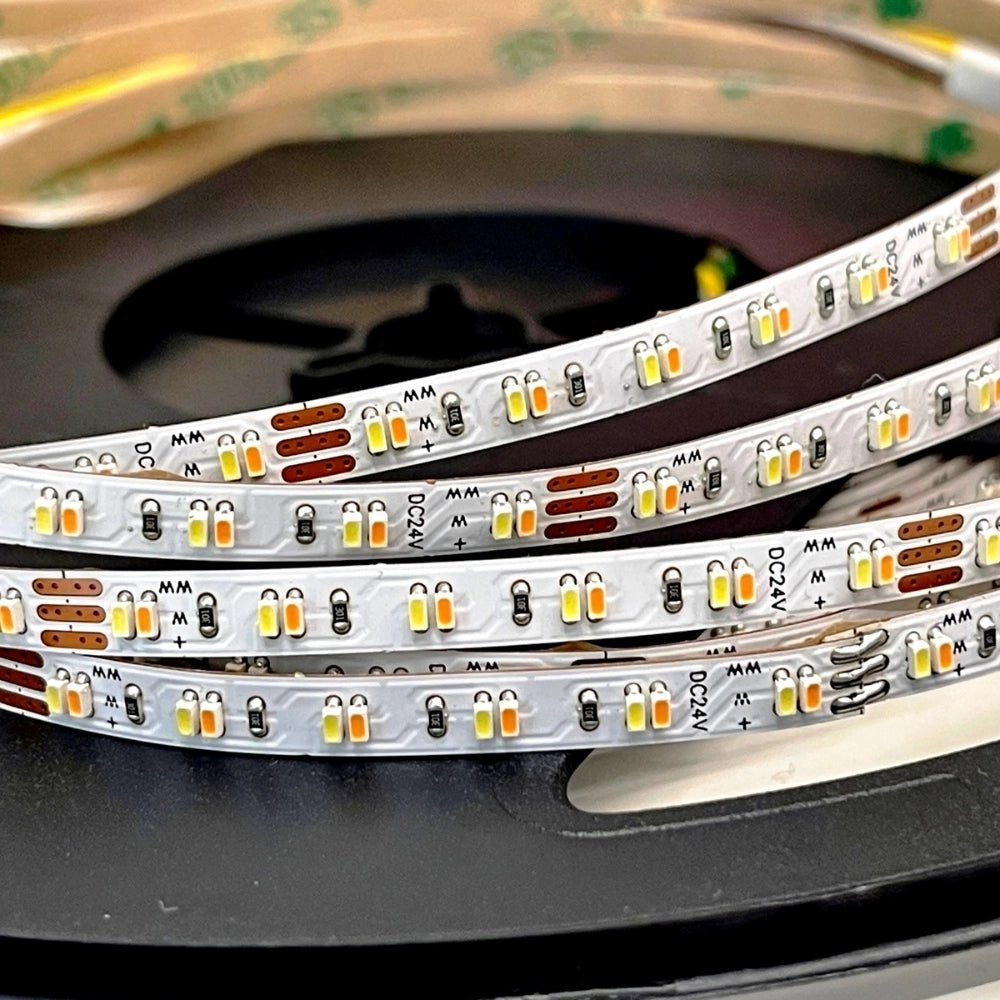

SMD1808 dual color LED strip
Product Description:
SMD1808 CCT LED strip is a CCT lighting product that uses ultra-small surface mount device (SMD) technology. Its core features are miniaturized design, high-density integration and precise color temperature control.SMD1808 dual color LED strip also known as SMD1808 color temperature adjustable LED strip or SMD1808 dual white led...
Product Description:
SMD1808 CCT LED strip is a CCT lighting product that uses ultra-small surface mount device (SMD) technology. Its core features are miniaturized design, high-density integration and precise color temperature control.SMD1808 dual color LED strip also known as SMD1808 color temperature adjustable LED strip or SMD1808 dual white led strip or SMD1808 CCT LED strip or SMD1808 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K).
Easton Technology Co., Ltd.'s SMD1808 dual color LED strip products include 240leds/M and 364Leds/M. These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
Model:ES-1808D-240 |
Model:ES-1808D-364 |
Color: white 2700-6500K |
|
LM/LED: White light: 6-10LM |
|
LED QTY/M:240LEDs/M |
LED QTY/M:364LEDs/M |
Color temperature: white light 2700-6500K |
|
Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications |
|
Power:10W/M |
Power:20W/M |
Current/M:24V:0.4A/M |
Current/M:24V:0.84A/M
|
PCB Width:5mm |
PCB Width:10mm |
IP:IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof |
|
Beam angle:120° |
|
Operating Temperature:-20°-45° |
|
Storage Temperature:-30°-65° |
|
Package:5M/Roll,10M/RollOr customized length |
|

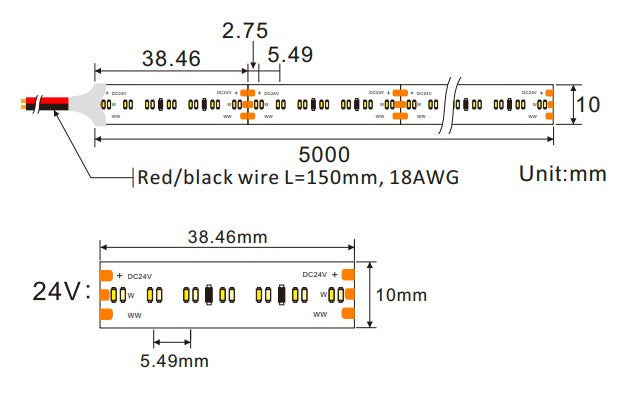

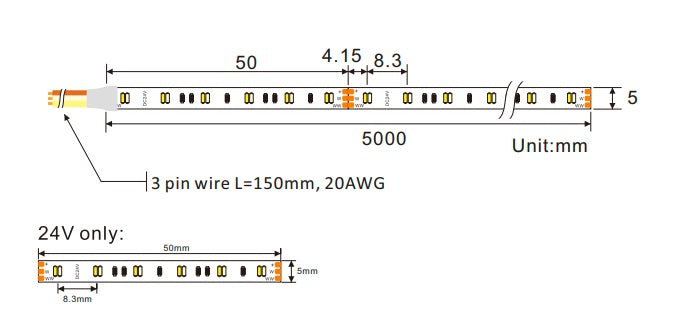

Cutting: 240leds/m 12leds/cutting about 5cm, 364 leds/m:14leds/cutting about 3.85cm |
|
Warranty:2-3 years |
PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
SMD1808 dual color LED Strip Features:
The SMD1808 CCT LED strip is an adjustable color temperature (CCT) lighting product that uses ultra-small surface mount device (SMD) technology. Its core features are miniaturized design, high-density integration, and precise color temperature control. Although the search results do not provide direct parameters for the SMD1808 model, based on the industry standard naming rules (the number after SMD represents the chip size in units of 0.1mm) and the comparison of similar technologies, its key features are summarized as follows:
1. Chip size and physical structure
Miniaturized design: The SMD1808 chip size is 1.8mm × 0.8mm, which is one of the smallest models in the current LED strips, significantly better than SMD2835 (2.8mm×3.5mm) and SMD5050 (5.0mm×5.0mm).
High-density layout: Due to the small chip size, the strip can support ultra-high LED density, achieve continuous light effect without graininess, and avoid the "spot light spot" problem of traditional strips.
2. Color temperature control (CCT) technology
Dual-channel color temperature control: Each SMD1808 chip integrates **warm white (2700K–3500K) and cool white (5000K–6500K) dual color temperature LED units, and achieves stepless adjustment in the range of 2700K–6500K through independent circuits.
Low voltage drive: Requires a 24V constant voltage power supply and a dedicated CCT controller (such as a PWM dimmer), and supports remote switching of color temperature modes (such as from warm yellow light to daylight white light).
3. Optical performance and energy efficiency
Uniform light emission: The microchips are closely arranged, combined with a 120°–180° wide-angle beam, to provide shadow-free uniform lighting, suitable for scenes with high light quality requirements (such as makeup mirrors, display cabinets).
High color rendering: The standard color rendering index (CRI) is ≥80, and the high-end version can reach Ra≥90, ensuring the true color reproduction of objects, suitable for commercial display and high-end home decoration.
Energy efficiency balance: The power consumption of a single light is about 0.05W-0.1W. Although the brightness is lower than that of SMD2835 (single light up to 80 lumens), the power of the whole light can reach 14-28W/m, and the light efficiency is about 80-100lm/W due to the high-density design.
4. Application scenario advantages
Installation in small spaces: Ultra-thin flexible PCB and microchips, suitable for furniture gaps, curved surfaces and fine contour lighting (such as wardrobe shelves and skirtings).
Applicable to professional fields:
Commercial display: jewelry cabinets, museum display cabinets, relying on high color rendering and uniform light to highlight details.
Home atmosphere: TV backlight, bedside atmosphere light, color temperature adjustment to match the circadian rhythm.
5. Installation and reliability
Easy to cut design: supports cutting, adapting to customized length requirements.
Flexible protection level: basic IP20 (indoor dry environment), optional IP65 (silicone coating) or IP67 (glue-filled casing), suitable for humid areas such as kitchens and bathrooms, IP68 (glue-filled waterproof) suitable for underwater.
Long life and stability: standard life of 50,000 hours, low heat design delays light decay, and double-sided electrolytic copper PCB improves heat dissipation efficiency.
