Product Description:

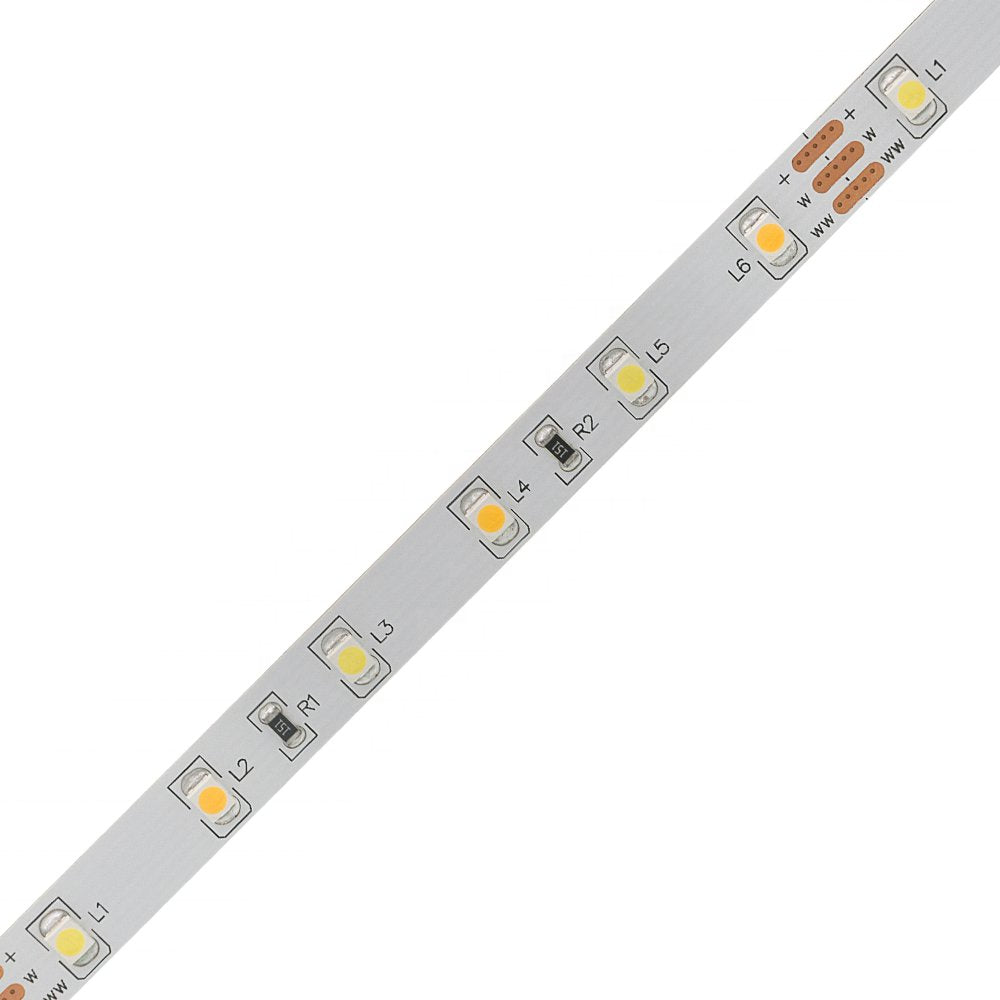

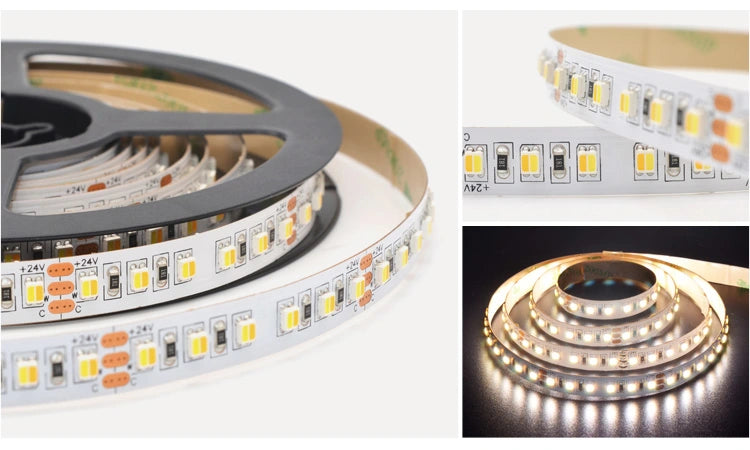

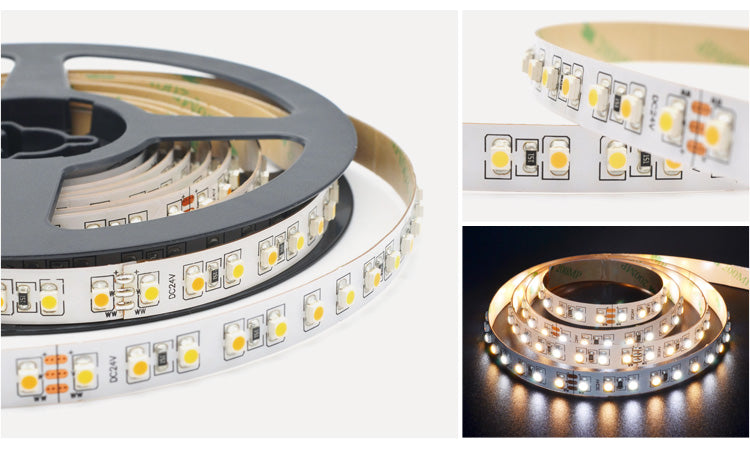

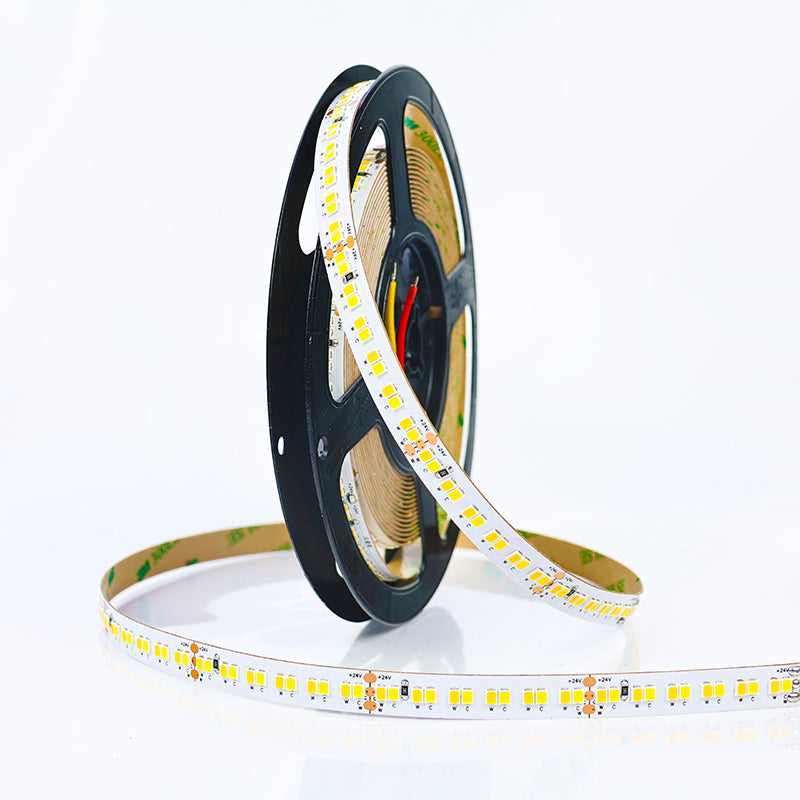

SMD3528 dual color LED strip also known as SMD3528 color temperature adjustable LED strip or SMD3528 dual white led strip or SMD3528 CCT LED strip or SMD3528 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core...

¥0.00

Product Description:

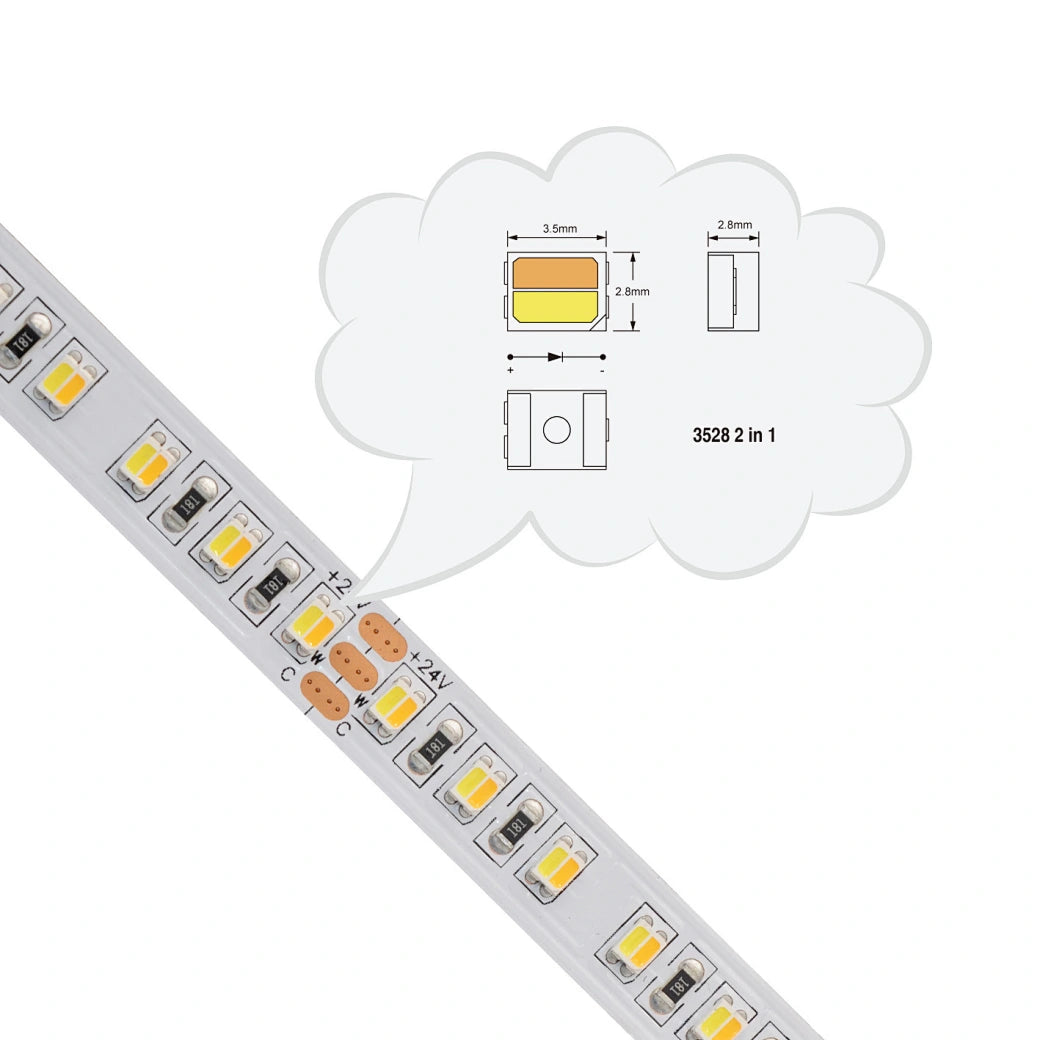

SMD3528 dual color LED strip also known as SMD3528 color temperature adjustable LED strip or SMD3528 dual white led strip or SMD3528 CCT LED strip or SMD3528 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K). For the warm white LED and the cold white LED, it can be separate LEDs or made into one LED, called 2in1 LED.

Easton Technology Co., Ltd.'s SMD3528 dual color LED strip  products include  60leds/m,120leds/M,192leds/M and 240Leds/M. These products are available in12V & 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:









Model:ES-3528D-60

Model:ES-3528D-120

Model:ES-3528D-192

Model:ES-3528D-240

Model:ES-3528D2-120

Color: white cct(2700-6500K)

LM/LED: White light: 5-10LM

LED QTY/M:60LEDs/M

LED QTY/M:120LEDs/M

LED QTY/M:192LEDs/M

LED QTY/M:240LEDs/M

LED QTY/M:120LEDs/M

Color temperature/NM: white light 2700-6500K

Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications

Power:4.8W/M

Power:9.6W/M

Power:15.2W/M

Power:19.2W/M

Power:14.4W/M

24V:0.2A/M

Current/M:12V 0.8A/M

24V:0.4A/M

Current/M:12V 1.27A/M

24V:0.63A/M

Current/M:12V 1.6A/M

24V:0.8A/M

Current/M:12V 1.2A/M

24V:0.6A/M

PCB Width:10mm

PCB Width:10mm

PCB Width:10/12mm

PCB Width:10/12mm

PCB Width:10mm

IP:IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof

Beam angle:120°

Operating Temperature:-20°-45°

Storage Temperature:-30°-65°

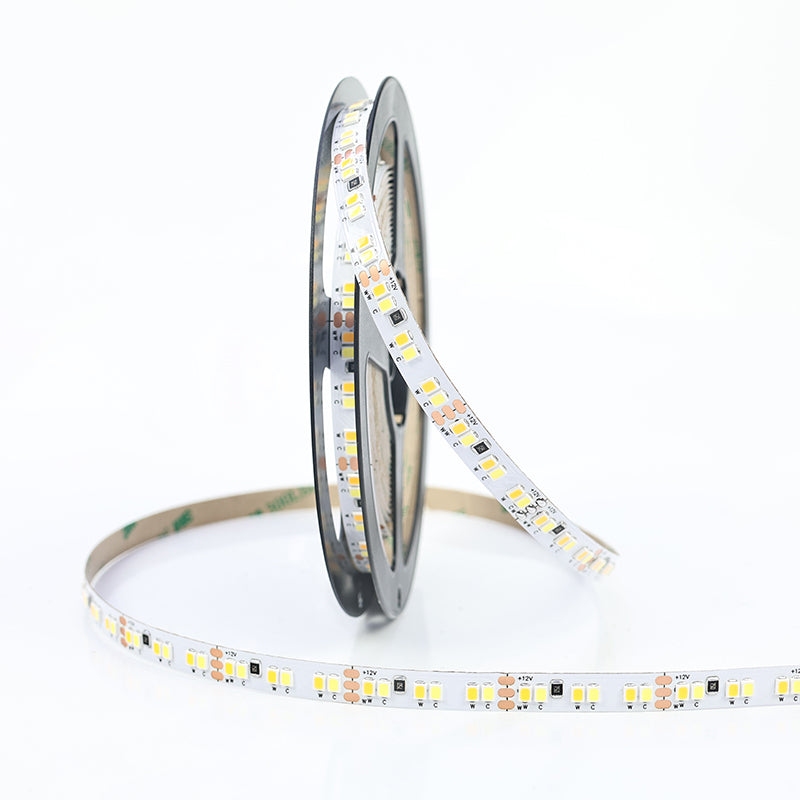

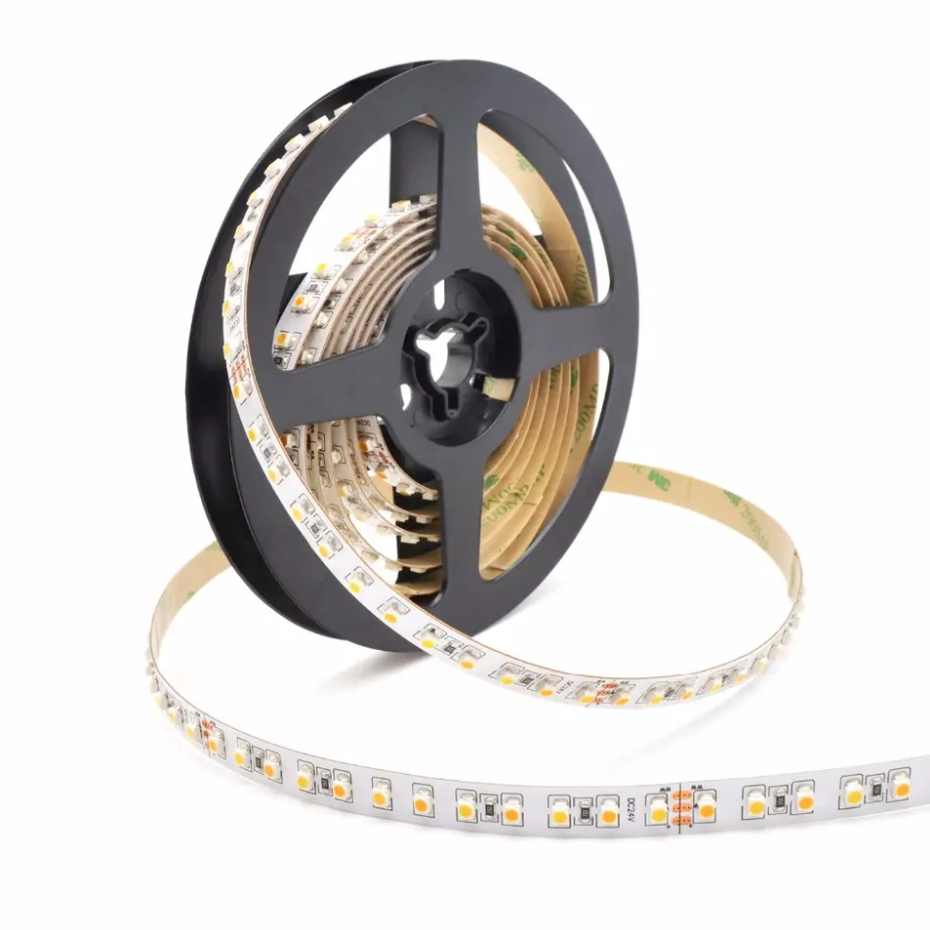

Package:5M/Roll,10M/RollOr customized length

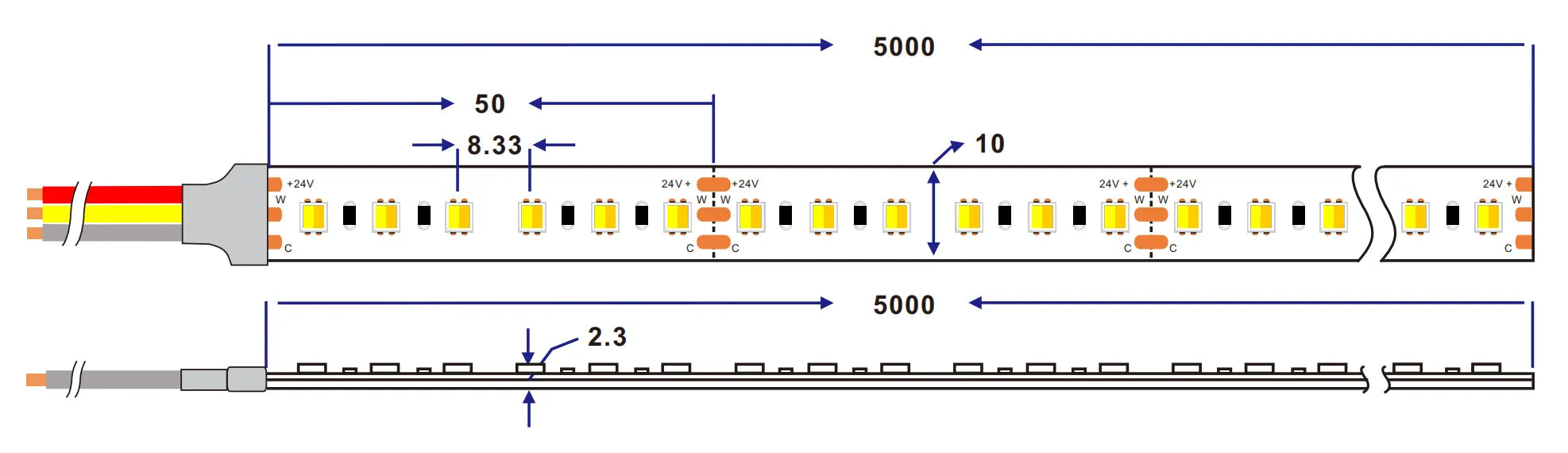

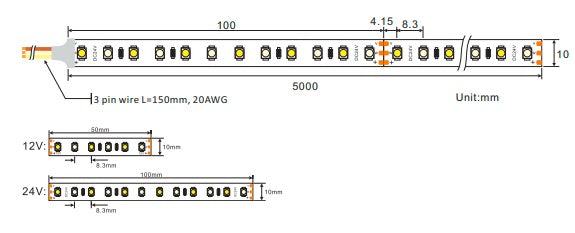

Cutting: 12V 120 leds is about 5cm, 192 leds is about 1.6cm, 240 leds is about 2.5cm,3528D2 120leds 2in1 about2.5cm; , 24V 60 leds is about 10cm, 120 leds is about 10cm, 192 leds is about3.2cm, 240 leds is about 5cm,3528D2 120leds 2in1 about5cm

Warranty:2-3 years

PCB color:
White: white PCB; Black: black PCB

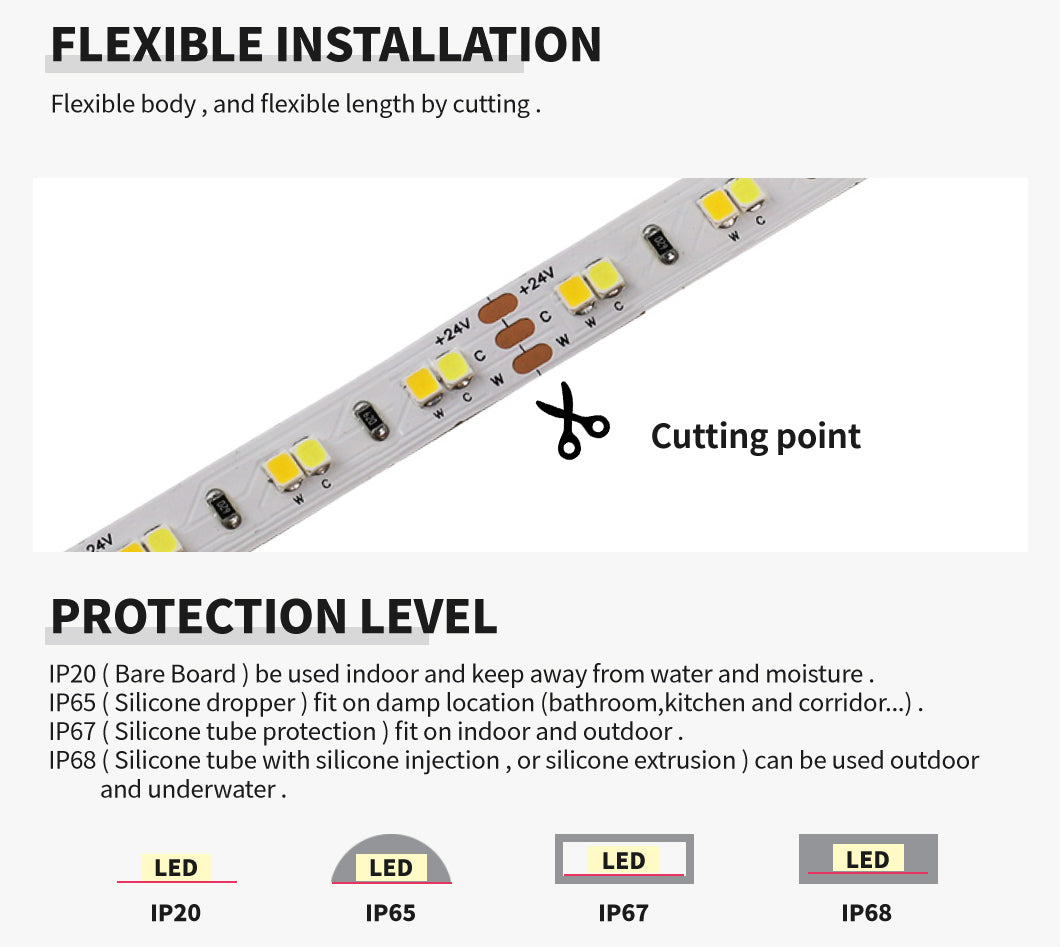

Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD3528 dual color LED Strip Features:

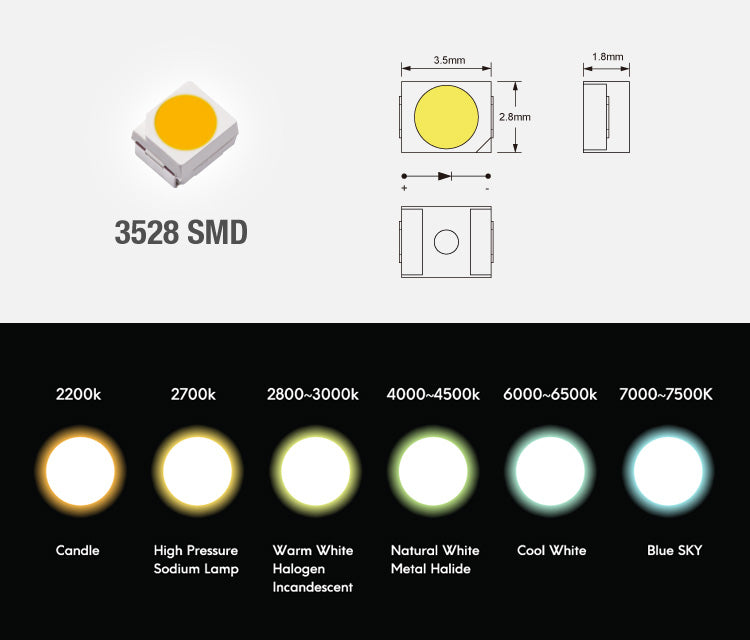

1. Color temperature adjustment range: Each SMD3528 LED integrates warm white (2700K-3200K) and cold white (6000K-6500K) dual chips, or 1 warm white LED + 1 cold white LED, and the color temperature switching is achieved by controlling the mixing ratio through an independent circuit. It usually supports continuous adjustment from warm white light (2700K) → natural light (4000K) → cold white light (6500K), and some models can be expanded to 1800K (amber).
2. Dimming and control: It needs to be matched with a dedicated dimming controller (such as RF remote control, Bluetooth/WiFi smart controller or DMX system), which supports dual adjustment of brightness and color temperature. High-end controllers support independent adjustment of multiple partitions.
3. Brightness and energy efficiency: The brightness of a single LED is about 7-8 lumens, and the typical power density is 9.6W/m (120 lights/m configuration). The working voltage is mostly 12V/24V DC.
4. Cuttable design: Each set of cutting marks (12V light strip can be cut to 50mm at minimum, 24V can be cut to 25mm). Flexible circuit board: can be bent to fit special-shaped structures (such as curved ceilings, round columns). Solder-free connectors can be used to connect multiple sections (single strip ≤ 5 meters, and long strips need to be connected in parallel to prevent voltage drop).
5. Application scenarios
Home: bedroom and living room background light, automatically adjust color temperature according to circadian rhythm.
Commercial: cafe/hotel atmosphere lighting, cloudy days enhance warm light to enhance comfort.
Display: museum showcases, window lighting, high color rendering index (CRI>90) restores true colors.
Office: conference room intelligent lighting system, matching different meeting modes.

SMD3528 dual color LED Strip product details:
