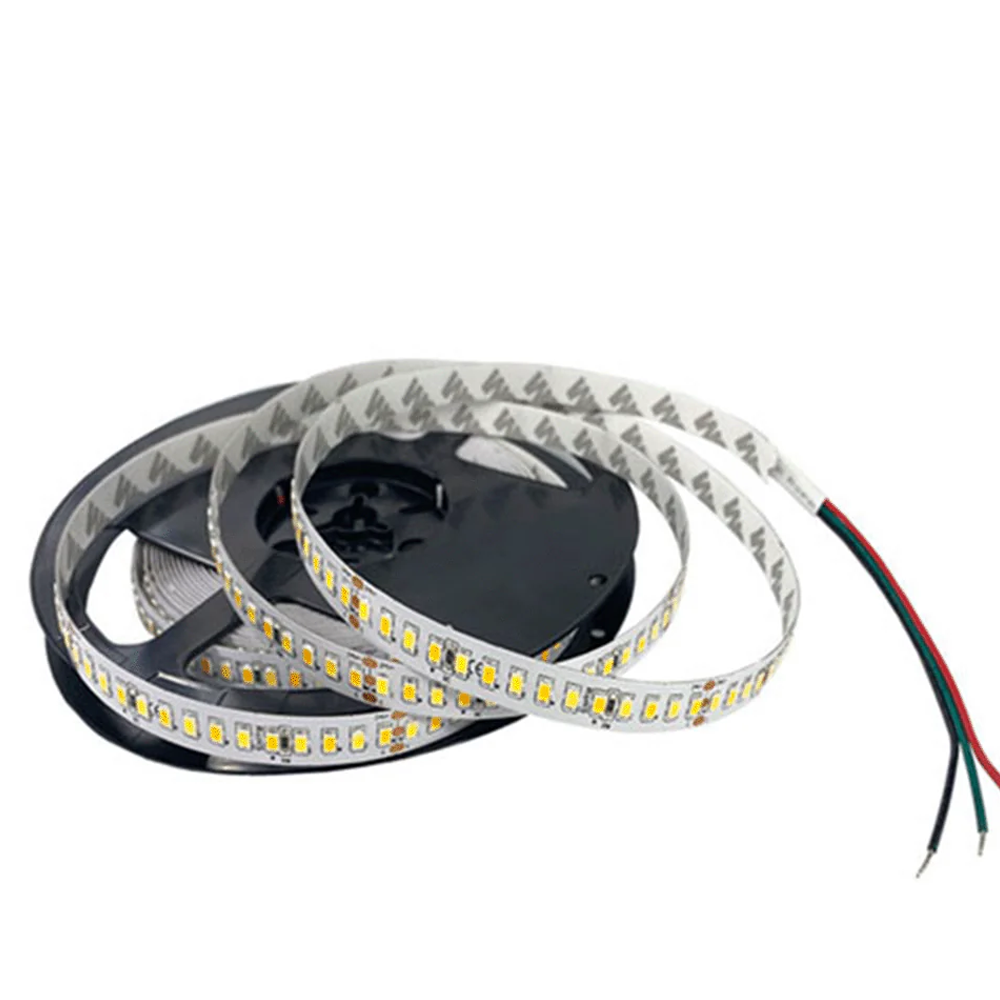

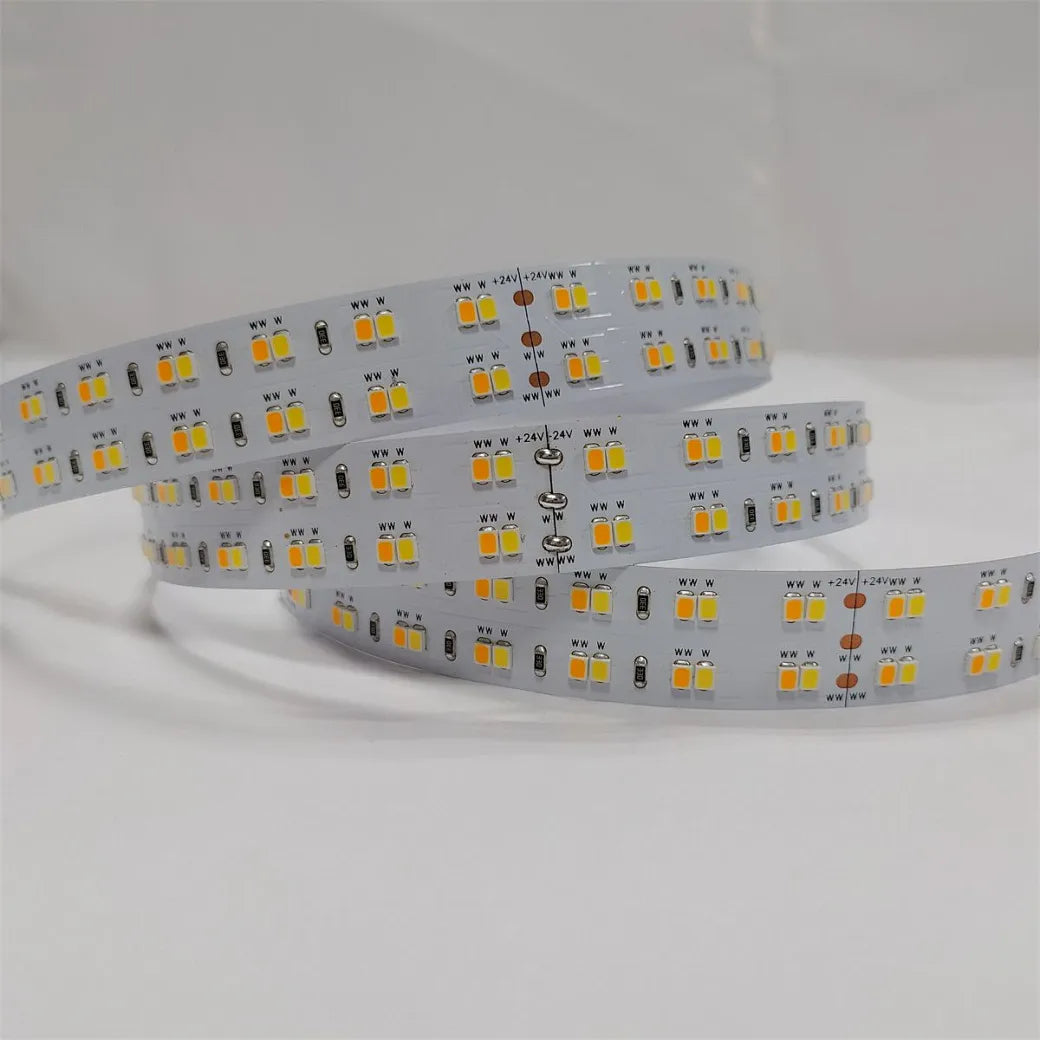

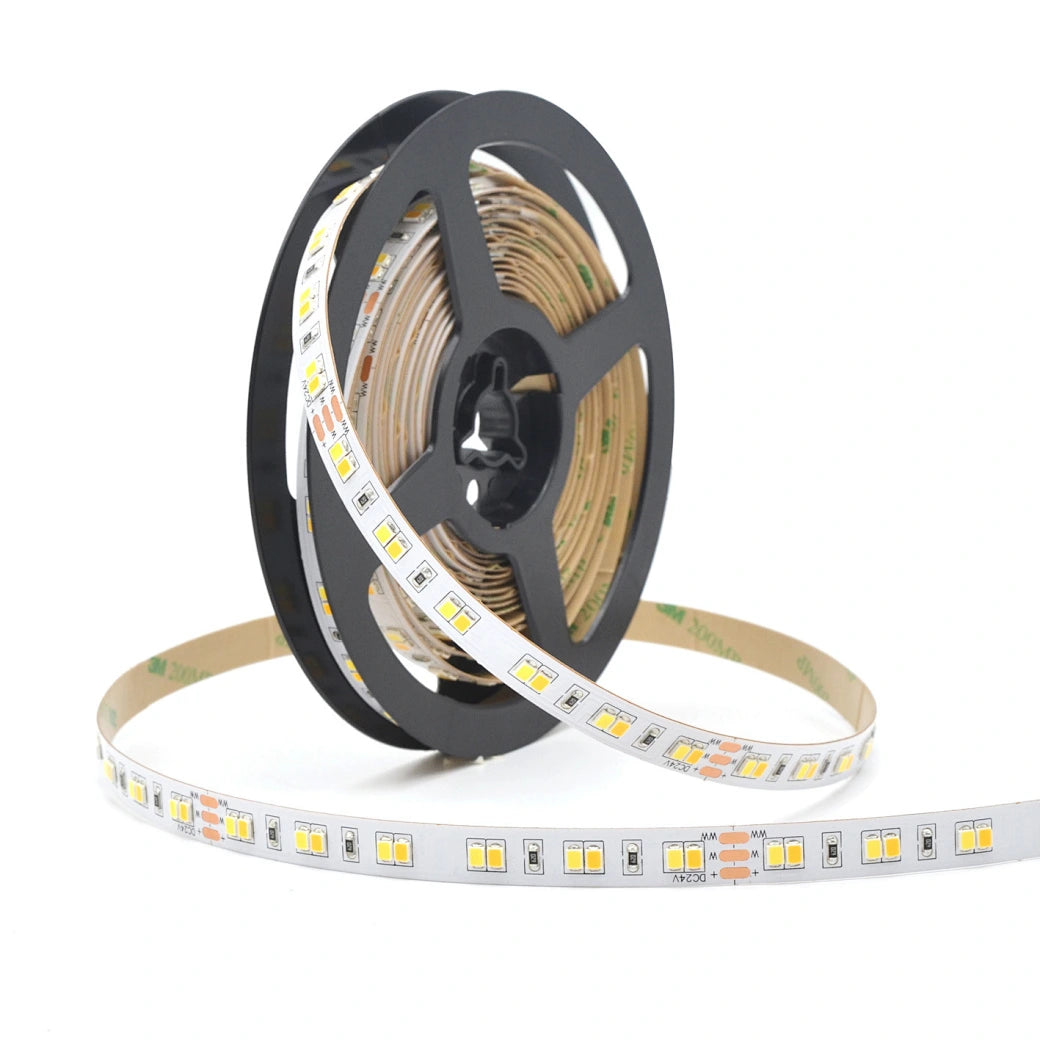

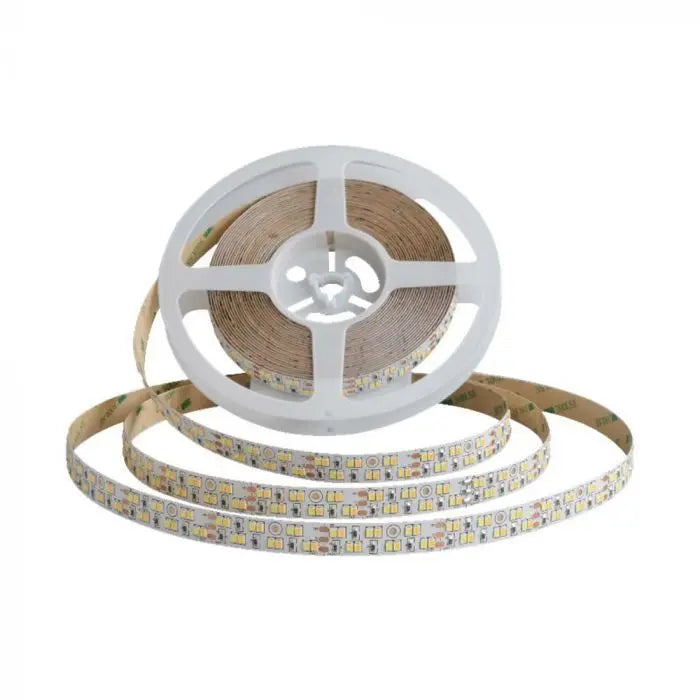

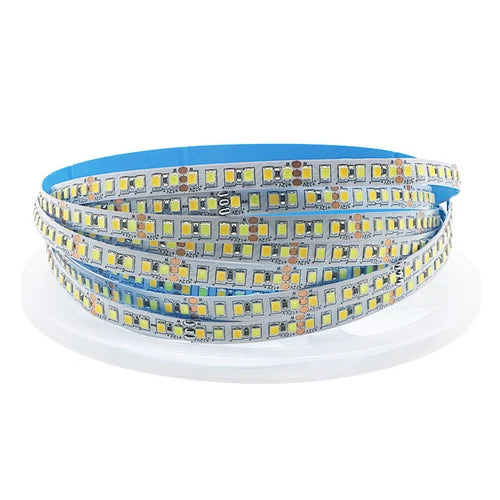

SMD2835 dual color LED strip
Product Description:
SMD2835 dual color LED strip also known as SMD2835 color temperature adjustable LED strip or SMD2835 dual white led strip or SMD2835 CCT LED strip or SMD2835 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core...
Product Description:
SMD2835 dual color LED strip also known as SMD2835 color temperature adjustable LED strip or SMD2835 dual white led strip or SMD2835 CCT LED strip or SMD2835 tunable led strip, is a series of LED light strips equipped with warm white LEDs and cold white LEDs, its core function is to allow users to freely switch the warm and cold tones of the light according to their needs (such as from warm white 2700K to cold white 6500K). For the warm white LED and the cold white LED, it can be separate LEDs or made into one LED, called 2in1 LED.

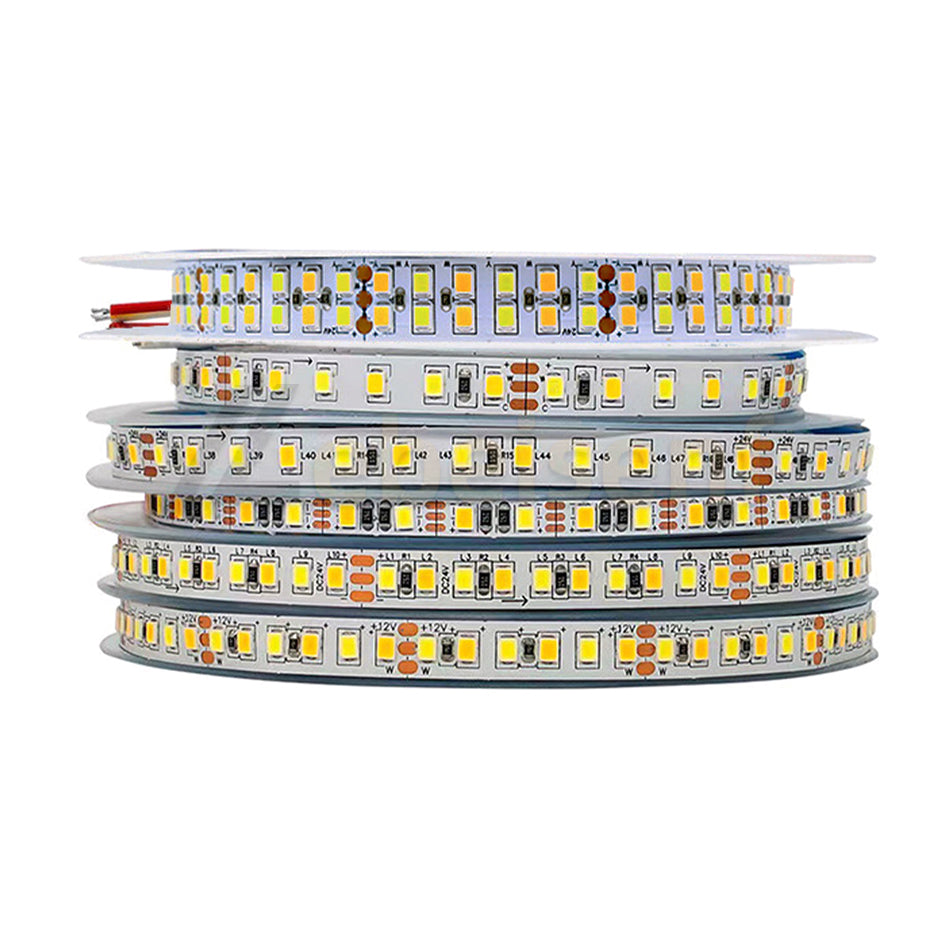

Easton Technology Co., Ltd.'s SMD2835 dual color LED strip products include 60leds/m,120leds/M,168leds/m，180leds/M ，240Leds/M and 336leds/M. These products are available in12V & 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
|
|
|
|
|
|
|
|
|
|
Model：ES-2835D-60 |

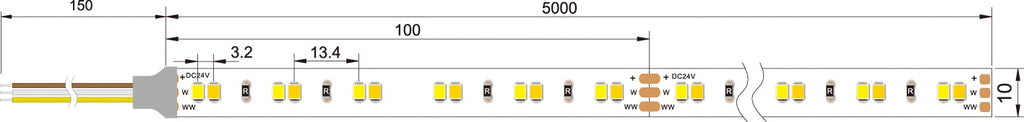

Model：ES-2835D-120 |
Model：ES-2835D-168 |
Model：ES-2835D-180 |

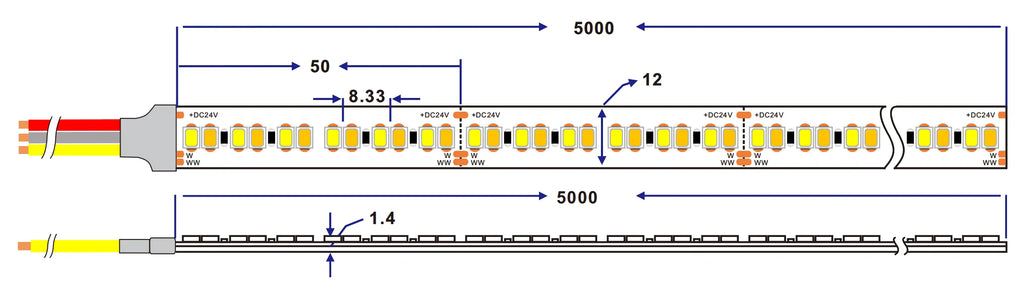

Model：ES-2835D-240 |
Model：ES-2835D-2402 |

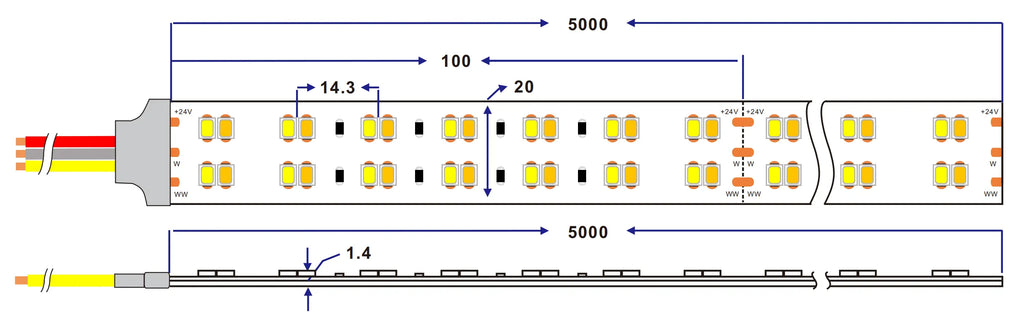

Model：ES-2835D-2802 |
Model：ES-2835D-3362 |

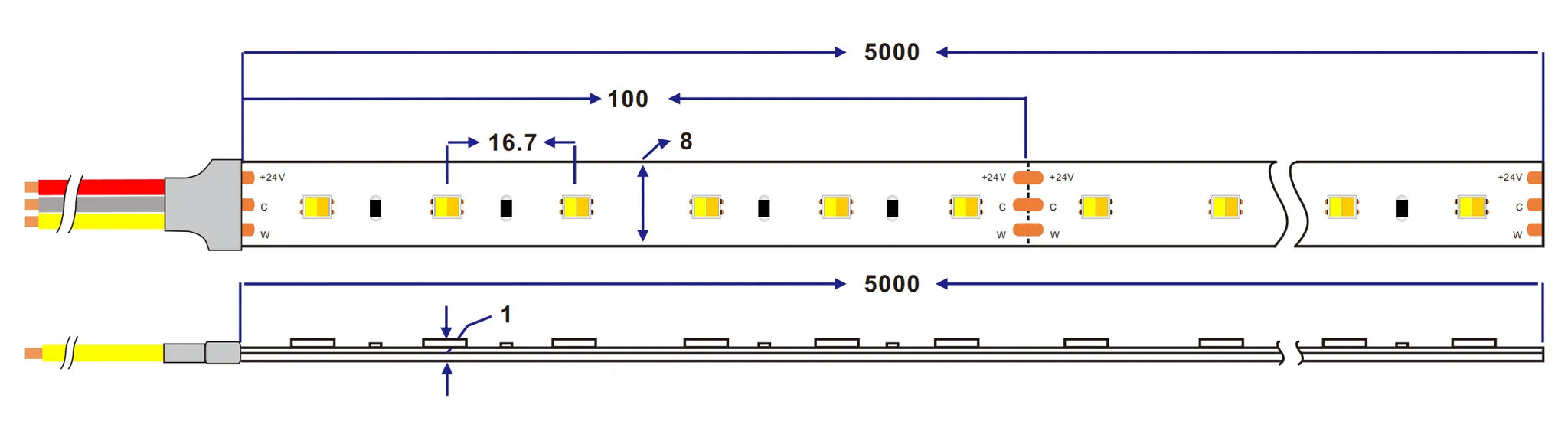

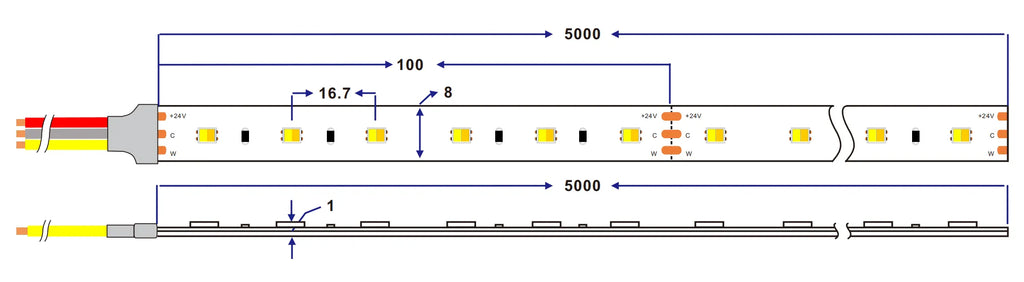

Model：ES-2835D-2in1-60 |
Model：ES-2835D-DTW-120 |
|
Color: white2700-6500K ，Model：ES-2835D-DTW-120 is dim to warm Products（1800-3000K） |
|||||||||
|
LM/LED: White light: 20-22LM |
|||||||||
|
LED QTY/M:60LEDs/M |
LED QTY/M:120LEDs/M |
LED QTY/M:168LEDs/M |
LED QTY/M:180LEDs/M |
LED QTY/M:240LEDs/M |
LED QTY/M:240LEDs/M |
LED QTY/M:280LEDs/M |
LED QTY/M:336LEDs/M |
LED QTY/M:60LEDs/M |
LED QTY/M:120LEDs/M |
|
Color temperature: white light 2700-6500K |
|||||||||
|
Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications |
|||||||||
|
Power：12W/M |
Power：19.2W/M |
Power：21W/M |
Power：21W/M |
Power：22W/M |
Power：22W/M |
Power：28W/M |
Power：28W/M |
Power：12W/M |
Power：19.2W/M |
|
Current/M：24V：0.5A/M |
Current/M：24V：0.8A/M；12V：1.6A/M |
Current/M：24V：0.87A/M |
Current/M：24V：0.87A/M |
Current/M：24V：0.92A/M |
Current/M：24V：0.92A/M |
Current/M：24V：1.17A/M |
Current/M：24V：1.17A/M |
Current/M：24V：0.5A/M |
Current/M：24V：0.8A/M；12V：1.6A/M |
|
PCB Width：8mm |
PCB Width：10mm |
PCB Width：10mm |
PCB Width：10mm |
PCB Width：10mm |
PCB Width：12mm |
PCB Width：20mm |
PCB Width：12mm |
PCB Width：8mm |
PCB Width：10mm |
|
IP：IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof |
|||||||||
|
Beam angle：120° |
|||||||||
|
Operating Temperature：-20°-45° |
|||||||||
|
Storage Temperature：-30°-65° |
|||||||||
|
Package：5M/Roll，10M/RollOr customized length |
|||||||||
|

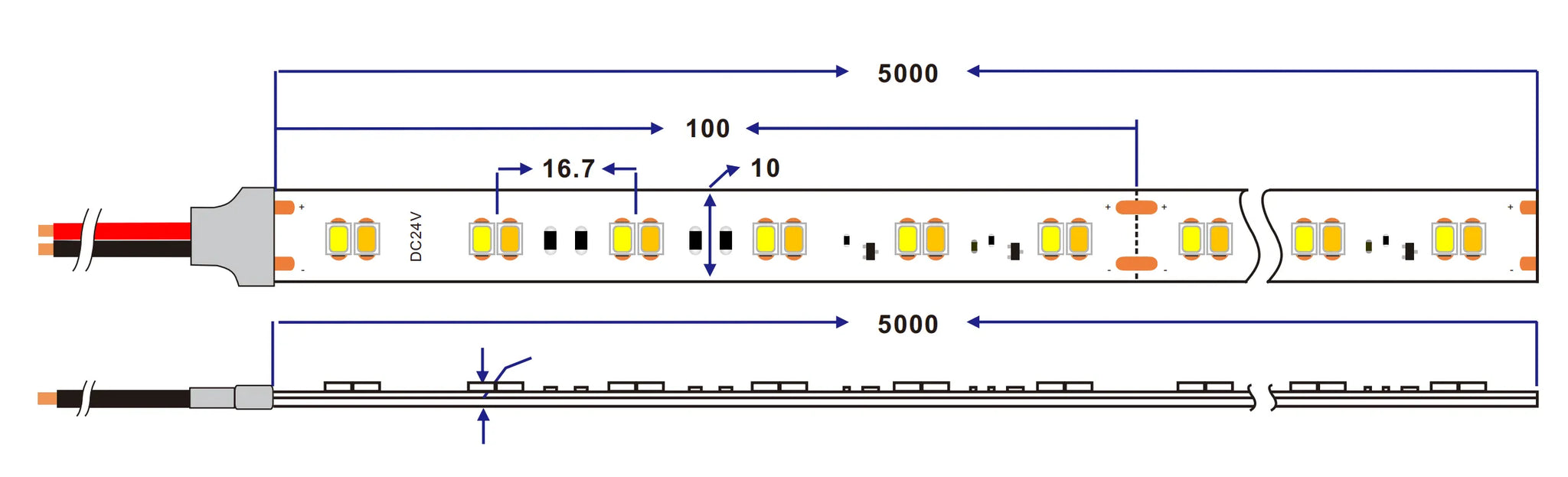

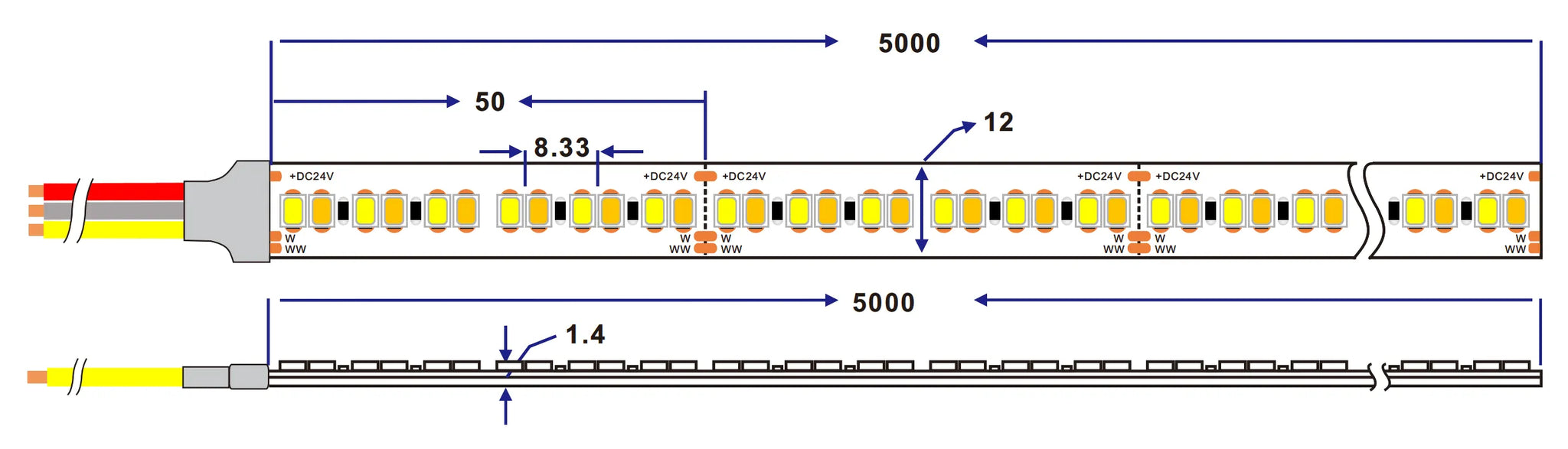

Cut：24V 6leds, about 10cm |
Cut：24V 12leds, about 10cm; 12V6leds, about 5cm |
Cut： 24V 12leds, about 7.1cm; |
Cut： 24V 12leds, about 6.7cm; |
Cut： 24V 12leds, about 5cm; |
Cut： 12V 12leds, about 5cm; 24V 24leds about 10cm |
Cut： 24V 28leds, about 10cm; |
Cut： 12V 24leds, about7.1cm; |
Cut： 24V 6leds, about 10cm |
Cut： 24V 12leds, about 10cm; 12V6leds, about 5cm |
|
Warranty：2-3 years |
|||||||||
PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
SMD2835 dual color LED Strip Features：
1. Wide range of color temperature coverage:
Supports continuous adjustment of 2700K-6500K color temperature, and can switch from warm light (such as bedroom atmosphere) to bright cold light (such as work lighting) with one click.
2. Intelligent dimming mode:
Independent dual-channel control: The brightness ratio of warm white and cold white LEDs is adjusted separately through the PWM controller to achieve precise color temperature mixing.

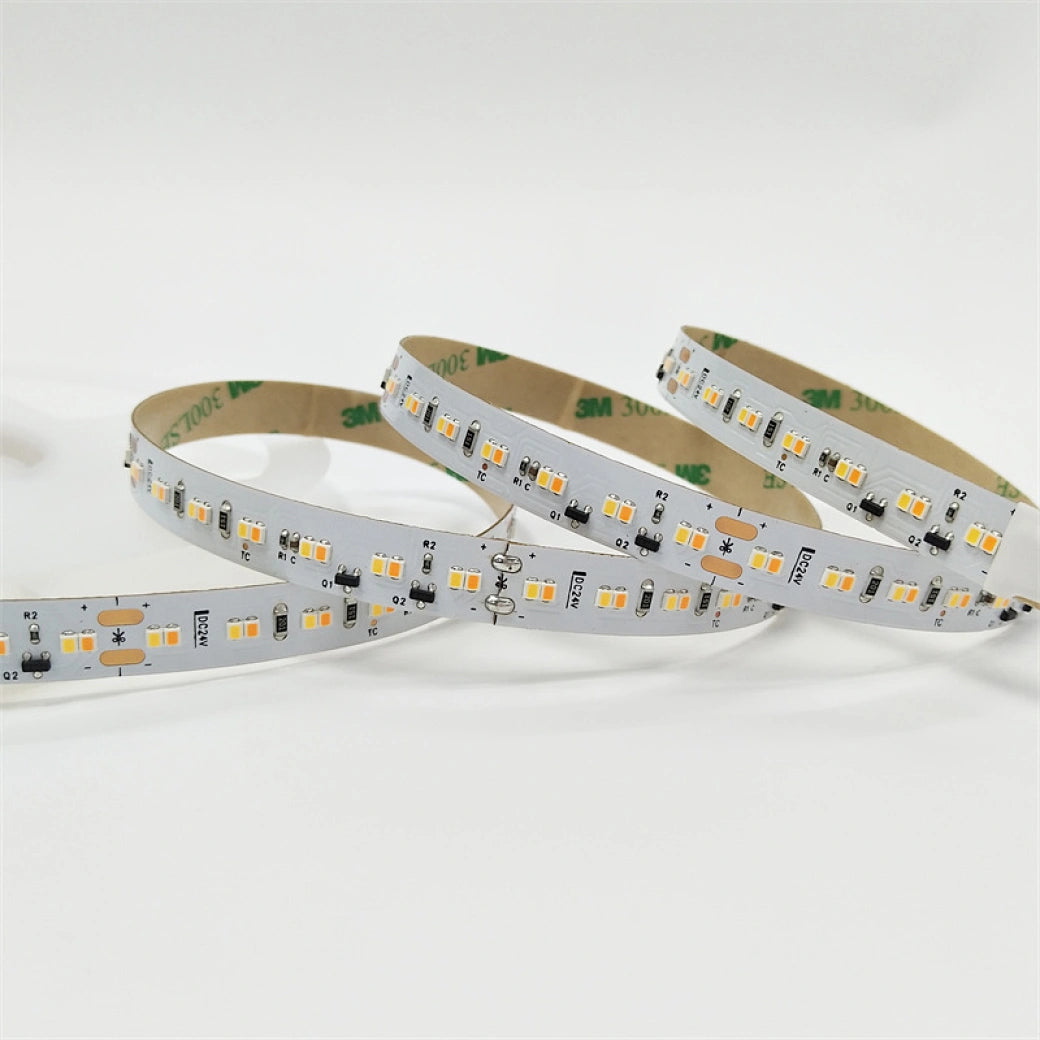

Dim-to-Warm technology (some high-end models): Automatically reduce from 3000K to 1800K when dimming, simulating the light effect of incandescent light and enhancing the warmth of the scene.
3. Excellent light effect: The light effect of a single SMD2835 lamp bead reaches 22-24 lumens, far exceeding the traditional SMD3528 (7-8 lumens).
5. Efficient thermal management:
Adopting the "thermoelectric separation" structure of copper substrate or aluminum substrate, the heat is directly exported to the substrate, the operating temperature is ≤50℃, and the light decay rate is reduced by 50%.
6. Flexible design and convenient cutting:
The PCB board width can be bent to fit the curved surface; the cutting spacing is as small as 2.5-10cm, which can meet any length requirements.
7. Multi-level protection:
The protection level covers IP20 (basic) to IP68 (fully waterproof), and the silicone encapsulation or neon tube design supports underwater lighting.
8. Color reproduction ability:
The color rendering index of the standard model is Ra≥80, and the high-end model (such as film and television level) is Ra≥97. The R9 value (red color rendering) is outstanding, which is suitable for scenes such as trade shows and photography.
9. Luminous uniformity: 120° luminous angle, high-density arrangement ensures no patchy light spots, and the light is soft and uniform.
The core competitiveness of SMD2835 CCT soft light strip lies in the infinite color temperature adjustment, high light efficiency, long life and engineering-level adaptability. For customized needs (such as RA97+, LOGO printing), you can contact Easton Lighting for special services.
