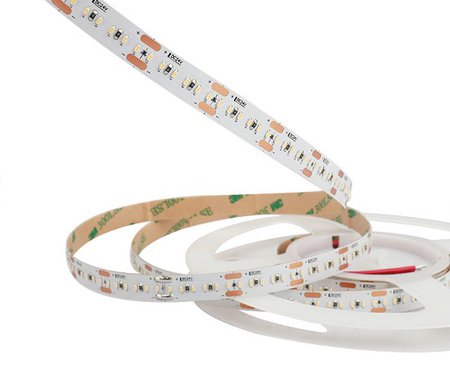

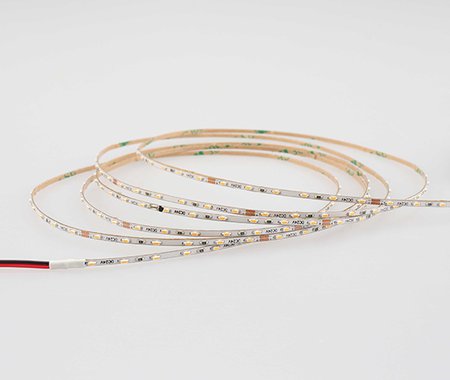

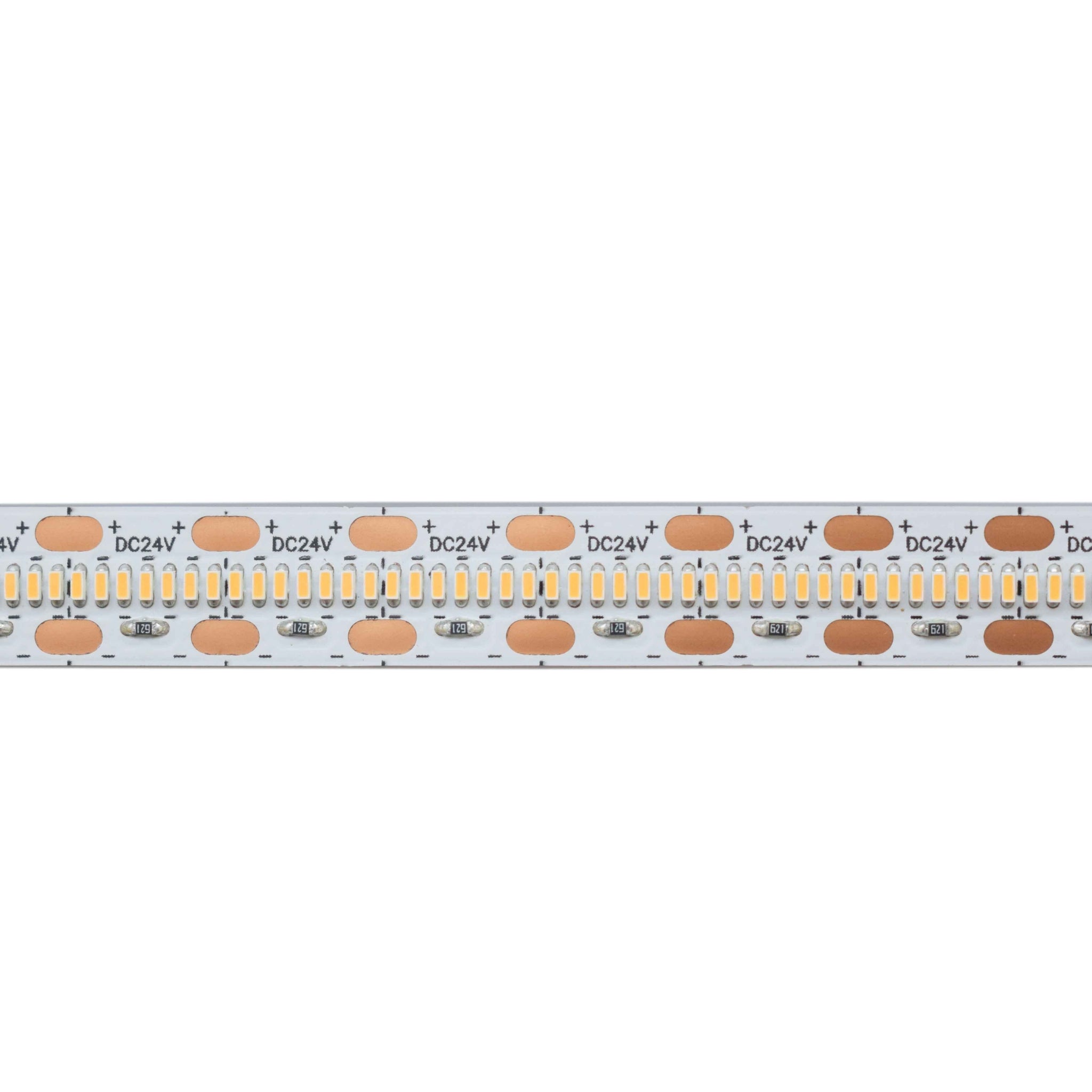

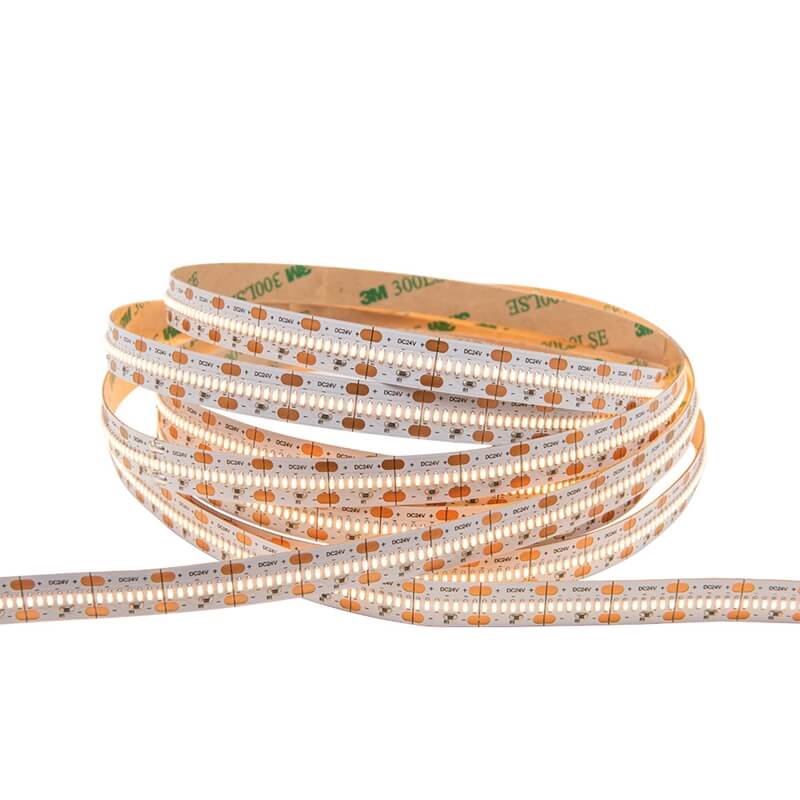

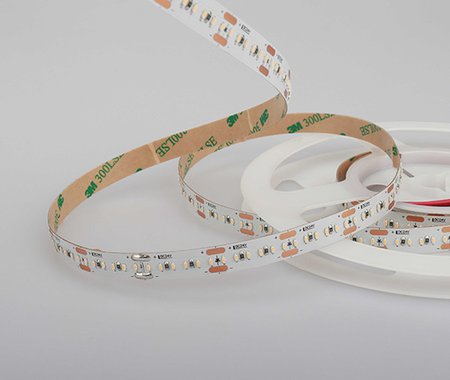

SMD1808 LED Strip
Product Description:
SMD1808 LED strip is a flexible lighting product named after the size of the surface mount device LED. SMD1808 LED strip can be arranged in high density (such as 180 to 720 LEDs per meter), the light is uniform and has no graininess, and it is...
Product Description:
SMD1808 LED strip is a flexible lighting product named after the size of the surface mount device LED. SMD1808 LED strip can be arranged in high density (such as 180 to 720 LEDs per meter), the light is uniform and has no graininess, and it is both beautiful and functional. 1808 led strip has become the mainstream choice of modern decorative lighting with its high density, high color rendering, and flexible control. Whether it is a home upgrade or a commercial project, it can provide efficient, beautiful and flexible solutions.

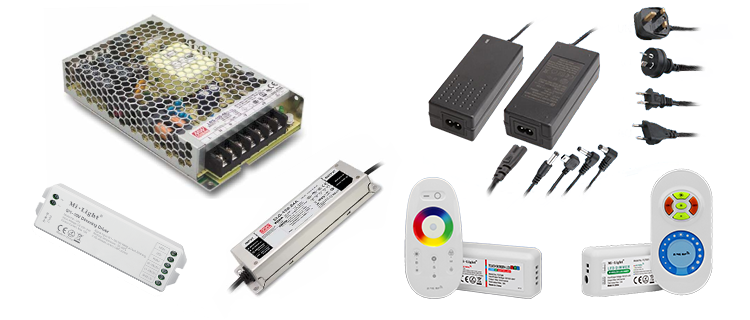

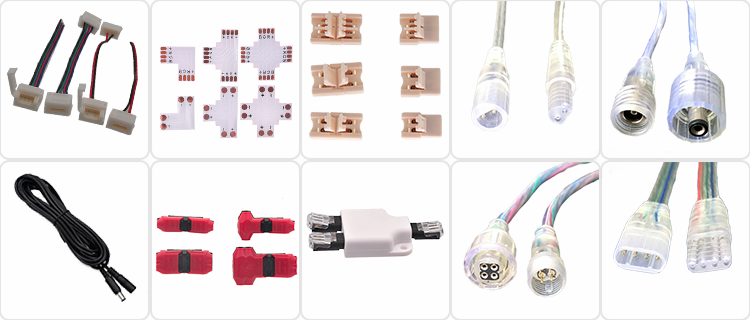

Easton Technology Co., Ltd.'s SMD1808 LED Strip products include 108leds/M, 120leds/M, 240leds/M, 280leds/M, 300leds/M, 420leds/M, 560leds/M, 700leds/M and 720leds/M. These products are available in 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
|
|
|
|
|
|
|
|
|
Model：ES-1808-108 |
Model：ES-1808-120 |
Model：ES-1808-240 |
Model：ES-1808-280 |
Model：ES-1808-300 |
Model：ES-1808-420 |
Model：ES-1808-560 |
Model：ES-1808-700 |
Model：ES-1808-720 |
|
Color: white/red/green/blue/yellow/pink/purple/ice blue |
||||||||
|
LM/LED: White light: 6-10LM |
||||||||
|
LED QTY/M:108LEDs/M |
LED QTY/M:120LEDs/M |
LED QTY/M:240LEDs/M |
LED QTY/M:280LEDs/M |
LED QTY/M:300LEDs/M |
LED QTY/M:420LEDs/M |
LED QTY/M:560LEDs/M |
LED QTY/M:700LEDs/M |
LED QTY/M:720LEDs/M |
|
Color temperature/NM: white light 2200-13000K, red 620-625NM, green 520-525NM, blue 460-470NM, yellow 590-595NM, purple 390-410nm |
||||||||
|
Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications |
||||||||
|
Power：5W/M |
Power：9.6W/M |
Power：10W/M |
Power：19.2W/M |
Power：20W/M |
Power：20W/M |
Power：20W/M |
Power：20W/M |
Power：20W/M |
|
Current/M：24V：0.2A/M |
Current/M：24V：0.4A/M; 12V0.8A/M |
Current/M：24V：0.42A/M |
Current/M：24V：0.8A/M |
Current/M：24V：0.84A/M |
Current/M：24V：0.84A/M |
Current/M：24V：0.84A/M |
Current/M：24V：0.84A/M |
Current/M：24V：0.84A/M |
|

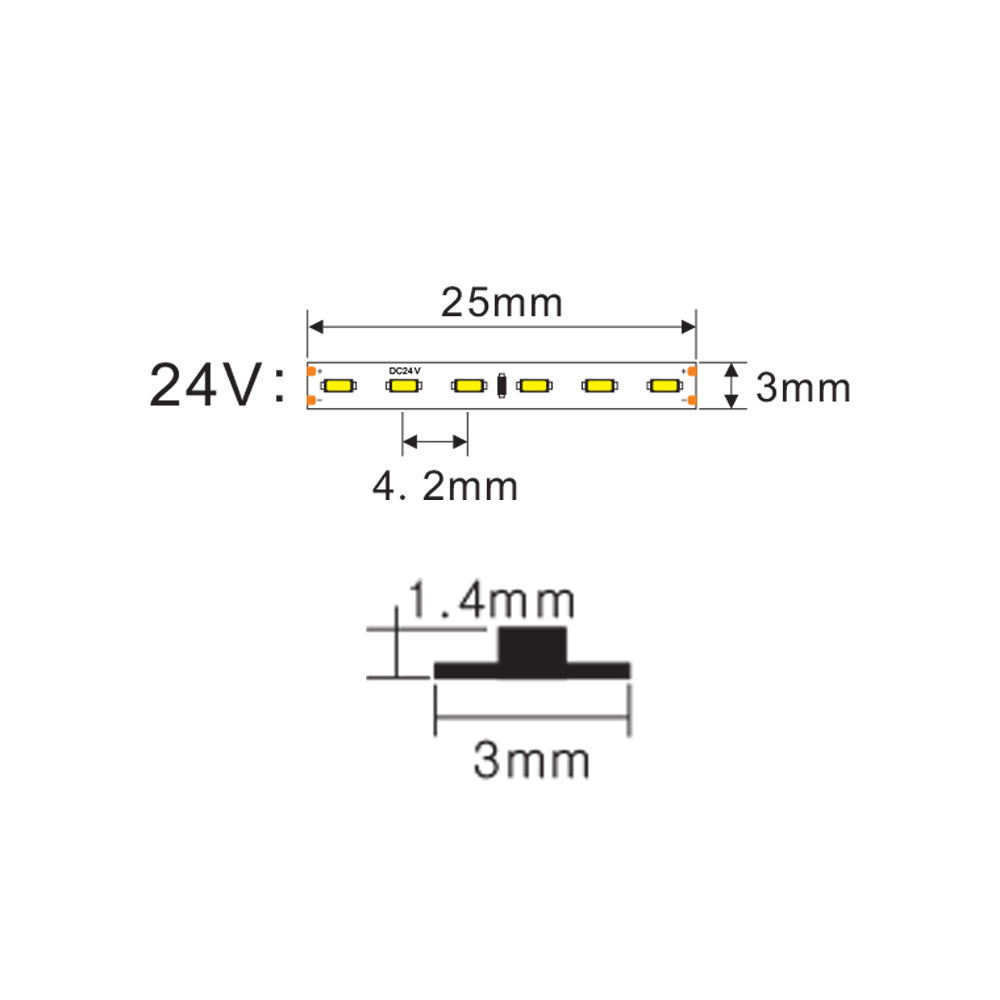

PCB Width：2mm |
PCB Width：8mm |
PCB Width：3/4mm |
PCB Width：10mm |
PCB Width：10mm |
PCB Width：10mm |
PCB Width：10mm |
PCB Width：10mm |
PCB Width：10mm |
|
IP：IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof |
||||||||
|
Beam angle：120° |
||||||||
|
Operating Temperature：-20°-45° |
||||||||
|
Storage Temperature：-30°-65° |
||||||||
|
Package：5M/Roll，10M/RollOr customized length |
||||||||
|

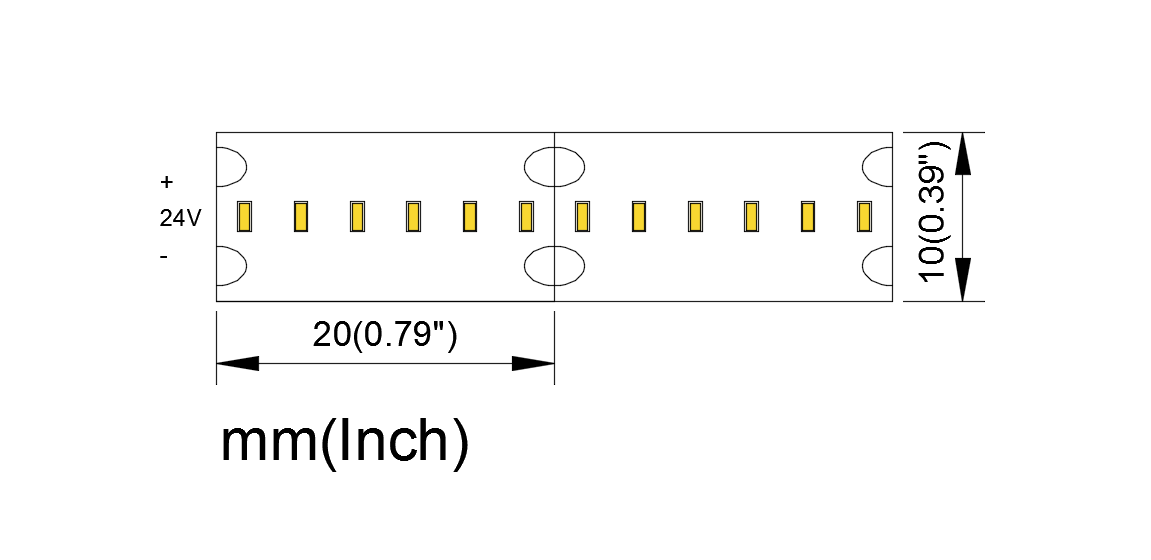

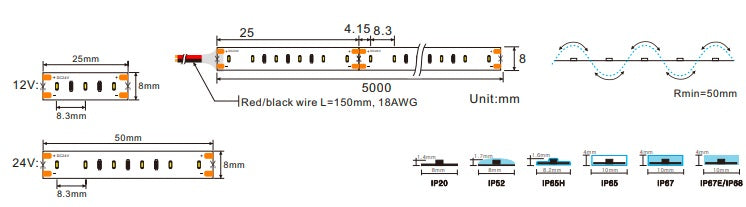

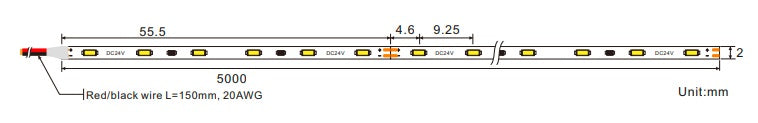

Cut：24V 6leds，55.5mm |
Cut：24V 6leds，50mm；12V 3leds 25mm |

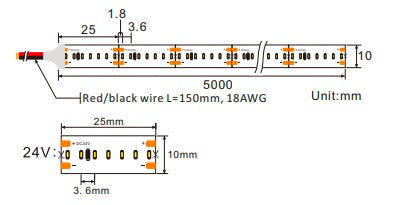

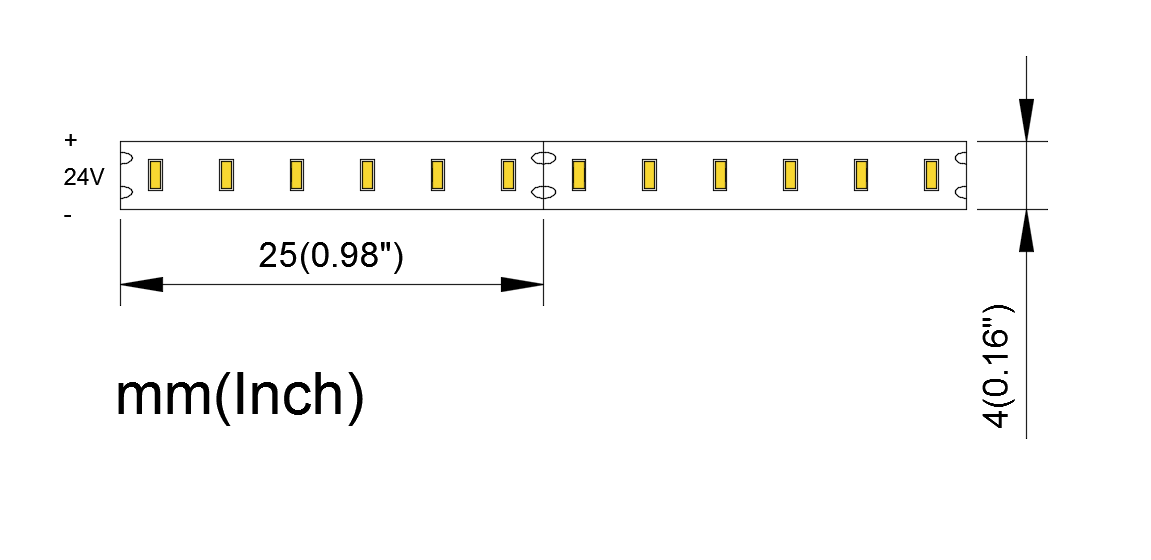

Cut：24V 6leds，25mm |
Cut：24V 7leds，25mm |
Cut：24V 6leds，20mm |

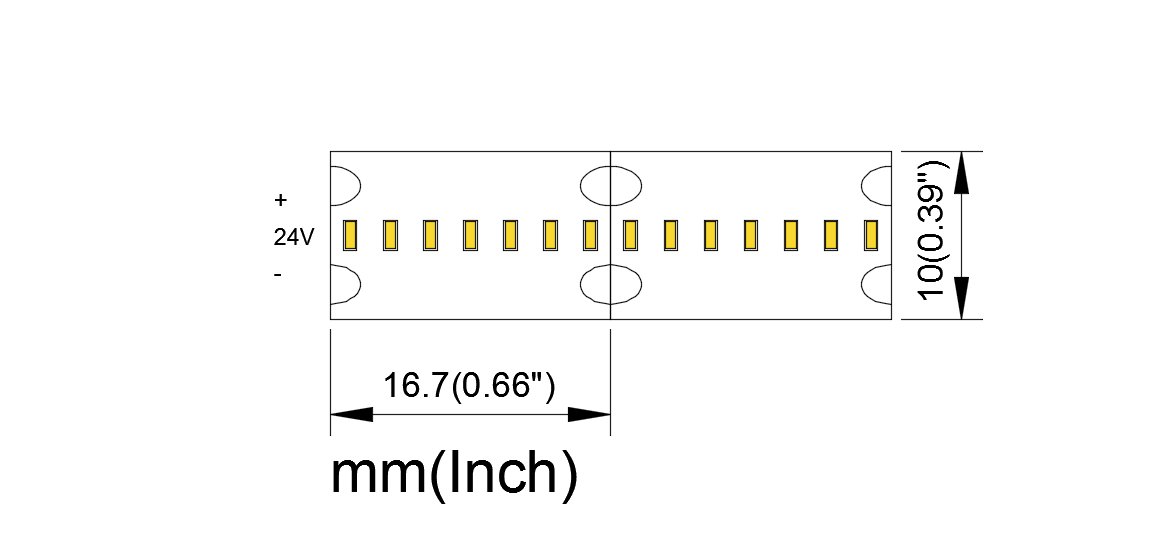

Cut：24V 7leds，16.7mm |

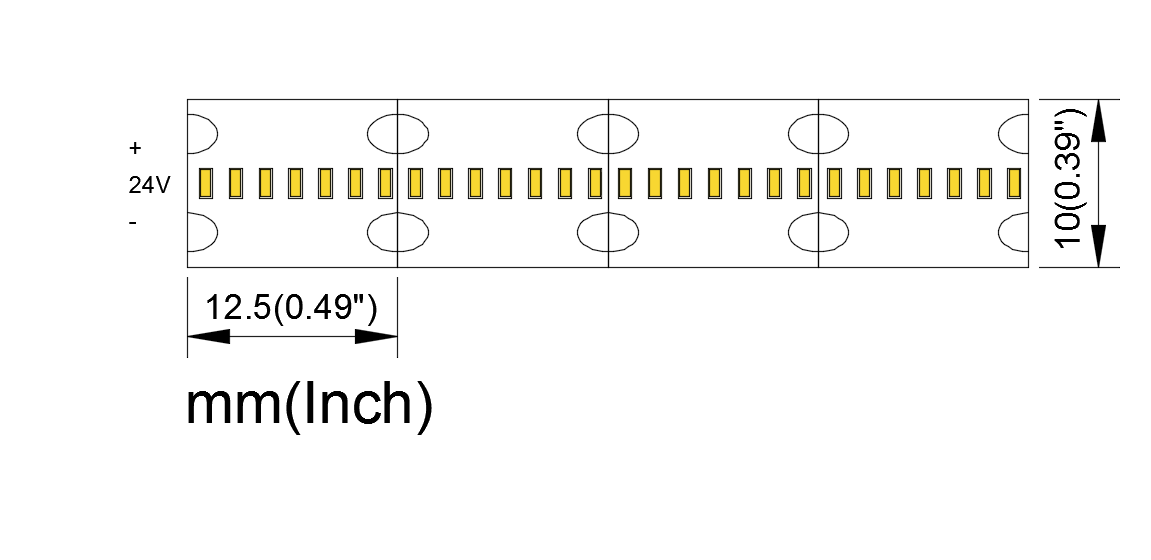

Cut：24V 7leds，12.5mm |

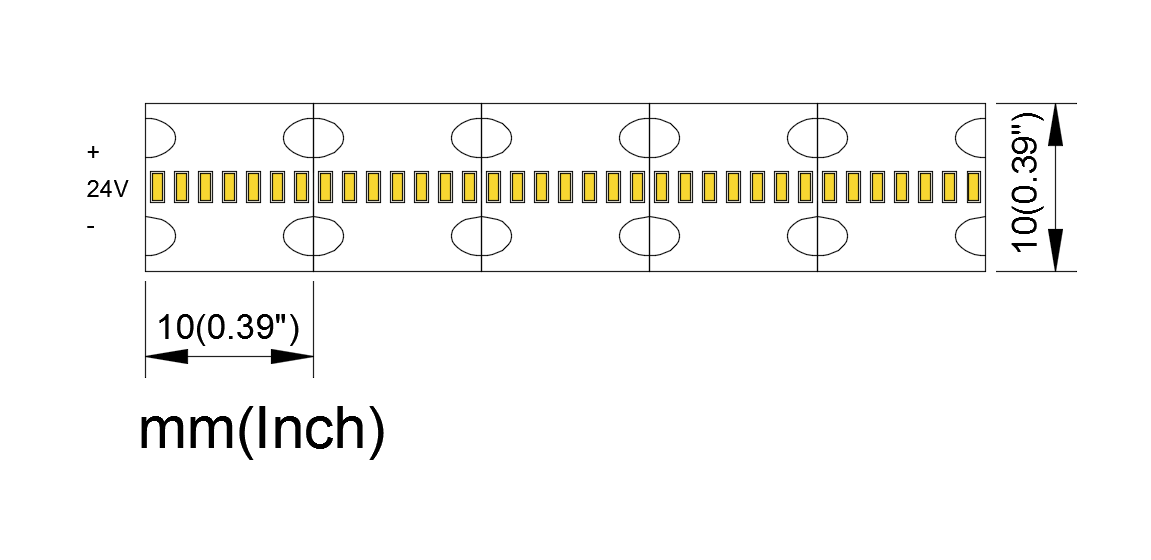

Cut：24V 7leds，10mm |
Cut：24V 6leds，8.34mm |
|
Warranty：2-3 years |
||||||||
PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
SMD1808 LED Strip Features
1. Core composition
LED chip: SMD1808 package (size 1.8mm×0.8mm), surface mounted on flexible circuit board (FPC).
Light strip structure: flexible substrate (bendable and cuttable) + high-density LED + silicone/epoxy resin package (waterproof model requires additional protective layer).
2. Physical parameters
LED density: 300–720 LEDs can be integrated per meter (such as 720 LEDs/meter model, the light is uniform and has no graininess).
Width and thickness: Common width 8–10mm, thickness 1–2mm, thin and easy to hide and install.
Protection level: IP20 (basic dustproof) to IP68 (completely waterproof), adapted to different environmental requirements.
3. Optical performance
High color rendering: Color rendering index (CRI) ≥95 (high-end models reach CRI97+), close to natural light, suitable for art display and jewelry lighting.
Flexible color temperature: supports 2700K (warm yellow) – 6500K (cold white), and some models can be adjusted in dual color temperature.
Light efficiency: 100–150 lumens/watt (lm/W), high brightness and low energy consumption (5–15W per meter).
4. Intelligent control
Dimming method: supports Bluetooth, WiFi, APP, voice (such as Alexa/Google Home) and remote control dimming.
5. Durability and reliability
Heat dissipation design: low heat chip + aluminum substrate/flexible heat dissipation structure, life span of 50,000 hours (about 5–10 years).
Temperature range: working temperature -20℃~65℃, some industrial-grade models support -40℃ (cold storage) or high temperature environment.
6. Application scenarios
High-end decorative lighting
Home: TV background wall, cabinet lights, ceiling contour lights (no grainy light enhances texture).
Commercial: luxury display cabinets, hotel corridors, museum lighting (high color rendering highlights details).
Smart home system
Linked with intelligent central control, voice control and automated scenes (such as night sensor lights and gradual light-up mode when waking up) are realized.
Outdoor and special environment
IP68 waterproof model: courtyard pool, building facade, swimming pool underwater lighting.
Industrial scene: cold storage lighting, workshop equipment outline indication (low temperature resistance/dustproof). SMD1808 LED light strip has become the benchmark of modern high-end lighting design with its high density, high color rendering, intelligent control and durability. Whether it is pursuing a grain-free home decoration or an industrial scene that needs to adapt to harsh environments, it can provide efficient, flexible and reliable solutions.
