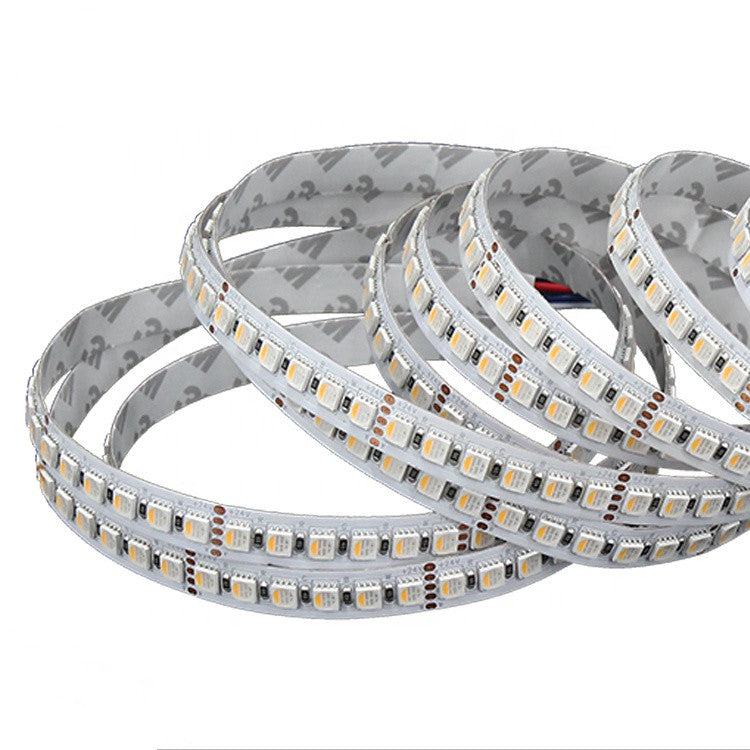

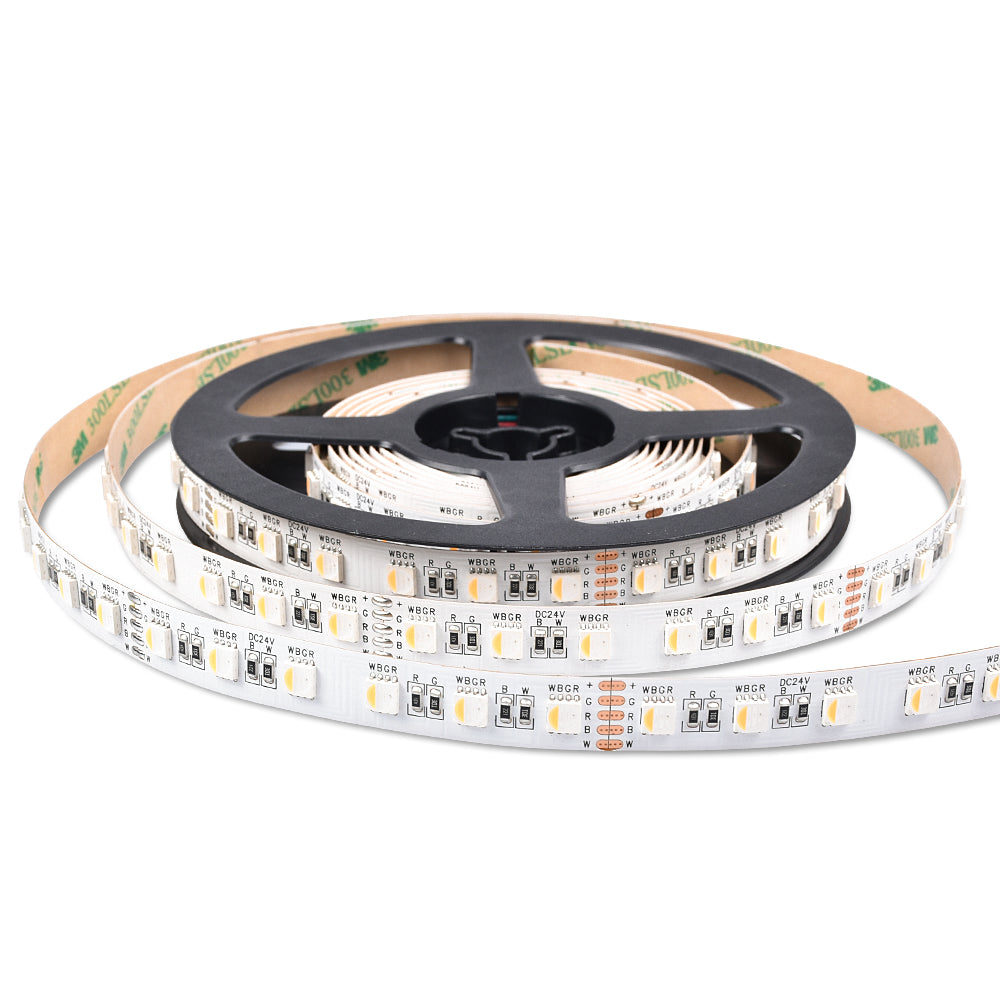

SMD5050 RGBW LED Strip
Product Description:
SMD5050 RGBW LED strip is a flexible lighting product that combines red (R), green (G), blue (B) and white (W) four-color light sources. W can be selected from 2700-3000K/4000-4500k/6000-6500K. It uses 5.0mm×5.0mm surface mount device (SMD) LED chips. SMD5050 RGBW LED strip has high brightness, four-color mixing...
Product Description:
SMD5050 RGBW LED strip is a flexible lighting product that combines red (R), green (G), blue (B) and white (W) four-color light sources. W can be selected from 2700-3000K/4000-4500k/6000-6500K. It uses 5.0mm×5.0mm surface mount device (SMD) LED chips. SMD5050 RGBW LED strip has high brightness, four-color mixing capability and flexible control as its core advantages, taking into account both functional lighting and atmosphere creation. Its multi-level waterproof options and intelligent compatibility make it an ideal choice for home upgrades and commercial projects.
Easton Technology Co., Ltd.'s SMD5050 LED Strip products include 30leds/M， 60leds/m,72leds/m，84leds/m，96leds/M，120leds/M. These products are available in12V & 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
|
|
|
|
|
|
Model：ES-5050RGBW-30 |
Model：ES-5050RGBW-60 |
Model：ES-5050RGBW-72 |
Model：ES-5050RGBW-84 |
Model：ES-5050RGBW-96 |
Model：ES-5050RGBW-120 |
|
Color: RGB+ White(White :2700-3000K/4000-4500K/6000-6500K) |
|||||
|
LM/LED: White light: 20-24LM, red 7-8LM (about 2100-2400mcd), green 18-20lm (about 5400-6000mcd), blue 4-6LM (about 1200-1800mcd) |
|||||
|
LED QTY/M:30LEDs/M |
LED QTY/M:60LEDs/M |
LED QTY/M:72LEDs/M |
LED QTY/M:84LEDs/M |
LED QTY/M:96LEDs/M |
LED QTY/M:120LEDs/M |
|
Color temperature/NM: white light 2200-13000K, red 620-625NM, green 520-525NM, blue 460-470NM |
|||||
|
Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications |
|||||
|
Power：9.6W/M |
Power：19.2W/M |
Power：23W/M |
Power：23W/M |
Power：23W/M |
Power：23W/M |
|
Current/M：12V 0.8A/M 24V：0.4A/M |
Current/M：12V 1.6A/M 24V：0.8A/M |
Current/M：12V 1.9A/M 24V：0.95A/M |
Current/M：12V 1.9A/M 24V：0.95A/M |
Current/M：12V 1.9A/M 24V：0.95A/M |
Current/M：12V 1.9A/M 24V：0.95A/M |
|
PCB Width：10mm |
PCB Width：12mm |
PCB Width：12mm |
PCB Width：12mm |
PCB Width：12mm |
PCB Width：15mm |
|
IP：IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof |
|||||
|
Beam angle：120° |
|||||
|
Operating Temperature：-20°-45° |
|||||
|
Storage Temperature：-30°-65° |
|||||
|

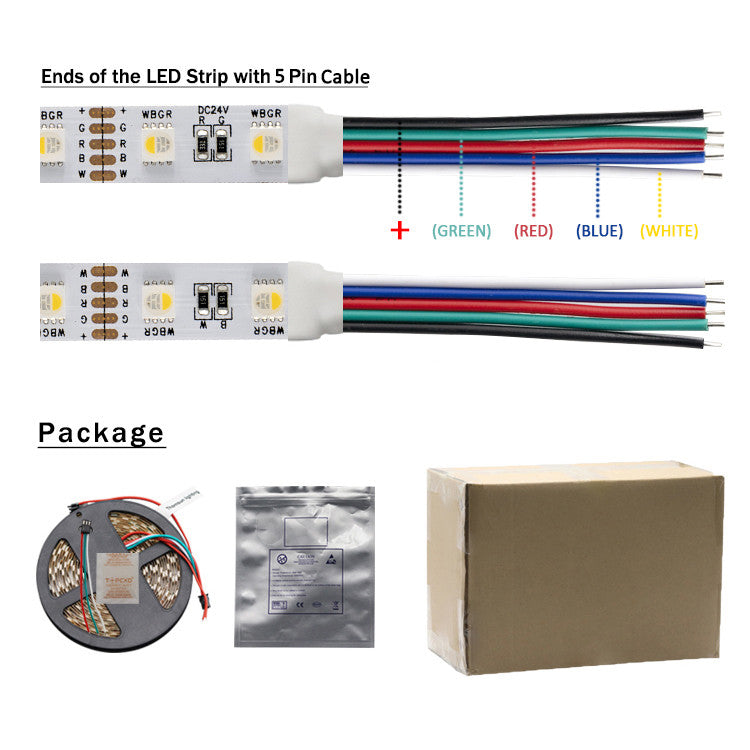

Package：5M/Roll，10M/Roll Or customized length |
|||||
|
Cutting: 12V3 leds cutting, 24V6 leds cutting. 12V 30leds is about 10cm,60 leds is about 5cm, 72 leds is about 4.2cm, 84leds is about 3.6cm, 96 leds is about 3.1cm,120 leds is about 2.5cm,24V30leds about 20cm, 60 leds is about 10cm, 72 leds is about 8.3cm, 84 leds is about 7.1cm,96leds is about 6.2cm,120leds is about 5cm |
|||||
|
Warranty：2-3 years |
|||||
PCB color:
White: white PCB; Black: black PCB

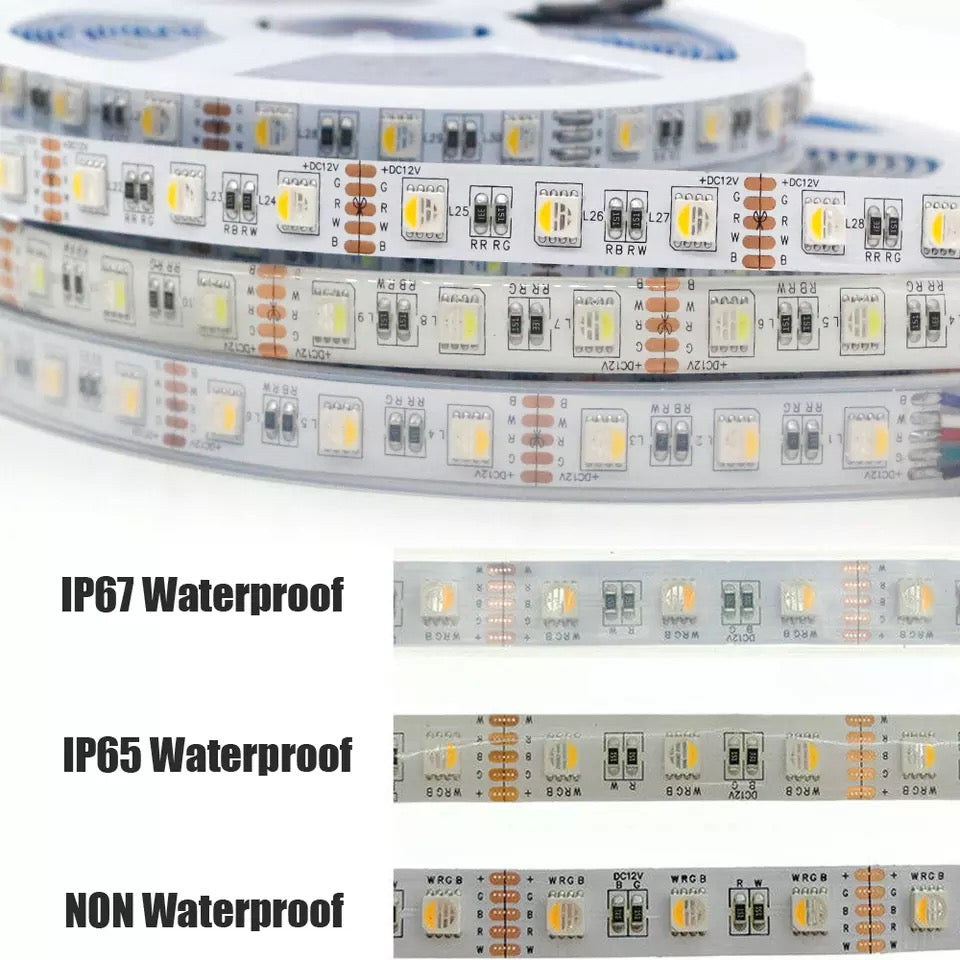

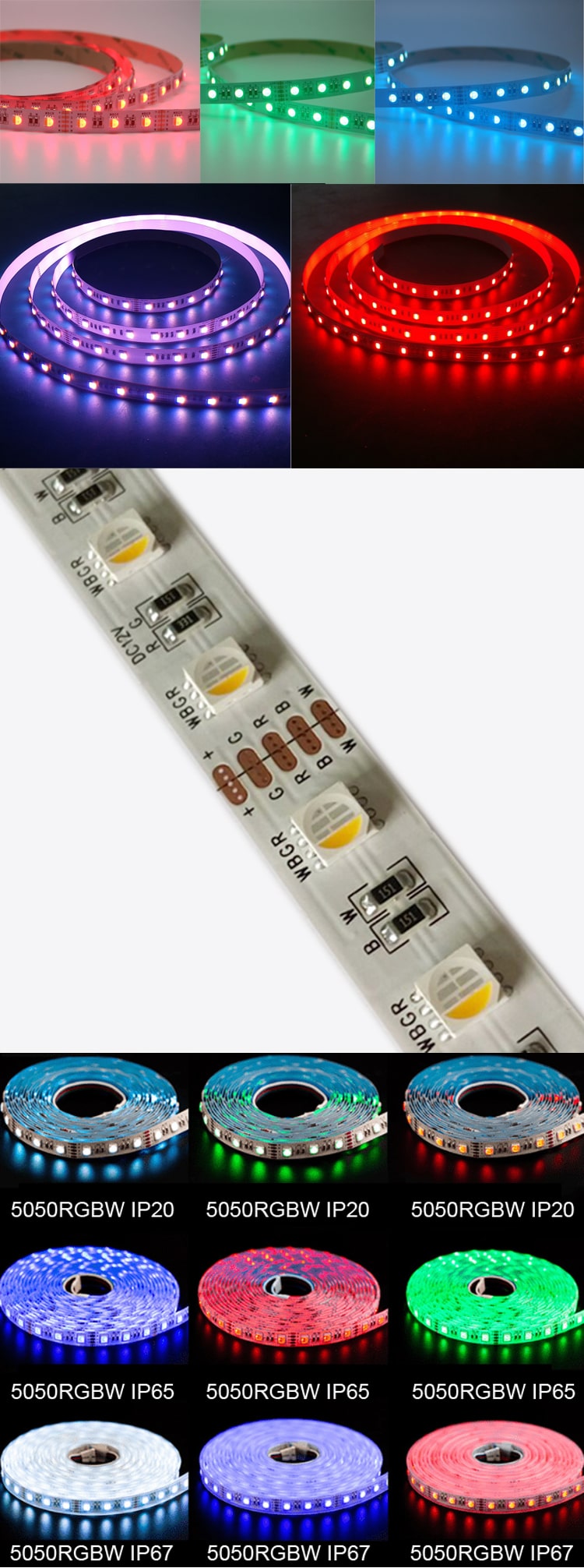

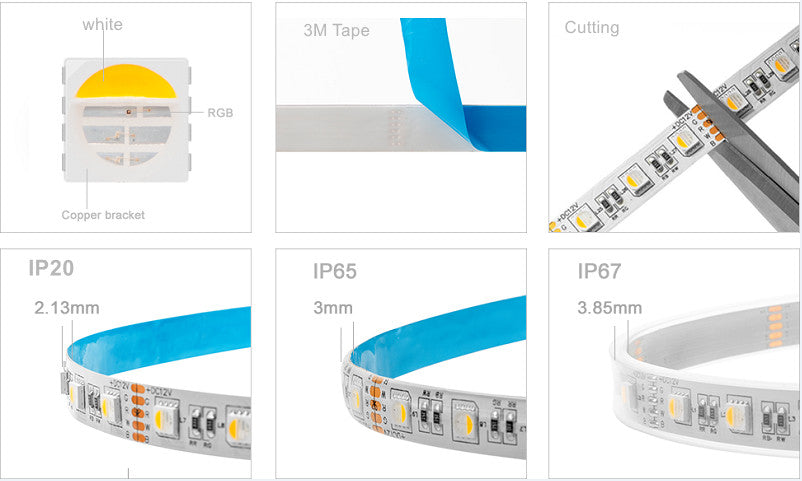

Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
SMD5050 RGBW LED Strip Features：

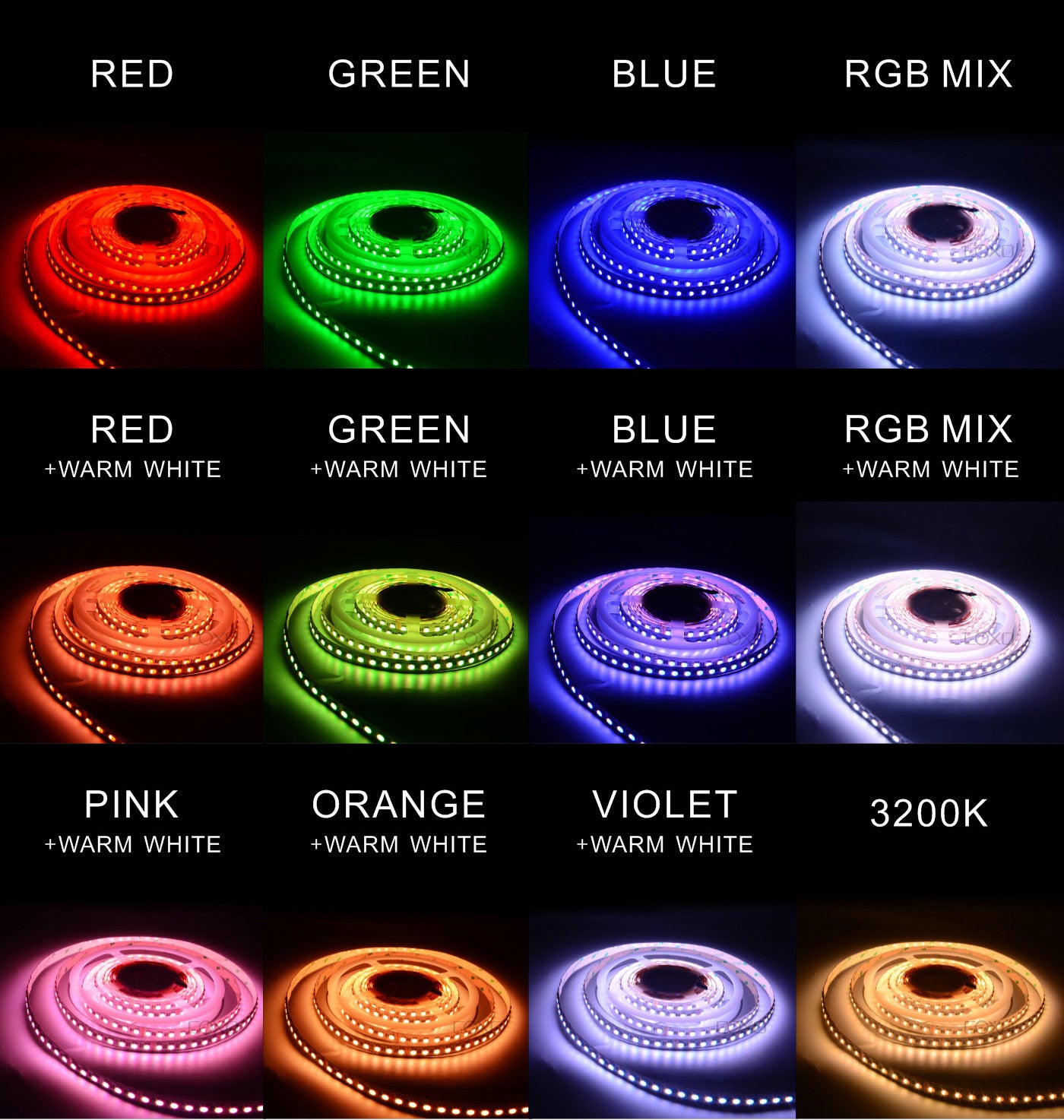

1. Four-color chip design, integrated light source: Each SMD5050 lamp bead is encapsulated with four independent chips (red, green, blue, and white), supporting pure color output or mixing 16 million colors. White light can be selected as cold white (6000-6500K), warm white (2700-3000K) or neutral white (4000-4500K) to meet the color temperature requirements of different scenes.
2. Dual white light mode: Some models support free switching between red, green, and blue mixed white light and independent pure white light, solving the problem of white light color cast of traditional RGB lamp strips. The color rendering index (Ra) is generally >80, and some models are >90.
3. Low-voltage power supply (DC12V/24V), safe and energy-saving, and a wide operating temperature range (-25°C to +50°C).
4. Long life and stability: copper substrate and silicone resin encapsulation are used, with excellent heat dissipation, life >50,000 hours, and low light decay.
5. Flexible installation and protection

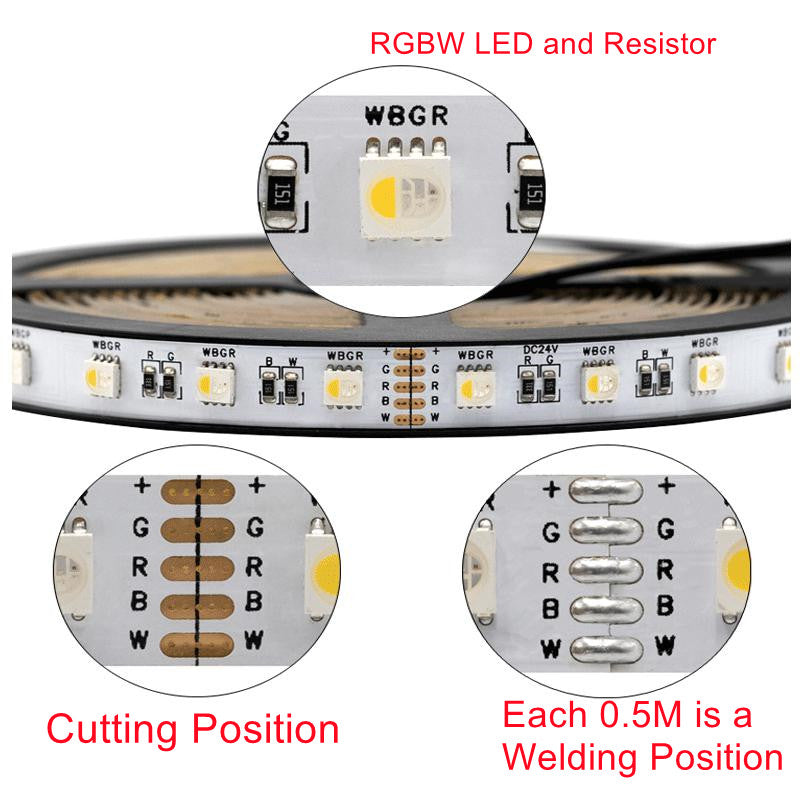

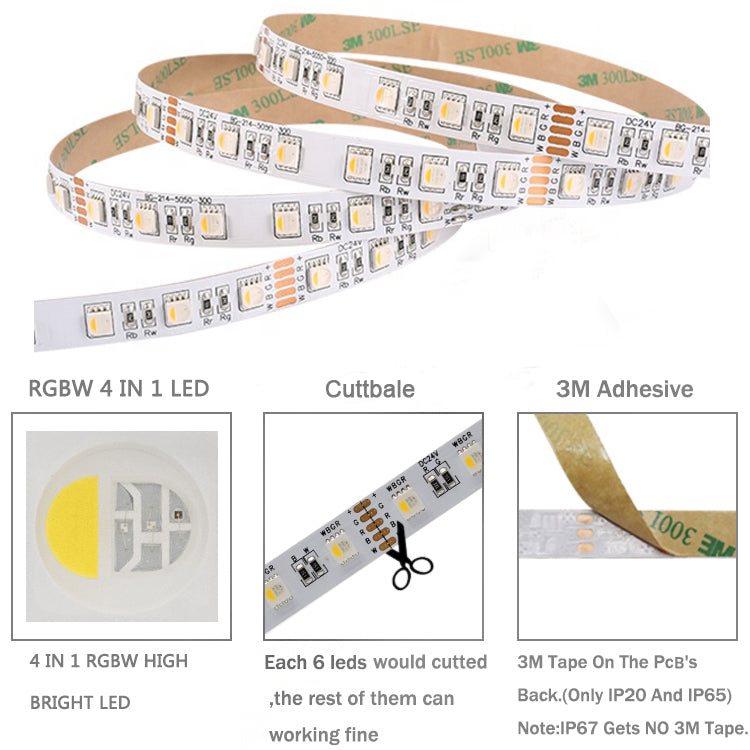

Cutable design: Every 3 or 6 leds are a cutting unit, which supports cutting and splicing on demand, and 3M tape is attached on the back for easy pasting.
6. Multi-level waterproof options:
IP20 (bare board, indoor use)
IP65 (silicone coating, dust and splash proof)
IP67 (silicone casing)
IP68 (glue filling, fully waterproof, suitable for swimming pools and outdoors).
7. Intelligent control and compatibility

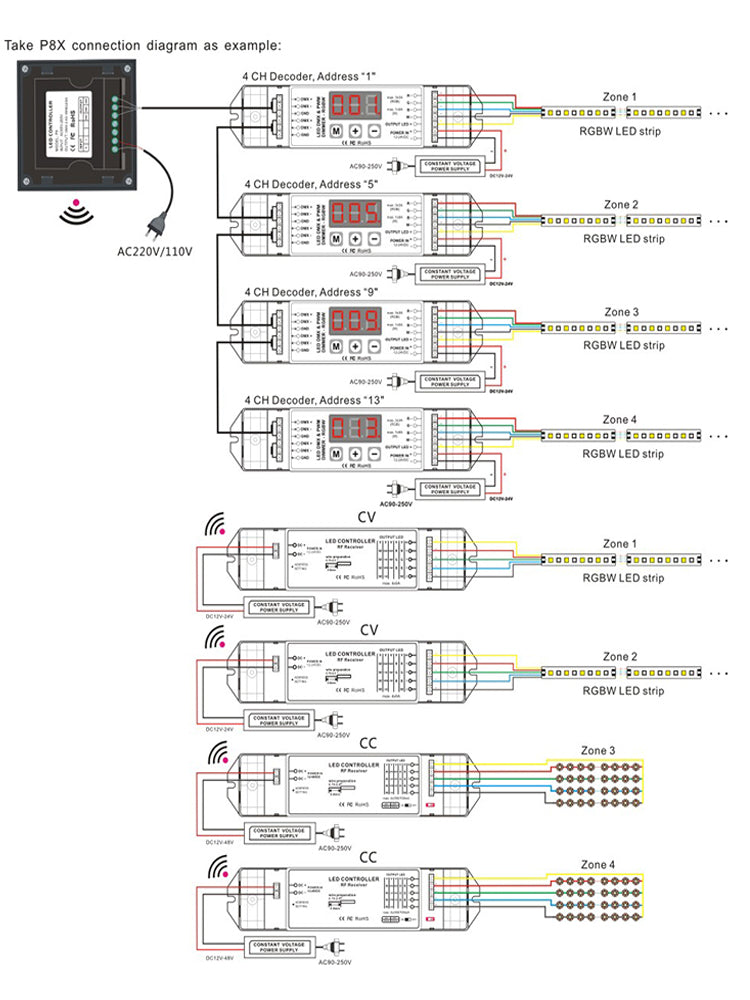

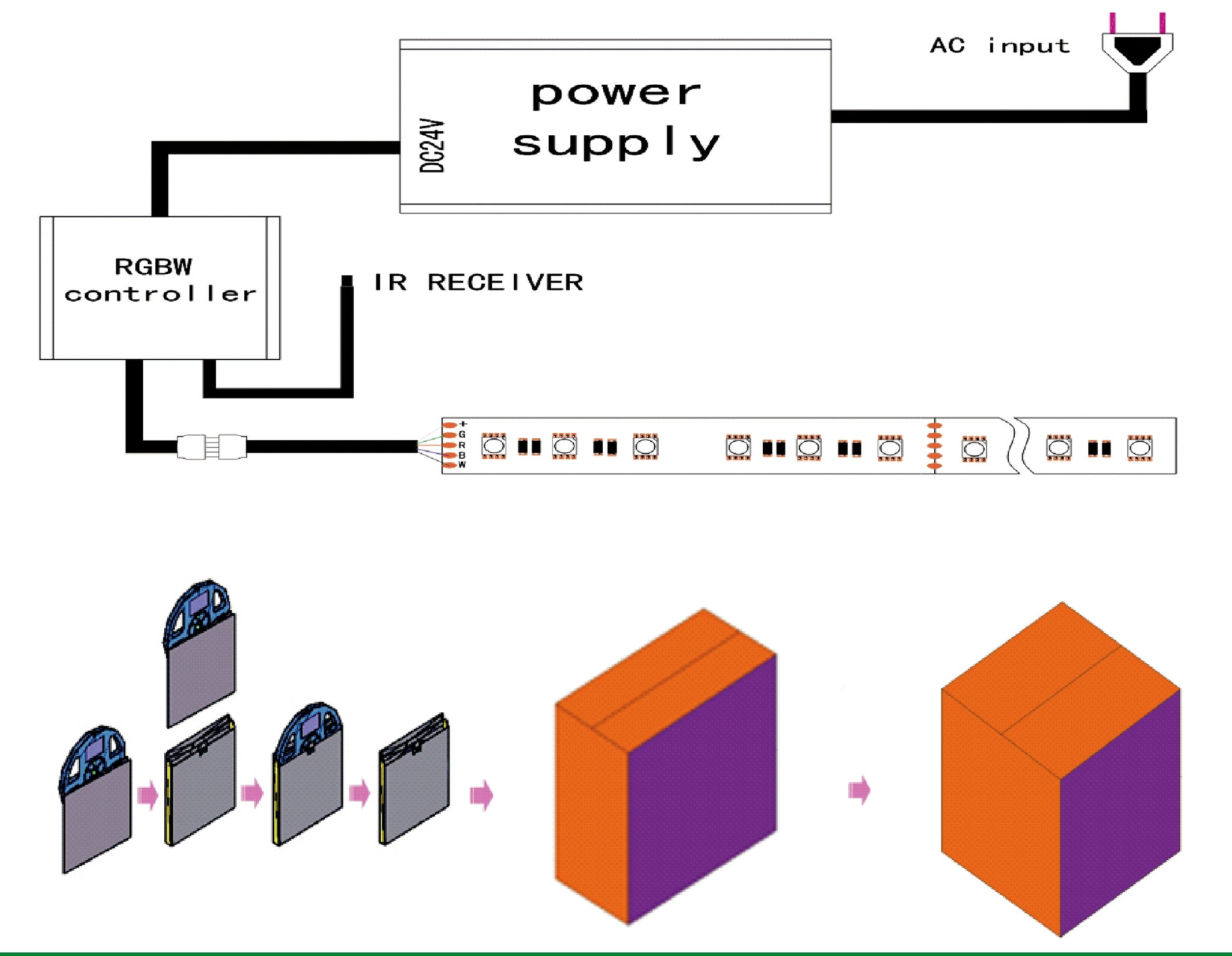

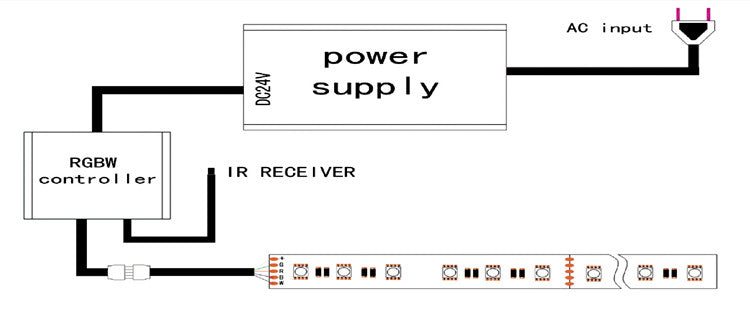

Rich control mode: It needs to be matched with a dedicated RGBW controller, supports mobile phone APP (such as Tuya Smart), voice assistant (Alexa/Google Home) and programmed dimming, and realizes dynamic effects such as gradient, flashing, and music synchronization. Protocol compatibility: Adapt to mainstream protocols such as ZigBee and DMX512, and some models support PWM dimming.
8. Wide range of application scenarios
Home decoration: cabinet bottom lights, TV backlights, ceiling atmosphere lighting.
Commercial and outdoor: building outline lighting, hotel atmosphere lights, billboards, swimming pool underwater lighting (IP68 required).
Festivals and Entertainment: Dynamic color switching is suitable for party and festival theme decorations.
SMD5050 RGBW LED strip product details:
