SMD5730 LED Strip
Product Description:

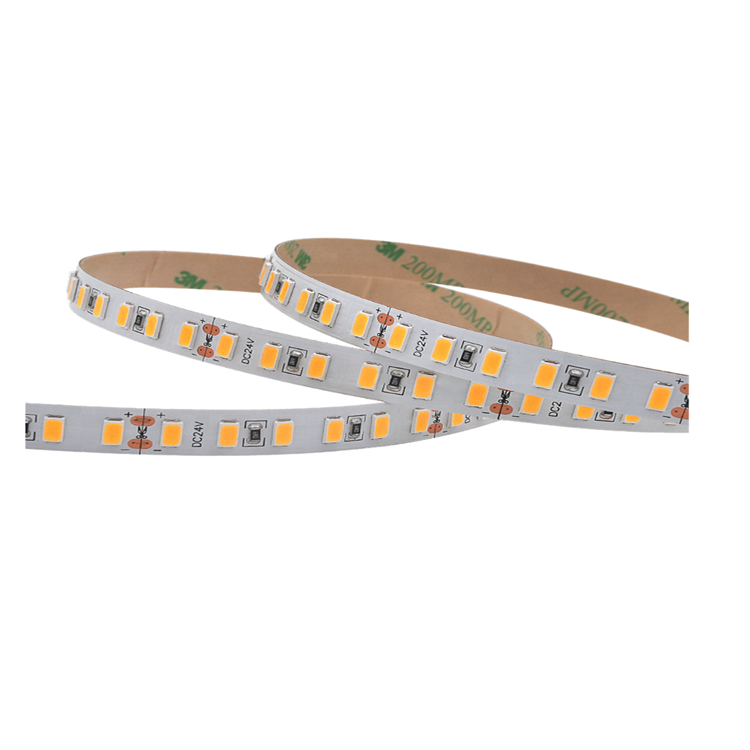

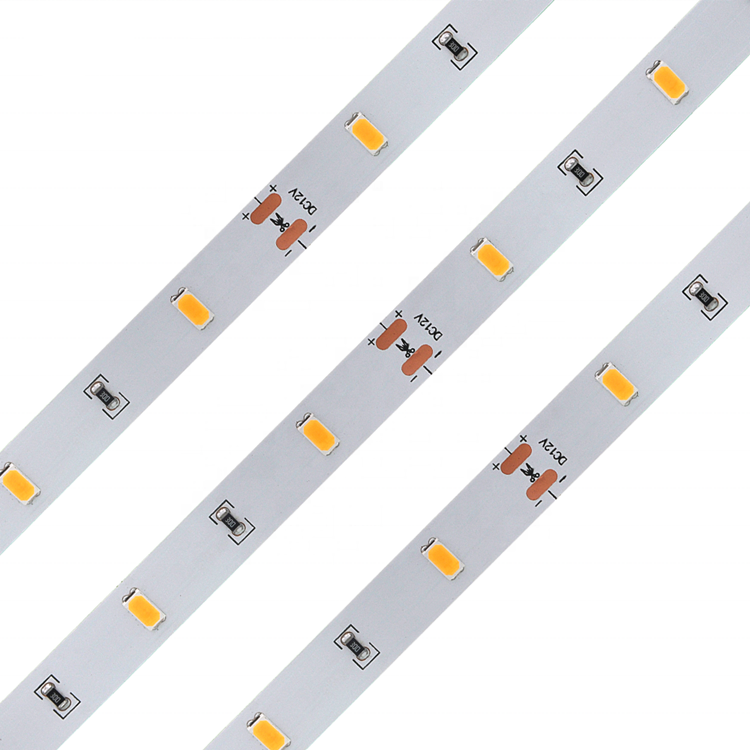

SMD5730 LED light strip is a high-brightness LED lighting product that uses SMD5730 SMD lamp beads (size: 5.7mm × 3.0mm). It is usually based on a flexible printed circuit (FPC) with LED lamp beads, resistors and conductive circuits on the surface and adhesive on the back. It...
Product Description:
SMD5730 LED light strip is a high-brightness LED lighting product that uses SMD5730 SMD lamp beads (size: 5.7mm × 3.0mm). It is usually based on a flexible printed circuit (FPC) with LED lamp beads, resistors and conductive circuits on the surface and adhesive on the back. It can be flexibly installed in various scenes in the home, commercial and decoration fields.
Easton Technology Co., Ltd.'s SMD5730 LED Strip products include 30leds/M, 60leds/m,120leds/M. These products are available in12V & 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
|

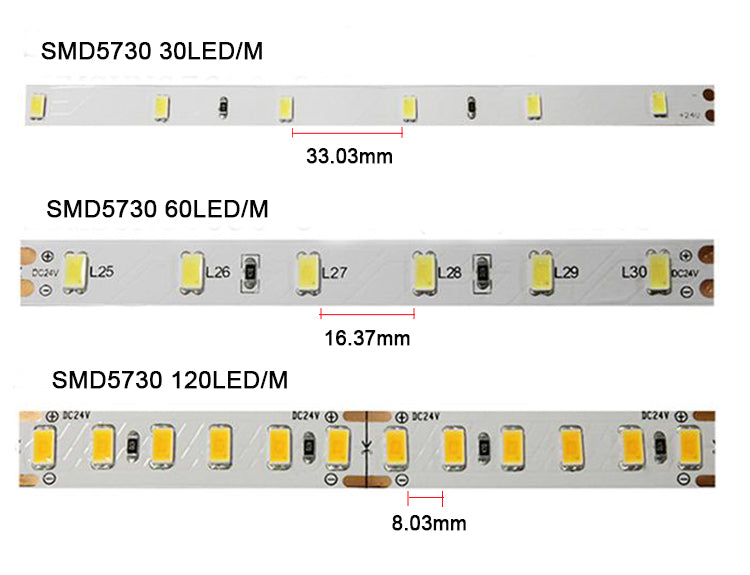

Model:ES-5730-30 |
Model:ES-5730-60 |
Model:ES-5730-120 |
Color: white/red/green/blue/yellow/pink/purple/ice blue |
||
LM/LED: White light: 55-75LM |
||
LED QTY/M:30LEDs/M |
LED QTY/M:60LEDs/M |
LED QTY/M:120LEDs/M |
Color temperature/NM: white light 2200-13000K, red 620-625NM, green 520-525NM, blue 460-470NM, yellow 590-595NM, purple 390-410nm |
||
Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications |
||
Power:9.6W/M |
Power:19.2W/M |
Power:21.6W/M |
Current/M:12V 0.8A/M 24V:0.4A/M |
Current/M:12V 1.6A/M 24V:0.8A/M |
Current/M:12V 1.8A/M 24V:0.9A/M |
PCB Width:10mm |
PCB Width:10mm |
PCB Width:12mm |
IP:IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof |
||
Beam angle:120° |
||
Operating Temperature:-20°-45° |
||
Storage Temperature:-30°-65° |
||

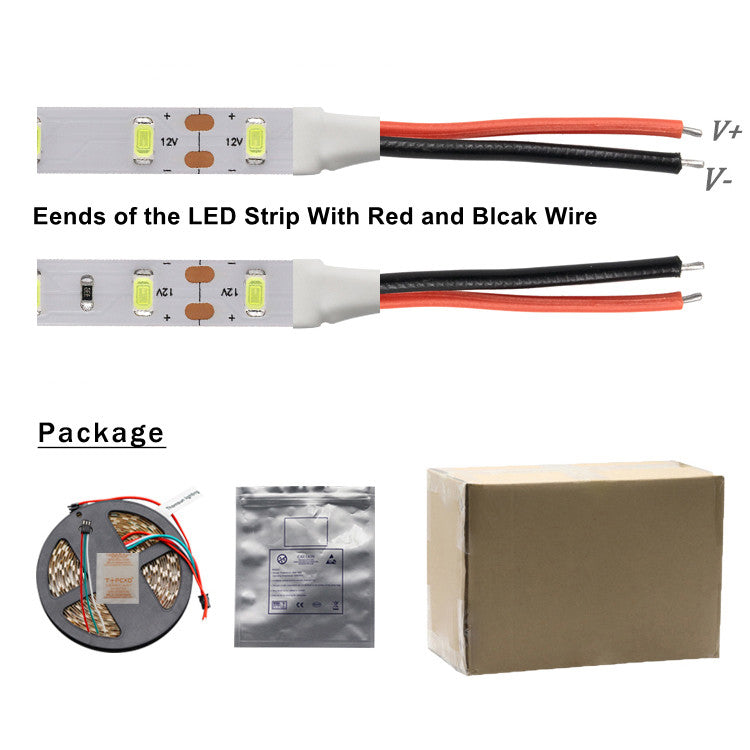

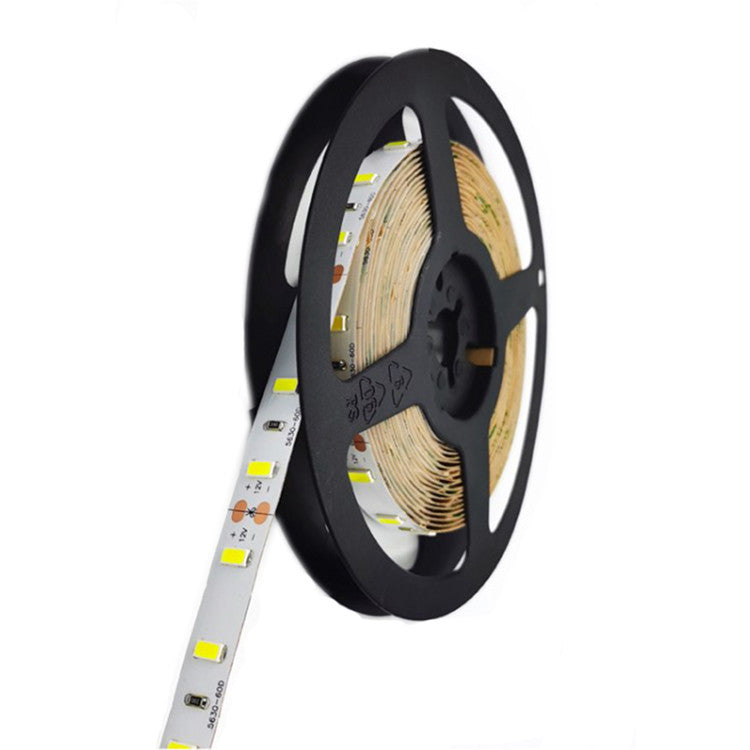

Package:5M/Roll,10M/RollOr customized length |
||

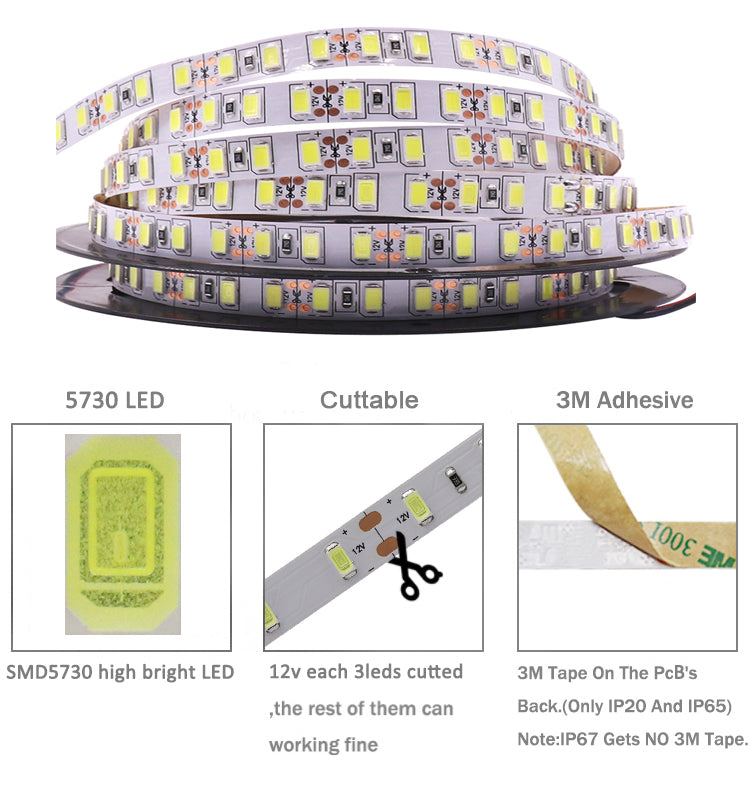

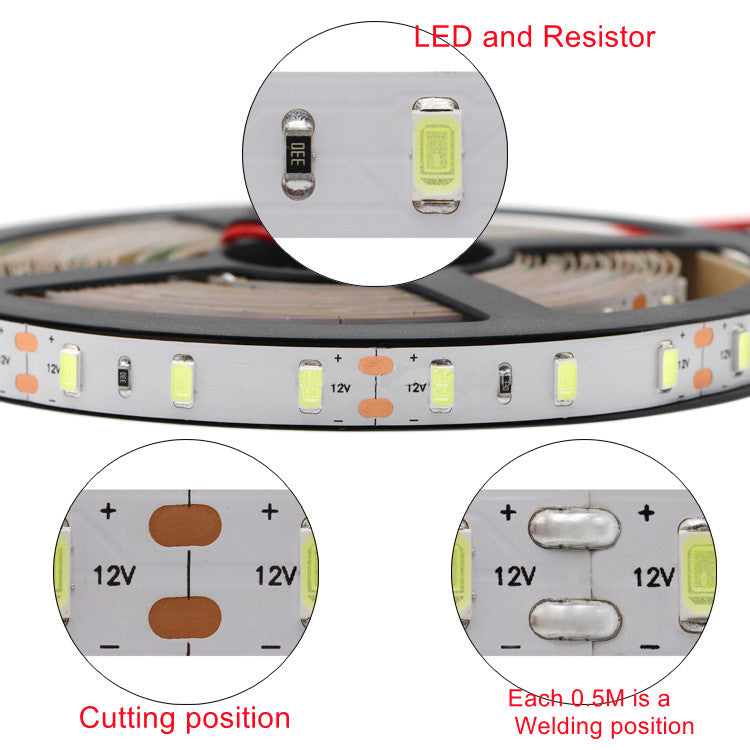

Cutting: 12V3 lamp cutting, 24V6 lamp cutting. 12V 60 lamp is about 5cm, 120 lamp is about 2.5cm, 180 lamp is about 1.67cm, 240 lamp is about 1.25cm, 24V 60 lamp is about 10cm, 120 lamp is about 5cm, 180 lamp is about 3.33cm, 240 leds is about 2.5cm |
||
Warranty:2-3 years |
PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
SMD 5730 LED Strip Features:
1. Outstanding brightness of a single bead:
The luminous flux of a single SMD5730 lamp bead can reach 55-75 lumens (LM), far exceeding small-sized lamp beads such as 2835 (usually 20-24LM), suitable for scenes that require high brightness. The luminous efficiency is about 100-120 LM/W (depending on the quality of the chip), with higher brightness at the same power and more energy-saving for long-term use.
2. Power configuration: The power of a single lamp bead is generally 0.5W (current 150mA), and the power density of the light strip is high. For example, the power of the model with 120 lamps/m reaches 21.6W/m, which is suitable for large-area lighting.
3. Low-voltage drive compatibility:
Requires DC12V/24V power supply, high safety, suitable for places with frequent human contact .
4. Heat dissipation advantage:
The lamp bead size is large (5.7×3.0mm), and the heat dissipation area is better than that of small-sized models such as 2835, which delays light decay and prolongs life.
5. Temperature adaptability: The operating temperature range is wide (-30℃ to +80℃), suitable for outdoor or large temperature difference environments.
The core advantages of SMD5730 LED light strips are high brightness output, excellent heat dissipation and expandable dual color temperature function, which is particularly suitable for industrial lighting, commercial atmosphere lighting and other scenes. However, it should be noted that its power is relatively high, and it needs to match the heat dissipation design and stable power supply.
