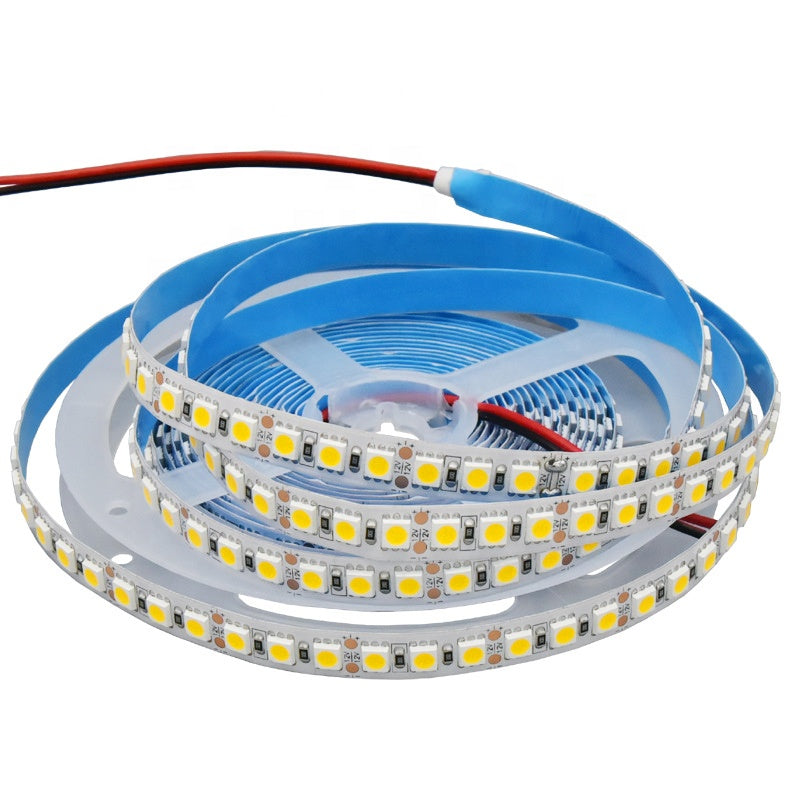

SMD5050 single color LED Strip

Product Description:

SMD5050 single color LED light strip is a lighting product that uses a 5.0mm × 5.0mm surface mount device (SMD) and a three-in-one chip structure. Its core features are high brightness and flexibility, making it an ideal choice for commercial lighting, decorative lighting and industrial applications.

Easton Technology Co., Ltd.'s SMD5050 LED Strip products include 30leds/M， 60leds/m,120leds/M. These products are available in12V & 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

Product Specifications:

PCB color:
White: white PCB; Black: black PCB

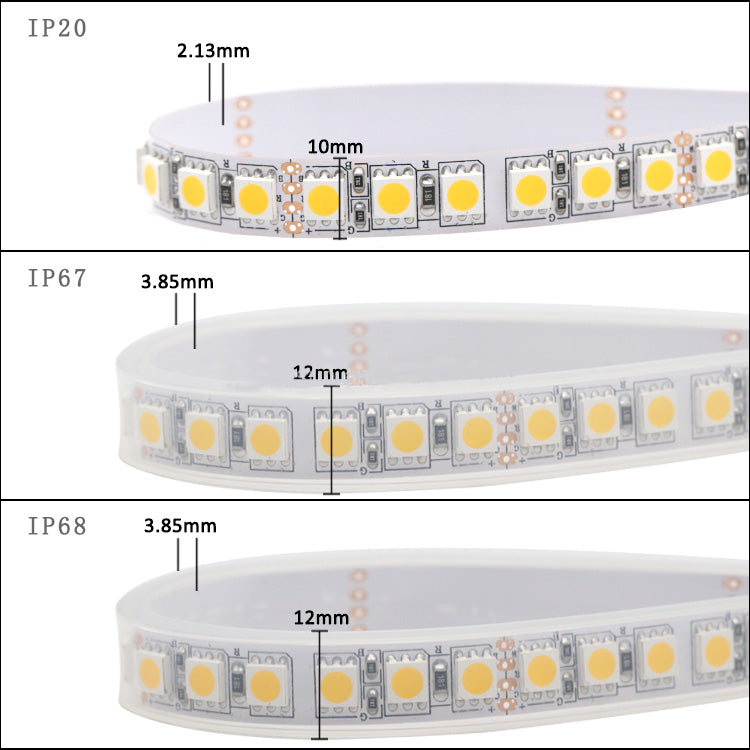

Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

SMD 5050 LED Strip Features：

1. High brightness output:

Using SMD5050 package (size 5.0mm × 5.0mm), the luminous flux of a single LED can reach 20~22 lumens, which is suitable for scenes requiring high illumination, such as under-cabinet lighting, commercial display or architectural outline lighting.

2. Color temperature and color rendering:

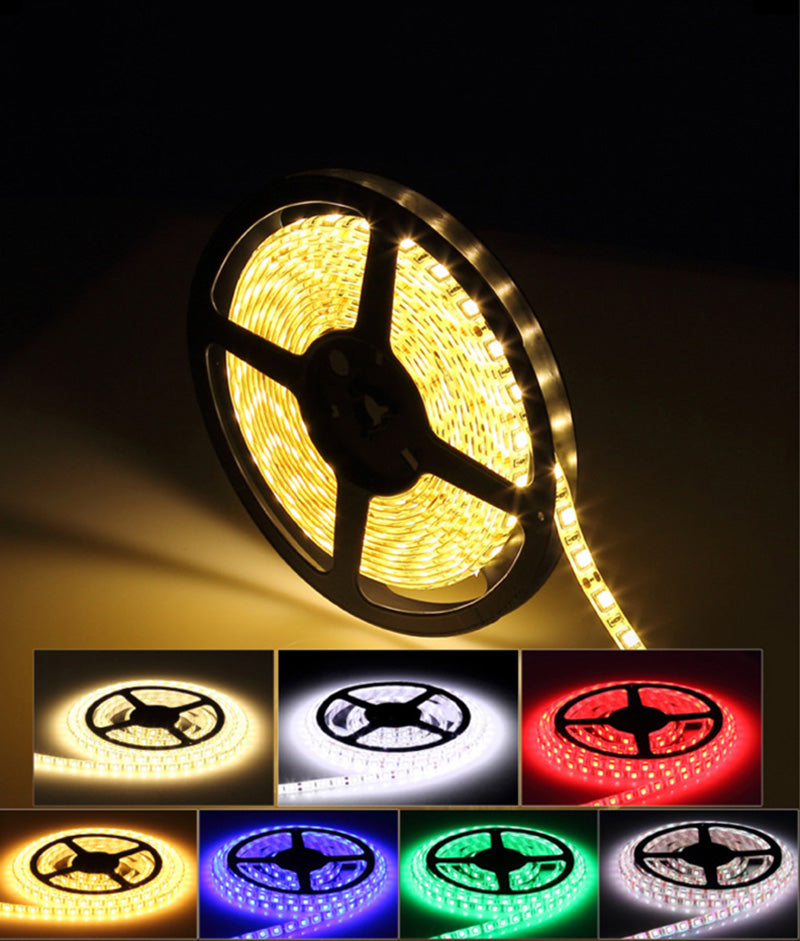

Provide monochrome white light options (such as pure white, warm white) or pure color light (red/blue/green), the color temperature range covers 2200K~6500K, meeting the needs of cold and warm atmosphere. The color rendering index (CRI) is usually >80, and some high-end models are >90, which can better restore the true color of objects.

3. Flexible substrate and installation convenience:

Using FPC (flexible circuit board), the width is commonly 8mm, 10mm or 12mm, the thickness is about 2mm, and it can be bent to fit the curved surface or corner. 3M double-sided tape is attached to the back to support quick pasting and installation, eliminating the need for complex brackets.

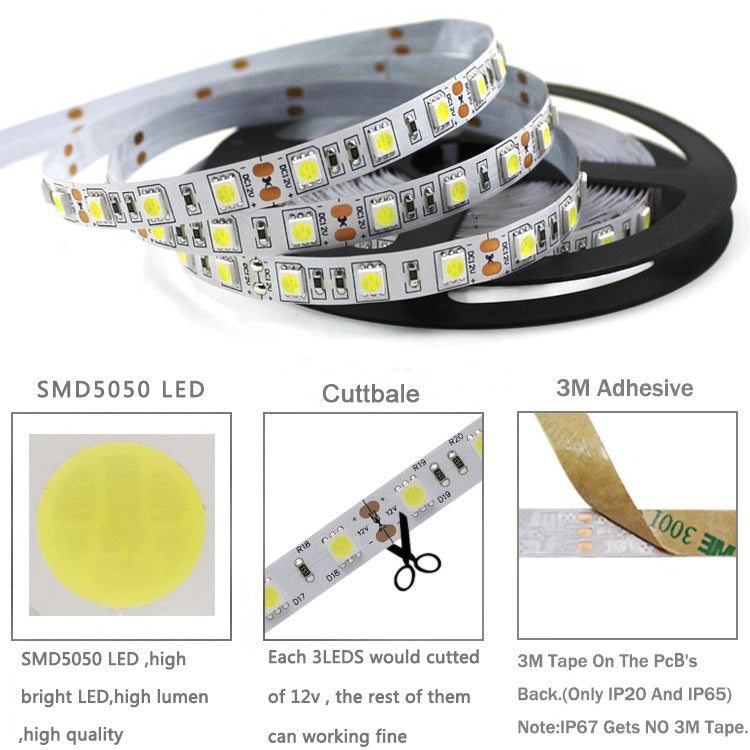

4. Cuttable and Customizable

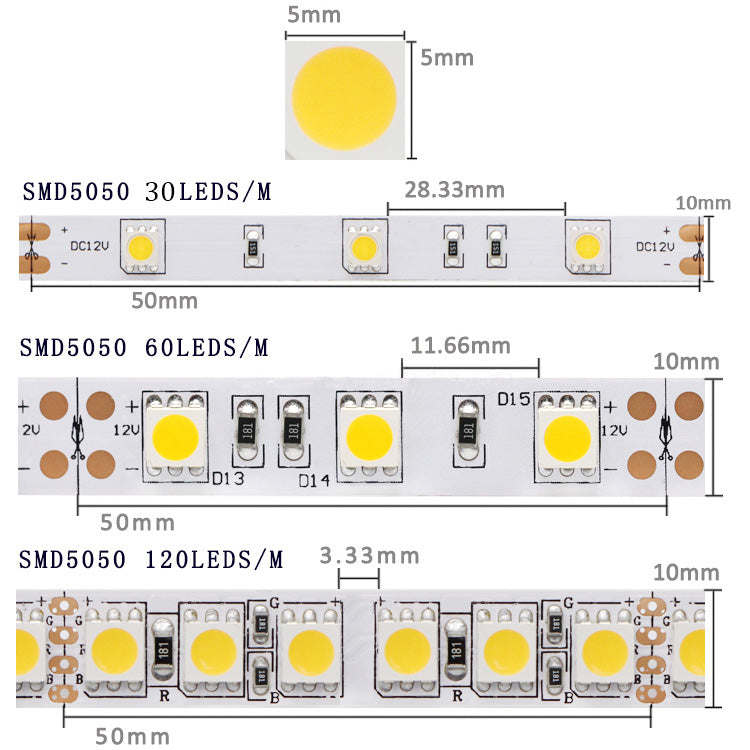

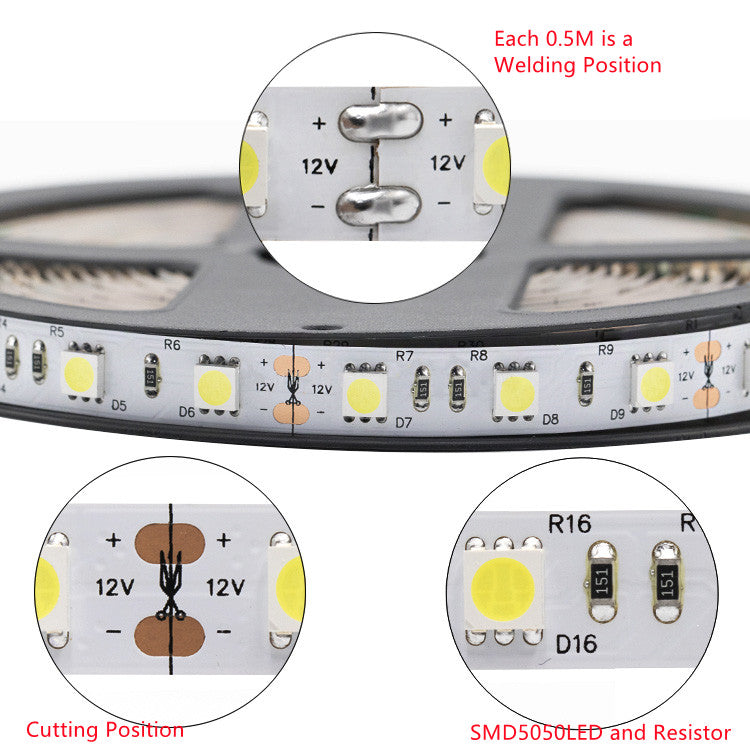

Cutting points are set for every 3/6 LEDs, and users can cut the length as needed to avoid resource waste.

Supports customized LED density (such as 30/60/120 lights/meter), PCB color (white/black) and waterproof level.

5. Heat dissipation and durability

Double-sided PCB design (including 2~4 ounces of copper layer) improves thermal conductivity and reduces light decay; operating temperature range -25℃~+50℃. Lifespan is up to 50,000 hours, with low failure rate.

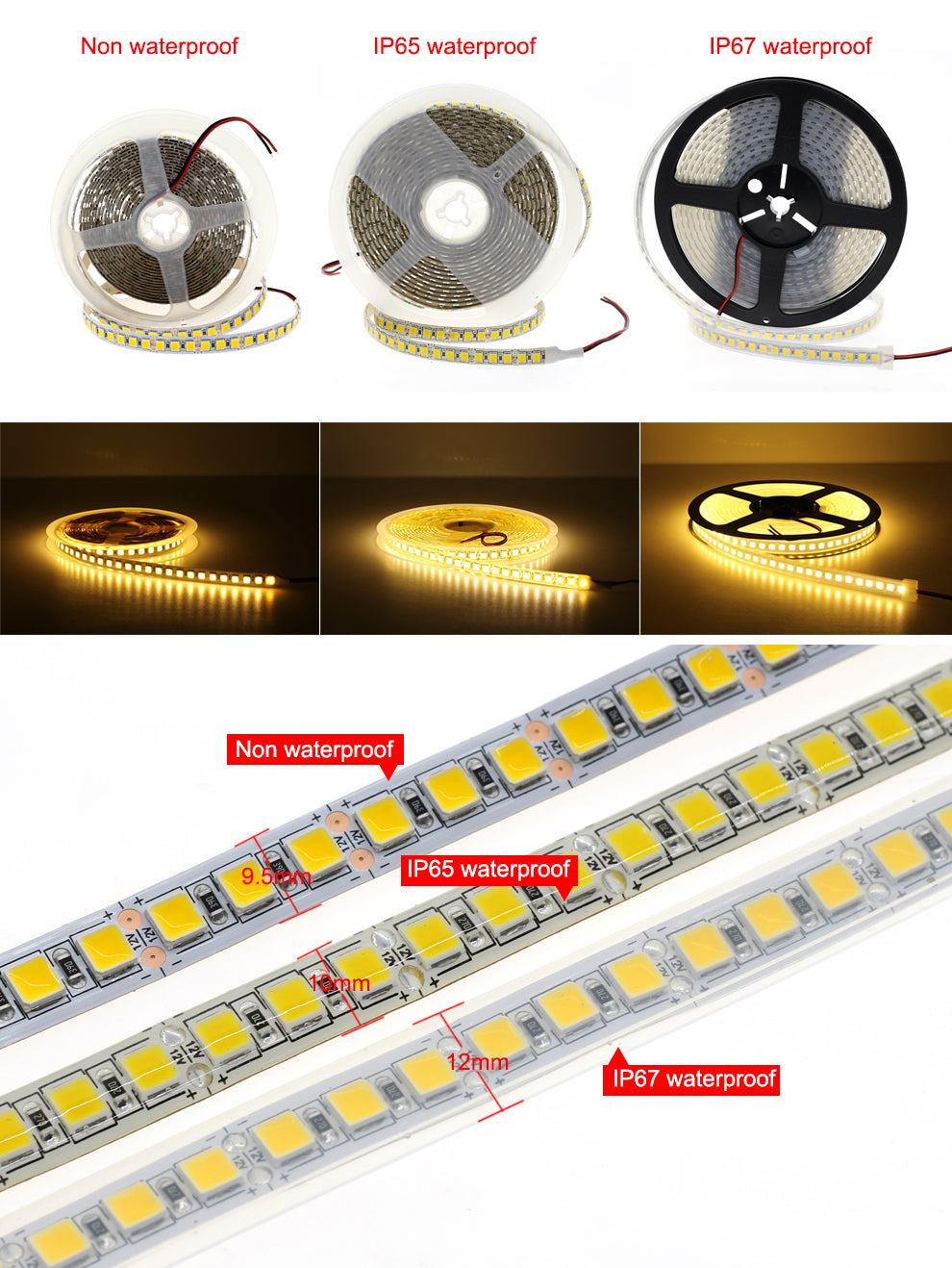

6. Various waterproof levels

Optional IP20 (bare board, indoor use), IP65 (dust and splash proof with glue dripping), IP68 (full waterproof with glue filling), suitable for humid or outdoor environments such as bathrooms, fountains or building exterior walls.

7. Power supply and compatibility

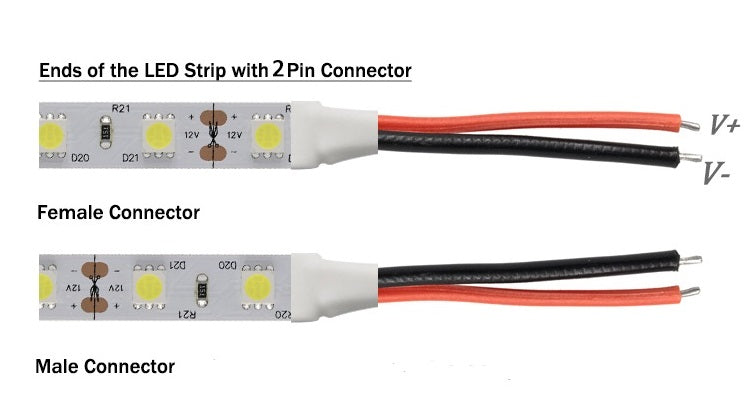

The mainstream voltage is DC12V or DC24V, and an adapter power supply is required; the controller can be expanded to achieve dimming, timing and other functions, but attention should be paid to matching the voltage and power limit.

8. Application scenarios

Indoor decoration: cabinet bottom lights, stair step lights, home atmosphere light strips.

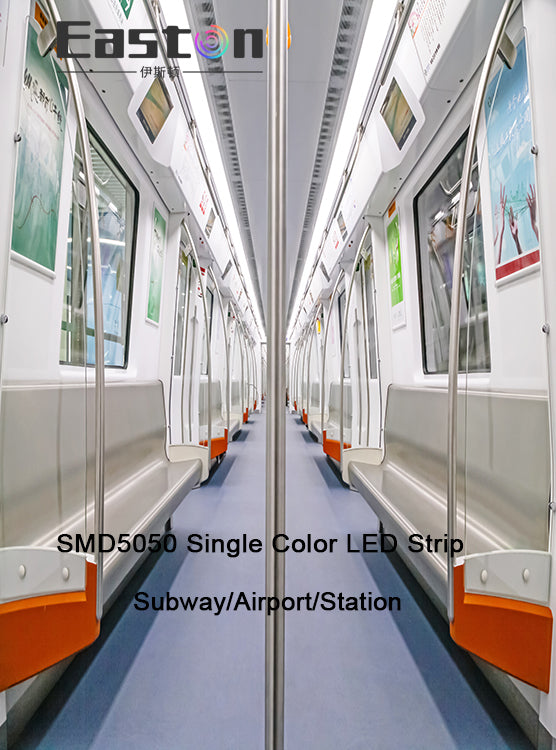

Business and architecture: shop signs, building outline lighting, advertising light boxes.

Outdoor and special environments: bridge guardrails, waterscape lighting (IP68 required), car decoration.

The core advantages of SMD5050 monochrome LED flexible light strips are high brightness, flexible cutting and strong environmental adaptability, especially suitable for scenes that need to highlight lighting effects or complex installation. When purchasing, pay attention to matching power supply power, waterproof requirements and color temperature consistency, and give priority to double-sided copper substrate models to ensure heat dissipation.

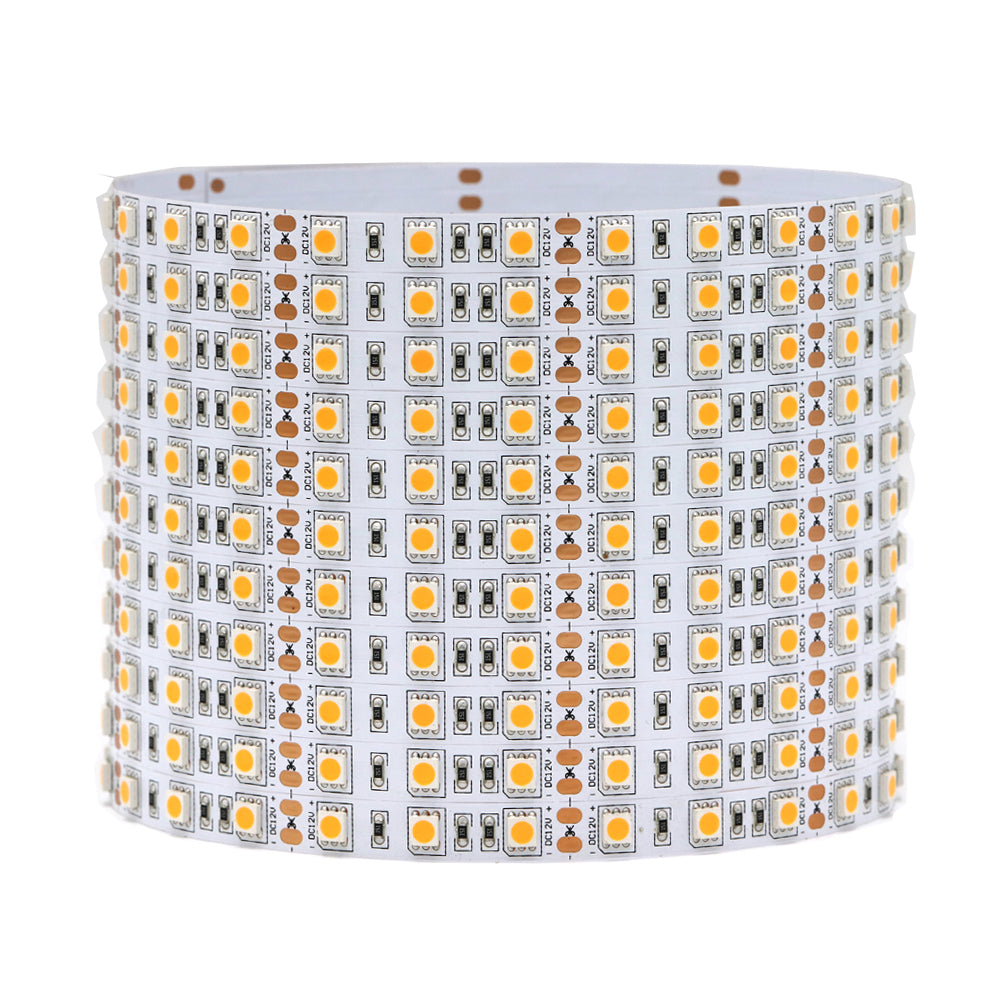

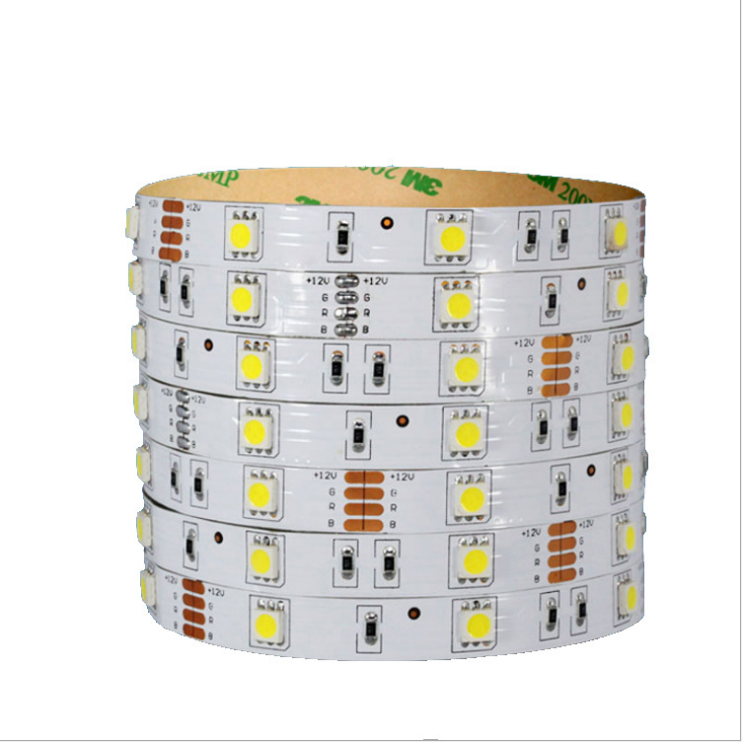

SMD5050 LED strip product details:
