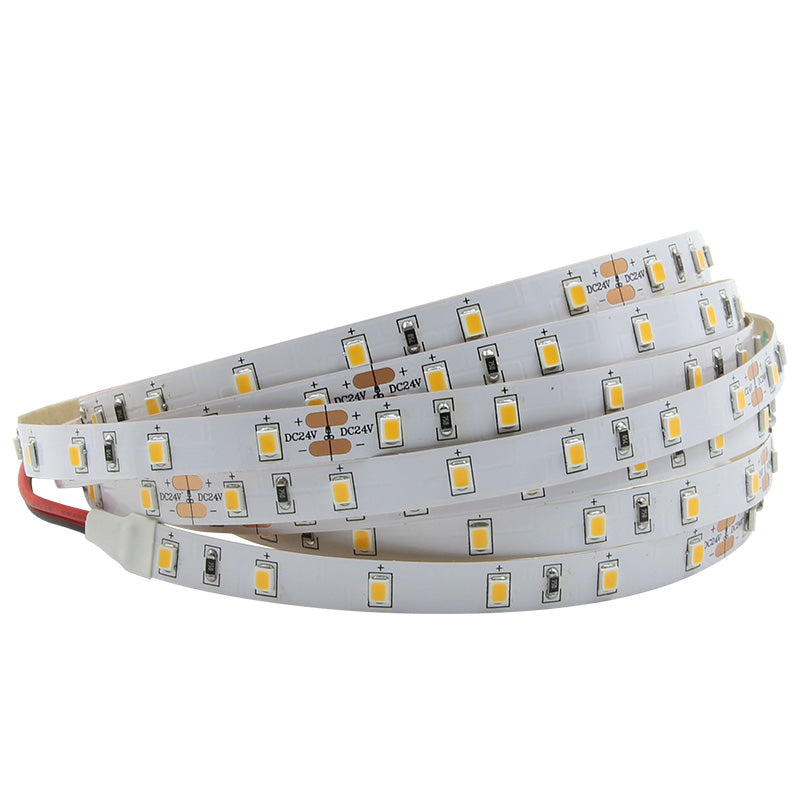

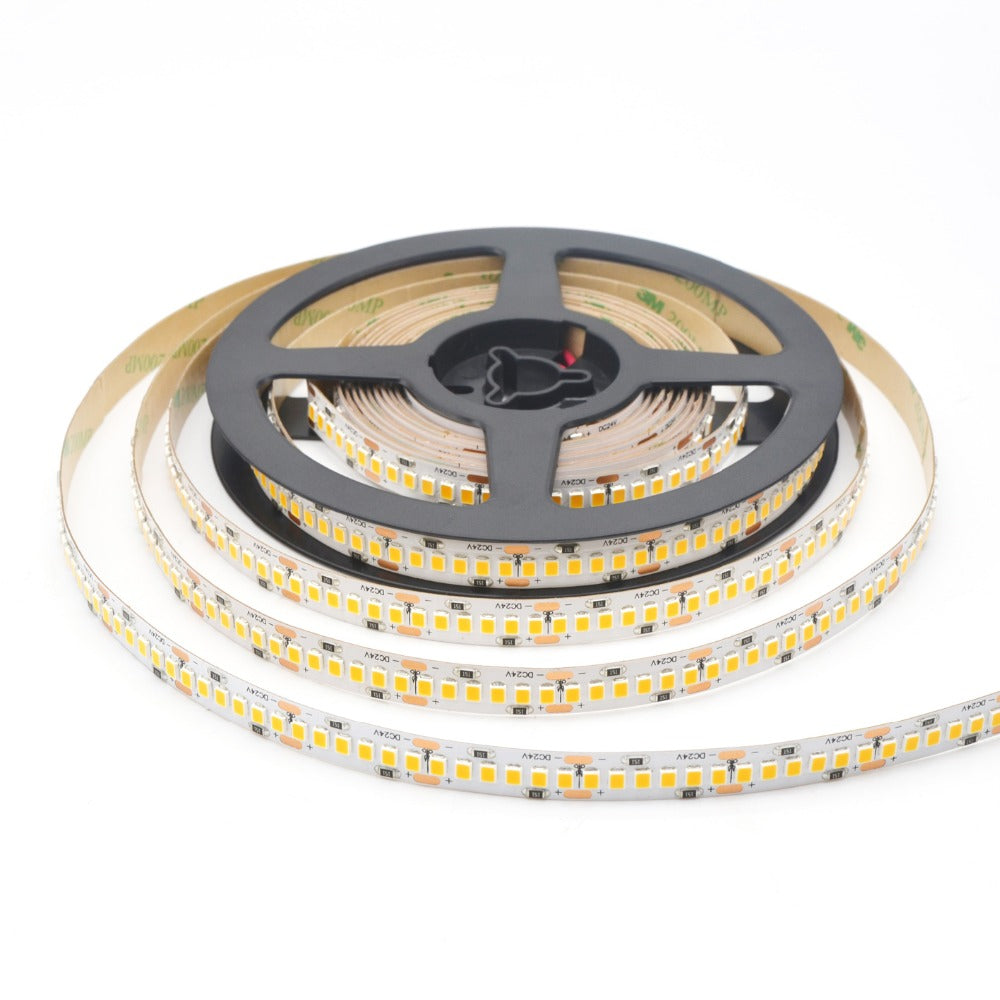

SMD2835 LED Strip
Product Description:
SMD2835 LED light strip is a flexible lighting product made with SMD2835 SMD LED lamp beads as the core component. It is widely used in decoration, functional lighting and scene lighting. Due to its stable quality and high performance, it is one of the most popular products at...
Product Description:
SMD2835 LED light strip is a flexible lighting product made with SMD2835 SMD LED lamp beads as the core component. It is widely used in decoration, functional lighting and scene lighting. Due to its stable quality and high performance, it is one of the most popular products at present.
Easton Technology Co., Ltd.'s SMD2835 LED Strip products include 60leds/m,120leds/M,180leds/M，240Leds/M. These products are available in12V & 24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.
Product Specifications:
|
|
|
|
|
|
Model：ES-2835-60 |
Model：ES-2835-120 |
Model：ES-2835-180 |
Model：ES-2835-240 |
|

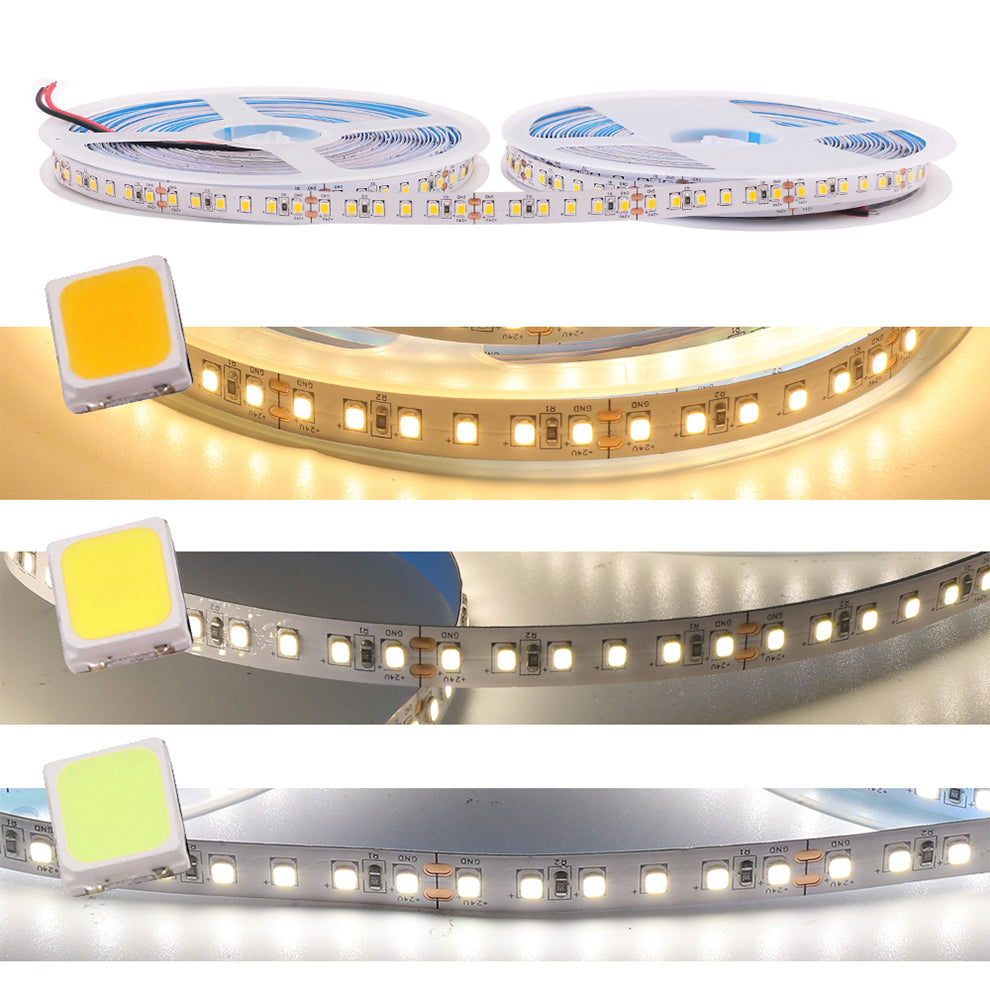

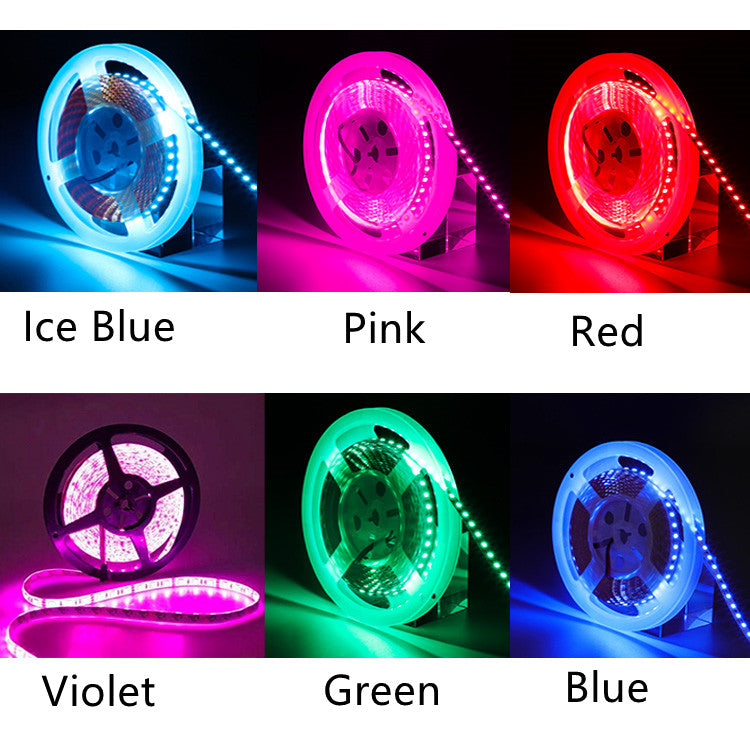

Color: white/red/green/blue/yellow/pink/purple/ice blue |
|||
|
LM/LED: White light: 20-24LM, red and yellow 7-8LM (about 2100-2400mcd), green 18-20lm (about 5400-6000mcd), blue 4-6LM (about 1200-1800mcd), purple 5-8LM (About 1500-2400mcd), pink and ice blue 15-18lm (about 4500-5400mcd) |
|||
|
LED QTY/M:60LEDs/M |
LED QTY/M:120LEDs/M |
LED QTY/M:30LEDs/M |
LED QTY/M:30LEDs/M |
|
Color temperature/NM: white light 2200-13000K, red 620-625NM, green 520-525NM, blue 460-470NM, yellow 590-595NM, purple 390-410nm |
|||
|
Ra:Only white light is involved in the problem of Ra, you can choose the color rendering of 80/90/95 three specifications |
|||
|
Power：9.6W/M |
Power：14.4W/M |
Power：16W/M |
power：19.2W/M |
|
Current/M：12V 0.9A/M 24V：0.45A/M |
Current/M：12V 1.2A/M 24V：0.6A/M |
Current/M：12V 1.33A/M 24V：0.67A/M |
CUrrent/M：12V 1.6A/M 24V：0.8A/M |
|
PCB Width：8mm |
PCB Width：8mm |
PCB Width：8mm |
PCB Width：10mm |
|
IP：IP20 non waterproof/IP65Epoxy waterproof/IP67Casing waterproof/IP68 Gule Waterproof |
|||
|
Beam angle：120° |
|||
|
Operating Temperature：-20°-45° |
|||
|
Storage Temperature：-30°-65° |
|||
|

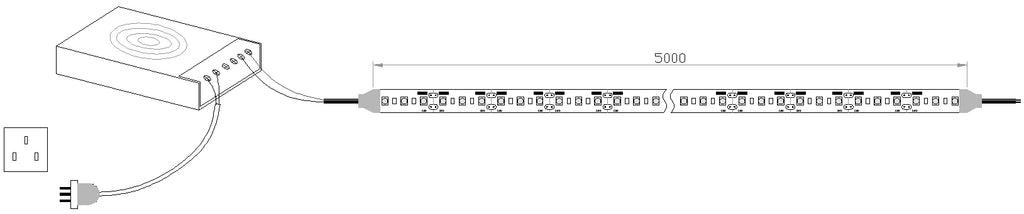

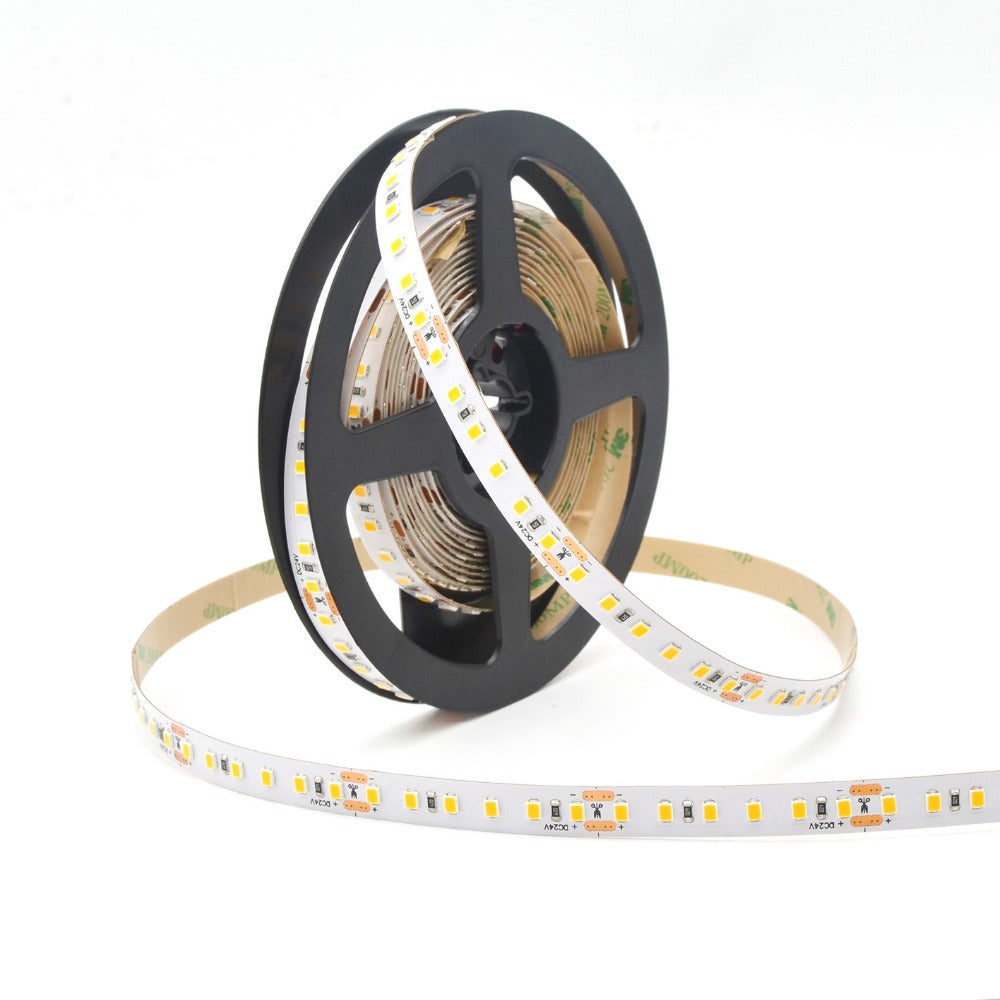

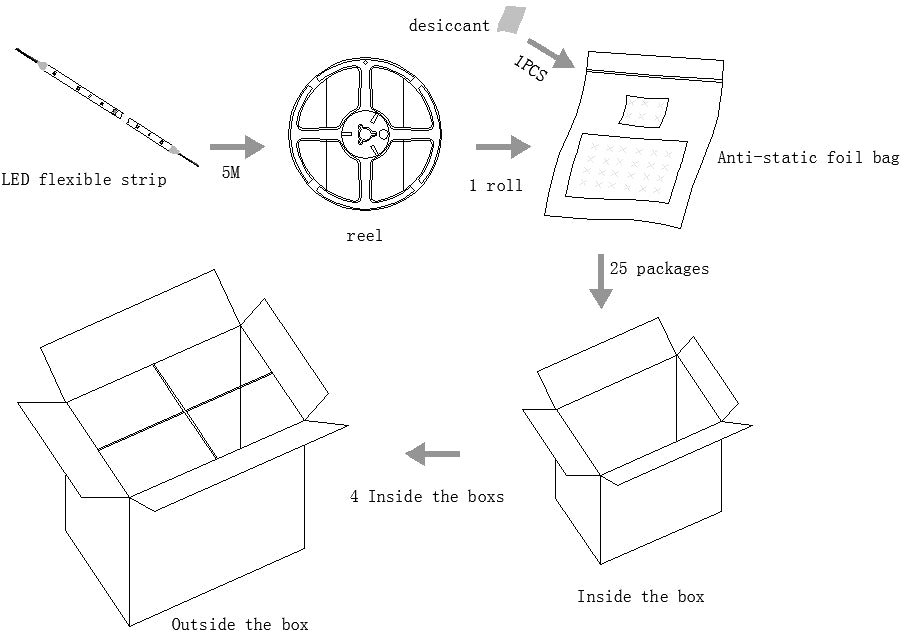

Package：5M/Roll，10M/RollOr customized length |
|||
|
Cutting: 12V3 lamp cutting, 24V6 lamp cutting. 12V 60 lamp is about 5cm, 120 lamp is about 2.5cm, 180 lamp is about 1.67cm, 240 lamp is about 1.25cm, 24V 60 lamp is about 10cm, 120 lamp is about 5cm, 180 lamp is about 3.33cm, 240 leds is about 2.5cm |
|||
|
Warranty：2-3 years |
|||
PCB color:
White: white PCB; Black: black PCB

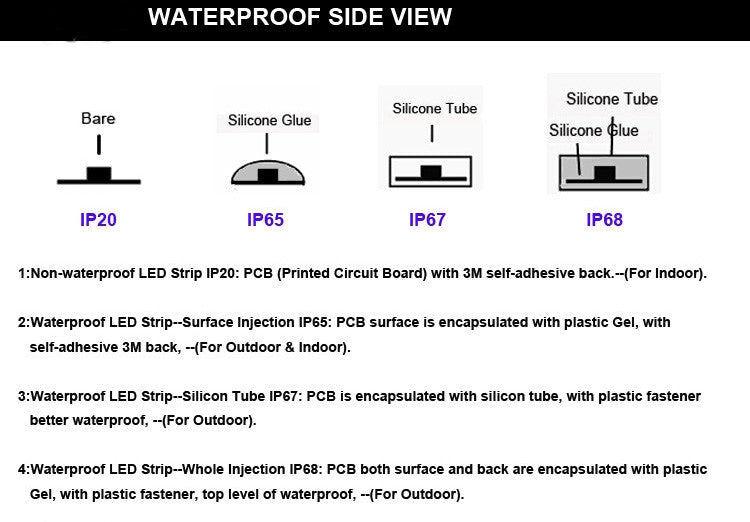

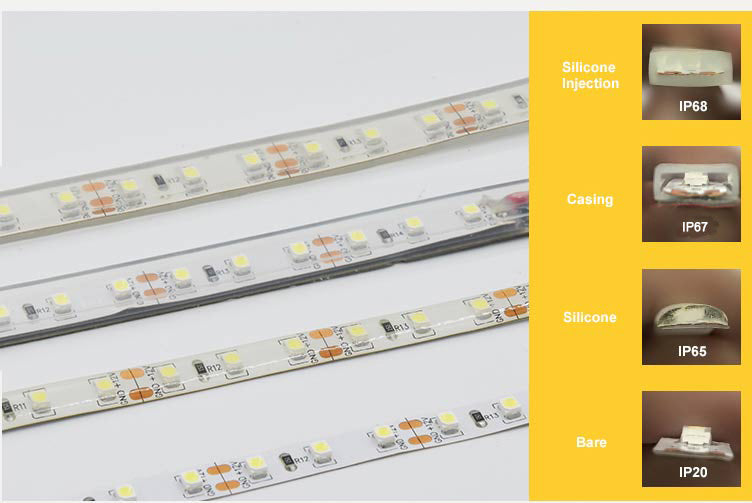

Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater
SMD2835 LED Strip Features：
1. High-density integration

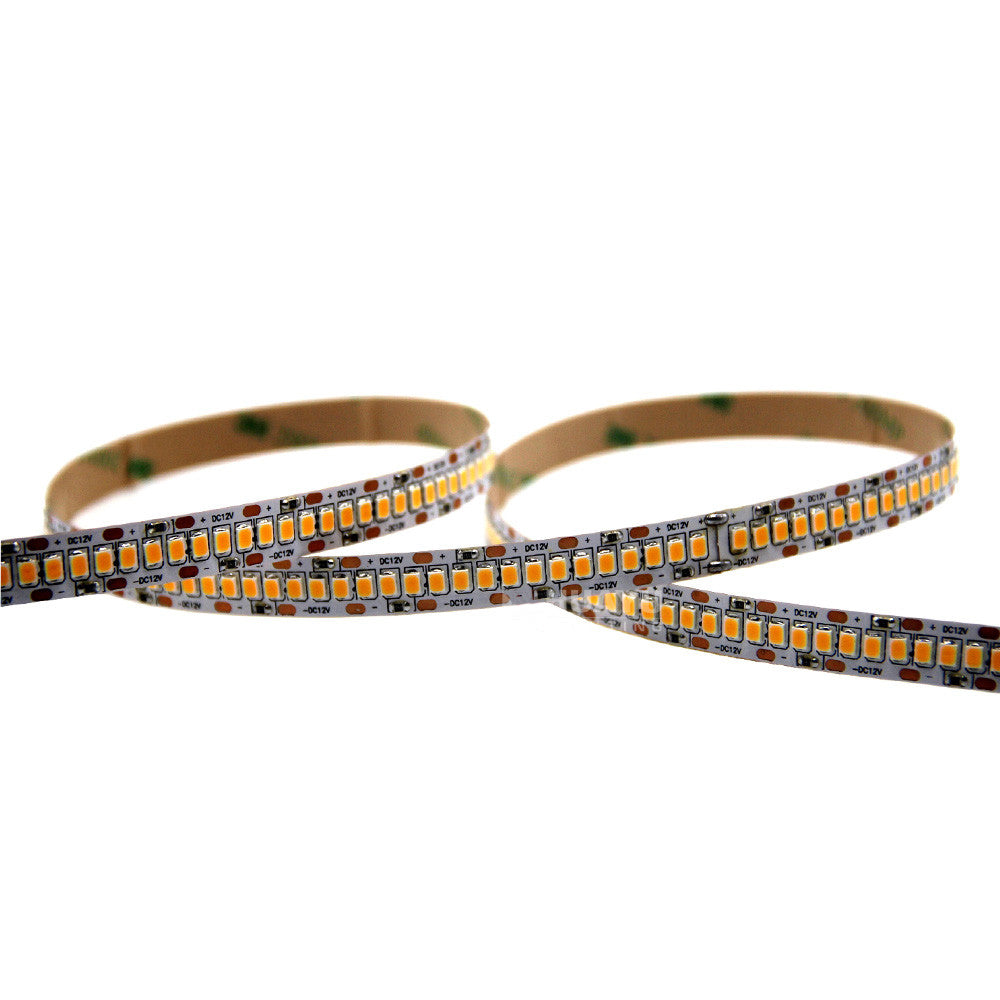

Flexible lamp density: 60-240 beads/m, high-density models (such as 240 beads/m) can reach 2000-1800lm/m of luminous flux, meeting the main lighting needs.
Support ultra-thin design, suitable for narrow spaces (such as cabinet gaps, furniture edges).
2. Flexible substrate and waterproof process
Substrate type:
Flexible FPC (bendable, coiled), bending radius ≥ 30mm, suitable for arc installation.
Aluminum substrate (hard, stronger heat dissipation), suitable for high-power scenarios.
Waterproof level:
IP20 (unprotected): indoor dry environment.
IP65 (waterproof with dripping glue): dustproof and splashproof, suitable for kitchens and bathrooms.
IP68 (fully sealed with silicone sleeve): long-term use underwater or outdoors.

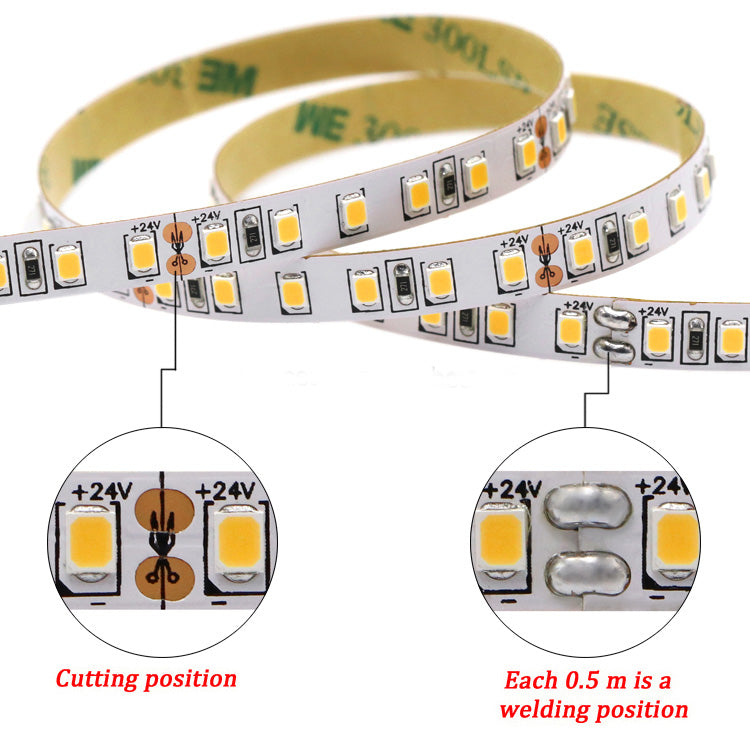

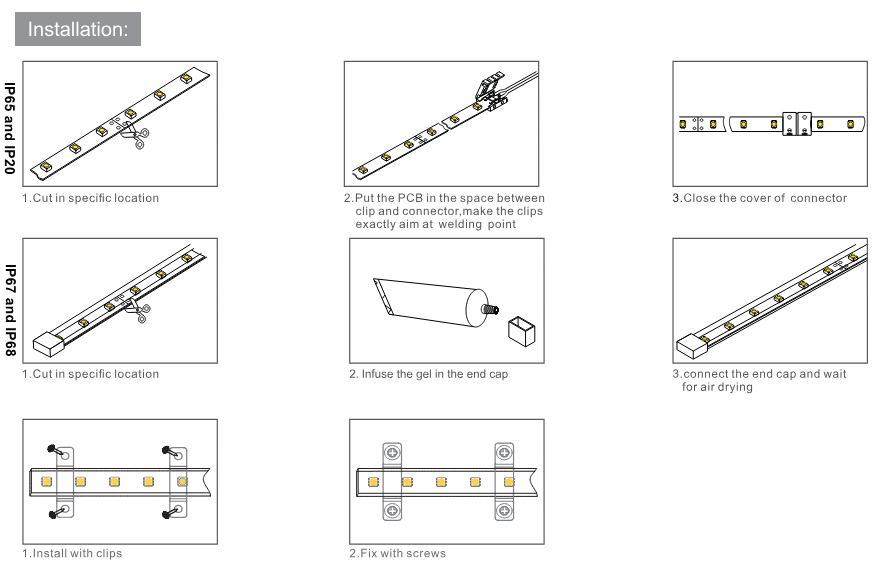

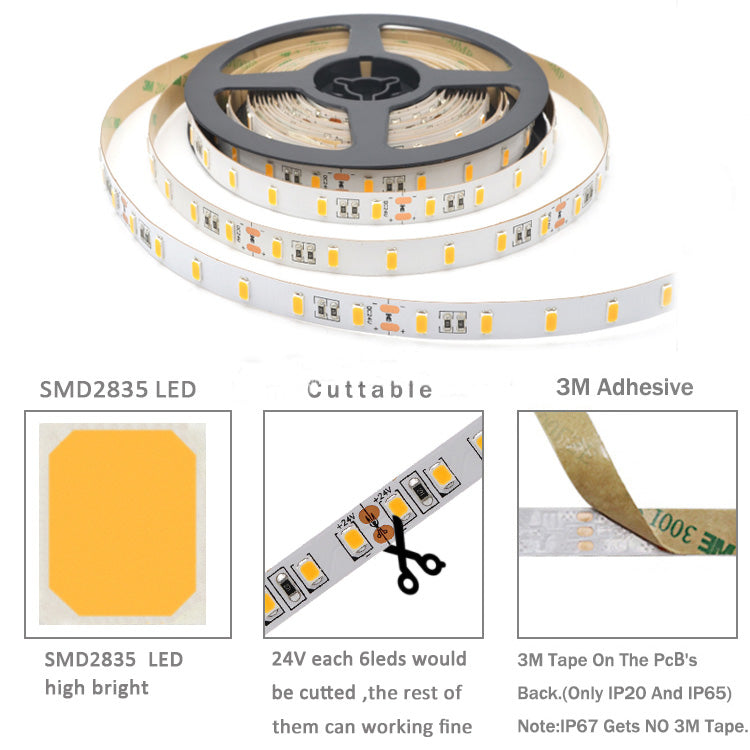

3. Easy to install and cut
Set cutting points for every 3/6 lamp beads, cut as needed.
Pre-attached 3M glue or snap-on design on the back to simplify the installation process.
4. Brightness and light efficiency
Light efficiency 80-120lm/W (depending on the configuration), high light efficiency models save 30%-50% energy compared to traditional light strips (such as SMD3528).
Luminous flux range per meter:
Low density (60 pieces/m): about 600-800lm/m
High density (240 pieces/m): about 1800lm/m.
5. Color performance
Supports full color temperature (1800K-6500K) and RGB color versions to meet the needs of atmosphere lighting.
High color rendering index (RA≥90) models accurately restore the color of objects, suitable for jewelry stores and art galleries.
6. Heat dissipation and life
The heat dissipation efficiency of aluminum substrate light strips is 40% higher than that of ordinary FPC, and the life is extended to 50,000 hours (light decay <30%).
The outdoor model uses glue filling process to enhance heat dissipation to avoid light decay in high temperature environment.

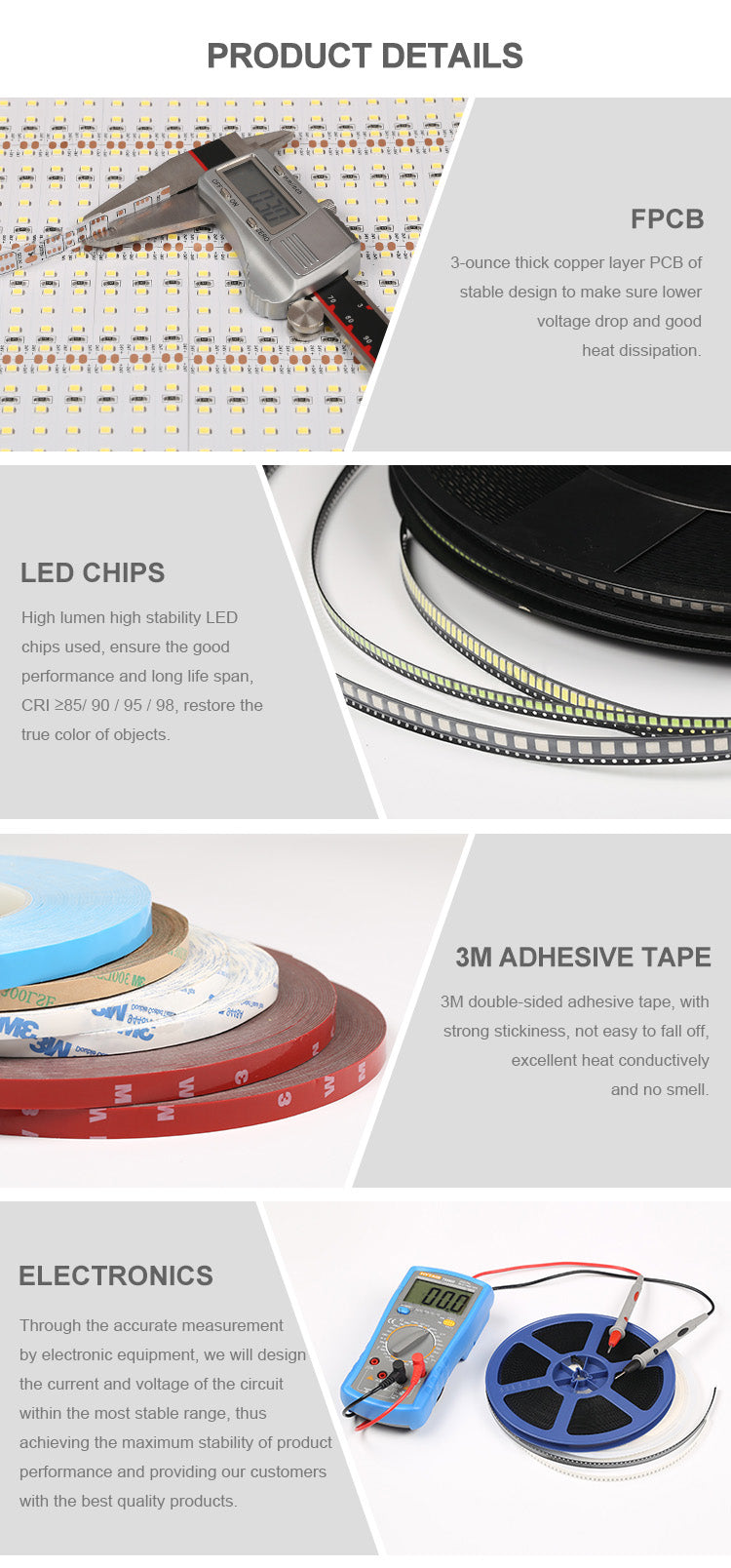

SMD2835 LED strip product details:
