SM16512 DMX512 led strip light

Product Description:

What is a DMX512 LED strip?

 The DMX512 LED strip is a high-end professional lighting product that uses the DMX512 international standard control protocol and can achieve independent and precise programmable control of each LED pixel (or pixel group) on the light strip.The DMX512 LED strip uses parallel signal transmission, so a local fault does not affect the overall effect, and it has strong anti-interference capabilities. It can achieve smooth and delicate dynamic colors, chasing effects, flowing water, and other complex light show effects.

 What is SM16512 DMX LED strip?

SM16512 DMX LED strip refers to a DMX512 addressable LED strip with built-in or integrated SM16512 series driver/control chip. This type of strip is not a typical monochrome or single-color-changing strip; it can achieve precise and dynamic lighting effects through the DMX512 control protocol.

The SM16512 chip is a four-channel LED driver and control chip specifically designed for LED strips. It is compatible with DMX512 signals and supports large-scale address control, enabling rich and programmable lighting effects with professional controllers (such as DMX consoles/software). It is widely used in professional lighting scenarios such as stage lighting, architectural lighting, and exhibitions. It allows centralized control of the color, brightness, and effects of multiple lights.

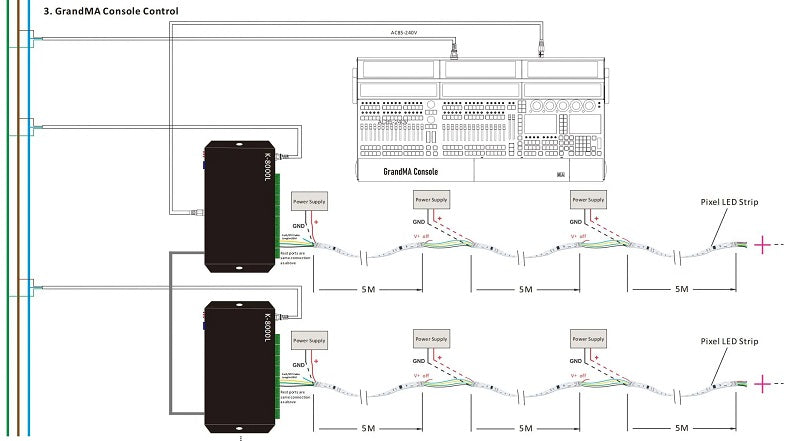

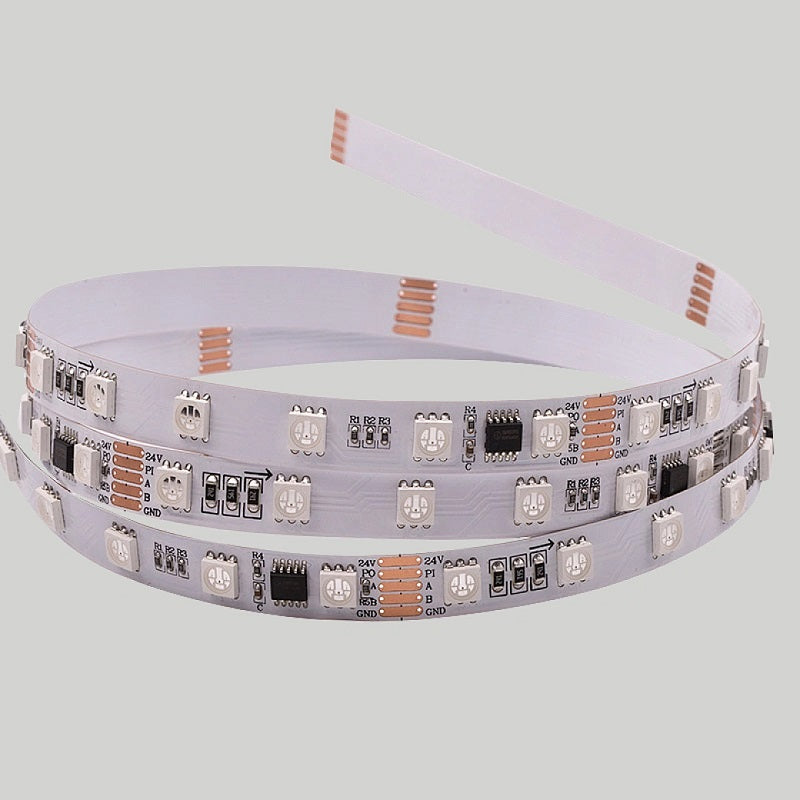

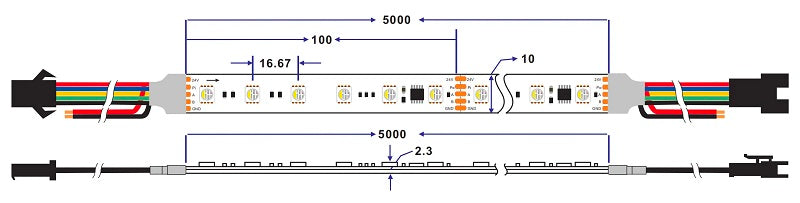

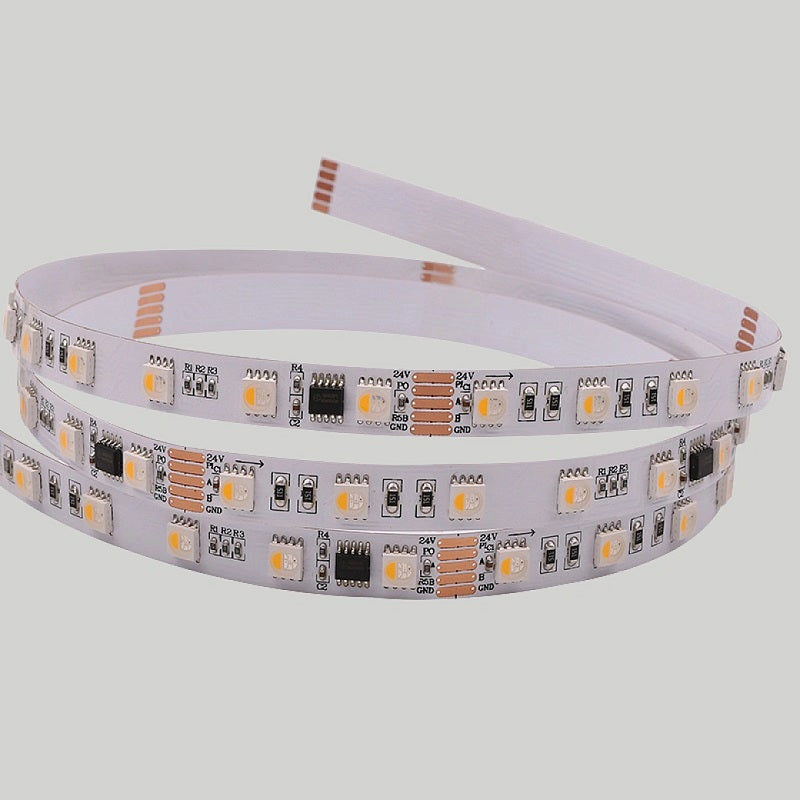

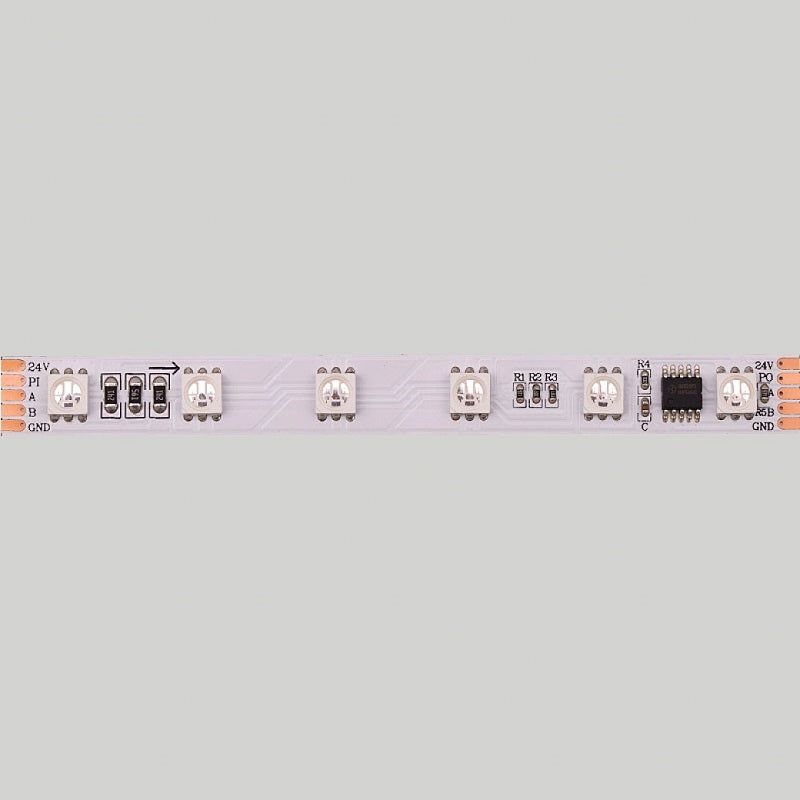

Easton Technology's SM18512 DMX512 LED strip is available in RGB and RGBW specifications, with PCB widths of 10mm , selectable voltages of 12V/24V, and can be cut to size as needed. This product offers multiple protection ratings, including IP20/IP65/IP67/IP68, suitable for various applications. Easton also provides power supplies, controllers, aluminum profiles, and other related accessories. Furthermore, Easton offers customization services, including adjustments to cable length, PCB width, LED quantity, connector specifications, labeling, packaging, and strip length.

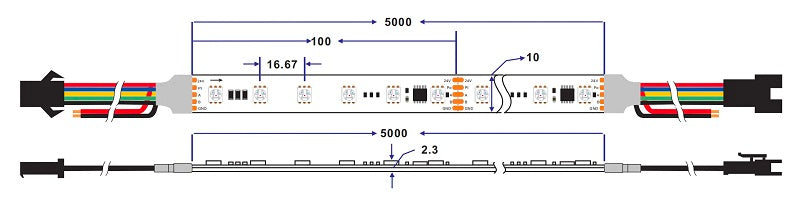

 Product Specifications:

Note:
SM16512 DMX led strip must be controlled with a DC12V/24V power supply and LED controller!
There are solder joints every 0.5 meters, please pay attention!
PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, indoor use
(2) IP65 --- silicone coating, easy to cut, outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

Core Features and Working Principle of DMX512 LED Strips：

 The performance of DMX512 LED strips is built upon the DMX512 protocol, an international standard digital dimming protocol developed in 1990 to address compatibility issues between devices from different manufacturers. Its core advantages include:

 1.）Powerful System Capabilities: A standard DMX control "domain" can support 512 control channels. Considering that controlling one RGB LED pixel requires three channels (one each for red, green, and blue), a single controller can easily manage hundreds of independent pixels, making it ideal for creating grand and continuous lighting scenes.

 2.）Stable Long-Distance Transmission: The protocol is based on an RS-485 bus and uses differential signal transmission, offering strong anti-interference capabilities. Reliable signal transmission distances up to 1000 meters without repeaters meet the needs of large-scale projects.

 3.）Efficient Parallel Control: Data is broadcast to the bus, and each pixel "picks up" the corresponding instruction based on its set address. This master-slave architecture and parallel transmission mode ensure that even if a pixel is damaged, the signal can still be transmitted to subsequent pixels without any obstacles, resulting in extremely high system stability.

 Key Features of the SM16512 DMX512 LED Strip:

1. DMX512 Addressable Control

This LED strip can be controlled segmentally or pixel-level using a DMX512 controller to achieve complex dynamic effects (such as flowing water, gradients, and spotlight tracking).

 2. Stable Chip Performance

The SM16512 chip typically features built-in power supply regulation, a RS485 decoding module, and data buffering, supporting long transmission distances and strong anti-interference capabilities. It supports 256 levels of grayscale adjustment for smoother brightness changes.

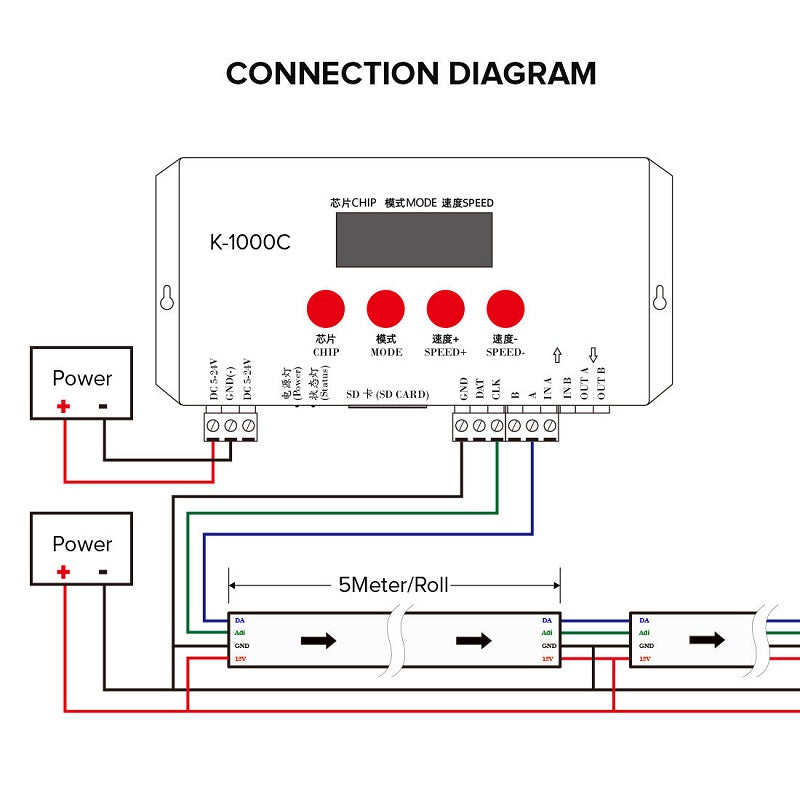

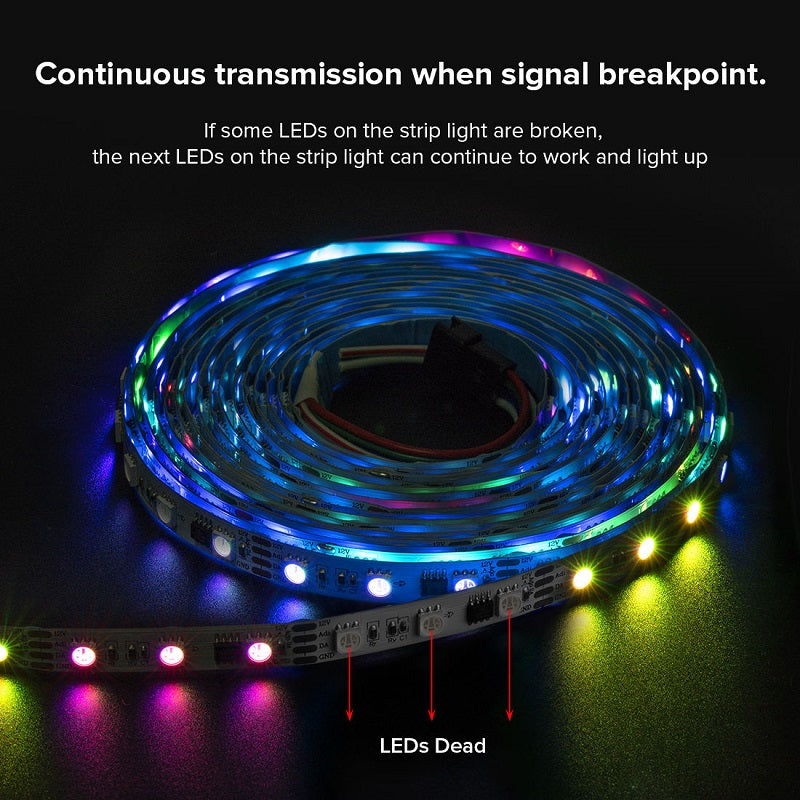

 3. High Reliability and Breakpoint Resume

It supports a certain degree of fault tolerance: even if one LED fails, the others can still display normally. It usually has a breakpoint resume function: the display state is retained after power failure.

 4. Rich Colors and Strong Dynamic Effects

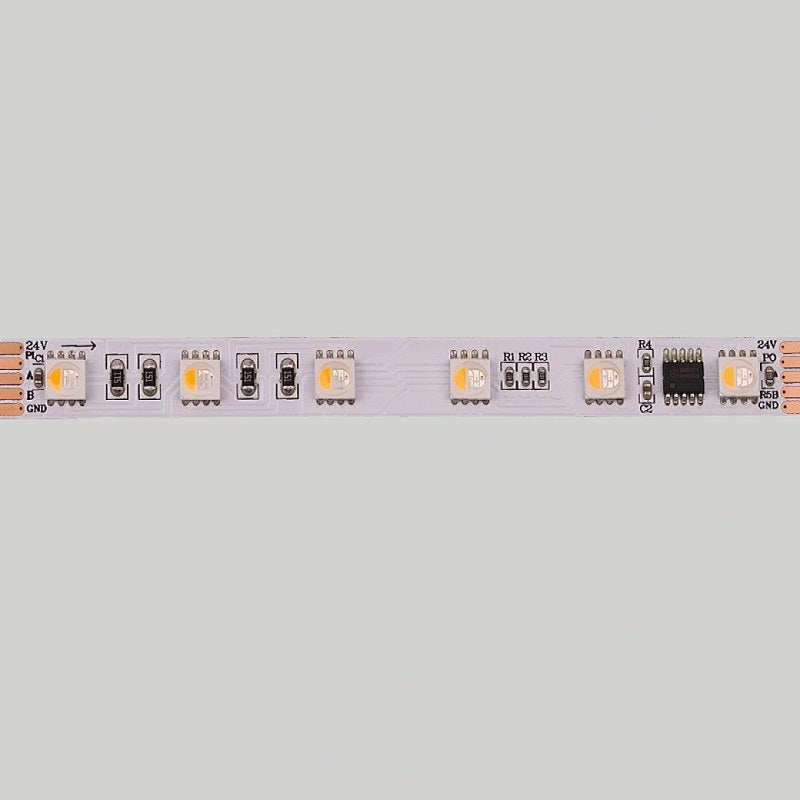

It can control RGB or RGBW (with white LED) LEDs to achieve multi-color mixing.

 It can be used with DMX software (such as Madrix and LightJockey) for complex visual effect control.

 5. Flexible parameters. Common specifications include 24V power supply, 60 LEDs/m, and cuttable segments.

 DMX512 LED Strip vs SPI LED Strip：

How to Choose a DMX512 LED Strip ？

 When purchasing, in addition to determining the required length, color temperature, and pixel density (number of LEDs per meter), the following points require special attention:

 1.）Key Hardware and Manufacturing Process：

 1.1）Potting Material and Waterproofing: For outdoor or humid environments, the waterproof rating must be considered (IP65 or higher is recommended). Use PU glue with strong adhesion and high hardness instead of silicone, as it effectively prevents moisture penetration and short circuits.

 1.2）Wires and Connectors: The quality of the signal cable directly affects stability. Choose connectors with solid silver-plated pins and full-size copper core wire (e.g., 0.75 square millimeters) to avoid poor contact or oxidation.

 1.3）Lamp Body Structure: For outdoor use, the thickness of the aluminum alloy casing should be at least 1.2mm to ensure sufficient structural strength to resist installation stress and thermal expansion and contraction.

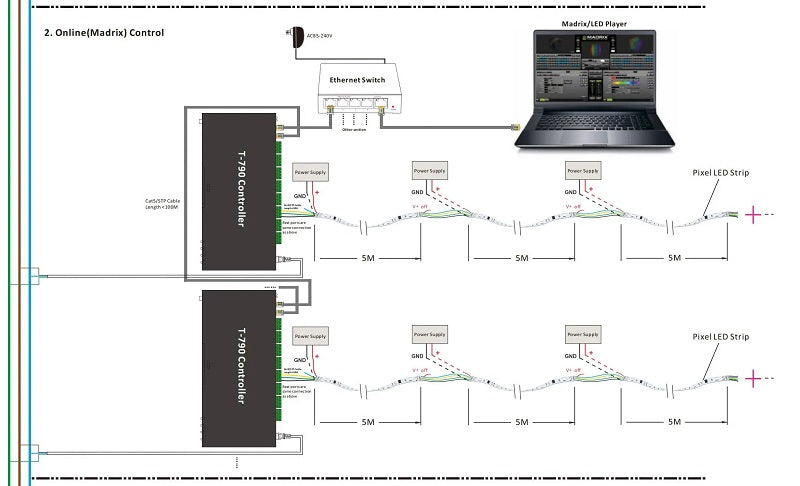

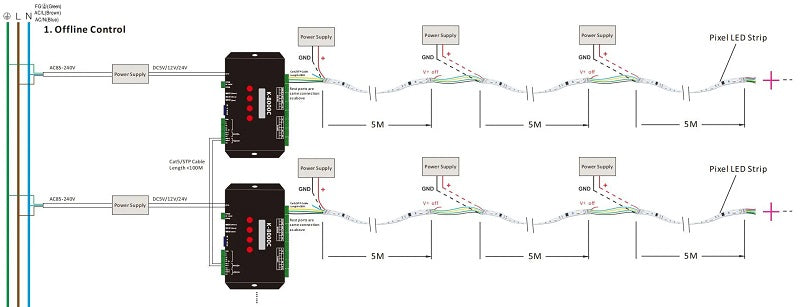

 2.）Necessary Supporting Equipment：

 The DMX512 LED strip requires a control system to operate, mainly including:

 2.1.）DMX Controller: The "brain" used for programming and sending control signals.

 2.2.）Decoder: Converts the DMX digital signal from the controller into a PWM drive signal that the LED strip can recognize.

 2.3.）Signal Amplifier/Repeater: Used to amplify and reshape the signal to prevent attenuation during ultra-long-distance cabling.

 2.4.）Technical Capability Assessment: It is essential to understand that the design of a DMX512 system (such as address code allocation and cabling planning), effects programming, and post-debugging typically require a certain level of professional technical knowledge or support from professionals. This complexity arises from its powerful functionality.

How to Choose and Precautions SM16512 DMX Led Strip？

When purchasing or customizing an SM16512 DMX LED strip, consider the following key points:

1. Control Protocol and Compatibility

Confirm that the strip supports the standard DMX512 protocol (some may be compatible with extended versions).

If using a professional control panel (such as Madrix/GrandMA), ensure the strip controller is compatible.

2. Voltage and Power

Commonly used is 24V DC, which is more stable and easier to drive on longer strips.

Note whether the power (W/m) and total length require external power relays, amplifiers, etc.

3. LED Density and Chip Type

LED density is generally expressed in LEDs/m, such as 60 LEDs/m. Higher density usually displays a more refined effect.

The type of LED (such as 5050 RGB or RGBW) determines the color mixing capability and brightness performance.

4. IP Protection Rating

IP20 is optional for indoor use; IP65/IP67 waterproof ratings are recommended for outdoor or humid environments.

5. Supporting Control Equipment

 A DMX controller (such as a DMX console, USB-DMX converter) and power supply are required.

Some LED strips require pre-writing addresses (e.g., using a dedicated programmer) before they can be used on the DMX controller.

6. Cutting and Installation

Select whether the LED strip segments can be cut on-site according to the design (generally, cut every few LEDs).

Note whether 3M adhesive is provided on the back for easy installation.

Main Application Scenarios: Thanks to its precise, stable, and scalable control capabilities, DMX512 LED strips are primarily used in professional fields with high standards for lighting effects:

 1.）Architectural Landscape Lighting: Used to outline building contours, render wall facades, and create dynamic light shows for urban landmarks, such as large shopping malls and office buildings.

 2.)Stage and Entertainment Venues: Core equipment for creating atmosphere and immersive visual experiences in theaters, concert halls, television studios, bars, and nightclubs.

 3.）Themed cultural tourism projects: Used in theme parks, scenic spots, and large fountains to create synchronized, story-driven, dynamic lighting narratives.

 4.）High-end commercial displays: Used in brand flagship stores, showrooms, hotels, and other spaces to enhance the technological and artistic feel of the environment through lighting changes.

SM16512 DMX512 led strip product details:
