UCS512G6 DMX512 led strip light

Product Description:

What is DMX512 LED strip?

 The DMX512 LED strip is a high-end professional lighting product that uses the DMX512 international standard control protocol and can achieve independent and precise programmable control of each LED pixel (or pixel group) on the light strip.The DMX512 LED strip uses parallel signal transmission, so a local fault does not affect the overall effect, and it has strong anti-interference capabilities. It can achieve smooth and delicate dynamic colors, chasing effects, flowing water, and other complex light show effects.

What is the UCS512G6 DMX LED Strip?

The UCS512G6 DMX LED Strip is an addressable digital LED strip (Pixel LED Strip) that supports the DMX512 control protocol. Internally, it uses the UCS512G6 decoding IC to directly receive DMX512 signals for lighting control. Unlike traditional strips that only change color overall, it can control lighting effects at the pixel level, achieving rich dynamic effects.

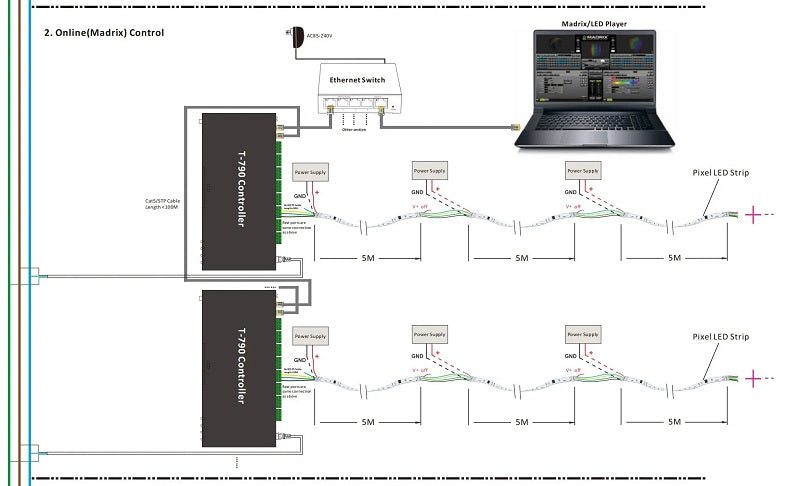

The DMX512 protocol is the standard control protocol in the stage lighting and architectural lighting industry. It can drive the strip effects via a DMX controller, Artnet/DVI, or software (such as MADRIX). The UCS512 G6 DMX LED strip primarily uses an RGBWW (RGB + Cool White + Warm White) / RGBCCT 5-in-1 structure, enabling a wider range of color combinations and smoother white light transitions.

Easton Technology's UCS512G6 DMX512 LED strip is available in RGBCCT 5 in1 specifications, with PCB widths of 12mm , voltages of 24V, and can be cut to size as needed. This product offers multiple protection ratings, including IP20/IP65/IP67/IP68, suitable for various applications. Easton also provides power supplies, controllers, aluminum profiles, and other related accessories. Furthermore, Easton offers customization services, including adjustments to cable length, PCB width, LED quantity, connector specifications, labeling, packaging, and strip length.

 Product Specifications:

 Note:
UCS512G6 DMX led strip must be controlled with a DC12V/24V power supply and LED controller!
There are solder joints every 0.5 meters, please pay attention!
PCB color:
White: white PCB; Black: black PCB
Protection level:
(1) IP20 --- not waterproof, indoor use
(2) IP65 --- silicone coating, easy to cut, outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

Core Features and Working Principle of DMX512 LED Strips：

 The performance of DMX512 LED strips is built upon the DMX512 protocol, an international standard digital dimming protocol developed in 1990 to address compatibility issues between devices from different manufacturers. Its core advantages include:

 1.）Powerful System Capabilities: A standard DMX control "domain" can support 512 control channels. Considering that controlling one RGB LED pixel requires three channels (one each for red, green, and blue), a single controller can easily manage hundreds of independent pixels, making it ideal for creating grand and continuous lighting scenes.

 2.）Stable Long-Distance Transmission: The protocol is based on an RS-485 bus and uses differential signal transmission, offering strong anti-interference capabilities. Reliable signal transmission distances up to 1000 meters without repeaters meet the needs of large-scale projects.

 3.）Efficient Parallel Control: Data is broadcast to the bus, and each pixel "picks up" the corresponding instruction based on its set address. This master-slave architecture and parallel transmission mode ensure that even if a pixel is damaged, the signal can still be transmitted to subsequent pixels without any obstacles, resulting in extremely high system stability.

 Key Features of the UCS512G6 DMX512 LED Strip:

1. DMX512-Based Digital / Pixel Control

The UCS512G6 LED strip directly uses DMX512 signals (transmitted via RS485 differential A/B lines) to transfer control data, providing a more stable and industry-standard control method compared with traditional SPI control.

2. Grouped Addressability and High Gray-Scale Display

Each LED strip is usually configured with predefined pixel groups per meter (for example, 10 pixels per meter).
Each pixel contains multiple LEDs, such as RGBWW 5-in-1 LEDs.
artleds.com

The UCS512G6 IC supports high gray-scale dimming and rich color mixing, enabling smooth transitions and natural lighting effects.

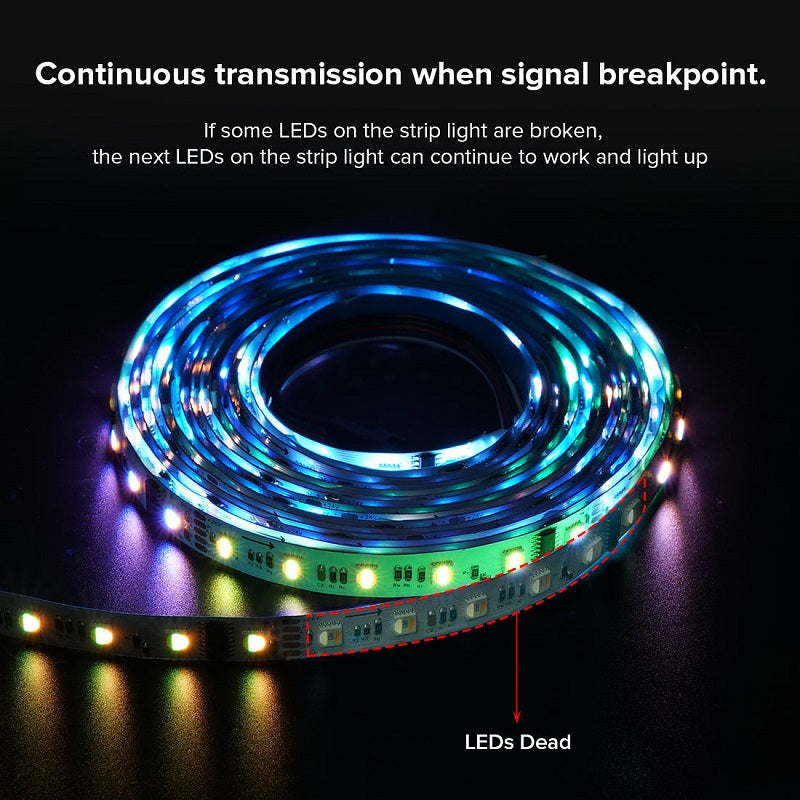

3. Parallel DMX Signal and Fault-Tolerant Performance

The UCS512G6 LED strip is typically designed to support parallel DMX512 signal transmission (A/B parallel).

Advantages include:

Each pixel segment receives balanced signals

A failure in one segment does not affect signal transmission of the entire LED strip

These features are especially important for stage lighting and large-scale decorative lighting applications.

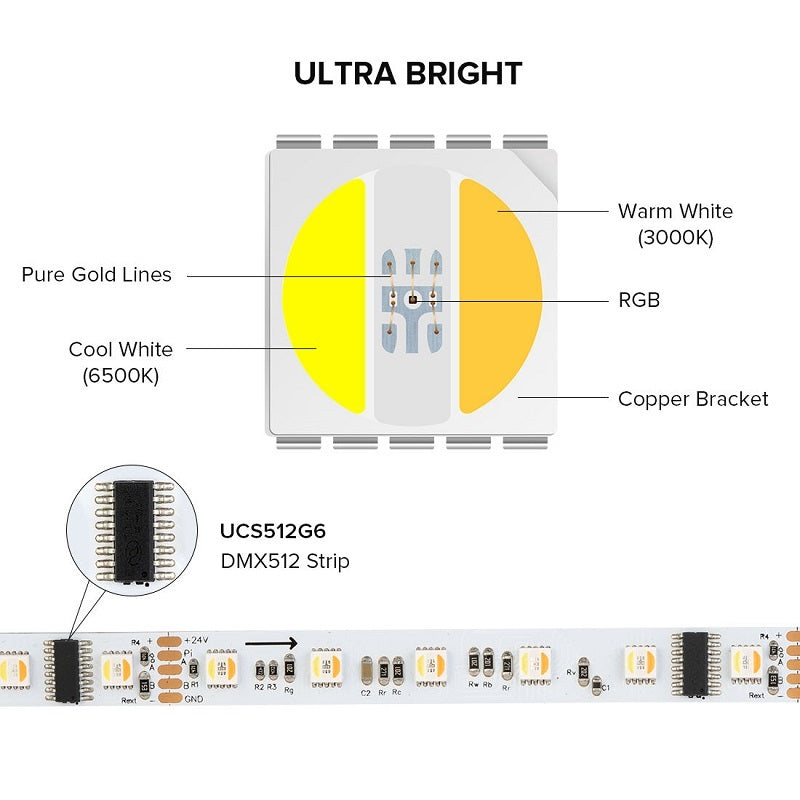

4. Multi-Color LEDs with Enhanced White Light Output

Common versions use RGBWW (RGB + Cool White + Warm White) or RGBCCT 5-in-1 LED structures.

Enables a wider range of color combinations and smoother white light transitions
Independent adjustment of cool white and warm white, making it more suitable for complex lighting effects

5. Standard Operating Parameters

 DMX512 LED Strip vs SPI LED Strip：

How to Choose a DMX512 LED Strip ？

 When purchasing, in addition to determining the required length, color temperature, and pixel density (number of LEDs per meter), the following points require special attention:

 1.）Key Hardware and Manufacturing Process：

 1.1）Potting Material and Waterproofing: For outdoor or humid environments, the waterproof rating must be considered (IP65 or higher is recommended). Use PU glue with strong adhesion and high hardness instead of silicone, as it effectively prevents moisture penetration and short circuits.

 1.2）Wires and Connectors: The quality of the signal cable directly affects stability. Choose connectors with solid silver-plated pins and full-size copper core wire (e.g., 0.75 square millimeters) to avoid poor contact or oxidation.

 1.3）Lamp Body Structure: For outdoor use, the thickness of the aluminum alloy casing should be at least 1.2mm to ensure sufficient structural strength to resist installation stress and thermal expansion and contraction.

 2.）Necessary Supporting Equipment：

 The DMX512 LED strip requires a control system to operate, mainly including:

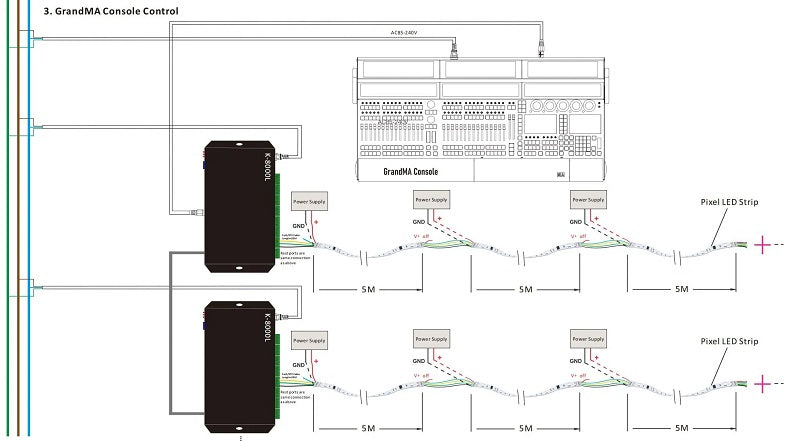

 2.1.）DMX Controller: The "brain" used for programming and sending control signals.

 2.2.）Decoder: Converts the DMX digital signal from the controller into a PWM drive signal that the LED strip can recognize.

 2.3.）Signal Amplifier/Repeater: Used to amplify and reshape the signal to prevent attenuation during ultra-long-distance cabling.

 2.4.）Technical Capability Assessment: It is essential to understand that the design of a DMX512 system (such as address code allocation and cabling planning), effects programming, and post-debugging typically require a certain level of professional technical knowledge or support from professionals. This complexity arises from its powerful functionality.

How to Choose and Precautions UCS512G6 DMX Led Strip？

When selecting UCS512G6 LED strips, consider the following:

1. Control Protocol Compatibility: Confirm that your DMX control system fully supports standard DMX512 signals and can handle UCS512G6 address writing.

This typically requires a DMX controller and a DMX512 → UCS signal interface device (or one with an address writer).

 2. LED Strip Specifications:

Pixel Density (pixels/m): Higher density results in finer details.

 LED Type: RGBWW/5-in-1 design enables richer colors and high-quality white light.

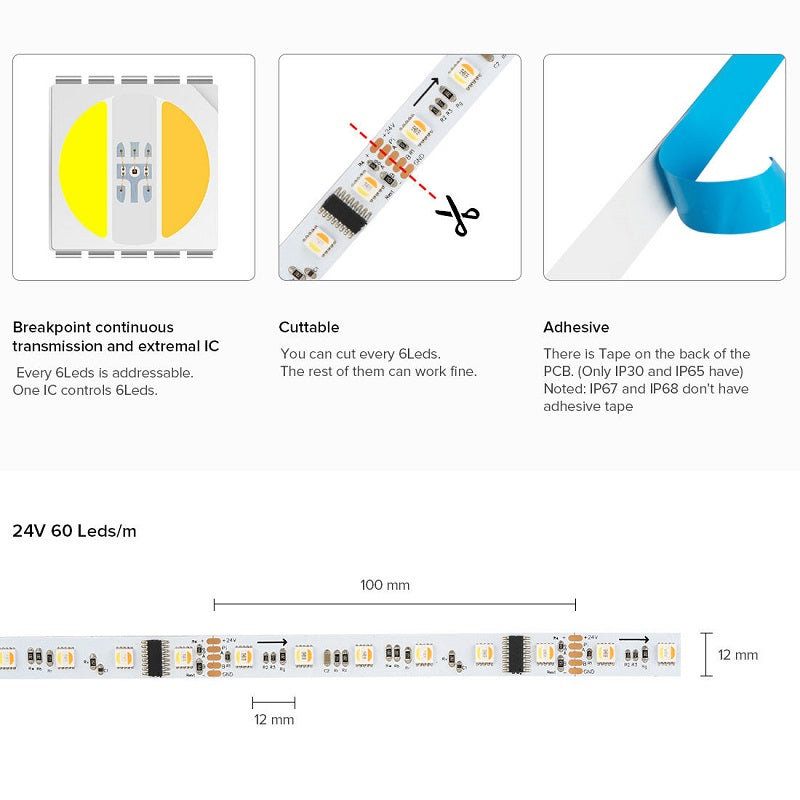

Cutting Unit: Confirm how many LEDs can be cut.

3. Control and Addressing Methods:

 UCS512G6 LED strips typically require an address to be written using a DMX address writer (e.g., setting the DMX address per pixel via a programmer) before they can be recognized by the controller.

4. Power Supply and Installation Environment

24V power supply is more suitable for longer LED strips (reducing voltage drop);

Select IP protection rating based on the usage location (indoor IP20 or outdoor IP65/67/68);

Installation method (includes 3M adhesive, silicone tubing for waterproofing, etc.).

5. Lighting Effects and Applications

Stage/Live Performances

Architectural Facade Lighting

Shopping Mall, Exhibition, Bar Lighting Decoration

These scenarios typically require high stability, wide color gamut, and detailed dynamic performance. The UCS512G6 LED strip is more suitable for such professional environments.

Main Application Scenarios: Thanks to its precise, stable, and scalable control capabilities, DMX512 LED strips are primarily used in professional fields with high standards for lighting effects:

 1.）Architectural Landscape Lighting: Used to outline building contours, render wall facades, and create dynamic light shows for urban landmarks, such as large shopping malls and office buildings.

 2.)Stage and Entertainment Venues: Core equipment for creating atmosphere and immersive visual experiences in theaters, concert halls, television studios, bars, and nightclubs.

 3.）Themed cultural tourism projects: Used in theme parks, scenic spots, and large fountains to create synchronized, story-driven, dynamic lighting narratives.

 4.）High-end commercial displays: Used in brand flagship stores, showrooms, hotels, and other spaces to enhance the technological and artistic feel of the environment through lighting changes.

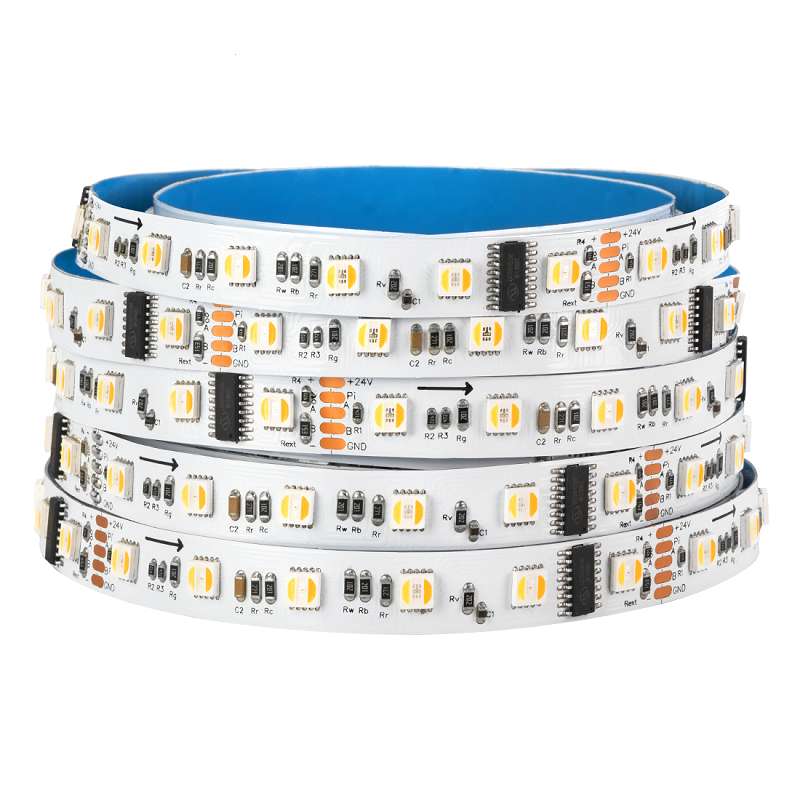

UCS512G6 DMX512 led strip product details:
