COB RGB WS2811 Pixel LED strip

Product Description:

COB RGB WS2811 Pixel LED strip is an addressable COB (Chip on Board) strip with a built-in intelligent control chip. It combines traditional COB continuous light technology with pixel-level control chip technology (similar to the WS2811/WS2812 series) to achieve a variety of dynamic lighting effects.

Easton Technology Co., Ltd.'s COB RGB  LED Strip products include 630leds/m. These products are available in 12V&24V specifications. They can also provide multiple protection levels such as IP20/IP65/IP67/IP68, and can be used in different application scenarios. Easton Technology can also provide power supplies, controllers, aluminum profiles and other related accessories. In addition, Easton Technology also provides customized services, including wire length, PCB width, LED QTY, connector specifications, logo, packaging, LED light strip length, etc.

COB RGB WS2811 Pixel  LED strip series：

PCB Color:
White: white PCB
Protection level:
(1) IP20 --- not waterproof, for indoor use
(2) IP65 --- silicone coating, easy to cut, for outdoor use
(3) IP67 --- silicone tube, needs to be resealed after cutting, for outdoor use
(4) IP68 --- waterproof by glue filling, can work underwater

COB RGB WS2811 Pixel  LED strip Features：

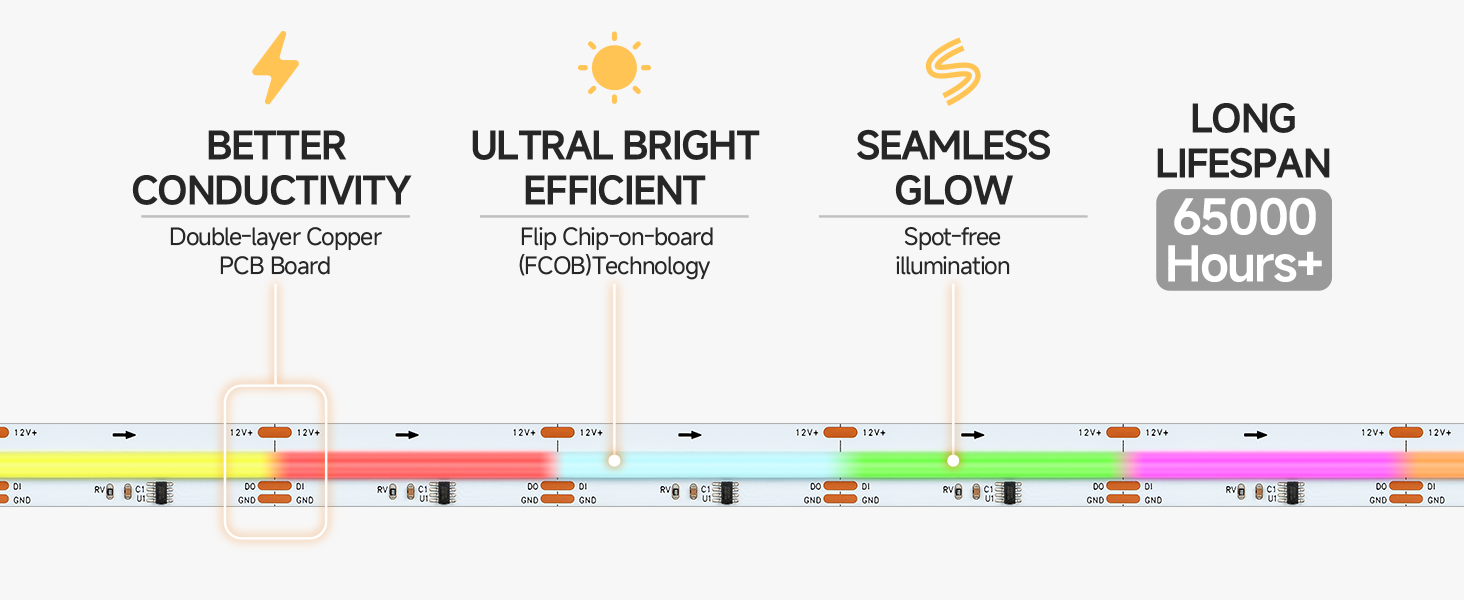

1. Providing uniform, soft light without graininess, the WS2811 RGB COB LED strip emits a continuous, uniform light strip, completely eliminating the individual LEDs and light spots of traditional LED strips. The visual effect is extremely comfortable, high-end, and glare-free, making it ideal for scenes requiring high-quality ambient lighting.

2. Fully addressable and independently programmable, the integrated WS2811 controller chip allows each LED group on the strip to be individually controlled. Through programming (using Arduino or Raspberry Pi), you can create any dynamic effect you can imagine, such as rainbow gradients, color chases, flowing lights, and rhythm synchronization, rather than relying on a single color for the entire strip.

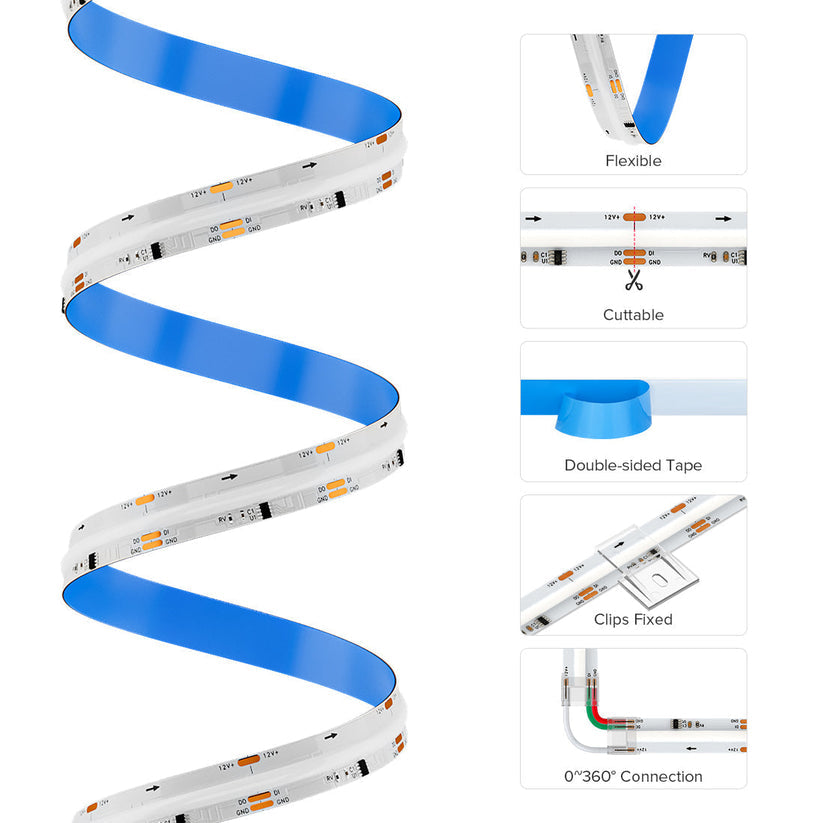

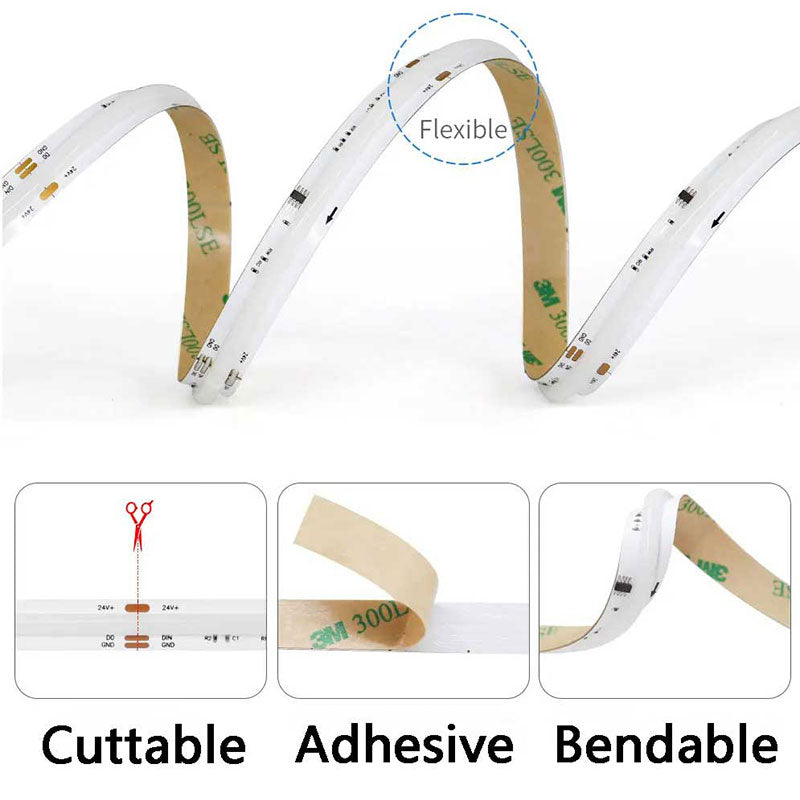

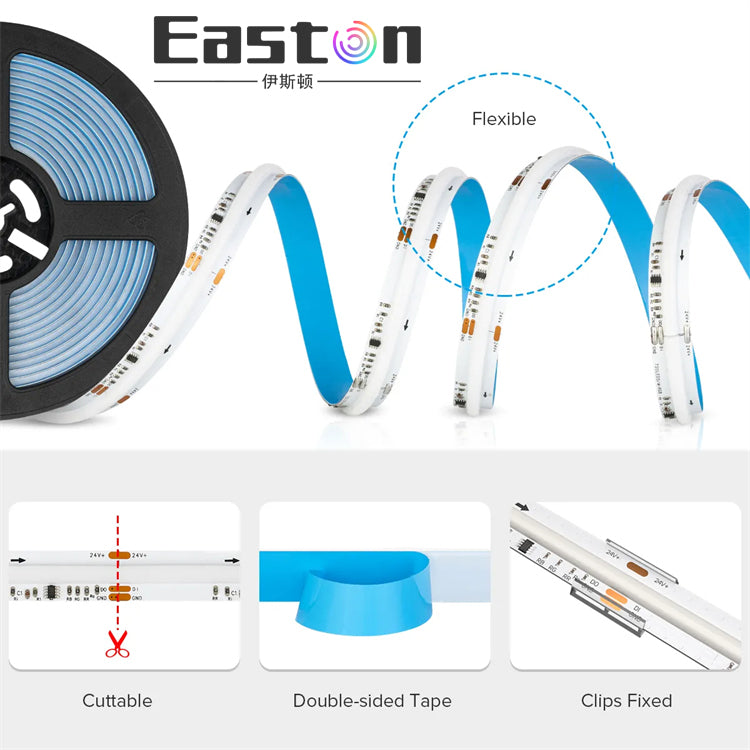

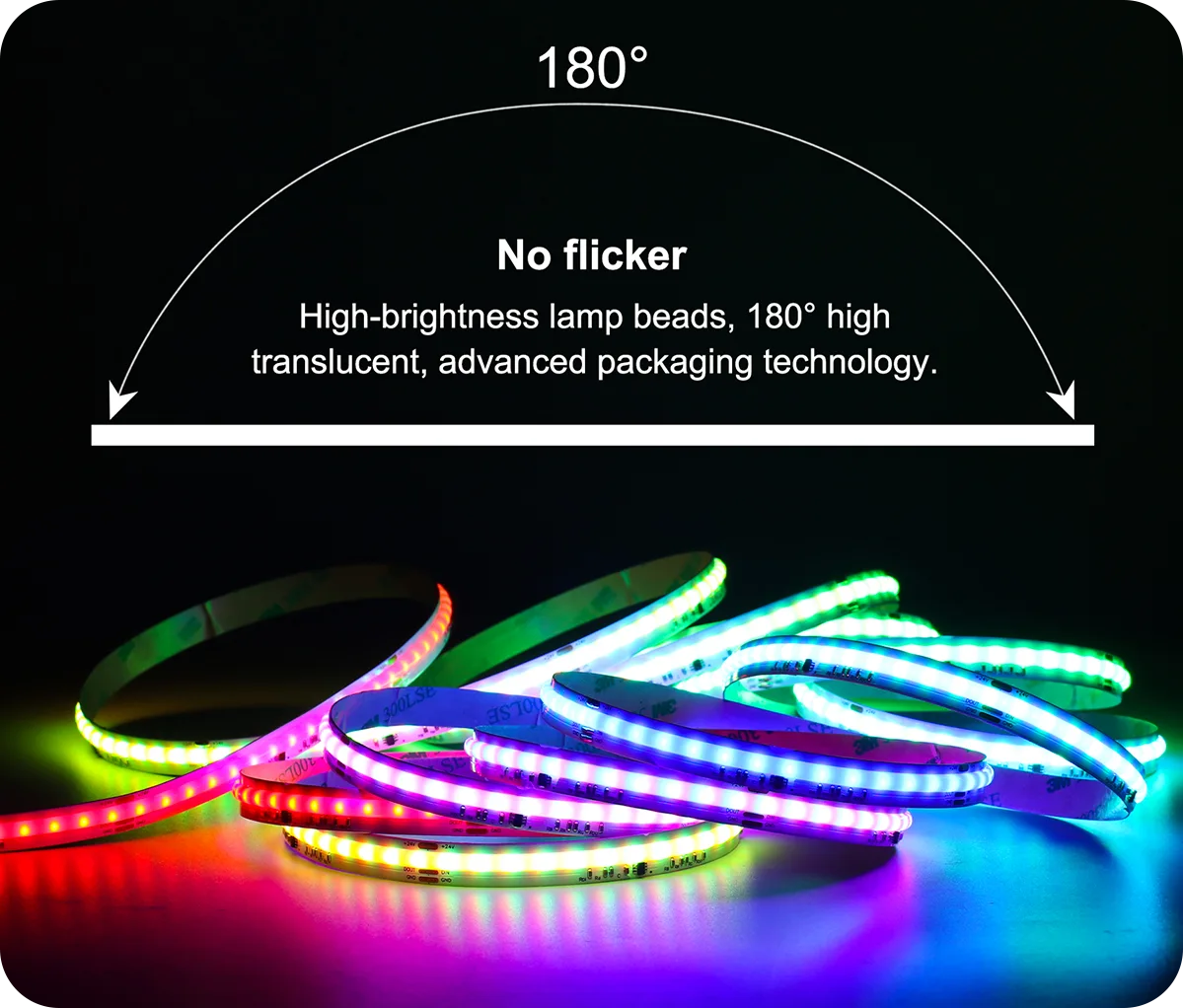

3. Wide beam angle and wide illumination range. The COB package creates a continuous, flat surface instead of discrete points, resulting in a beam angle of 180 degrees or more. This allows for more comprehensive illumination of the mounting surface. In applications such as light troughs and background walls, the light is dispersed more evenly, eliminating noticeable light-dark boundaries. 4. Flexible and easy to install. Using a flexible FPC circuit board, it can be easily bent and folded, and typically features 3M adhesive backing. It can conform to various curved and irregular mounting surfaces, such as round pillars and artistic shapes, making installation very convenient.

5. Highly reliable and durable. COB technology directly packages the LED chips onto the board, eliminating the solder pins of traditional SMD lamp beads, resulting in a more robust structure. It is more resistant to vibration and impact, reducing the risk of physical damage and extending its service life.

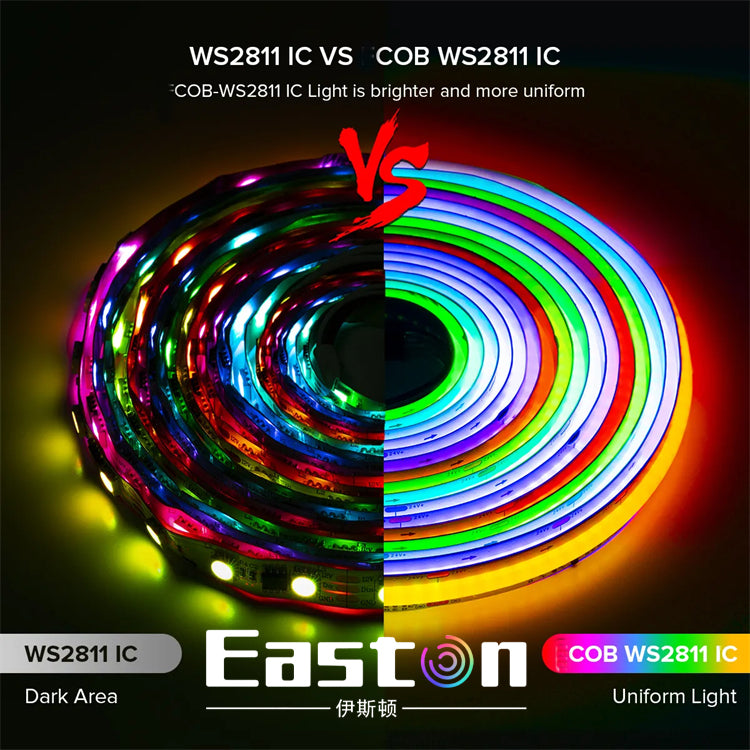

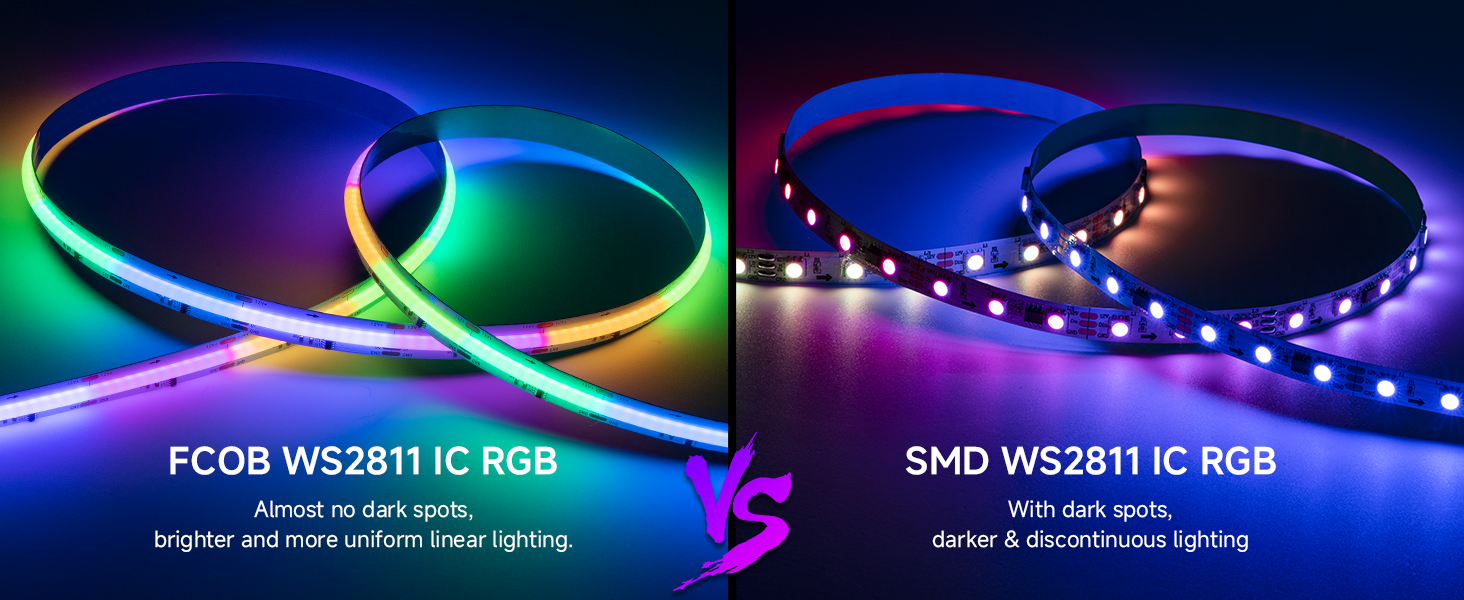

 COB RGB WS2811 Pixel  LED strip  VS SMD RGB WS2811 Pixel  LED strip：

The production process of COB led strip products of Easton Technology Co., Ltd. is:

1.) First coat the PCB pads with solder paste through an automatic solder paste machine. The coating uniformity and thickness of the solder paste determine the quality and flatness of the soldered chips, as well as the quality of the soldered chips; Apply solder paste

2.) Load the PCB board coated with solder paste on the carrier, input and set the die-bonding program of the chip through computer programming, adjust the direction and height of the die-bonding, and confirm the electrode direction of the chip;

3.) Do a small-batch die-bonding test first, and inspect the appearance quality of the solid-bonded PCB to determine the direction of the die-bonding, whether there is solder paste connected, and whether the position of the die-bonding is correct, and the inspected product will flow into the next process. ;

4.) Put the solid crystal PCB board and wafer into reflow soldering, set the temperature and speed of reflow soldering, solder the LED chip firmly in the reflow soldering, and conduct an electrical test after being released to test whether the LED chip emits normally. ;

5.) After testing the LED chip on the PCB board, carry out the powder mixing process of silica gel and phosphor powder, according to the photoelectric parameters such as color temperature and brightness specified by the customer, carry out different proportions of configuration, and carry out positive air defoaming of the prepared glue

6.) Fix the PCB board on the glue dispenser carrier for the glue dispensing process. The glue dispensing process is the most critical process for the success of the light strip. After dispensing, put the PCB board into the oven for baking. The glue from different manufacturers If the baking conditions are inconsistent, you must refer to the manufacturer's requirements for verification before setting the appropriate baking temperature.

7.) After the glue is dispensed, test the photoelectric parameters of the light strip to see if the test data meets the customer's requirements.

8.) After welding the 0.5-meter PCB board, connect it to the requirements ranging from 5-10 meters;

9.) Aging detection

10.) Pack the light strip with a reel after testing the adhesive;

11.) Check again after the reel, put it in an electrostatic bag, and pack it into a box

The differences between COB led strip products and SMT LED strip products of Easton Technology Co., Ltd. are as follows:

Notes on WS2811 COB RGB LED light strips:

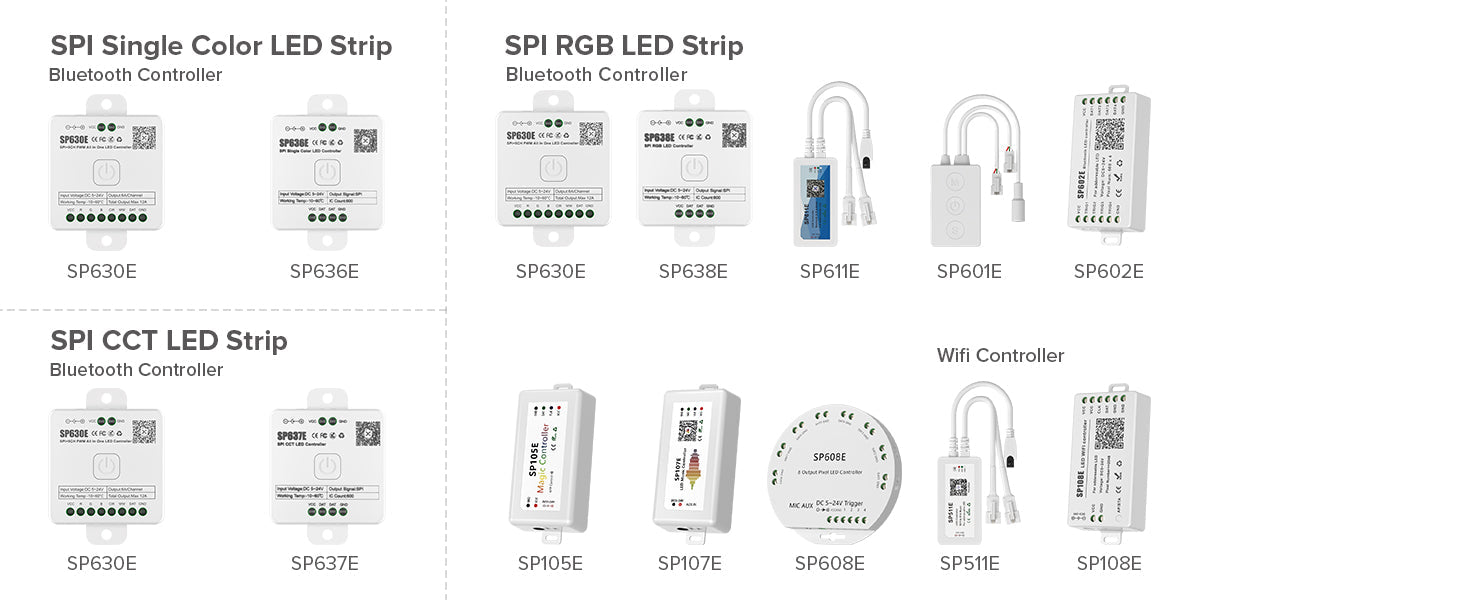

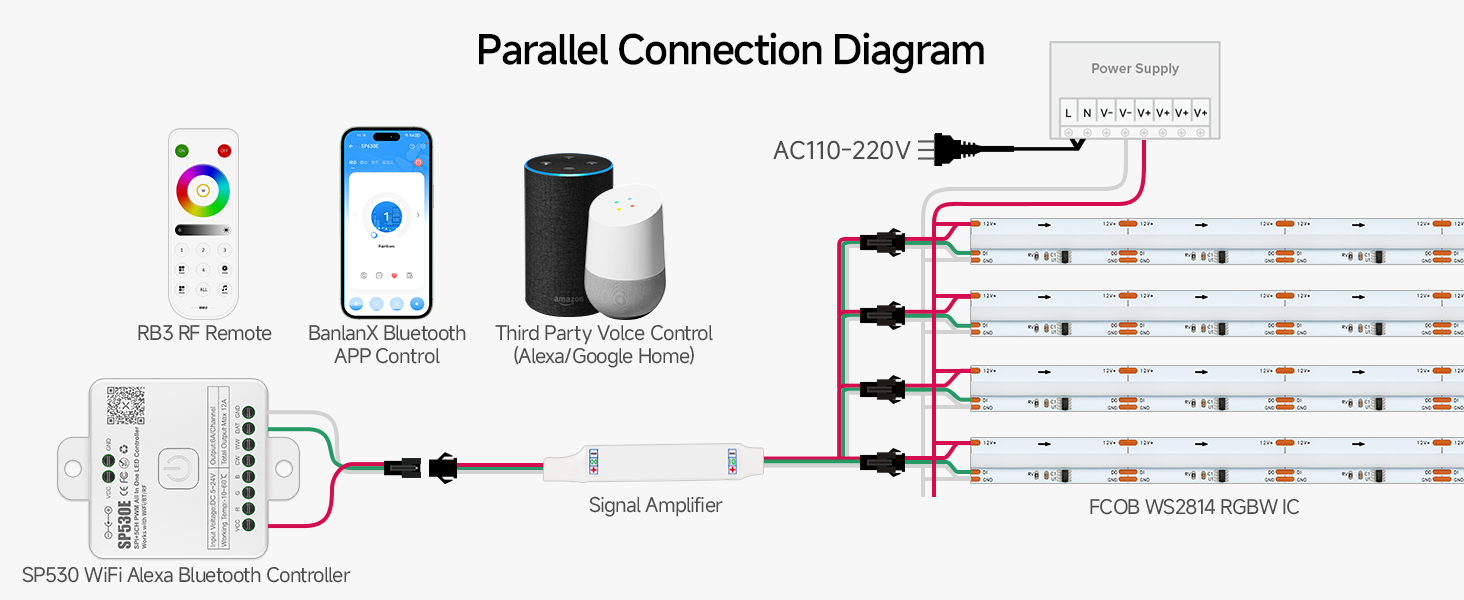

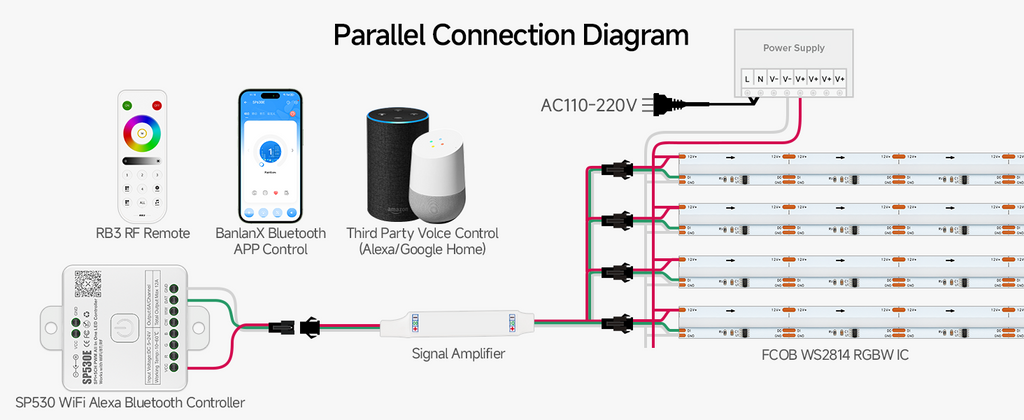

1. Controller and programming knowledge are required. As a digitally addressable light strip, it cannot be directly connected to a regular power source. It must be connected to a smart controller (such as the ESP8266 or Arduino) to utilize its programmable features. Users must have a basic programming foundation or be willing to learn and use existing control software.

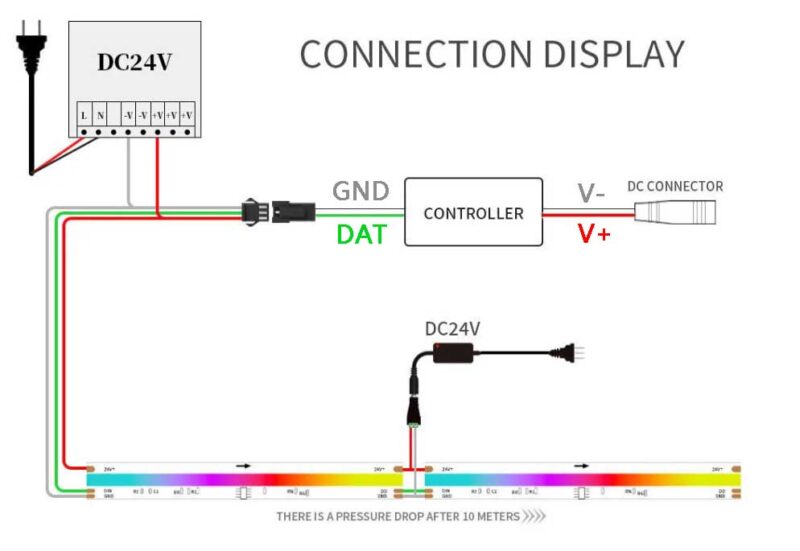

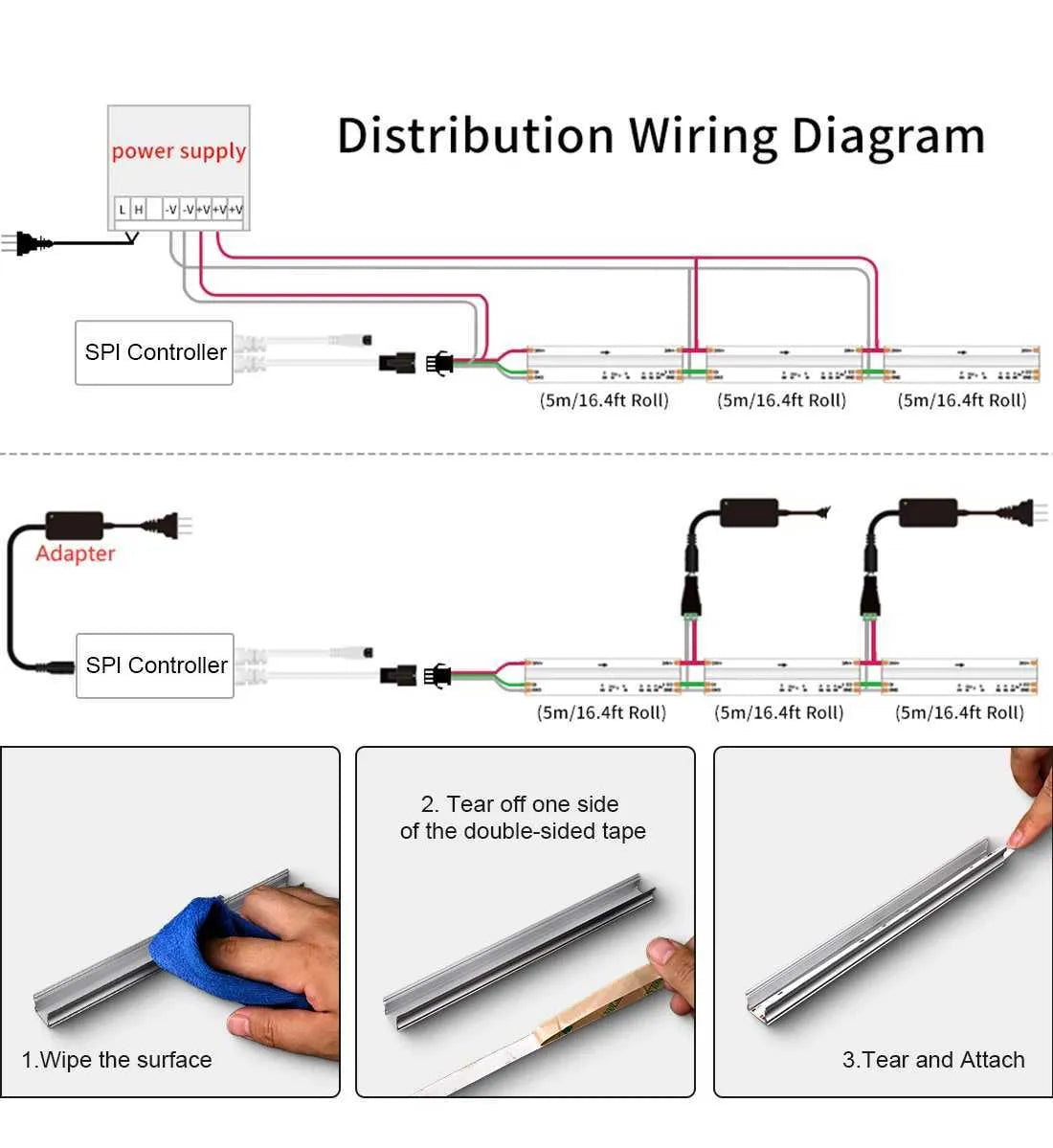

2. High power requirements, especially for long-distance, high-brightness, full-white light applications, require high current. A power adapter with sufficient power and voltage is essential. When used over long distances, it may be necessary to inject power from multiple points to prevent the LEDs at the end from dimming or discoloring due to voltage drops.

3. Heat management: COB light strips emit dense light and generate heat when running at high power. It is recommended that the light strips be affixed to aluminum profile slots. The aluminum slots not only provide a professional light output (like a lens), but more importantly, they also play a crucial role in heat dissipation, effectively extending the life of the light strip.

COB RGB WS2811 Pixel  LED strips have a wide range of applications. Their perfect combination of programmable dynamic effects and uniform, soft, high-quality lighting makes them an ideal choice for projects seeking an exceptional visual experience. The following are their main application scenarios, categorized into several broad categories:

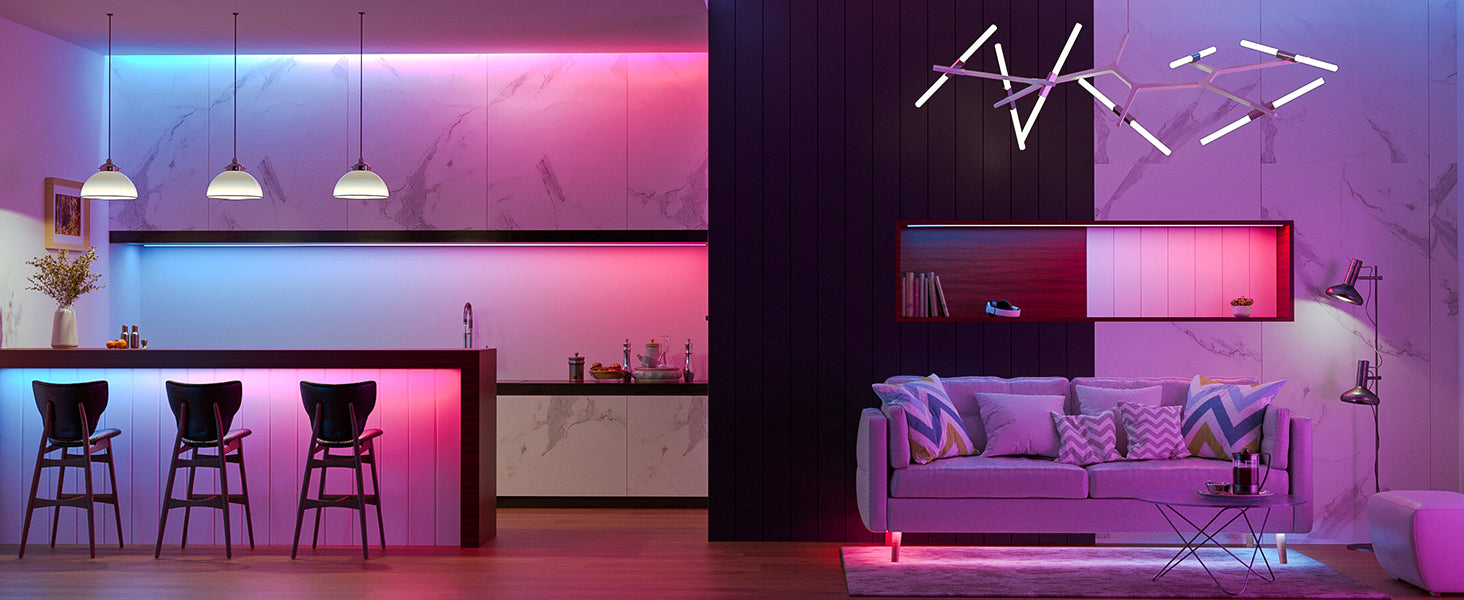

 1. Home Decor and Atmosphere Creation

This is the core application area for WS2811 COB light strips, which can greatly enhance the style and comfort of any home.

 Ceiling Troughs and Suspended Ceilings

 Application Description: Installed in ceiling troughs for indirect lighting.

 Advantages: The COB's uniform light pattern creates a smooth, soft light strip, completely free of the graininess of traditional light strips. Dynamic scenes such as sunrise wake-up and sunset sleep-inducing can be programmed to create a natural atmosphere for the entire room.

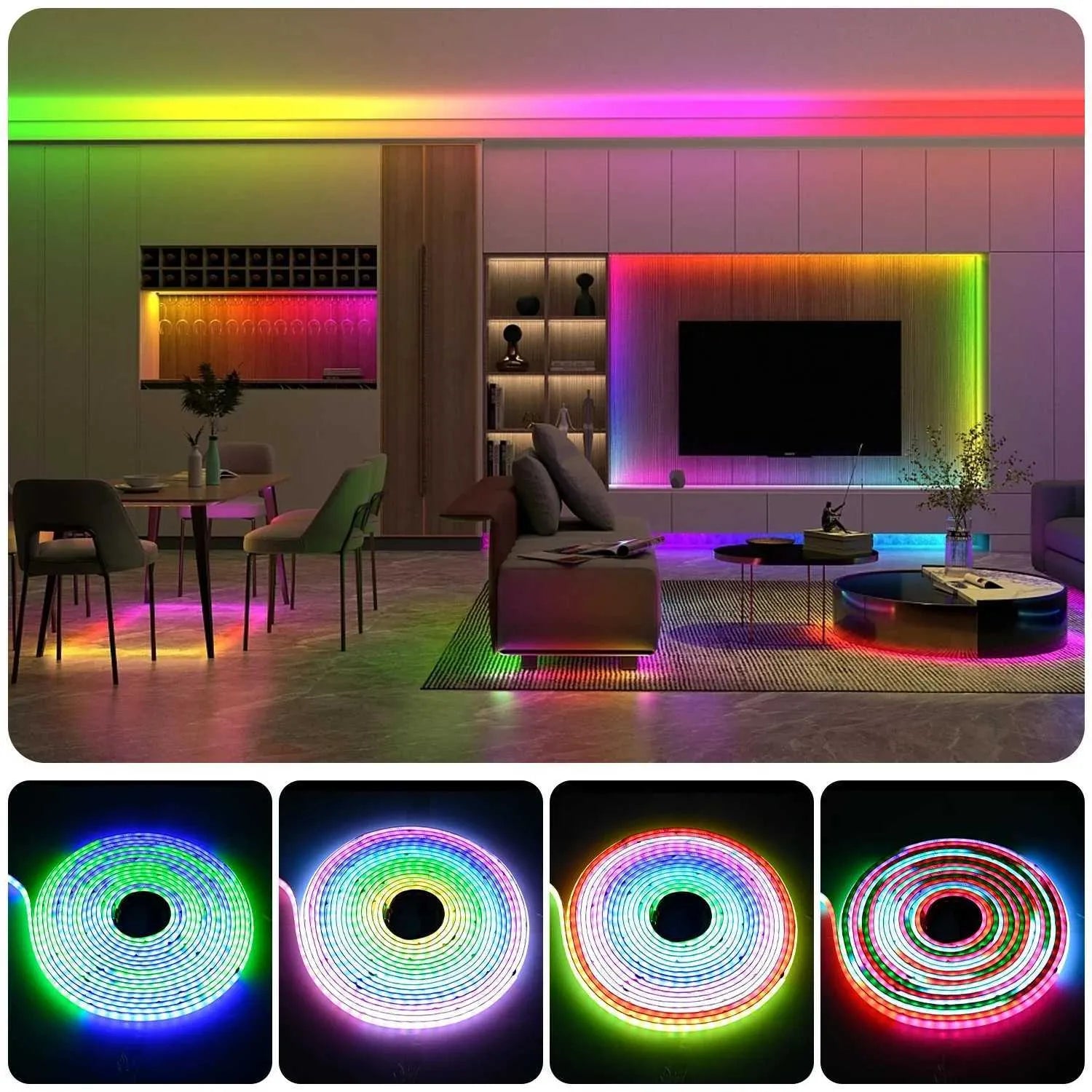

 TV Walls and Media Walls

 Application Description: Installed behind a TV or media stand, they can achieve popular "TV backlighting" or "ambiance synchronization" effects.

 Advantages: The uniform light distribution reduces visual fatigue, and the color of the light can be programmed to sync with the content on the TV screen (requiring specialized software such as Hyperion), delivering an immersive audiovisual experience. Kitchen Cabinets and Wardrobes

Application Description: Install under wall cabinets to illuminate countertops, or inside wardrobes and wine cabinets as sensor lighting.

Advantages: Evenly illuminates countertops without shadows. Opening a cabinet door triggers a soft glow, creating a practical and sophisticated look.

Stair Treads and Handrails

Application Description: Install along the edge of stair treads or under handrails.

Advantages: Not only does it provide safe nighttime illumination, but it can also be programmed to create dynamic effects like "flowing water" and "chasing," creating a striking visual effect in your home.

Bedrooms and Relaxing Areas

Application Description: Install under a bed frame, behind a headboard, or in an alcove.

Advantages: Create a relaxing private space, adjustable to warm tones for a cozy feel or cool tones for a tranquil atmosphere.

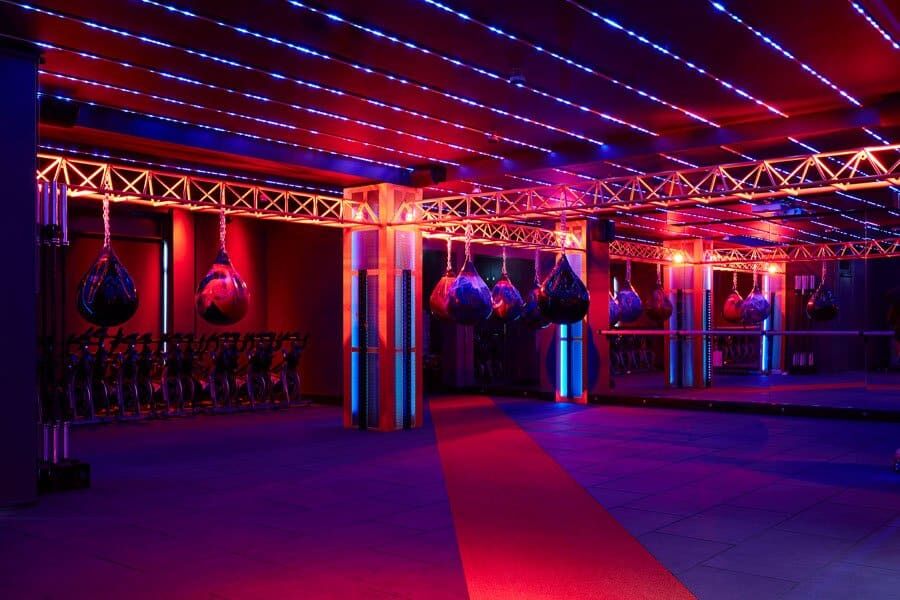

II. Commercial and Public Spaces

Enhance the brand image and customer experience of commercial spaces by leveraging its ability to capture attention and create a unique atmosphere.

Retail Stores and Window Displays

Application Description: Used to outline shelves, display cases, or window displays. Advantages: Uniform light perfectly highlights the quality of merchandise, while dynamic colors attract passersby's attention and can be used to change the theme to match promotional events.

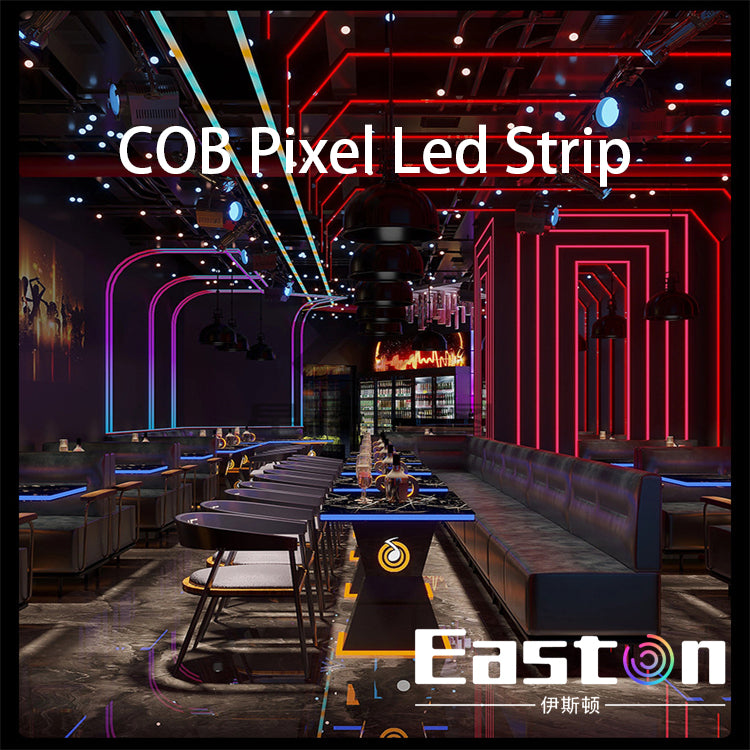

Bars, Restaurants, and Cafés

Applications: Installed under bar counters, behind booths, and along decorative wall moldings.

Advantages: Create a dynamic atmosphere consistent with the brand's tone, for example, by shifting the lighting to vibrant colors in the evening and a cozy warm light in the afternoon.

Hotels and Clubs

Applications: Suitable for contour and artistic lighting in areas such as lobbies, corridors, and guest rooms.

Advantages: High-quality, particle-free light significantly enhances the space's sense of luxury and design.

Exhibition Halls and Exhibition Halls

Applications: Used to define booth boundaries and highlight exhibits.

Advantages: Programmable features allow for customized lighting scenarios for different exhibition areas or themes, guiding visitors' attention.

III. Architectural Exterior and Landscape Lighting

The flexible and uniform light effect is ideal for outlining building outlines.

Architectural Contour Lighting

Applications: Installed along the edges of roofs, windows, and balconies. Advantages: COB light strips create a clear, continuous, seamless line of light, clearly outlining the majestic structure of a building at night.

Billboards and Signs

Applications: Used to illuminate the back and outline of shop signs or logos.

Advantages: Dynamic effects make billboards more eye-catching, while the uniform light ensures clear visibility from any angle.

IV. Creative DIY and Art Projects

For makers, artists, and DIY enthusiasts, it's an excellent tool for realizing their creativity.

Art Installations and Sculptures

Applications: Embed or attach light strips to artwork surfaces.

Advantages: Programmable control of light color, flow, and changes brings static artworks to life, telling dynamic stories.

Photography and Videography

Applications: Used as background light or creative fill light.

Advantages: The uniform light quality is ideal as a soft light source, and precise control of color temperature and color provides endless creative possibilities.

Customized Computer Cases and Car Interiors

Applications: Installed inside computer cases, under car seats, on dashboards, and other areas. Advantages: Create personalized cool lighting effects and control colors and modes through mobile phone apps or remote controls.

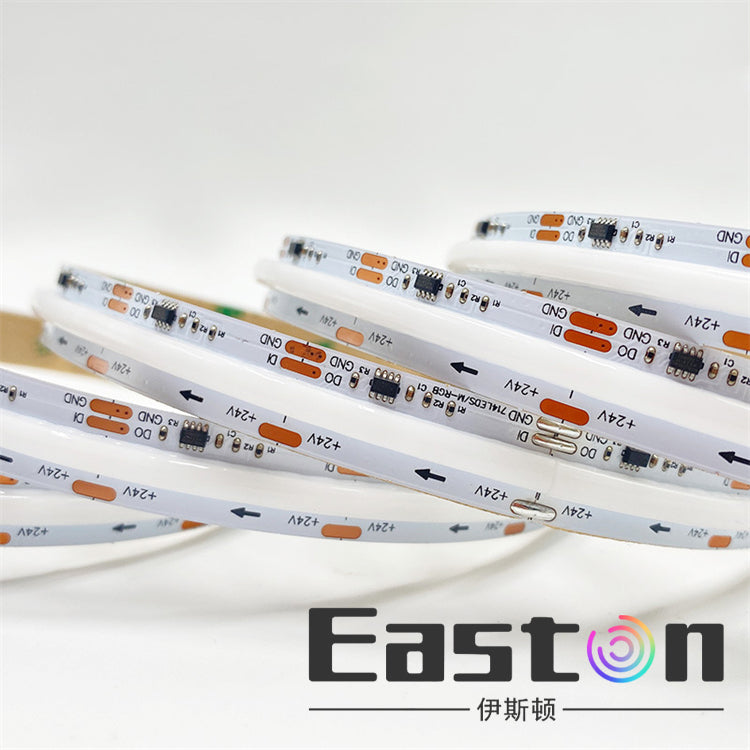

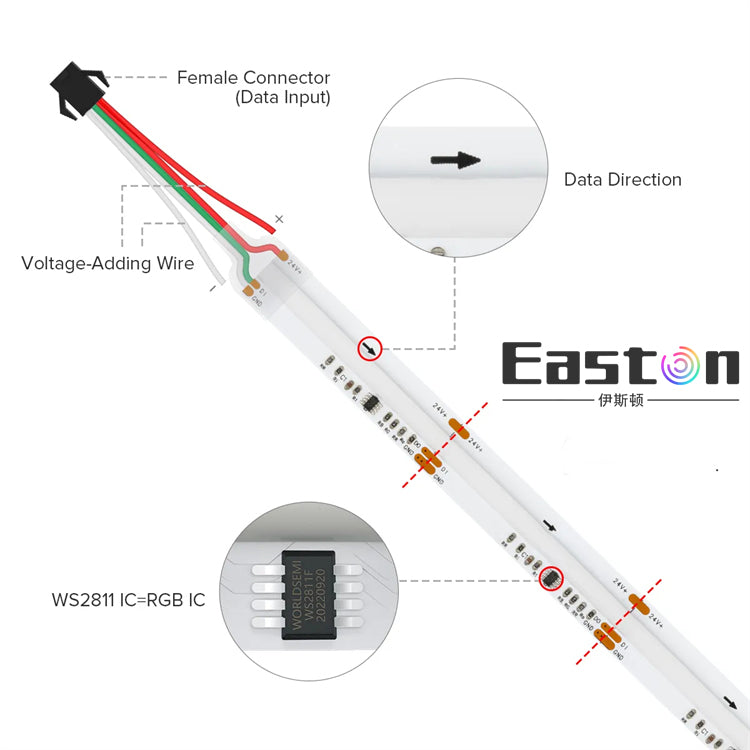

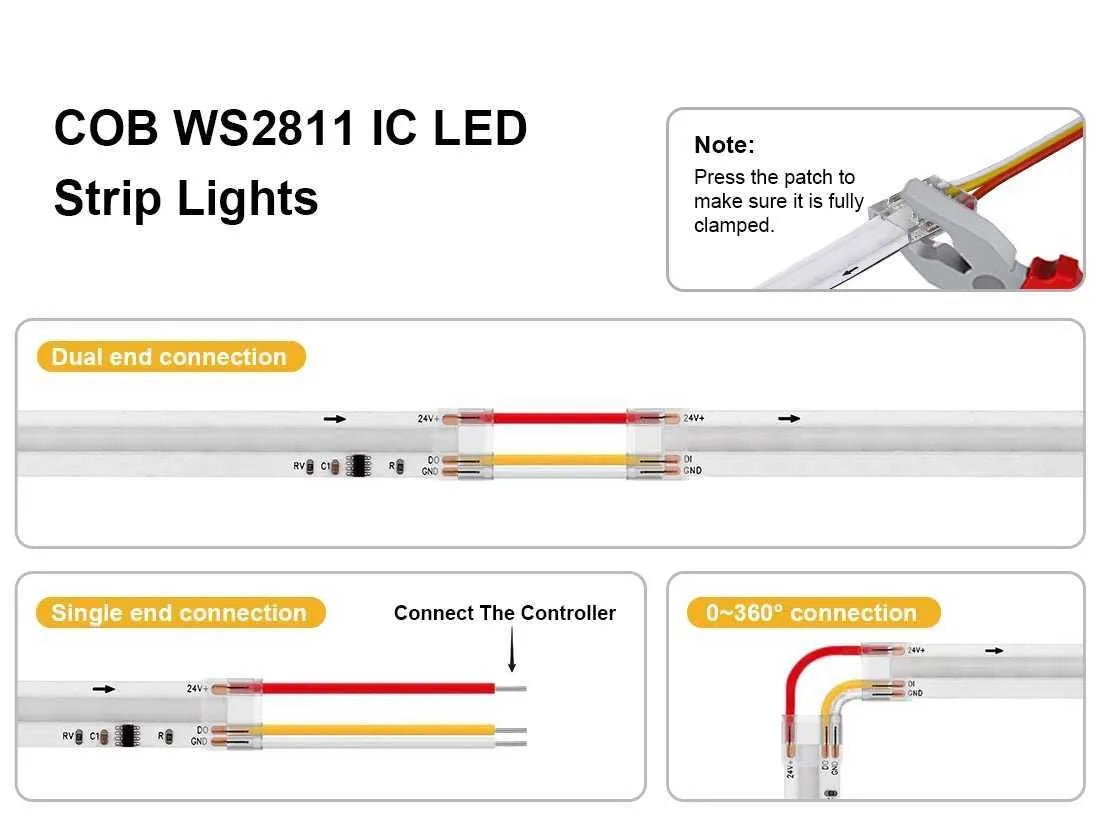

COB RGB WS2811 Pixel  LED strip product details:
